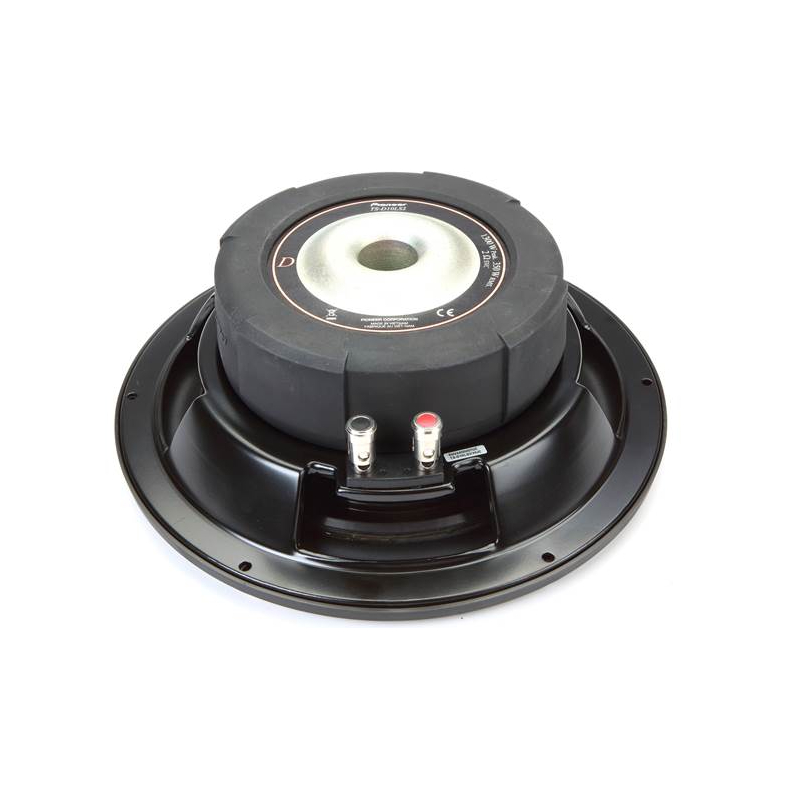

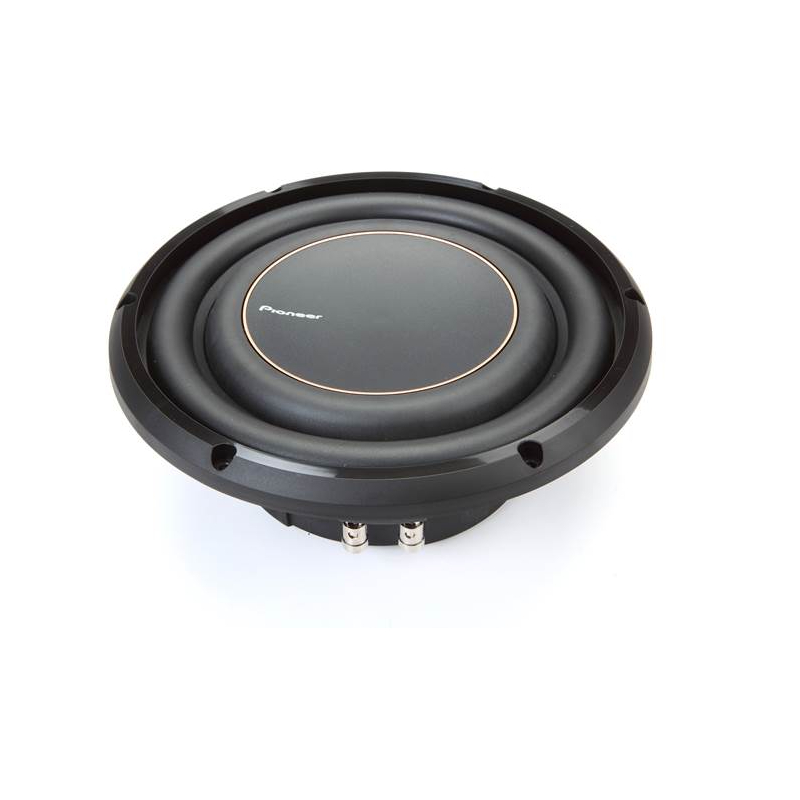

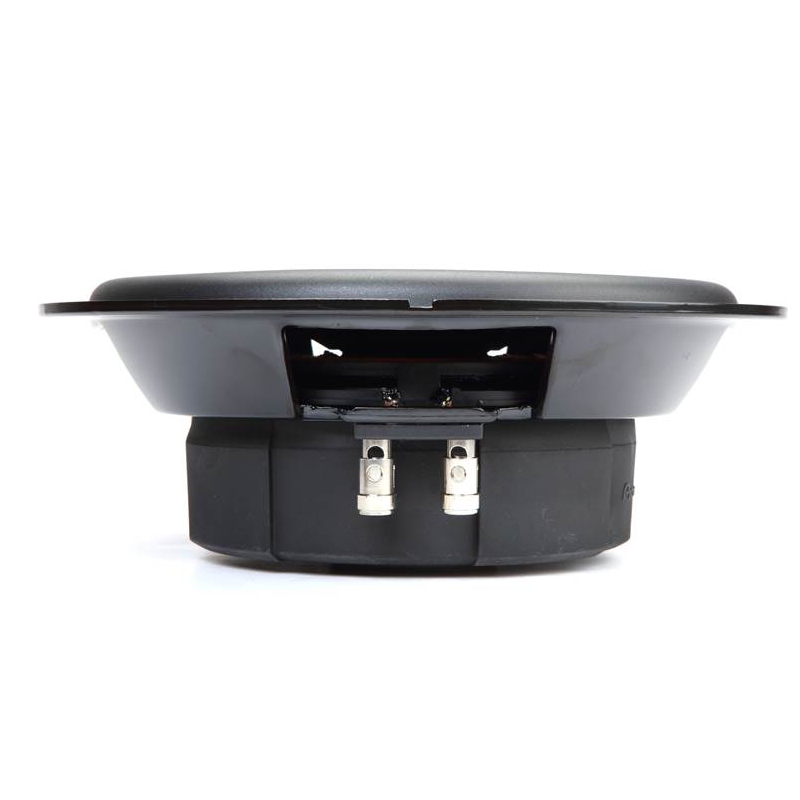

Pioneer TS-D10LS2 D Series 10" 350W RMS Single 2 Ohms Voice Coil Subwoofer
We are a Pioneer authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • (1) 10" Subwoofer
- • (1) Trim ring
- • (6) 1-1/8" Screws
- • (1) Adhesive backed foam gasket
- • (1) Warranty information
- • (1) Owner's Manual
Why Choose Pioneer TS-D10LS2 Component Car Subwoofer?
Compact Sub, Big Bass Energy
If you want deep bass without taking over your whole trunk, the Pioneer TS-D10LS2 is built for exactly that kind of setup. Its aramid fiber interlaced IMPP cone gives you extra rigidity compared to standard polypropylene, which means cleaner movement, less distortion, and tighter low-end performance. It’s the kind of sub that keeps your bass controlled even when you turn it up.
Built for Strong, Efficient Output
This subwoofer runs a single 2-ohm voice coil, designed for higher current flow and stronger output performance. That makes it a solid match for a wide range of car audio amplifiers, especially if you’re aiming for efficient power delivery. The result is bass that hits harder without feeling strained or unstable.
Enclosure Options That Fit Your Build
It is tuned to perform well in both sealed and ported setups. Sealed enclosures between 0.35 ft³ and 0.7 ft³ (with 0.6 ft³ ideal) give you tight, accurate bass for all music styles. If you want more output, a ported box from 0.5 ft³ to 0.7 ft³ with a 3-inch by 7.5-inch port delivers stronger efficiency and extra punch. Plus, its compact dimensions make it easy to fit into a wide range of vehicles without sacrificing space.
Frequently Asked Questions (FAQ)
- • Will this fit behind the rear seat of my truck?
Its shallow-mount design makes it suitable for many vehicles with limited installation depth. Always measure your available mounting space before purchasing.
- • Why does the bass sound weak even though the amplifier is powerful?
Weak bass is often caused by improper enclosure size, incorrect crossover settings, or reversed polarity. Confirm the enclosure matches the recommended specifications and retune the amplifier.
- • Can I install this in a sealed enclosure?
Yes. A properly built sealed enclosure provides accurate bass response while taking advantage of the shallow mounting design.
- • Why does the amplifier enter protect mode when I raise the volume?
This usually indicates an impedance mismatch, overheating, or a wiring problem. Verify the speaker wiring and ensure the amplifier supports the connected load.
- • Why is there a rattling sound coming from the enclosure?
Loose mounting screws, enclosure leaks, or vibrating trim panels are common causes. Tightening all hardware and sealing the enclosure can eliminate unwanted noise.
- • Do I need to break in the subwoofer before using full power?
Yes. A break-in period with moderate listening levels helps the suspension loosen naturally and promotes consistent long-term performance.
- • Why does the bass disappear when I switch music genres?
Different recordings have different bass levels and frequency ranges. Adjusting the equalizer and low-pass crossover can help create more consistent bass across your music library.
- • Can I replace my factory subwoofer with this model?
Yes, as long as the available space, enclosure, and amplifier are compatible. Some vehicles may require custom mounting brackets or installation accessories.
- • Why does the cone move too much during deep bass notes?
Excessive excursion may occur if the enclosure is improperly tuned or if the amplifier gain is set too high. Reducing the gain and using the recommended enclosure design can help prevent damage.
- • How can I improve bass quality without increasing the volume?
Proper enclosure construction, crossover adjustments, and amplifier tuning can greatly improve bass clarity and impact. Fine-tuning the system often delivers better results than simply raising the volume.
- Diameter : 10 Inch
- Sensitivity : 74 dB
- Impedance : 2 Ohm
- Frequency Response : 20-3400 Hz
- Peak Power Handling : 1300 Watts
- Number of Voice Coils : Single
- Suggested Sealed Box Volume : 0.6 Cubic ft.
- Suggested Ported Box Volume : 0.6 Cubic ft.
- Mounting Depth : 3.3 Inches
- RMS Power Handling : 350 Watts
- Free Air : Yes
Features:
- Woofer Cone Construction: Built with aramid fiber interlaced injection-molded polypropylene (IMPP), delivering enhanced rigidity compared to standard polypropylene for improved durability, reduced distortion, and accurate low-frequency reproduction.
- Single 2Ω Voice Coil Design: Equipped with a single 2-ohm voice coil optimized for higher current flow and strong output performance, providing efficient power handling and compatibility with a wide range of car audio amplifiers.
- Versatile Spring Post Terminals: Features spring post terminals compatible with pin connectors, single banana plugs, or bare wire up to 8 gauge, ensuring secure and adaptable wiring options for various installation setups.
- Optimized Sealed Enclosure Performance: Designed for sealed box applications with a recommended internal volume of 0.35 ft³ to 0.7 ft³, with 0.6 ft³ as the ideal balance for controlled, accurate, and tight bass response.
- Efficient Ported Enclosure Support: Compatible with vented enclosures ranging from 0.5 ft³ to 0.7 ft³, with 0.6 ft³ and a 3-inch diameter by 7.5-inch long port recommended for enhanced bass output and improved efficiency.
- Compact Installation Design: Engineered for flexible installation with a mounting height of 0.534 inches, flange height of 0.2 inches, and frame diameter of 10.3 inches for easy integration into a wide range of vehicle applications.
Specifications:
- System Type: Component Subwoofer
- Sensitivity (1W/1m): 74dB
- Frequency Range: 20 Hz to 3.4 kHz
- CTA-2031 Compliant: Yes
- Warranty: 1 Year
- Continuous Power handling (RMS) - Watts: 350 Watts
- Maximum Peak Power Handling - Watts: 1300 Watts
- Nominal Impedance - OHM: 2
- Speaker Grill: Sold separately (UD-10GL)
- Shape: Round
- Size: 10"
- Cone Material: IMPP - Aramid Fiber
- Center Cap Material: ABS
- Surround Material: Rubber
- Surround Type: Rolled
- Basket Material: Stamped Metal
- Magnet Material: Ferrite
- Magnet Weight: 43.4 oz
- Voice Coil Type: Single Voice
- Voice Coil Bobbin: Glass imide
- Voice Coil wire: Copper
- Damper: Aramid
- Gasket: PP
- Wire Terminals: Push Type
- Unit Size (Dimensions): 10-1/2"
- Mounting Depth: 3-1/4"
- Cut Out dimensions: 9"
- Equivalent Compliance (VAS) [L]: 15.4
- Free Air Resonance (Fs) [Hz]: 36
- Total Speaker "Q" (Qts): 0.75
- Linear Excursion (Xmax) [mm]: 7.9
- Recommended Sealed Box Volume [L]: 17
- Port Box volume [L]: 17
- Port Length: 7-1/2"
- Port Diameter: 3"
- UPC: 884938410298
- Weight: 10
