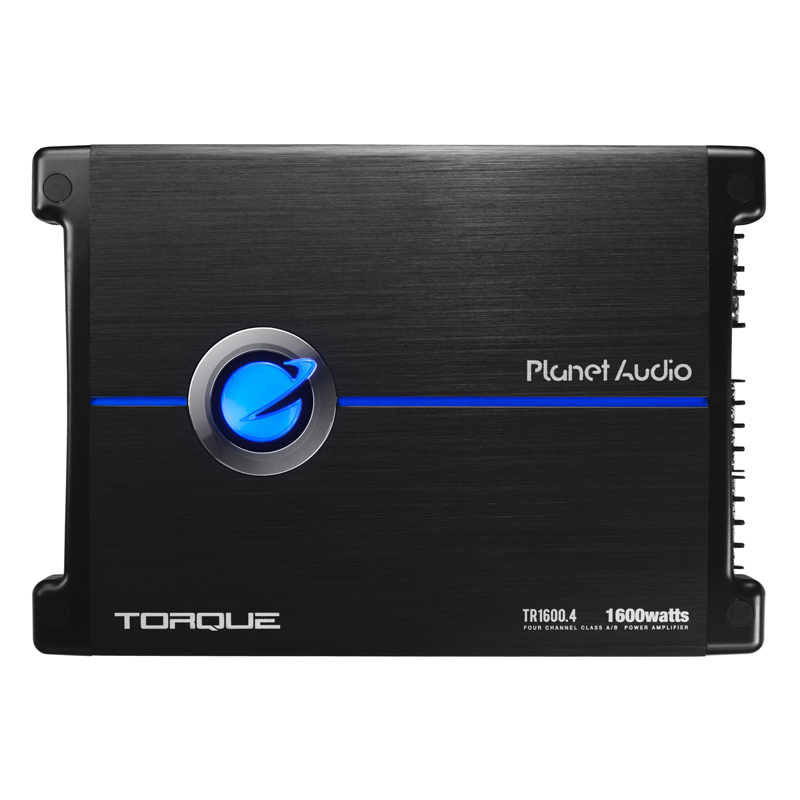

Planet Audio TR1600.4
TR1600.4 by Planet Audio is a 4 channel full-range amplifier. Equipped with both high and low-level inputs this amp provides enough flexibility for anyone building their own audio system.
- Maximum Power : 1600 Watts
- Number of Channels : 4
- Frequency Response : 20-20000 Hz
- Amplifier Class : A/B
- Fuse Rating : 25x2 A
Features:
- 1600 Watts Max Power 4 Channel
- 300 W X 4 RMS @ 2 ohm
- 150 W X 4 RMS @ 4 ohm
- 600 W X 2 RMS Bridged @ 4 ohm
- Full Range Class A/B, MOSFET Power Supply
- High and Low Level Inputs
- Variable High Pass Crossover, Variable Low Pass Crossover, Variable Bass Boost

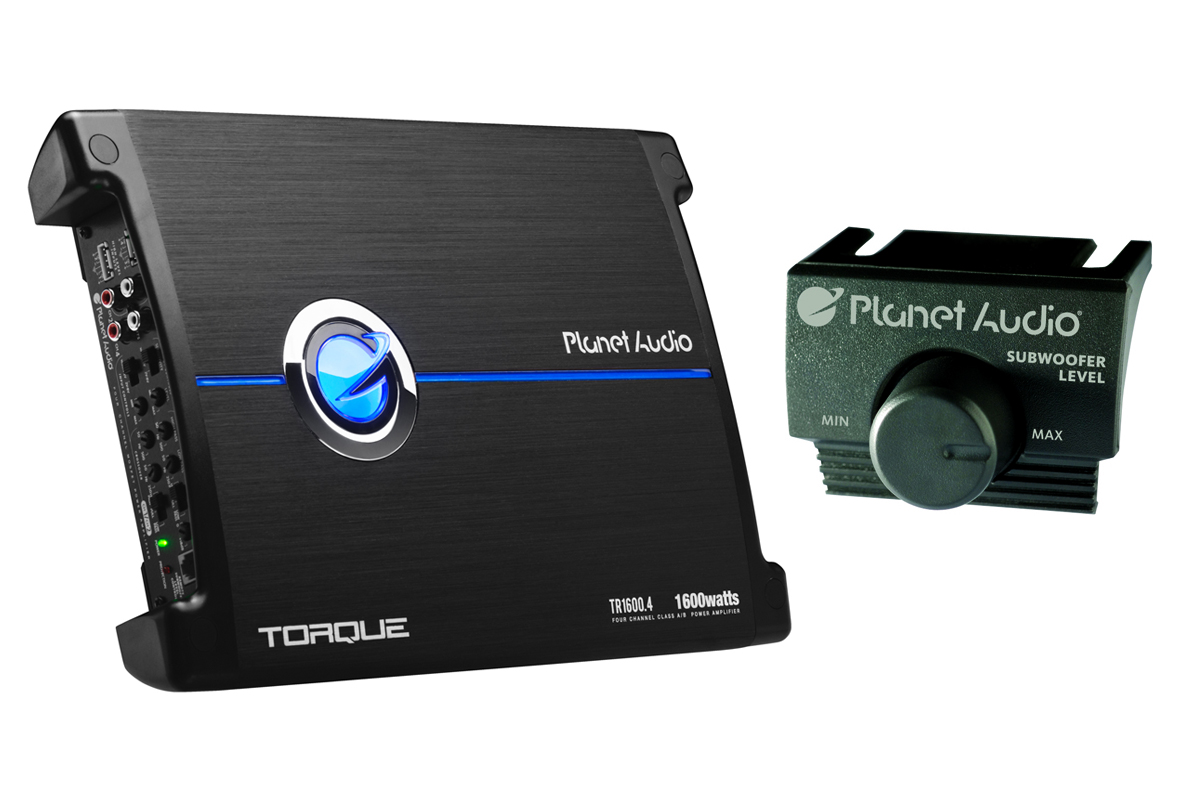

- Include Remote Subwoofer Control
- Blue Illuminated Planet Audio Logo
- Dimensions: 13.69" L x 9.5" W x 2.13" H
General Specs
- CHANNEL CONFIGURATION4/3/2 Channel
- POWER SUPPLY TYPEMOSFET Power Supply
- AMP TOPOLOGYFull Range Class A/B
Performance Specs
- TOTAL POWER OUTPUT: 1600 Watts
- PEAK POWER @ 2 Ohms 400 Watts x 4
- BRIDGED POWER @ 4 Ohms 800 Watts x 2
- RMS POWER @ 4 Ohms 150 Watts x 4
- SPEAKER IMPEDANCE2 to 8 Ohms
- CHANNEL SEPARATION ≥90 dB
- S/N RATIO (A-WEIGHTED)87 dB
- FREQUENCY RESPONSE20 Hz to 20 kHz ±1 dB

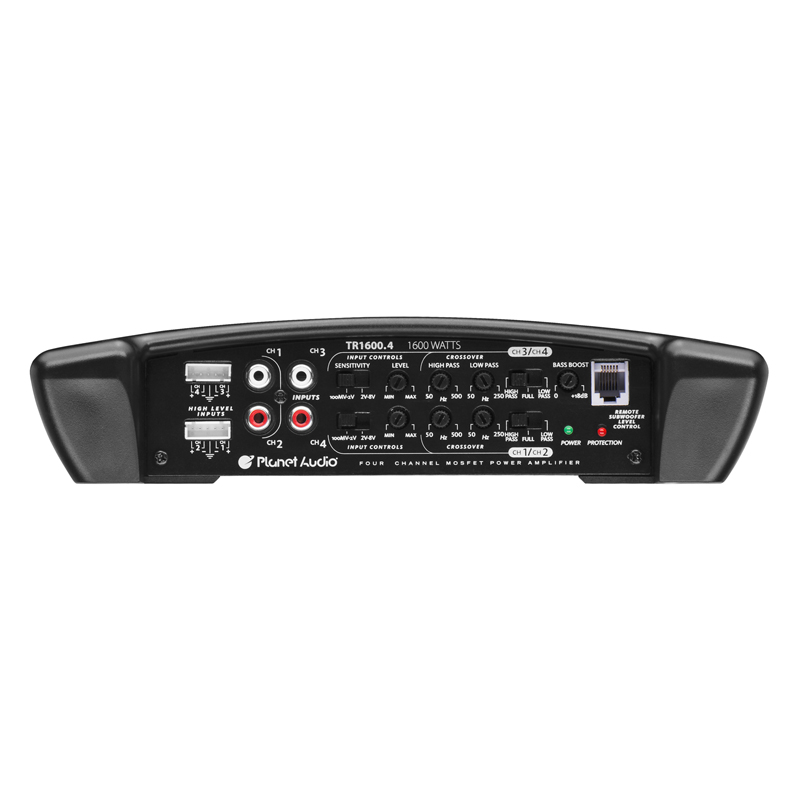

Connections, Controls, and Processing
- RCA INPUTS: 4 Channel
- HIGH LEVEL INPUTS: Yes
- LOW PASS FILTER: 50 Hz to 250 Hz
- HIGH-PASS FILTER: Variable 50 Hz to 500 Hz
- BASS BOOST: Variable 0 to 18 dB
- SUBWOOFER LEVEL CONTROL: Yes
- INPUT SENSITIVITY SWITCH: Yes
- THERMAL/OVERLOAD/SHORT PROTECTION: Yes
Measurement
- WIDTH: 9.5"
- HEIGHT: 2.125"
- LENGTH: 13.6875"
- UPC:
- Weight: 10
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
