Pioneer FH-S722BS 2-DIN Audio CD Receiver with Amazon Alexa, Pioneer Smart Sync, Bluetooth®, Android™, iPhone®
We are a Pioneer authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

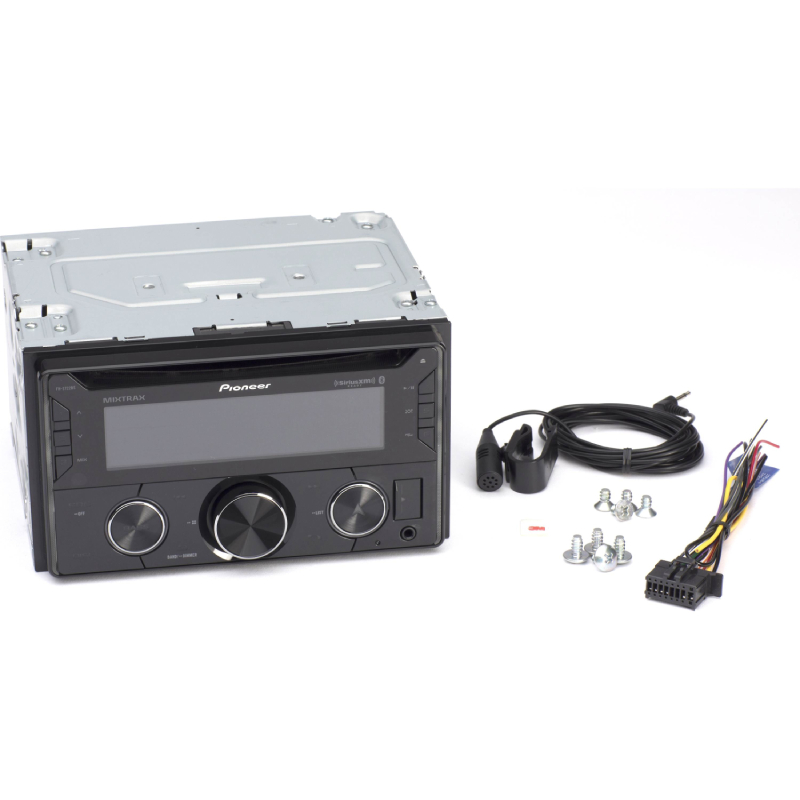

What's Inside?
- • CD receiver (10A fuse)
- • Wiring harness
- • Microphone w/ bracket (attached 10' cable terminated by a right-angle 2.5mm connector)
- • (12) Installation Screws
- • Quick Start Guide
- • (1) Year Warranty Sheet
- • Owner's Manual
Why Choose Pioneer FH-S722BS CD Receiver?
Smart Control, Smarter Driving
The Pioneer FH-S722BS brings your driving experience to a whole new level with Pioneer Smart Sync App Integration (iOS & Android). It turns your smartphone into a full command center, combining navigation, messaging, music, and audio controls in one clean interface. Add in Advanced Safe Driving & Voice Control, and you get one-touch front panel access plus voice recognition through the included mic, so you can keep your hands on the wheel while handling calls, switching tracks, or getting directions effortlessly.
Full Entertainment Powerhouse in Your Dash
Built for serious music lovers, this receiver offers broad streaming and media compatibility—including Spotify, Pandora, Tidal, CD, USB, AUX, and AM/FM. Featuring Bluetooth 4.0 with dual-phone pairing, it allows smooth wireless streaming, hands-free calling, and easy phone switching, while full high-resolution support ensures clean playback for MP3, AAC, WAV, WMA, and FLAC files with track details displayed on screen.
Precision Sound, Premium Performance & Full Control
This unit delivers advanced audio tuning—featuring a 31-band EQ, Super Todoroki bass enhancement, Live Simulation, and Easy Sound Fit acoustic adjustment—powered by a 24-bit DAC and MOSFET amplifier (50W x 4) for high-volume, low-distortion clarity. It includes Siri Eyes-Free, multi-format media playback, Pandora and SiriusXM support, customizable MIXTRAX lighting, and 4V pre-outs with full crossover control for complete system expansion.
Frequently Asked Questions (FAQ)
- • Why won't the receiver power on after installation?
This is usually caused by an incorrect wiring connection or a blown fuse. Verify the power, ground, and ignition wires before replacing any components.
- • Why does the display freeze or become unresponsive?
A temporary software glitch or unstable power supply can cause the receiver to freeze. Performing a reset and checking the vehicle's electrical connections often resolves the issue.
- • Why can't people hear me clearly during Bluetooth calls?
The external microphone may be mounted too far away or positioned near an air vent. Relocating the microphone closer to the driver usually improves voice clarity.
- • Why does it keep asking me to pair my phone again?
Corrupted Bluetooth pairing data or phone software updates can erase saved connections. Removing the old pairing and reconnecting the phone typically fixes the problem.
- • Why does my music sound different between Bluetooth and CD playback?
Bluetooth audio quality depends on the phone, streaming app, and compression method. CDs generally provide higher-quality audio because they use uncompressed digital data.
- • Can I use voice commands without touching the receiver?
Yes. Compatible smartphones allow access to supported voice assistants when properly connected through Bluetooth or USB.
- • Why does the volume suddenly change between songs?
Different recordings and streaming services often have varying audio levels. Enabling loudness or adjusting the equalizer can help create more consistent playback.
- • Why won't it recognize my iPhone after an iOS update?
Major iOS updates can occasionally affect compatibility until the connection is re-established. Restart both devices and reconnect using a certified USB cable.
- • Why does the CD eject by itself?
This may happen if the disc is warped, damaged, or cannot be read properly. Try another clean disc to determine whether the issue is with the media or the receiver.
- • Can I expand my system with additional amplifiers later?
Yes. The receiver includes preamp outputs that allow future upgrades with external amplifiers and additional audio components.
- Satellite Radio Ready : Yes
- DIN : 2
- Preamp Voltage : 4 volts
- Bluetooth : Yes
- Aux Input : Yes
- MP3 Playback : Yes
- WMA Playback : Yes
- Preamp Outputs : Front, Rear & Sub
- Apple CarPlay : No
- Android Auto : No
Features:

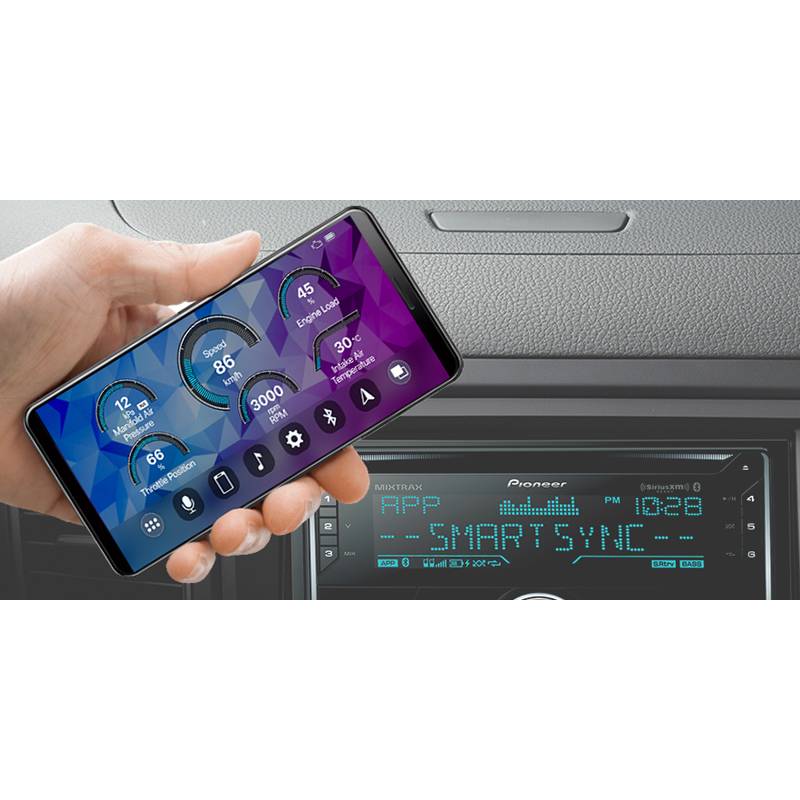

- Pioneer Smart Sync App Integration (iOS & Android): Seamlessly connects your smartphone via USB or Bluetooth to integrate navigation, messaging, music, and audio controls into a unified app-based interface for safer and smarter in-car use.
- Advanced Safe Driving & Voice Control: Enables one-touch access from the front panel and voice recognition via included microphone, allowing hands-free control of calls, music, navigation, and messaging.
- Comprehensive Media & Streaming Compatibility: Supports popular streaming services such as Spotify, Pandora, Tidal, YouTube Music, SoundCloud, and TuneIn, alongside CD, USB, AM/FM radio, and AUX input for versatile playback options.
- Advanced Bluetooth 4.0 with Dual Phone Pairing: Provides stable wireless calling and audio streaming with phonebook transfer, call history access, voice dialing, and dual phone connection for seamless device switching.
- High-Resolution Audio Format Support: Plays MP3, AAC, WAV, WMA, and FLAC files via USB or Bluetooth while displaying full metadata including song, artist, album, and track details.
- Advanced 31-Band EQ & Sound Customization: Offers precise tuning with a 31-band equalizer plus Super Todoroki bass enhancement, Live Simulation effects, and Easy Sound Fit for optimized in-car acoustics.
- Premium Audio Performance with MOSFET Amplification: Delivers up to 50W x 4 output with a 24-bit DAC and efficient MOSFET amplifier design for clear, powerful, and low-distortion sound reproduction.
- Siri Eyes-Free & Voice Assistant Support: Enables hands-free Siri access for iPhone users, allowing voice-controlled calling, messaging, navigation, reminders, and music playback.
- Pandora & SiriusXM Ready Compatibility: Supports direct Pandora control and optional SiriusXM satellite radio expansion for access to extensive entertainment content.
- Multi-Format Disc and USB Playback: Supports CD, USB, and digital file playback with folder browsing, repeat/shuffle functions, and full ID3 tag information display for easy navigation.
- AM/FM Supertuner IIID with RDS: Enhances radio reception quality with reduced interference while displaying station, artist, and song information when available.

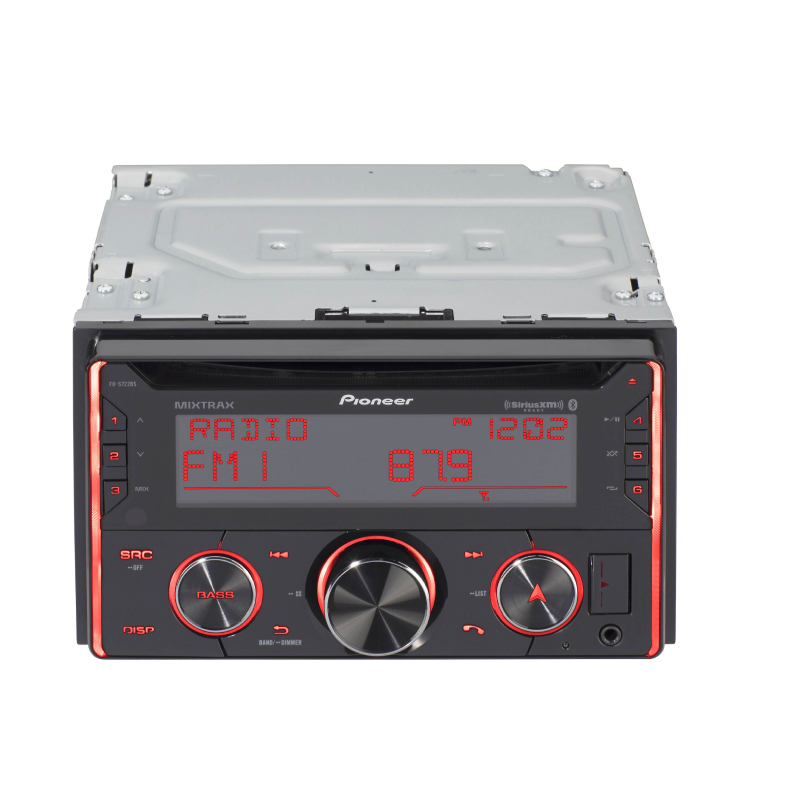

- Custom Display, MIXTRAX & Illumination Control: Features a 2-line LCD display, over 210,000 color customization options, brightness/dimmer control, detachable face security, and dynamic MIXTRAX lighting effects.
- Flexible System Expansion & Audio Control: Includes 4V pre-outs, subwoofer control, built-in crossovers, time alignment, and steering wheel control compatibility for advanced system integration.
Specifications:
STANDARDS:
PERFORMANCE:
- Continuous Power Output: 22 W x 4-Channel
- Load Impedance Allowance: 4 Ohm (4 Ohm to 8 Ohm Allowable)
- Max Power Output: 50 W x 4-ch 4 ohm / 50 W x 2-ch 4 ohm 70 W X 1-ch (subwoofer) 2 Ohm
- RCA Preamp Outputs: 6-ch
- RCA Pre-out: 4V
- RMS Power Output (CTA-2006): 14 W RMS x 4-ch 4 ohm
DISPLAY:
- Back Light: LED
- Brightness Control: Yes
- Color Customization: 210000 Colors, dual zone
- Device (Non-DIN/Modular Unit): 2-DIN
- Device Display: VA LCD (2-Line)
- Dimmer: Automatic with vehicle illumination, Timer Controlled, Manual
BLUETOOTH:
- Advanced Audio Distribution Profile (A2DP): Yes
- AVRCP: 1.6
- Built-in Bluetooth®: Yes
- Dual Phone Connection: Yes
- Hands Free Version: 1.6
- Hands-Free: Yes
- Microphone Included: Included
- Phone Registration: 5-phone
- Secure Simple Pairing (SSP): Yes
- Serial Port Profile (SPP): Yes
- Sound Retriever Air: Mode 1/Mode 2/Off
TUNER:
- Best Station Memory: Yes
- Local Seek tuning: Yes
- Presets: 18 FM, 6 AM
- RDS: Yes
- SiriusXM-Ready™ (Tuner Sold Separately): Yes
INTEGRATION:
- Amazon Alexa: Paired with Pioneer Smart Sync
- Mobile Operating System: Android / Apple iOS
- Pandora®: Source through iPhone/Android
- Pioneer App Compatibility: Pioneer Smart Sync Android, Pioneer Smart Sync iPhone
- Siri® Eyes Free (VR) (Internet Required): iPhone Only
- Spotify: Streaming audio through iPhone/Android via Bluetooth or AUX input
- Voice Control: Yes
DIGITAL MEDIA PLAYBACK:
- Audio Playback via CD: AAC Audio Playback / MP3 Audio Playback / WAV Audio Playback / WMA Audio Playback
- Audio Playback via USB: MP3 Audio Playback / WMA Audio Playback / AAC Audio Playback / FLAC Audio Playback (Hi-Res) / WAV Audio Playback (Hi-Res)
AUDIO:
- Advanced Sound Retriever: Mode-1/Mode-2/Off
- Balance: Yes
- Built-in Amplifier: MOSFET 50 W x 4
- Crossover Network Mode: HPF/Band Pass/LPF
- Crossover Standard Mode: HPF/LPF
- Customizable Graphic Equalizer: 13 Band, 31 Band with Pioneer Smart Sync app
- DA Converter: 24 Bit
- Digital Signal Processor: Built In
- Dynamic Bass Enhancer: Off/Low/High
- Easy EQ (EEQ) Preset Equalizer: Yes
- Fade: Yes
- Listening Position Selector: Yes
- Loudness: High/Mid/Low/Off
- MIXTRAX®: Yes
- Source Level Adjuster: Yes
- Speaker Output: 4-ch
- Spectrum Analyzer: Yes
- Subwoofer Control: Yes
- Time Alignment: Manual
EXPANDABILITY:
- USB: Front Type-A (5V, 1-1/2 A)
- USB Direct Control for iPhone®: 5s and newer
INPUTS:
GENERAL:
- Detachable Face Security: Fixed
- Multi-Language Display: English, French, Spanish
- Music Browser: USB / With Smart Sync App
- Remote Control: Optional
- Rotary Volume Control: Yes
- Steering Wheel Control Ready (Adapter Sold Separately): Yes
- UPC: 884938434225
- Weight: 5
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
