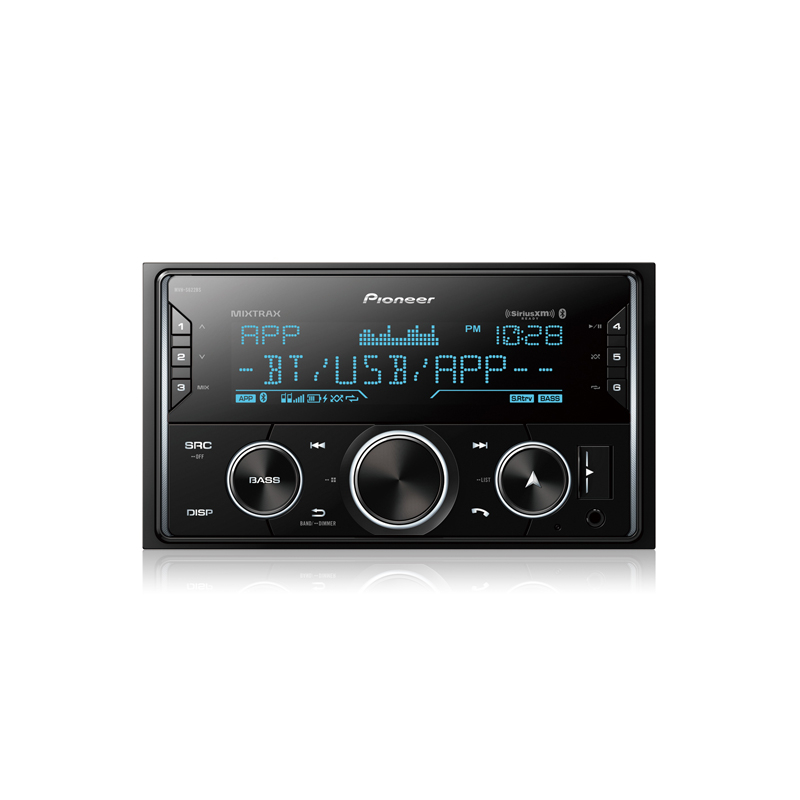

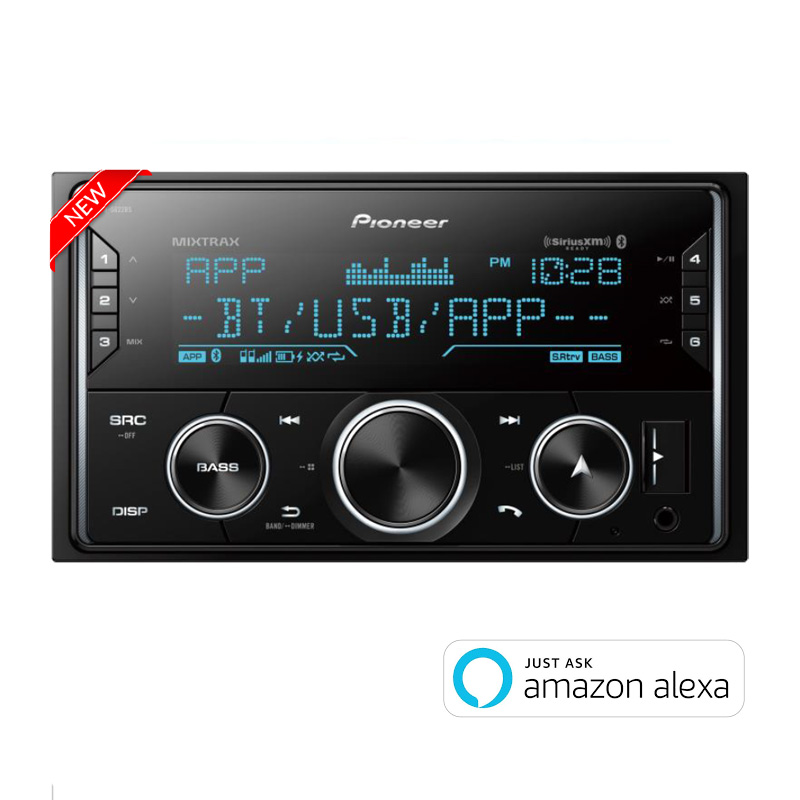

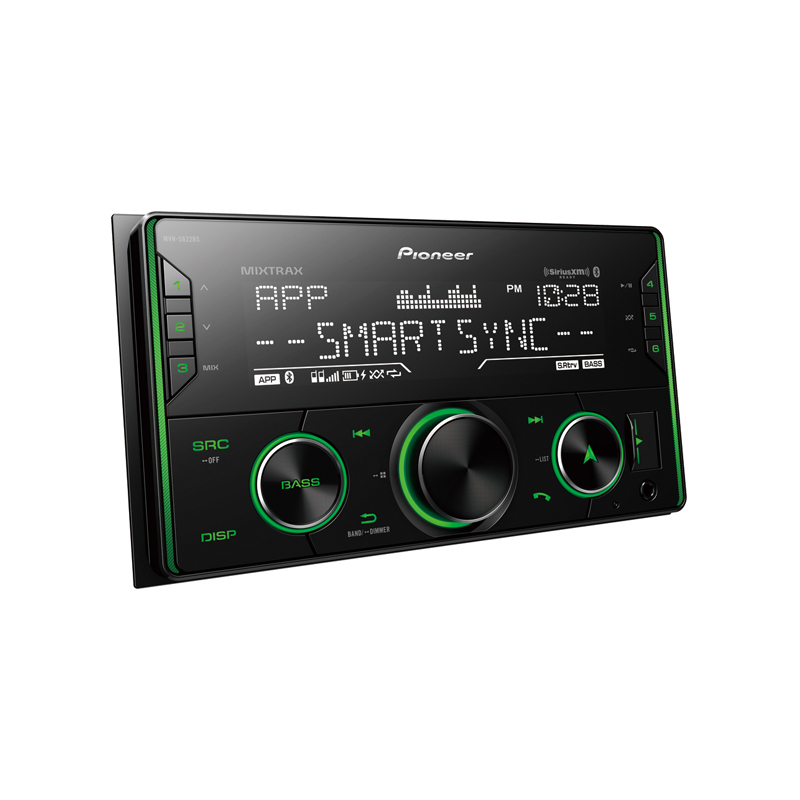

Pioneer MVH-S622BS 2-DIN Bluetooth Receiver with Alexa, Spotify, Pandora, SiriusXM Ready
We are a Pioneer authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • Digital media receiver (10A fuse)
- • Wiring harness
- • Microphone w/ bracket (attached 10' cable terminated by a right-angle 2.5mm connector)
- • (8) various installation screws
- • 2 Removal tools
- • Quick Start Guide
- • (1) Year Warranty Sheet
- • Owner's Manual
Why Choose Pioneer MVH-S622BS Digital Media Receiver?
Next-Level Smart Driving Experience
The Pioneer MVH-S622BS modernizes your vehicle's dash by using Pioneer Smart Sync to transform your iOS or Android smartphone into a central control hub for maps, messaging, and music via USB or Bluetooth. Featuring Alexa Built-In, it enables hands-free voice control so you can manage navigation, audio, and daily updates safely while keeping your focus on the road.
Seamless Everyday Connectivity
Built for daily driving, this receiver features Bluetooth 4.0 with dual-phone pairing for hands-free calls and wireless streaming. It supports 1.5A USB charging and direct music control for iOS and Android, with seamless integration across major apps like Spotify, Pandora, Tidal, and YouTube Music.
Precision Sound & Full Custom Control
Beyond connectivity, this receiver offers high-level audio tuning with a 13-band graphic EQ, Advanced Sound Retriever, bass boost, and loudness control to shape your sound. Integrated DSP features—including digital time alignment, listening position adjustment, and independent speaker level controls—optimize the cabin's soundstage, while 4V RCA pre-outs, flexible crossovers, and customizable MIXTRAX lighting support full system upgrades with a visual edge.
Frequently Asked Questions (FAQ)
- • Why won't my phone connect through Bluetooth?
This is often caused by old pairing records or your phone trying to connect to another nearby device. Delete the existing Bluetooth pairing on both the receiver and your phone, then pair them again.
- • Why does Bluetooth audio keep cutting out while driving?
Wireless interference, low phone battery, or placing the phone too far from the receiver can interrupt the connection. Keeping the phone nearby and updating its software often improves stability.
- • Why isn't my USB drive being recognized?
The receiver may not support the drive's file system or the storage capacity may exceed its compatibility. Formatting the drive to FAT32 and using supported audio file formats usually resolves the issue.
- • Why doesn't the receiver remember my settings after I turn off the car?
This usually happens when the constant power and accessory power wires are reversed. Correcting the wiring allows the unit to retain its clock, presets, and audio settings.
- • Can I connect an external amplifier to this receiver?
Yes. The receiver provides preamp outputs for adding compatible external amplifiers to improve system power and sound quality.
- • Why isn't SiriusXM working after installation?
A compatible SiriusXM tuner and an active subscription are required before satellite radio can be used. Also verify that the tuner is properly connected to the receiver.
- • Why can't I control Spotify from the receiver?
Make sure the Spotify app is installed, logged in, and supported by your connected device. Using the correct USB or Bluetooth connection method also helps ensure full functionality.
- • Why won't the receiver power on after installation?
Blown fuses, incorrect wiring, or a missing ground connection are the most common causes. Verify the vehicle wiring, inspect the fuse, and ensure the ground connection is secure before troubleshooting further.
- Satellite Radio Ready : Yes
- DIN : 2
- Preamp Voltage : 4 volts
- Bluetooth : Yes
- Aux Input : Yes
- MP3 Playback : Yes
- WMA Playback : Yes
- Apple CarPlay : No
- Android Auto : No
Features:
- Smartphone Integration via Pioneer Smart Sync: Seamlessly connects Android and iOS devices through USB or Bluetooth, enabling access to maps, messages, music, and vehicle functions through a unified app interface for safer, simplified in-car control. Pioneer Smart Sync
- Built-in Bluetooth 4.0 Connectivity: Supports hands-free calling and wireless audio streaming with multi-device pairing (up to five devices) and dual-phone connection for flexible switching between users.
- Alexa Built-In Voice Control: Enables voice-activated access to music, news, smart home controls, and more through the Pioneer Smart Sync app with tap-to-activate Alexa functionality.
- USB & Smartphone Playback Support: Compatible with Android MTP and iPhone Direct Connect for playback of stored music and control of music apps via USB, including charging support up to 1.5A.
- Wide Media & App Compatibility: Supports streaming from popular apps such as Spotify, Pandora, Tidal, YouTube Music, SoundCloud, and more, with full browsing and playback control.
- Advanced Audio Customization Tools: Includes a 13-band graphic EQ, preset sound profiles, bass boost, loudness control, and Advanced Sound Retriever for improved clarity in compressed audio.
- Powerful DSP Sound Control: Features digital time alignment, listening position settings, and independent speaker level adjustment for optimized sound staging inside the vehicle cabin.
- 4V 3-Pair RCA Preouts with Sub Control: Delivers front, rear, and subwoofer preamp outputs with adjustable sub level and phase control for flexible system expansion.
- Flexible Crossover Network: Adjustable high-pass and low-pass filters with multiple slope settings for precise tuning of speakers, mids, and subwoofers.
- MIXTRAX & Color Customization Lighting: Dynamic illumination system with over 210,000 color options and club-style MIXTRAX lighting effects synchronized to music playback.
- Siri Eyes-Free & Voice Commands: Enables hands-free operation for calls, navigation, messaging, and music control using Siri or Android voice recognition.
- Enhanced Media Support & File Compatibility: Plays MP3, WMA, AAC, FLAC, WAV files via USB with up to 15,000 files supported and detailed metadata display on screen.
- Vehicle Monitoring via OBD-II (Optional): Compatible with select Bluetooth OBD-II adapters to display vehicle diagnostics, performance data, and driving statistics through the Smart Sync interface.
Specifications:
- CTA-2006: Yes
- Continuous Power Output: 22 W x 4-Channel
- Load Impedance Allowance: 4 Ohm (4 Ohm to 8 Ohm Allowable)
- Max Power Output: 50 W x 4-ch 4 ohm / 50 W x 2-ch 4 ohm + 70 W X 1-ch (subwoofer) 2 Ohm
- RCA Preamp Outputs: 6-ch
- RCA Pre-out: 4V
- RMS Power Output (CTA-2006): 14 W RMS x 4-ch 4 ohm
- Back Light: LED
- Brightness Control: Yes
- Color Customization: 210000 Colors, dual zone
- Device (Non-DIN/Modular Unit): 2-DIN
- Device Display: VA LCD (2-Line)
- Dimmer: Automatic with vehicle illumination, Timer Controlled, Manual
- Advanced Audio Distribution Profile (A2DP): Yes
- AVRCP: 1.6
- Built-in Bluetooth®: Yes
- Dual Phone Connection: Yes
- Hands Free Version: 1.6
- Hands-Free: Yes
- Microphone Included: Included
- Phone Registration: 5-phone
- Secure Simple Pairing (SSP): Yes
- Serial Port Profile (SPP): Yes
- Sound Retriever Air: Mode 1/Mode 2/Off
- Best Station Memory: Yes
- Local Seek tuning: Yes
- Presets: 18 FM, 6 AM
- RDS: Yes
- SiriusXM-Ready™ (Tuner Sold Separately): Yes
- Amazon Alexa: Paired with Pioneer Smart Sync
- Mobile Operating System: Android / Apple iOS
- Music Playback (MTP): Yes
- Pandora®: Source through iPhone/Android
- Pioneer App Compatibility: Pioneer Smart Sync Android, Pioneer Smart Sync iPhone
- Siri® Eyes Free (VR) (Internet Required): iPhone Only
- Spotify: Streaming audio through iPhone/Android via Bluetooth or AUX input
- Audio Playback via USB: MP3 Audio Playback / WMA Audio Playback / AAC Audio Playback / FLAC Audio Playback (Hi-Res) / WAV Audio Playback (Hi-Res)
- Advanced Sound Retriever: Mode-1/Mode-2/Off
- Auto EQ (CD-MC20 Microphone sold separately): Yes
- Balance: Yes
- Built-in Amplifier: MOSFET 50 W x 4
- Crossover Network Mode: HPF/Band Pass/LPF
- Crossover Standard Mode: HPF/LPF
- Customizable Graphic Equalizer: 13 Band, 31 Band with Pioneer Smart Sync app
- DA Converter: 24 Bit
- Digital Signal Processor: Built In
- Dynamic Bass Enhancer: Off/Low/High
- Easy EQ (EEQ) Preset Equalizer: Yes
- Fade: Yes
- Listening Position Selector: With Pioneer Smart Sync
- Loudness: High/Mid/Low/Off
- MIXTRAX®: Yes
- Source Level Adjuster: Yes
- Speaker Output: 4-ch
- Spectrum Analyzer: Yes
- Subwoofer Control: Yes
- Time Alignment: Manual
- USB: Front Type-A (5V, 1.5 A)
- USB Direct Control for iPhone®: 5s and newer
- Input 1: AUX (Minijack)
- Detachable Face Security: Fixed
- Multi-Language Display: English, French, Spanish Portuguese, Chinese (Simplified)
- Music Browser: USB / With Smart Sync App
- Remote Control: Optional
- Steering Wheel Control Ready (Adapter Sold Separately): Yes
- UPC: 884938434546
- Weight: 4
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
Do you own this product?
Write a review!
-
Wiring it up was a breeze, and it snugly fits into my Tacoma – a perfect match. User-friendly, especially for an old-timer like me. Operating this unit poses no issues whatsoever. The sound quality is fantastic, even with my subwoofer in the mix. Couldn't be happier with this purchase.
-
Nothing major to expect, but for the price, it gets the job done with decent sound quality. A bit dim though.
