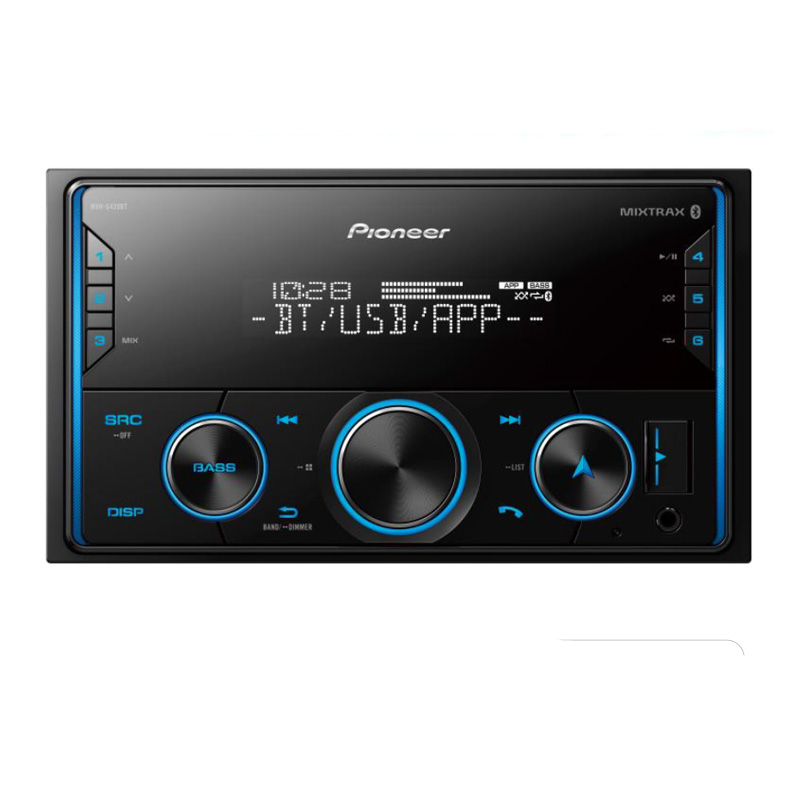

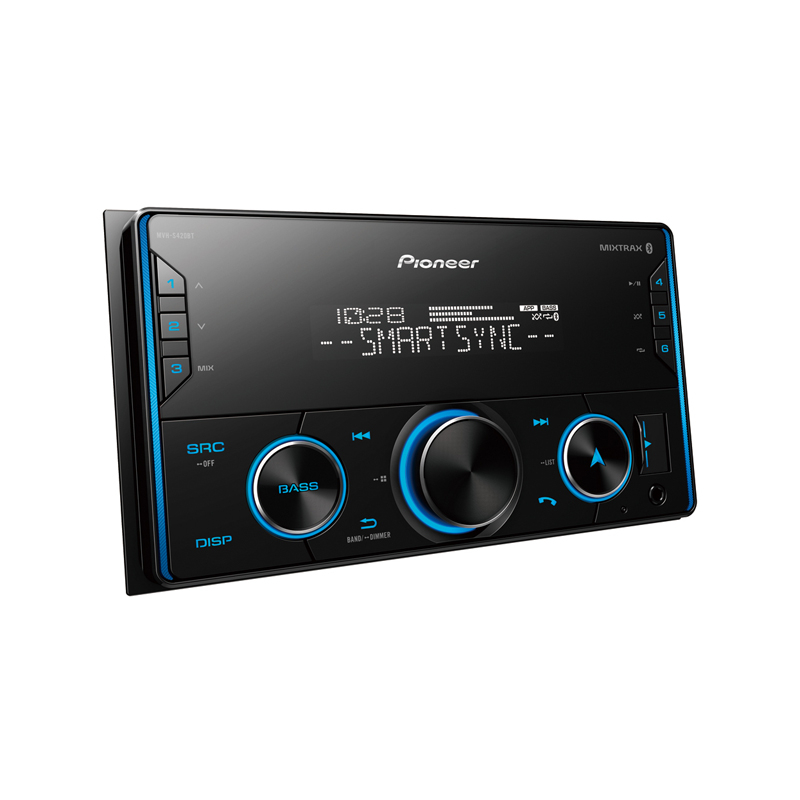

Pioneer MVH-S420BT 2-DIN In-dash Audio Digital Media Receiver with Amazon Alexa, Pioneer Smart Sync, Bluetooth®, Android™, iPhone®
We are a Pioneer authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- •Digital media receiver (10A fuse)
- •Wiring harness
- •Microphone w/ bracket (attached 10' cable terminated by a right-angle 2.5mm connector)
- •8 various Installation screws
- •Quick Start Guide
- •1 Year Warranty Sheet
- •Installation Manual
Personalized Music Discovery with Pandora and Pioneer MVH-S420BT!
Pandora offers personalized internet radio for discovering new music mixed with what you already know. The MVH-S420BT receiver lets you control Pandora in your car, giving thumbs up or down to tracks, bookmarking songs, switching between stations, and viewing track info. It works with iOS and Bluetooth SPP-supported Android devices. Just download the Pandora Radio app, connect to MVH-S420BT, and elevate your music experience.
Experience Crisp Calls with MVH-S420BT's Advanced Bluetooth Technology!
Ensure safety and follow hands-free rules with integrated Bluetooth (HFP). Effortlessly connect your Bluetooth phone to MVH-S420BT without hassle. When your Bluetooth device is close, the auto connection pairs them. MVH-S420BT with Bluetooth also provides excellent call quality through Wideband Speech Handsfree Profile 1.6, doubling call bandwidth compared to standard Bluetooth calls.
- Maximum Power : 70x1 Watts
- CD Text : No
- RMS Power Output : 14x4 Watts
- Subwoofer Preamp Outputs : Yes
- DIN : 2
- Preamp Voltage : 2 volts
- Bluetooth : Yes
- Aux Input : Yes
- MP3 Playback : Yes
- WMA Playback : Yes
- Preamp Outputs : 4
- Apple CarPlay : No
- Android Auto : No
Features:
- Alexa Built-in When Paired with Pioneer Smart Sync App
- Android™ Compatibility
- iPhone® Compatibility
- Works with Pandora® and Spotify®
- Built-in Bluetooth®
Specifications:
STANDARDS
PERFORMANCE
- Continuous Power Output: 22 W x 4-Channel
- Load Impedance Allowance: 4 Ohm (4 Ohm to 8 Ohm Allowable)
- Max Power Output: 50 W x 4-ch 4 ohm / 50 W x 2-ch 4 ohm + 70 W X 1-ch (subwoofer) 2 Ohm
- RCA Preamp Outputs: 4-ch
- RCA Pre-out: 2V
- RMS Power Output (CTA-2006): 14 W RMS x 4-ch 4 ohm
DISPLAY
- Back Light: LED
- Brightness Control: Yes
- Color Customization: Fixed
- Device (Non-DIN/Modular Unit): 2-DIN
- Device Display: VA LCD (2-Line)
- Dimmer: Automatic with vehicle illumination, Timer Controlled, Manual
BLUETOOTH
- Advanced Audio Distribution Profile (A2DP): Yes
- AVRCP: 1.6
- Built-in Bluetooth®: Yes
- Dual Phone Connection: Yes
- Hands Free Version: 1.6
- Hands-Free: Yes
- Microphone Included: Included
- Phone Registration: 5-phone
- Secure Simple Pairing (SSP): Yes
- Serial Port Profile (SPP): Yes
- Sound Retriever Air: Mode 1/Mode 2/Off
TUNER
- Best Station Memory: Yes
- Local Seek tuning: Yes
- Presets: 18 FM, 6 AM
- RDS: Yes
INTEGRATION
- Amazon Alexa: Paired with Pioneer Smart Sync
- Mobile Operating System: Android / Apple iOS
- Music Playback (MTP): Yes
- Pandora®: Source through iPhone/Android
- Pioneer App Compatibility: Pioneer Smart Sync Android, Pioneer Smart Sync iPhone
- Spotify: Streaming audio through iPhone/Android via Bluetooth or AUX input
- Voice Control: Yes
DIGITAL MEDIA PLAYBACK
- Audio Playback via USB: MP3 Audio Playback / WMA Audio Playback / AAC Audio Playback / FLAC Audio Playback (Hi-Res) / WAV Audio Playback (Hi-Res)
AUDIO:
- Advanced Sound Retriever: Mode-1/Mode-2/Off
- Auto EQ (CD-MC20 Microphone sold separately): Yes
- Balance: Yes
- Built-in Amplifier: MOSFET 50 W x 4
- Crossover Standard Mode: PF/LPF
- Customizable Graphic Equalizer: 13 Band, 31 Band with Pioneer Smart Sync app
- DA Converter: 24 Bit
- Digital Signal Processor: Built In
- Dynamic Bass Enhancer: Off/Low/High
- Easy EQ (EEQ) Preset Equalizer: Yes
- Fade: Yes
- Listening Position Selector: With Pioneer Smart Sync
- Loudness: High/Mid/Low/Off
- MIXTRAX®: Yes
- Source Level Adjuster: Yes
- Speaker Output: 4-Channel
- Spectrum Analyzer: Yes
- Subwoofer Control: Yes
- Time Alignment: Manual
EXPANDABILITY
- USB: Front Type-A (5V, 1.5 A)
- USB Direct Control for iPhone®: 5s and newer
INPUTS
GENERAL
- Detachable Face Security: Full
- Multi-Language Display: English, French, Spanish Portuguese, Chinese (Simplified)
- Music Browser: USB / With Smart Sync App
- Remote Control: Optional
- Steering Wheel Control Ready (Adapter Sold Separately): Yes
- UPC: 884938434461
- Weight: 5
