Audison  TH Uno

THESIS Series 2300W RMS at 1-Ohm, Class-A Mono Subwoofer Car Amplifier

Item #54243

Condition:   Brand New

Product Highlights

  • Thesis 2300W Mono Amplifier
  • 1-Ohm Stable Subwoofer Amp
  • Class A Car Amplifier
  • High Power Bass Amp
  • Premium Car Audio Performance

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$4,999.99

Reg. Price $5,500.00  Save $500.01
Add Extended Warranty
  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

No Credit needed for acima logoLearn More

Audison Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


Audison Banner

Audison TH Uno - THESIS Series 2300W RMS at 1-Ohm, Class-A Mono Subwoofer Car Amplifier


We are a Audison authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • TH Uno A-class Amplifier
  • • Manual Sticker
  • • Mounting Kit
  • Owner's Manual
HV Venti
Compact Power, Maximum Control

This amplifier features Automatic Remote Turn-On/Off for effortless operation and energy efficiency. Adjustable Bass Boost up to 12 dB lets you tailor low-end performance to your preference. Its extruded aluminum compact design with sleek black finish combines durability, style, and high-performance audio in one package.

Precision Dual-Mono Amplifier

This amplifier features a Dual Mono design with four power supplies in Synchro-PWM configuration for unmatched stability and performance. Sensitivity control with 256-step resistive switching provides a 120 dB resolution, while real-time selectable presets include Energy Saving, Hi-Current, Hi-AB Class, and A Class modes. Built with a high-quality crossover module and a solid aluminum CNC-machined chassis, it combines durability, precision, and advanced digital control via DRC and PC software.

HV Venti

SPECIFICATIONS


  • Maximum Power : 2300 Watts
  • Number of Channels : 1
  • Frequency Response : 5-40000 Hz
  • Amplifier Class : A
  • Fuse Rating : 150 A

FEATURES


Features:

  • Complementary differential circuitry with current mirror.
  • Cascode A Class driver with inverted complementary triplet power stages.
  • Integrated 24-bit / 192 kHz Hi-End DA converters.
  • Compatibility with Audison Full DA HD technology and Hi-Res audio files listening certification.

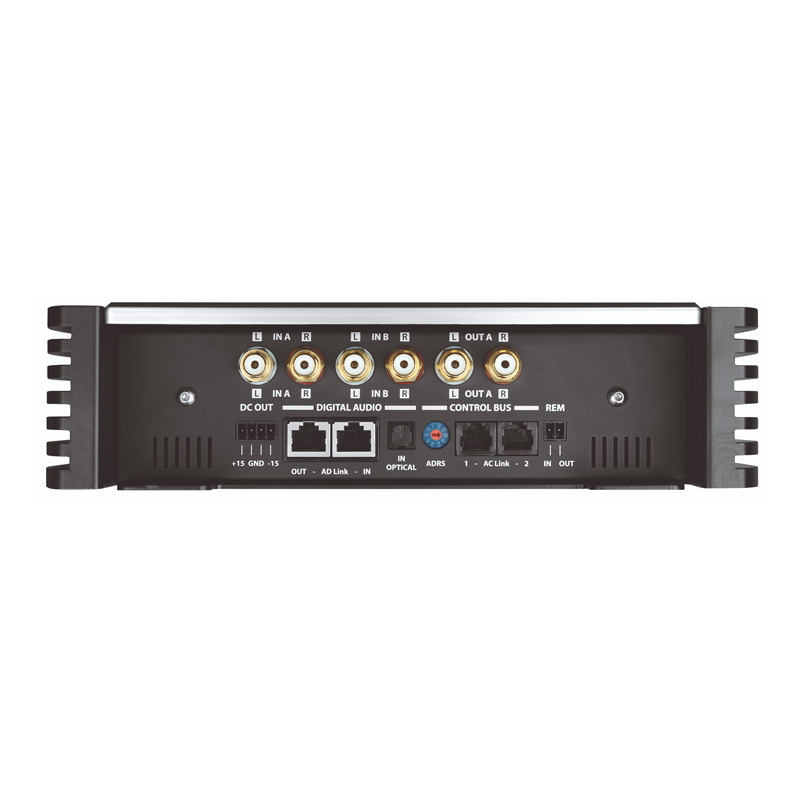

  • SPDIF and AD Link optical digital inputs that manage up to 8 digital channels on RJ-45 connector.

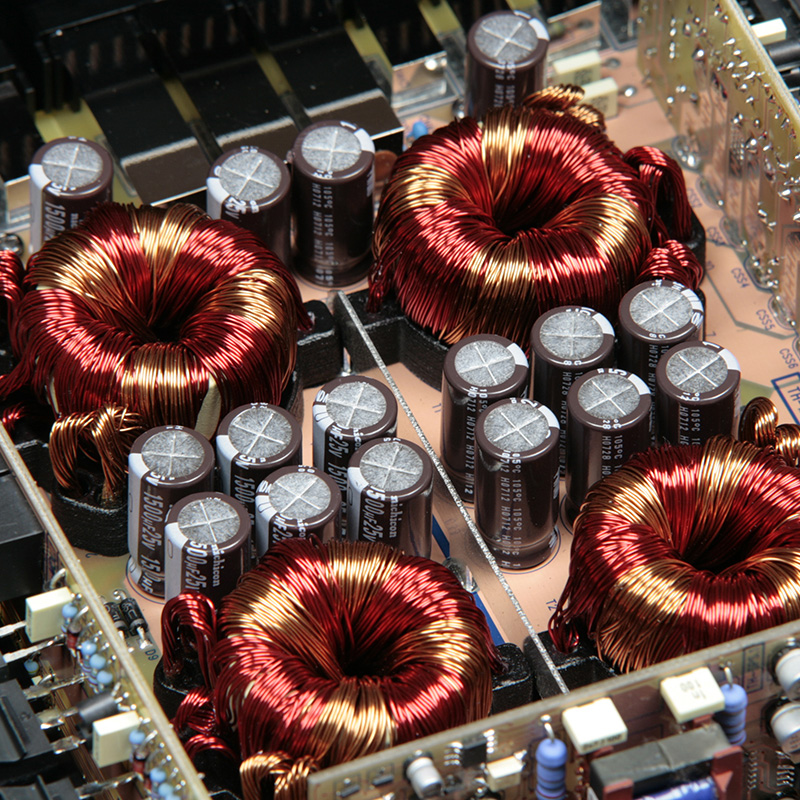

  • Dual Mono Construction featuring four power supplies in Synchro-PWM configuration.
  • Sensitivity control featuring 256 steps resistive switching for a resolution of 120 dB.
  • Energy Saving, Hi-Current, Hi-AB Class, A Class presets selectable in real time.
  • Digital control via integrated settings panel, DRC and PC Software.
  • High quality crossover module supplied.
  • Chassis extruded from solid aluminium and built using CNC machines.



Specifications:

Power Supply:

  • Voltage: 11 ÷ 15 VDC
  • Idling current (@ Dual Power Setting): 2.2 ÷ 8.5 A
  • Idling current when off: 0.04 mA
  • Consumption @ 14.4 VDC, 1 Ω,
  • Max Musical Power: 132 A
  • Remote In: 7 ÷ 15 VDC (1 mA)
  • Remote Out : 12 VDC (20 mA)
  • Fuse (AFS): 150 A



Amplifier Stage:

  • Distortion - THD @ 1 kHz, 4 Ω; 90% Power: 0.01 %
  • Bandwidth @ -3 dB, 2 VRMS, 4 Ω: 5 ÷ 40k Hz
  • S/N ratio @ A weighted, 1 V, Max Power: 106 dBA
  • Damping factor @ 1 kHz, 2 VRMS, 4 Ω: 500
  • Pre-In sensitivity (two ranges): 0.3 ÷ 4.8 VRMS
  • Pre-In impedance: 15 kΩ



Amplifier Stage:

  • Dual Power – Hi-Current
    • 4 Ohm, 850 W x 1
    • 2 Ohm, 1500 W x 1
    • 1 Ohm, 2300 W x 1
  • Dual Power – A Class
    • 4 Ohm, 200 W x 1
  • Amp Chain
    • 4 Ohm (2 Amp), 3000 W x 1
    • 2 Ohm (2 Amp), 4500 W x 1



  • UPC: 8018823088428
  • Weight: 8
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
