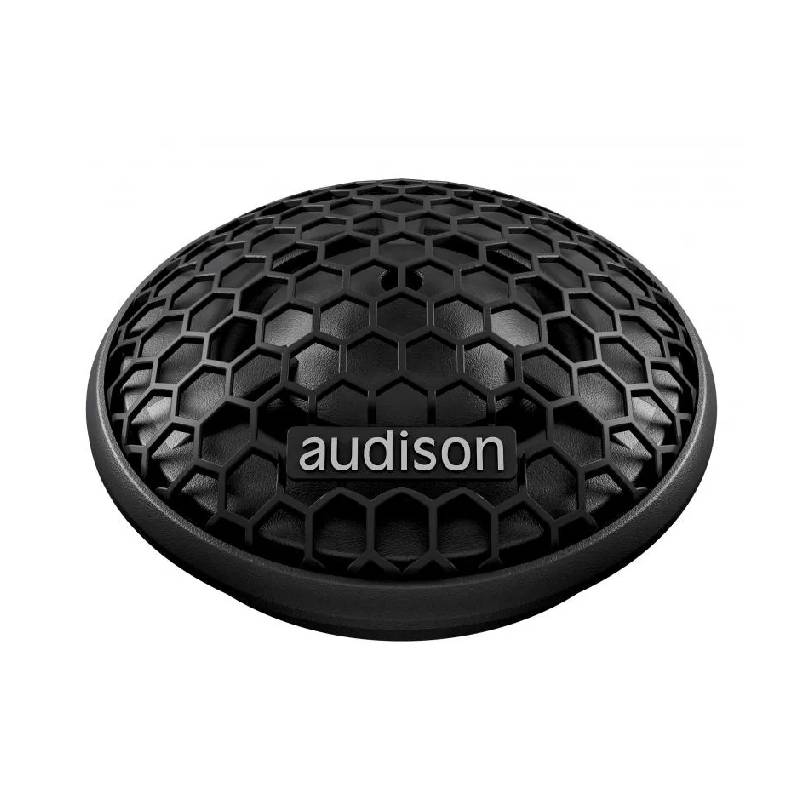

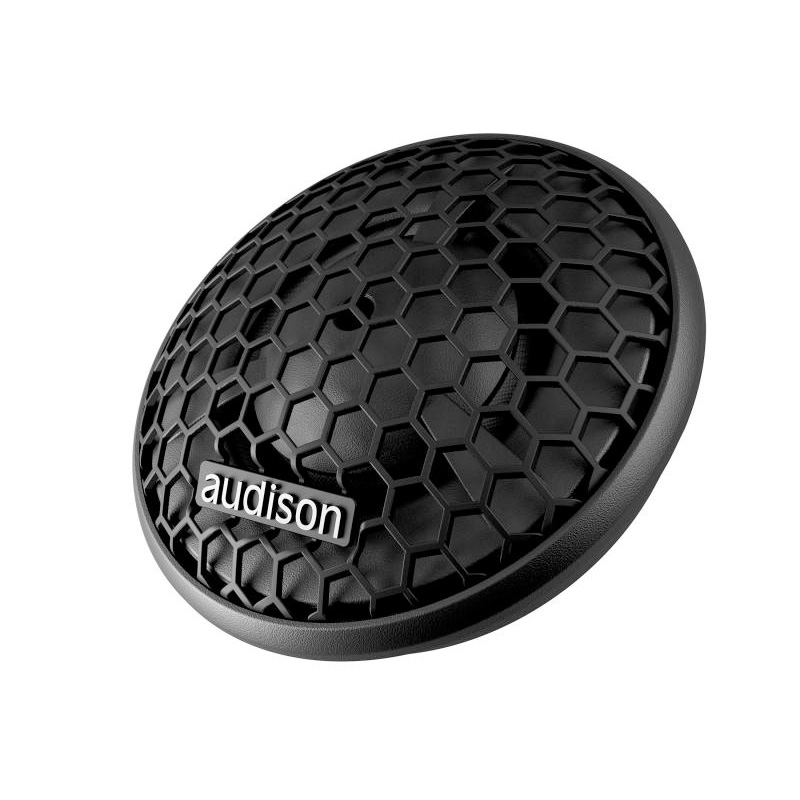

The AP 1 tweeter features a 26 mm diameter emission diaphragm, an acoustic lens designed to compensate for the frequency response within the 10kHz – 13kHz range, a Neodymium REN magnet and extremely small sized dedicated passive crossover.
Diameter : 1
Sensitivity : 93
Frequency response : 2-20000
Peak Power Handling : 150
26 mm diameter diaphragm combined with a wide-roll surround provides maximum efficiency and reduced resonance frequency.
Neodymium magnet with low carbon content plates, provides reduced size and more linear sound reproduction, even during the most demanding audio passages.
Acoustic lens designed to compensate for and fine tune the in-car frequency response anomalies in the 10 kHz - 13 kHz bandwidth caused by restrictive OEM grilles in critical OEM placements.

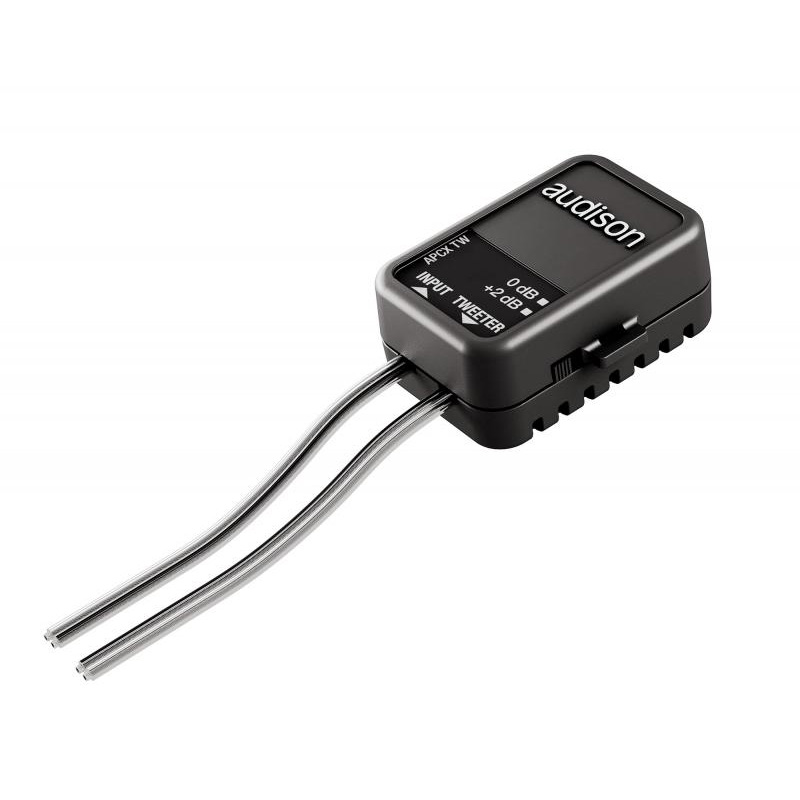

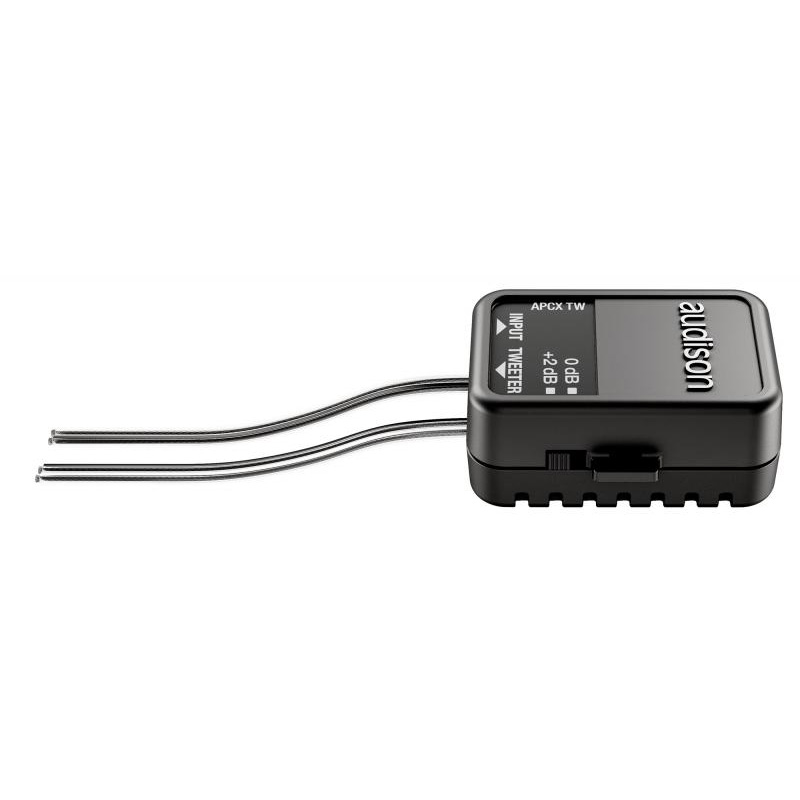

Extremely compact dedicated passive crossover APCX TW supplied with the product, optimised for OEM Integration, featuring an attenuation switch (0 dB, +2 dB) to tune the in-car response according to different installation conditions.
Passive crossovers are supplied with “OEM Integration compliant” fast-on connectors. The ends, different in each of the two poles, eliminate any possible connection errors and speed up the required installation time.
Wide array of mounting accessories supplied with the product, for high fitment flexibility in OEM Integration.

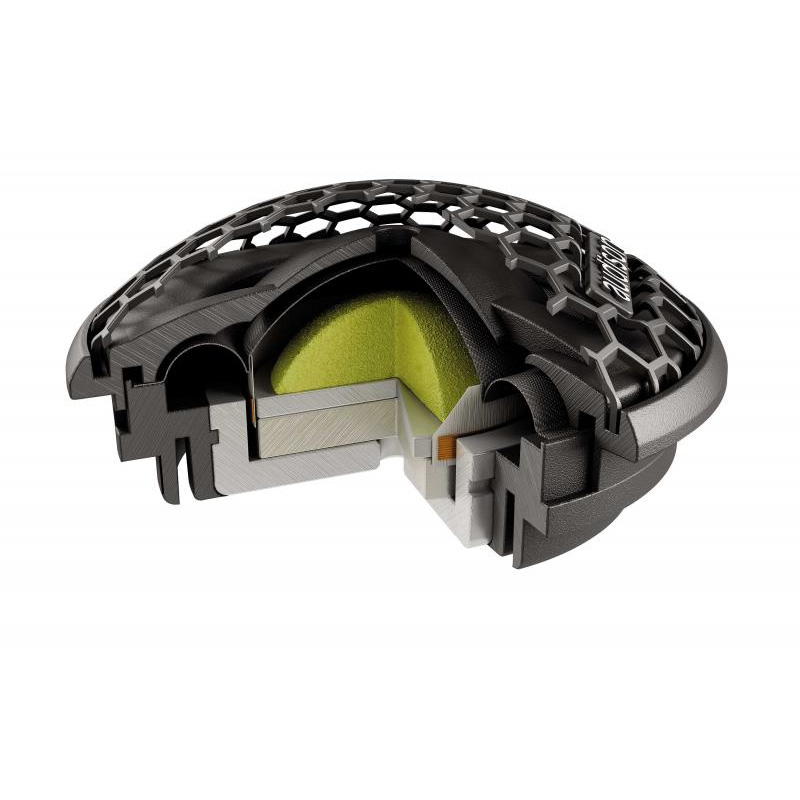

CCAW (Copper Clad Aluminium Wire) ultra-light ferrofluid cooled voice coil is wound on a Kapton former, for better heat dissipation.
Dome profile and motor are optimised with FEM (Finite Element Method) simulation technology.
Developed with the KLIPPEL suite.
Size: 26 mm (1″)
Power Handling: Hi-pass filtered 3.5 kHz @ 12 dB Oct. 150 W Peak Power
Impedance: 4 ohms
Frequency Response: 2k ÷ 20k Hz
Sensitivity: 93 dB/Spl
Dome: Tetolon fibre
