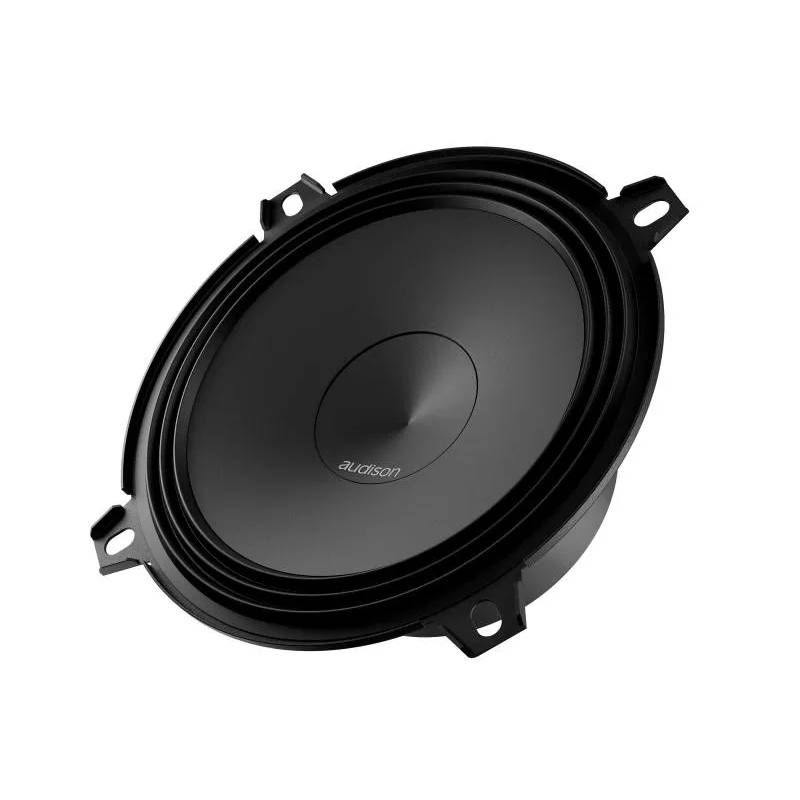

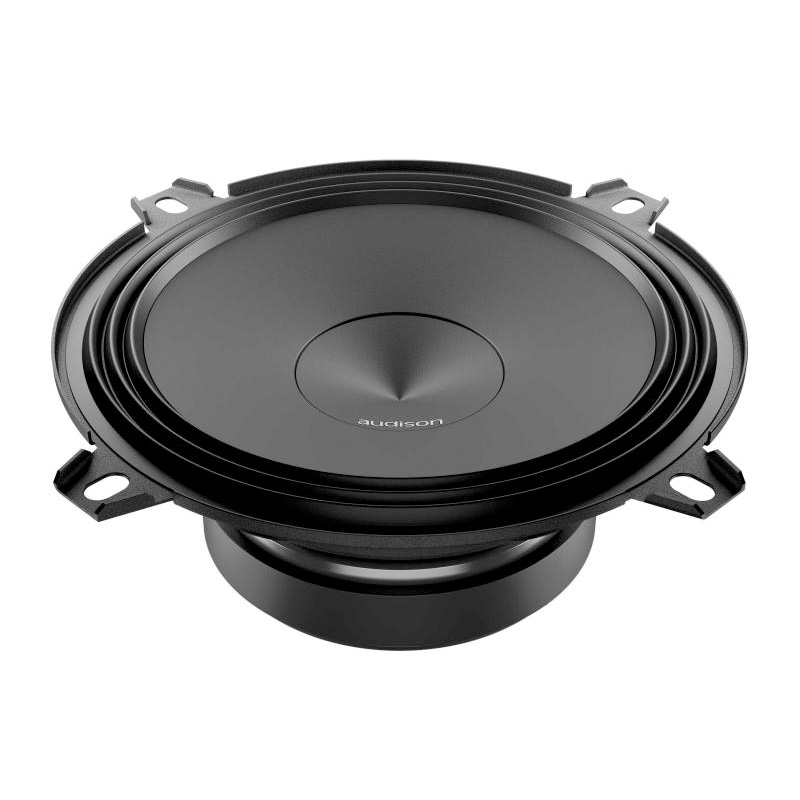

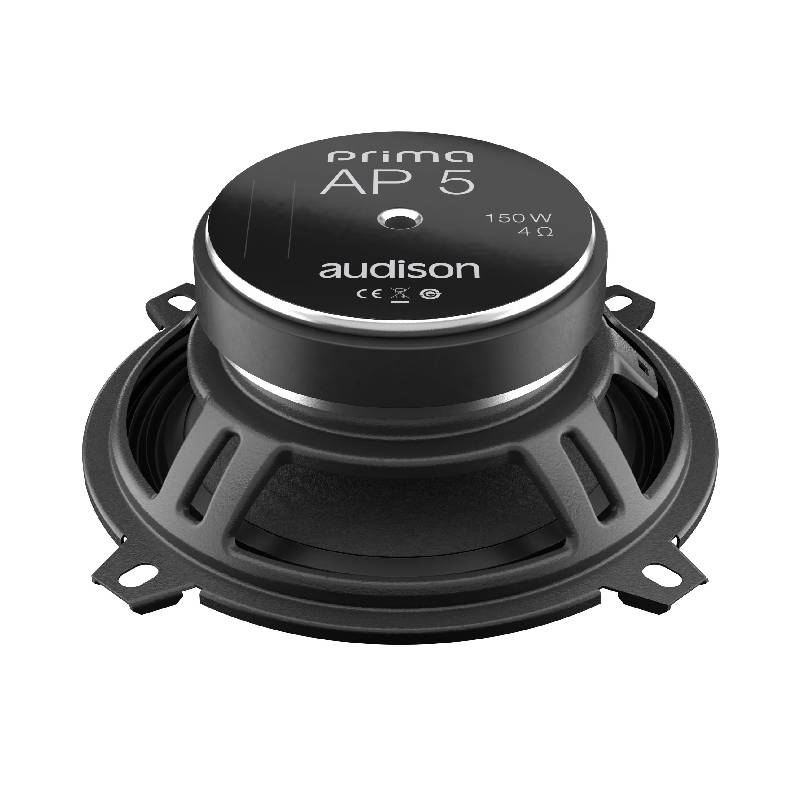

Audison AP 5 - PRIMA Series 5" 150W Peak Power Handling at 4-Ohms, Midrange Car Speaker
We are a Audison authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 5" Woofer
- • Cables
- • Pair of 130mm speaker protective grilles
- • Owner's Manual
High-Power Midrange Car Speaker
Engineered for precision and durability, this speaker features a 32mm pure copper mobile voice coil that delivers exceptional power handling and deep, controlled bass response. The water-repellent treated paper cone, designed using advanced FEM simulation and optimized with Klippel R&D technology, ensures long-lasting performance and accurate sound reproduction. Perfect for audiophiles, it combines innovation and craftsmanship to bring studio-quality sound to your vehicle.
Shallow Mount High-Efficiency Speaker
Experience powerful and precise sound with an advanced cone design that eliminates the need for a passive crossover, maximizing efficiency. Its reduced mounting depth ensures hassle-free installation, even in tight OEM locations. The TPU “Triple Wave” surround allows for smooth, controlled excursion, delivering clean and accurate audio performance.
Durable Compact High-Performance Speaker

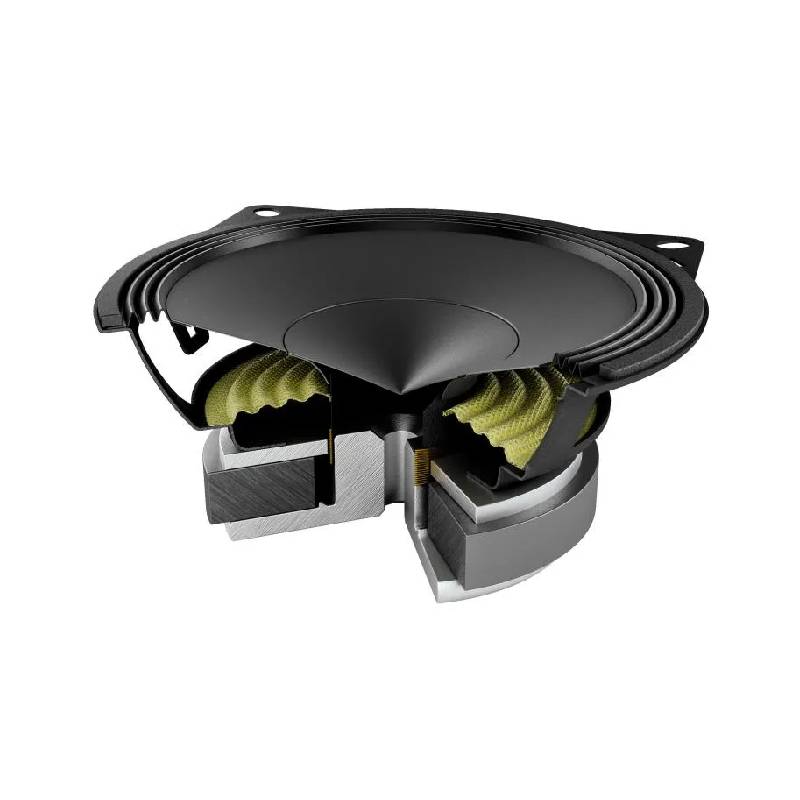

Built for durability, this compact speaker features an abrasion-resistant, scratch-proof basket with a motor secured using damping epoxy adhesive for long-lasting performance. The high-current fast-on terminals with double contacts provide flexible, quick connections, while the temperature-resistant plastic cover prevents accidental short circuits. Developed using the KLIPPEL suite, it ensures precision engineering for superior sound quality and reliability.
- Diameter : 5 Inch
- Sensitivity : 93 dB
- Impedance : 4 Ohm
- Frequency Response : 70-5000 Hz
- Peak Power Handling : 150 Watts
- RMS Power Handling : 50 Watts
Features:
- 32 mm pure copper mobile voice coil, for high power handling and outstanding low frequency control.
- Water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel R&D Scan Vibrometer.
- No passive crossover required to maximize efficiency: the cone is optimised with the Klippel R&D Scan Vibrometer to obtain a calibrated mechanical low-pass cut-off frequency.
- Reduced mounting depth, providing ease of installation in OEM placements.
- TPU (Thermoplastic Polyurethane) surround, featuring the exclusive shallow “Triple Wave” profile, for maximum excursion linearity.
- Compact basket, protected by abrasion-resistant and scratch-proof coating, the motor affixed with damping epoxy adhesive.
- High current fast-on terminal with double contact on positive and negative poles for installation flexibility and quick connection. The terminal features a temperature resistant plastic cover, protecting it against accidental short circuits.
- Developed with the KLIPPEL suite.
Specifications:
- Comp: Woofer
- Size: 130 mm (5″)
- Power Handling:
- 50 W Continuous Power
- 150 W Peak Power
- Impedance: 4 ohm Impedance
- Frequency Response: 70 ÷ 5k Hz
- Sensitivity: 93 dB/Spl
- Magnet: High density flux ferrite
- Dome: Water-repellent treated paper cone
- UPC: 8018823111768
- Weight: 4
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
**Speakers purchased and installed by an authorized Audison dealer will have a three (3) year limited warranty from the original date of purchase.
