Hertz CK165 Cento Series 6.5" 285W Peak Power Handling 4 Ohms 2-Way Component System
We are a Hertz authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

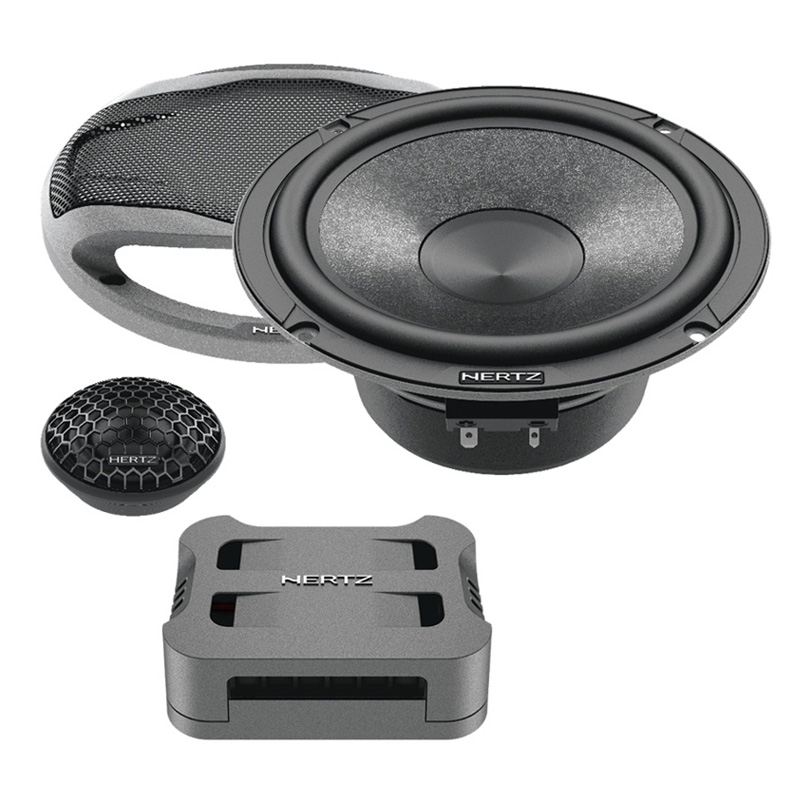

What's Inside?
- • Two C 165 Woofers
- • Two C 26 Dome tweeters (with attached 9" length of speaker wire)
- • Two CCX 2 Crossover networks
- • 2 Tweeter flush mount clamps
- • 2 Angled surface mount housings
- • 2 Woofer grilles
- • Grille putty
- • Eight 3/4" Screws (large head)
- • Four 3/4" Screws (small head)
- • Four 5/8" Flat head screws
- • 8 Large speed clips
- • 4 Small speed clips
- • Owner's manual (English/ Spanish/ French/ German/ Italian/ Portuguese/ 28 Others)
- • Templates on box
Utilizing a distinct Tetolon® dome tweeter
Utilizing a distinct Tetolon® dome tweeter, the CK 165 component speaker system offers detailed sound characterized by natural timbre and seamless transitions. Its semi-pressed paper and mica powder woofer cone faithfully reproduces the lower frequencies of your music with precision and impactful resonance. Moreover, superior damping plays a pivotal role in these speakers' audio quality, effectively minimizing resonance to reduce distortion and deliver Hertz's renowned truer-to-life sound. Additionally, the system's external, compact crossovers provide two tweeter levels, allowing users to fine-tune the sound to perfection in their vehicle.
Sophisticated and Elegant Design
The basket is consistent with the family-feeling of the Mille line with the addition of damping and protective rubber. The cone material is inherited from the Mille Pro, as well as the suspension butyl rubber and the Tetolon fiber of the tweeter dome. These materials have excellent damping and lightness characteristics, producing a balanced sound without resonance peaks. The gift box includes the woofers grilles made of a combination of metallic mesh and high resistance ABS plastic frame. The combination of these two elements allows the user to customize the installation with a sophisticated and elegant design.
- Diameter : 6.5 Inch
- Sensitivity : 93 dB
- Frequency Response : 55-22500 Hz
- Peak Power Handling : 285 Watts
- Woofer Composition : Semi Pressed Paper-Mica
- Tweeter Composition : Tetolon
- RMS Power Handling : 95 Watts
Features:

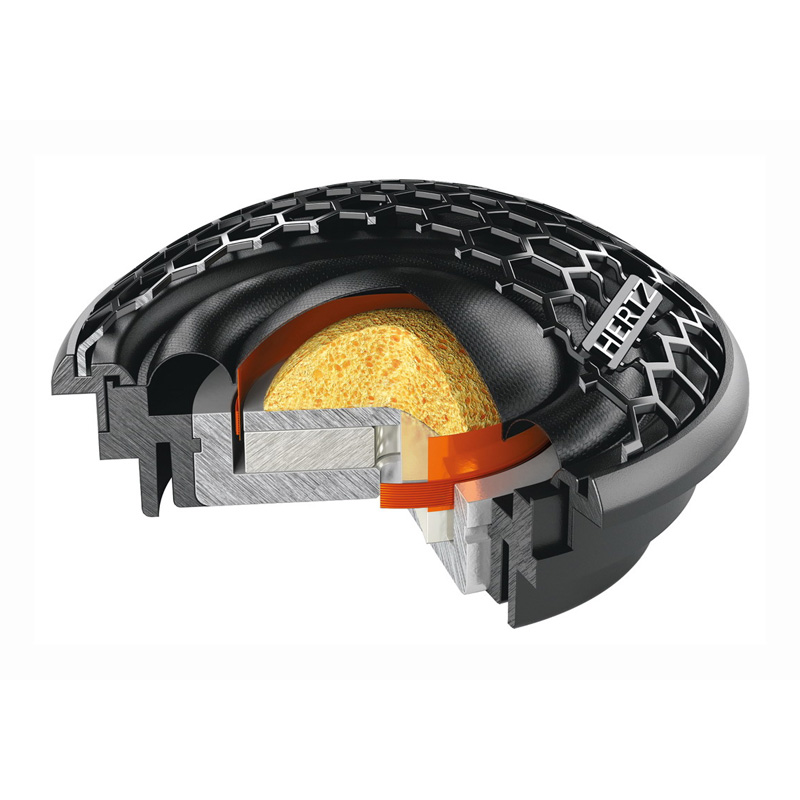

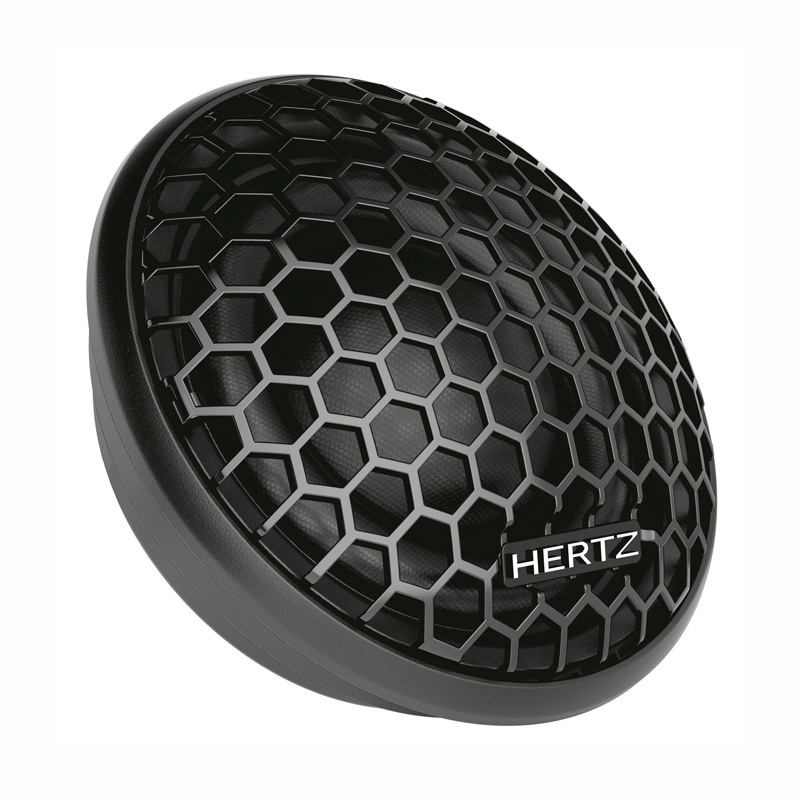

C 26:
- Soft Tetolon® fiber 26 mm (1 in.) dome and 20 mm (0.8 in.) voice coil, for a natural and yet detailed reproduction of musical nuances.
- Neodymium magnet with high-density magnetic flux, optimized for maximum control during high-energy dynamic transients in the mid-high frequency range.
- Faceplate geometry optimized with FEM (Finite Element Modeling) technique for a linear frequency response in off-axis installations.
- Wide range of accessories, for easy integration in OEM placements.

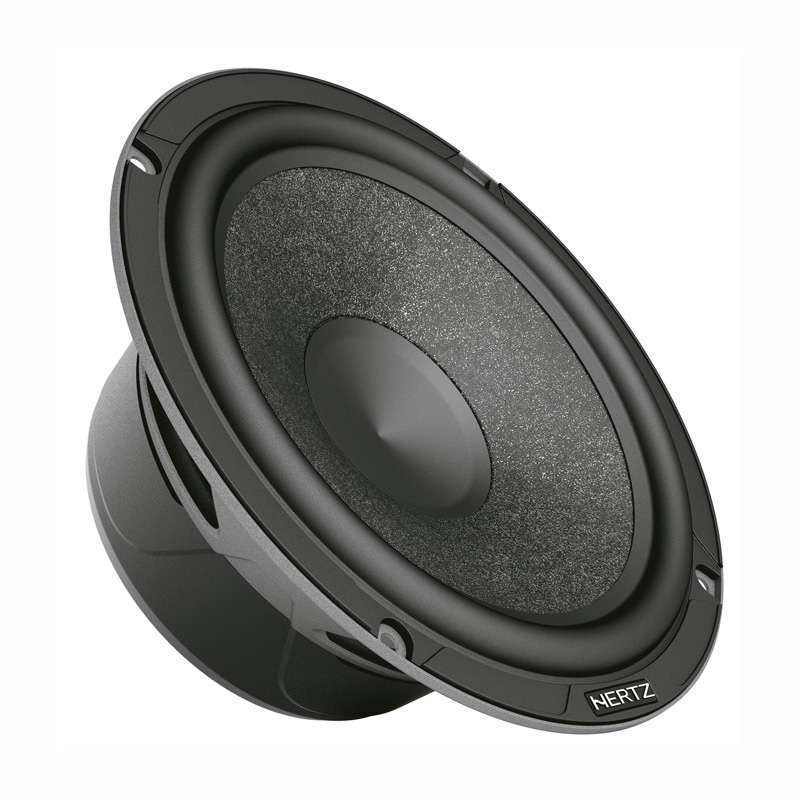

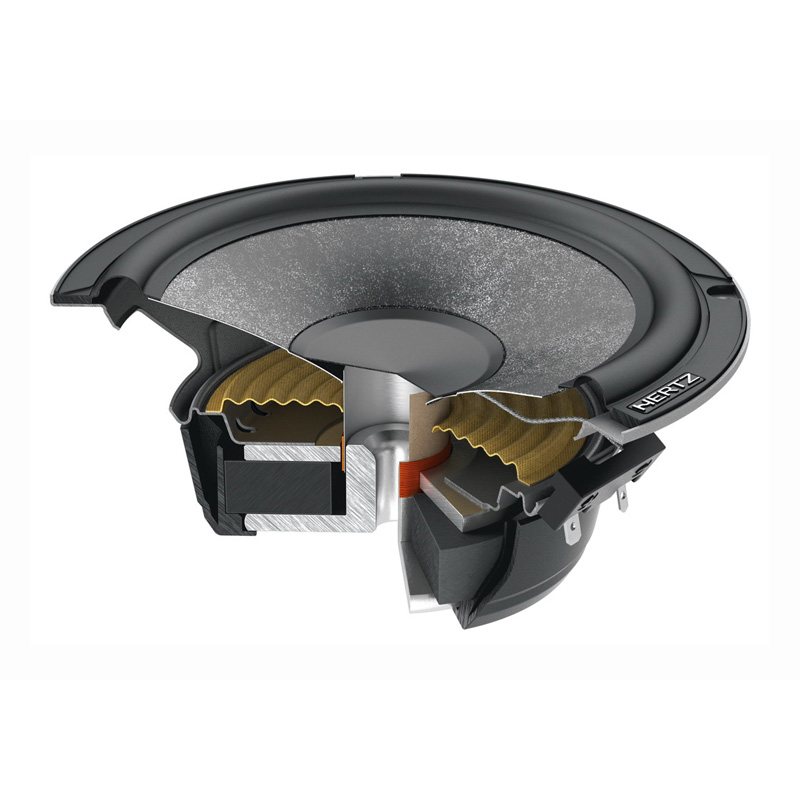

C 165:
- 165 mm (6.5 in.) semi-pressed paper cone SPP-M (Semi Pressed Paper- Mica) enhanced with Mica powder for an excellent balance between lightness and damping.
- High-density flux ferrite magnet combined with low-carbon polar plates for reduced distortion at high power levels.
- 25 mm (1 in.) voice coil featuring an aluminum former to guarantee high excursion and power handling.
- Compact and transparent three-spoke basket acoustically combined with a rubber magnet cover for total damping of spurious vibrations.
- Provided elegant grille made with high-resistance ABS plastic structure with a metallic finish combined with a protective metal mesh.

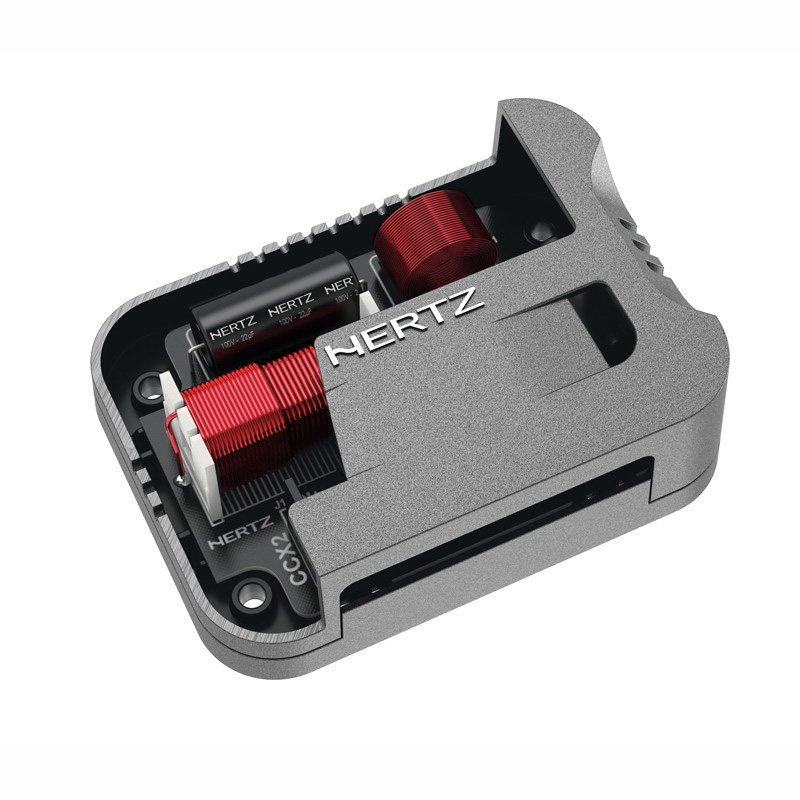

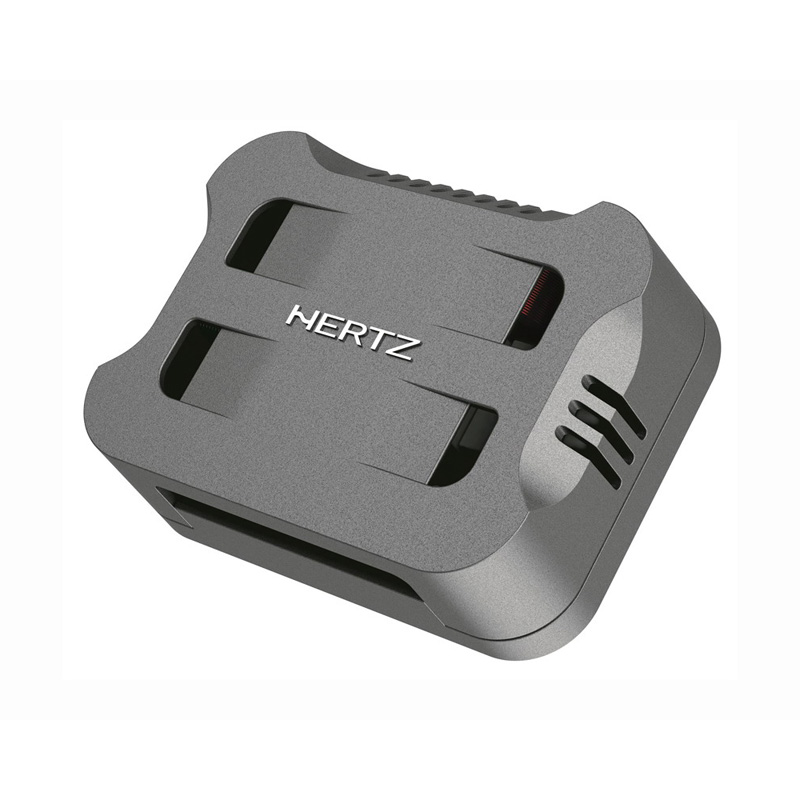

CCX 2:
- Tweeter level adjustment through a three-position switch (0, +3 dB) for an optimal tone balance that can be customized by the user.
- Low-loss factor capacitors and low resistance inductances made with pure copper, for maximum sound transparency and clear high frequencies.
- Compact design with metallic finish for an easy installation, with air vents for efficient heat dissipation.
Specifications:
- Power Handling - Peak W: 285
- Power Handling - Continuous W: 95
- Impedance: 4 ohms
- Frequency response Hz: 55 ÷ 22,5k
- Sensitivity dB SPL: 93
- Voice coil Ø mm (in.): Woofer 25 (1)
- Woofer size mm (in.): 165 (6.5)
- Tweeter size mm (in.): 26 (1)
- Woofer magnet: High density flux ferrite
- Tweeter magnet: Neodymium
- Woofer cone: Semi Pressed Paper-Mica
- Tweeter dome: Tetolon®
- Crossover type: 2 Way Passive Crossover
- Crossover cut off: 2,5 kHz @ 12 dB Oct.
Electro-Acoustic Specifications:
- Diameter (D): 131.5 mm
- DC Resistance (Re): 3.2 Ohm
- Resonant Frequency (Fs): 60 Hz
- Inductance (Le): 0.2 mH
- Equivalent Volume Compliance (Vas): 13.24 liters
- Moving Mass (Mms): 13.9 grams
- Mechanical Compliance (Cms): 0.51 mm/N
- Magnetic Flux Density (BL): 4.9 T*m
- Total Quality Factor (Qts): 0.59
- Electrical Quality Factor (Qes): 0.69
- Mechanical Quality Factor (Qms): 3.9
- Sound Pressure Level (SPL): 93 dB
- UPC: 8018823125963
- Weight: 5
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
