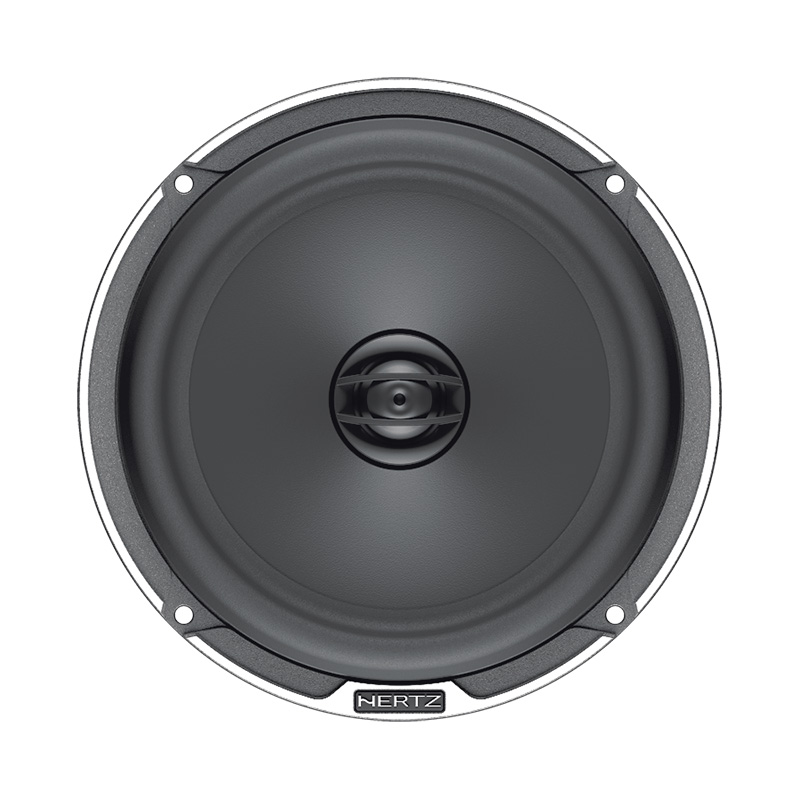

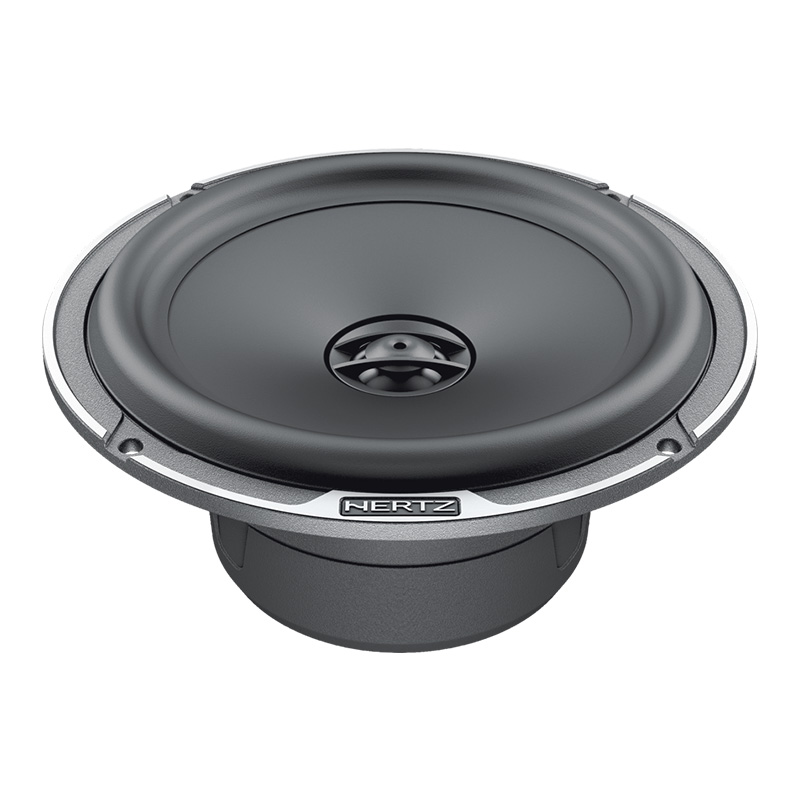

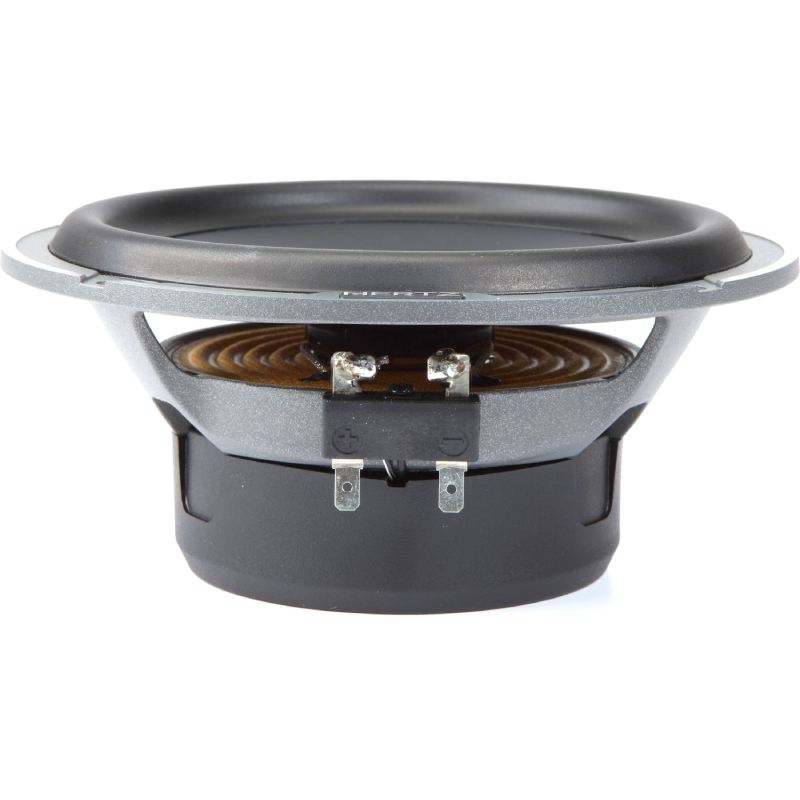

MPX 165.3 PRO 6.5" 2-Way Coaxials

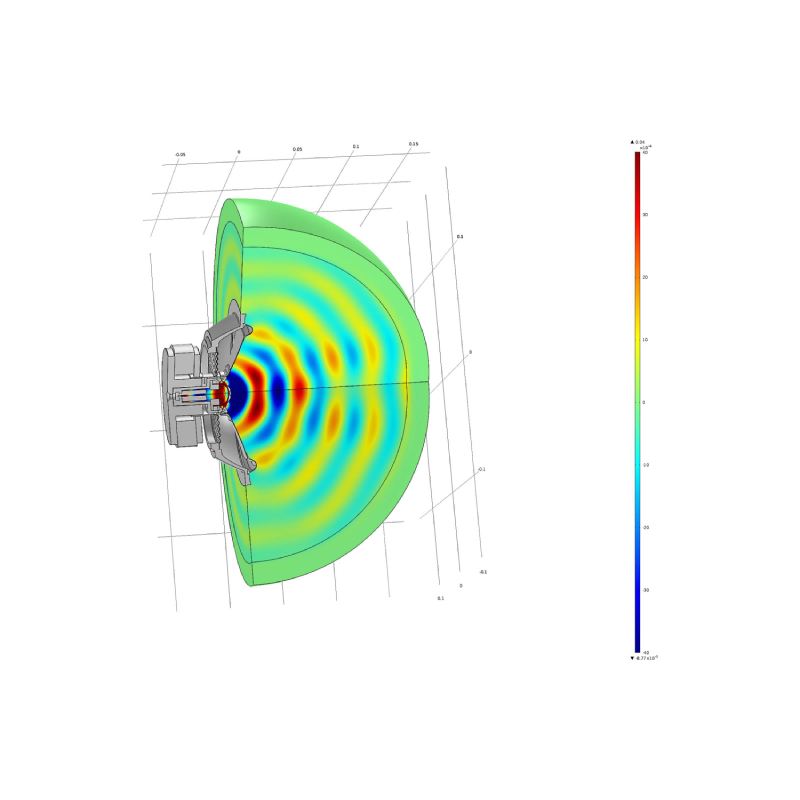

The coax tweeter concentric to the woofer of the MPX 165.3 car audio coaxial speakers allows for one single linear-phase emission point, for a natural timbre providing a detailed sound stage. Thanks to the “Center Tuning Duct” geometry, the tweeter resonance frequency is especially low and the employment of damping materials for the inside provides for a linear acoustic emission. The acoustic lens optimizes its off-axis response, which is typical with door installation of coax speakers; besides, the 36 mm diameter woofer generates deep and controlled bass frequencies.

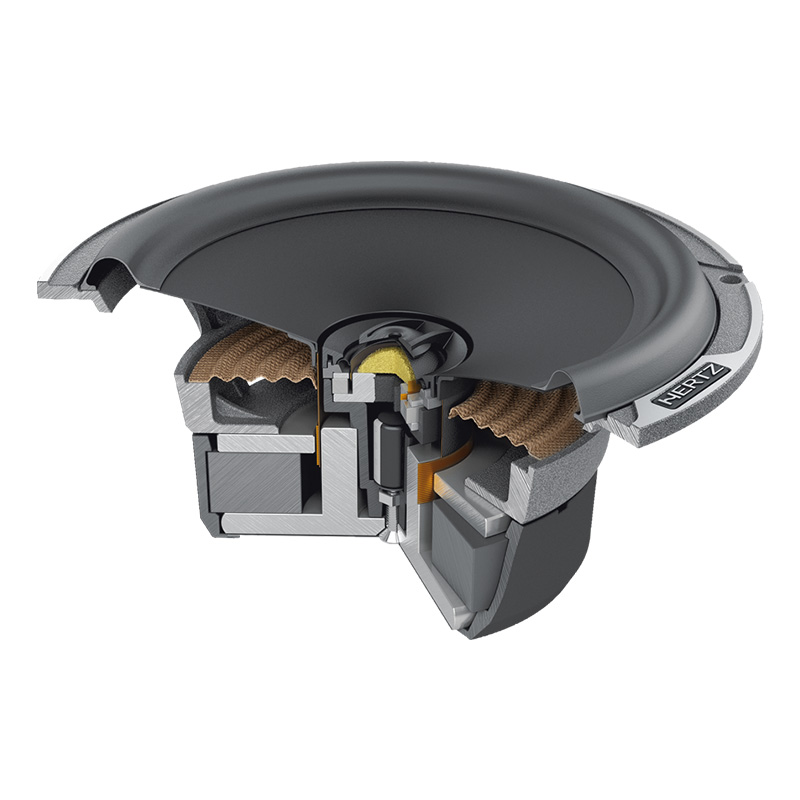

- CONCENTRIC COAXIAL TWEETER: built in the woofer voice coil, achieving one single point of emission, to re-create the virtual sound-stage like in live music performances.
- TWEETER SUPPORT WORKING AS A REAR CHAMBER: sized for low Fs, to ensure a well damped high pass frequency roll-off, allowing low cut-off frequency crossover point.
- 36 MM PURE COPPER WOOFER VOICE COIL: wound on a Polyamide former, for outstanding power handling and dynamic compression-free reproduction.
- PRESSED-PULP CONE WITH COTTON FIBERS: combining stiffness and lightweight for a wide frequency response. Cone profile geometrically refined to perfectly match with the tweeter emission ensuring phase consistency in the crossover area.
- “BOUNDARY FREE” RUBBER SURROUND: for improved efficiency and wider midbass frequency. (Logo Boundary Free)
- OVER-SIZED FERRITE MAGNET: combined with very low carbon content iron plates, for low distortion at high power levels.

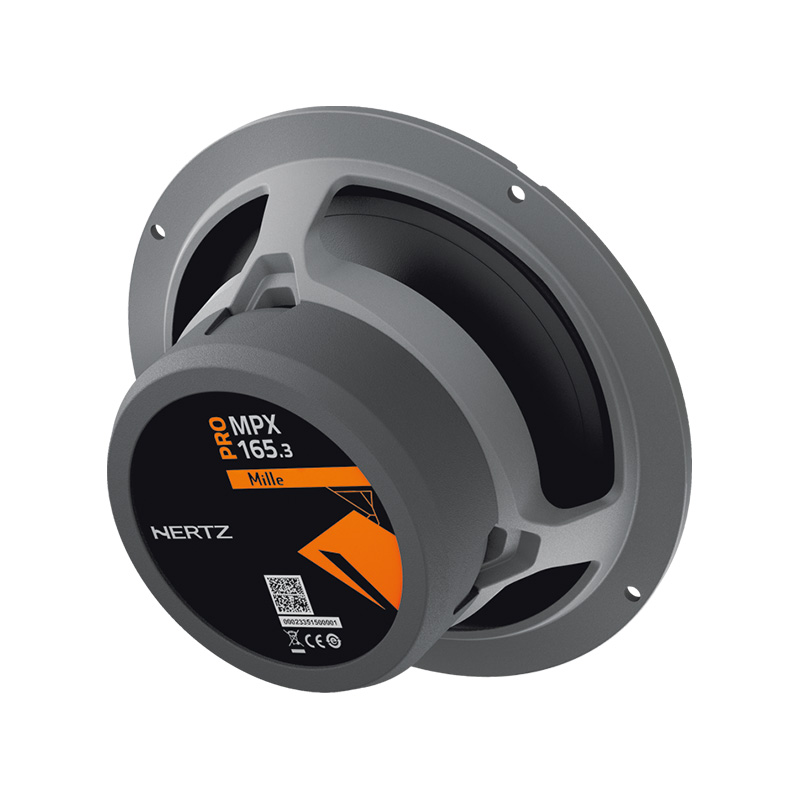

- BASKET: low mounting depth, acoustically transparent aluminium alloy basket with elegant diamond cutting and featuring the aluminium Hertz logo.
- ANTI-VIBRATION RUBBER MAGNET COVER: to damp spurious vibrations.
- Power Handling - Peak W: 200
- Power Handling - Continuous W: 100
- Impedance: 4 ohms

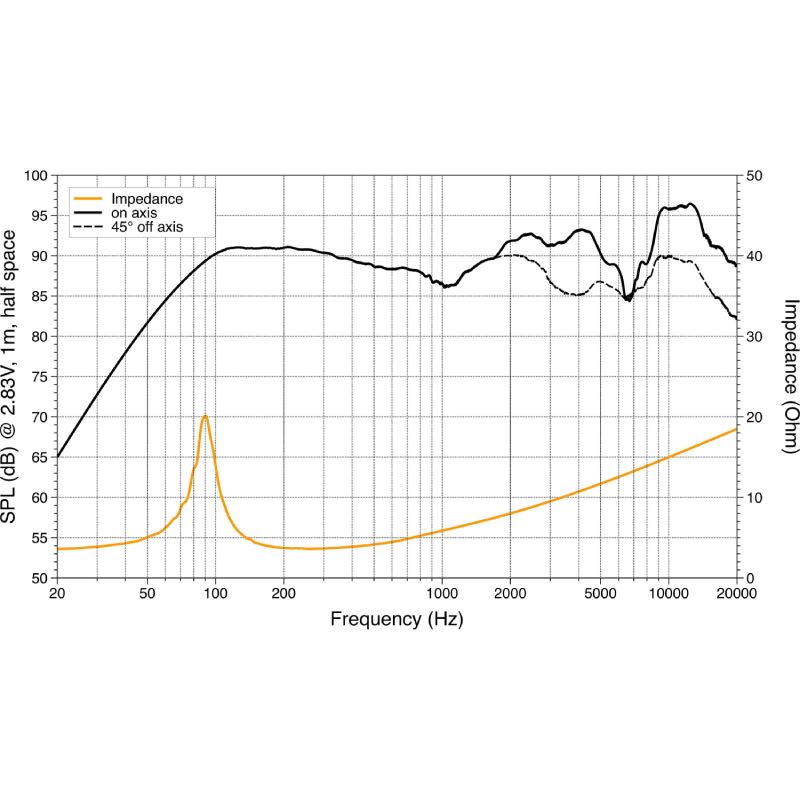

- Frequency response Hz: 45 ÷ 21,5k
- Sensitivity dB SPL: 92
- Woofer size mm (in.): 165 (6.5)
- Tweeter size mm (in.): 25 (1)
- Woofer Voice Coil Ø mm (in.): 36 (1.42)
- Tweeter voice coil Ø mm (in.): 20 (0.8)
- Woofer magnet: High density flux ferrite
- Tweeter magnet: Neodymium
- Woofer cone: Pressed-pulp cone with cotton fibers
- Tweeter dome: Tetolon
- Car speakers are usually sold as a pair unless otherwise noted.
- UPC: 8018823114066
- Weight: 8
