Audison  APBX 10DS

PRIMA Series 10" 800W Peak Power Handling at 4-Ohms, Sealed Enclosed Subwoofer

Item #54292

Condition:   Brand New

Product Highlights

  • PRIMA 10-inch subwoofer
  • 800W peak power
  • 4-ohm impedance
  • Sealed enclosed design
  • Car audio subwoofer

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$499.99

Reg. Price $530.00  Save $30.01
Add Extended Warranty
  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

No Credit needed for acima logoLearn More

Audison Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


Audison Banner

Audison APBX 10DS - PRIMA Series 10" 800W Peak Power Handling at 4-Ohms, Sealed Enclosed Subwoofer


We are a Audison authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • 10" Subwoofer Enclosure
  • • Metal grid
  • • Speaker Plug
  • • Velcro Feet
  • Owner's Manual
Audison_APBX10DS
Dedicated to the Highest Performing Prima Systems

The APBX 10 DS, a 10” subwoofer loaded in a 12-litres sealed enclosure, is the line’s “flagship”. It is dedicated to the highest performing Prima systems, using the AP1 D amplifier for the sub section. The speaker’s mechanical excursion of more than 18 mm provides for incredible authority, while the refined Thiele&Small parameters set-up provides the ideal balance for all music genres.

Precision in Profile, Power in Performance

The APS 10 D subwoofer: ultra-low profile, sealed design (5.6 inches). Versatile 2 Sides/2 Sounds, SSP for easy impedance. Rounded corners reduce resonance. Paired with 10-inch water-repellent cone, integrates seamlessly with AP8.9 bit, AP5.9 bit, or AP4.9 bit/AP4 D amps, leveraging built-in DSP for optimal performance. Complete with sturdy metal grid for protection.

Image 2

SPECIFICATIONS


  • Diameter : 10 Inch
  • Impedance : 4 Ohm
  • Peak Power Handling : 800 Watts
  • Number Of Subwoofers : 1
  • Enclosure Type : Sealed
  • Amplified : No
  • RMS Power Handling : 400 Watts

FEATURES


Product Highlights:

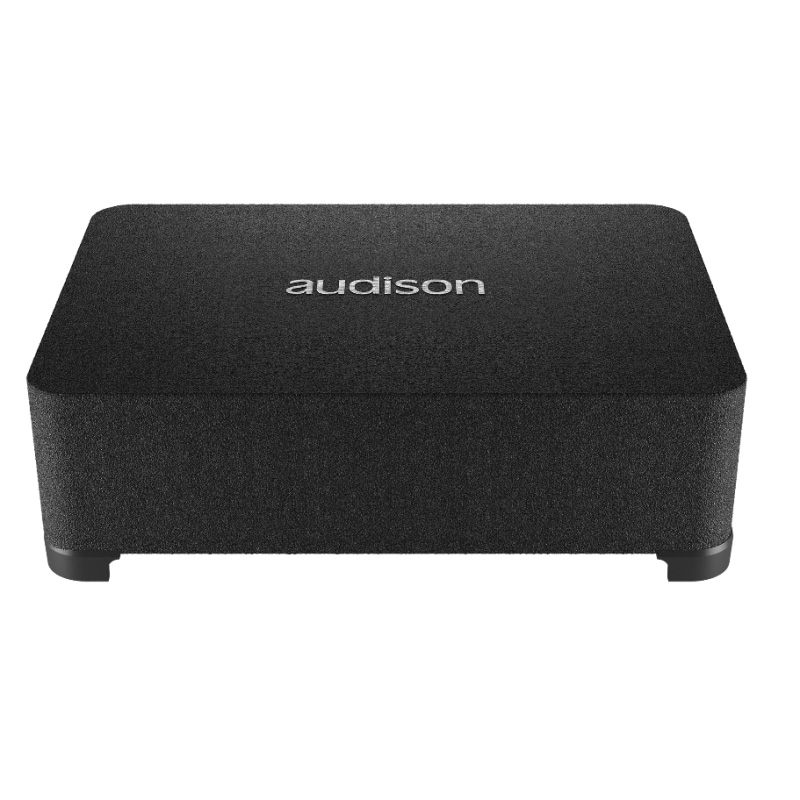

  • Ultra-low profile (5.6 in. / 142 mm) box with sealed design perfectly tuned to fully exploit the APS 10 D driver.
  • 2S² (2 Sides/2 Sounds) design provides the ability to choose between Down-Firing mounting to increase the low-frequency extension and Up-Firing install to obtain more punch and definition.
  • Leveling feet with velcro inserts included for a secure grip with the carpet while maintaining easy removal.

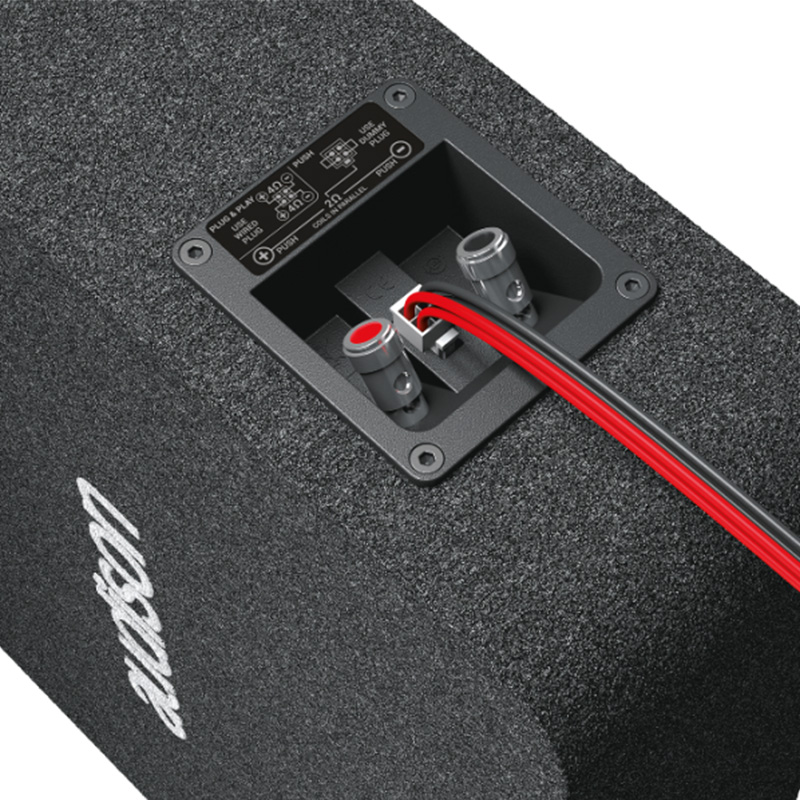

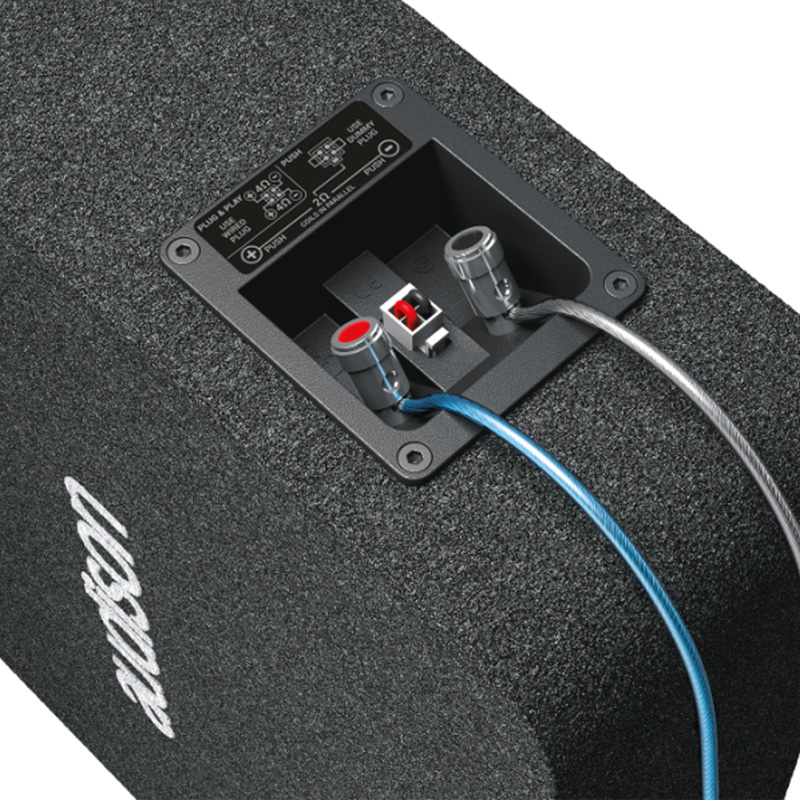

  • SSP (Sub Smart Plug) features both traditional push contacts and a Plug-&-Play terminal block to easily configure the impedance as required and provides a quick release.
  • Rounded corners allow easy positioning in the trunk and act as reinforcement to reduce enclosure resonance.
  • Special designed cone-dustcap-basket geometry which guarantees a long linear excursion capability (11 mm, one-way).
  • Massive driver motor assembly, optimized with FEM (Finite Element Modeling) for perfect control under high excursion conditions.
  • Water-repellent treated paper 10 in. cone, featuring a profile developed with FEM simulation and optimized with the Klippel Scan Vibrometer.
  • Specifically developed to be combined with either the AP8.9 bit (2 CH + 2 CH bridged), AP5.9 bit (Sub CH) or AP4.9 bit/AP4 D (2 CH bridged) amplifiers taking advantage of the bass boost feature and integrated parametric equalizer of the built-in DSP.
  • Sturdy metal grid included for a total protection of the subwoofer driver.



Specifications:

  • Comp: REFLEX SUB BOX
  • Size: 250 mm (10”)
  • Power Handling:
    • 400 W Continuous Power
    • 800 W Peak Power
  • Impedance: 4 ohms + 4 ohms
  • Sub box size mm (in.): 472 (18.58) x 334 (13.15) x 120 (4.72)
  • Magnet: High density flux ferrite
  • Cone: Cotton-Fibre pressed paper
  • Weight of one component kg (lb): 8,63 (19.03)
  • UPC: 8018823119900
  • Weight: 10
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
