Audison  APK165 2-Ohms

PRIMA Series 6.5" 300W Peak Power Handling at 2 Ohms, 2-Way Component System Speaker with Crossovers

Item #54319

Condition:   Brand New

Product Highlights

  • PRIMA Series 6.5 Speakers
  • 300W Peak Power Audio
  • 2 Ohm Component System
  • 2 Way Car Speakers
  • With Speaker Crossovers

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
CYBER WEEK DEALS!
Save 5% on Component Systems!

Use Code: CYBW5

Ends in:

$449.99

Reg. Price $575.00  Save $125.01
Add Extended Warranty
  Free 2-Years Warranty Included!

No Credit needed for acima logoLearn More

Audison Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


Audison Banner

Audison APK165 2-Ohms PRIMA Series 6.5" 300W Peak Power Handling at 2 Ohms, 2-Way Component System Speaker with Crossovers


We are a Audison authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
APK165
Enhance High Frequencies

APK 165 Ω2 system features 2 crossovers dedicated to woofer and tweeter and separated, to ease the installation. APCX WF Ω2 crossover shapes AP 6.5 Ω2’s frequency response to match it optimally with AP 1 tweeter; it also employs a Low ESR inductor, essential to maximize the power transfer to the 2Ω coil. APCX TW Ω2 tweeter crossover, instead, is provided with the Hi-Contour function, to enhance the high frequencies, designed to achieve the correct timbre balance with rich low frequencies guaranteed by the woofer.


SPECIFICATIONS


  • Diameter : 6.5 Inch
  • Sensitivity : 95 dB
  • Frequency Response : 50-20000 Hz
  • Peak Power Handling : 300 Watts
  • RMS Power Handling : 100 Watts

FEATURES


Product Highlights:

  • 2Ω impedance, to fully exploit the 65 W power per channel at 2Ω of the AP8.9 bit amplifier.
  • 75 Hz resonance frequency, to extend the frequency range down to low frequencies up to 50 Hz and increase the SPL in the low range.
  • 25 mm mobile voice coil to maximize efficiency achieving 95 dB.
  • 10 mm winding height mobile voice coil to increase maximum linear excursion up to 2,8 mm and minimize distortion, even at high listening levels.
  • APCX WF Ω2, dedicated woofer crossover with low-loss voice coils to shape the frequency response for optimal match with the tweeter.
  • APCX TW Ω2, tweeter crossover featuring the Hi-Contour function to enhance high frequencies, designed to achieve the correct timbre balance with rich low frequencies guaranteed by the woofer.
  • AP 1 tweeter with acoustic lens designed to balance the frequency response in the 10kHz - 13kHz range, to optimize the product’s acoustic emission in the critical OEM placements, where the product performance is affected by the presence of the factory grille.
  • Connection cable built in the passive crossover and ending with “OEM Integration compliant” fast-on connectors. The ends, different in each of the two poles, eliminate any possible connection errors, speeding up the installation process and making it safe in the course of time.
  • AP 6.5 Ω2 woofer featuring water-repellent treated paper cone, with profile developed with FEM simulation technology and optimized with Klippel Scan Vibrometer.
  • Woofer with reduced mounting depth, providing ease of installation in OEM placements.
  • Woofer with TPU (Thermoplastic Polyurethane) surround, featuring the exclusive “Triple Wave” shallow profile, for maximum excursion linearity.
  • Woofer with compact basket, protected by abrasion-resistant and scratch-proof coating. Damping epoxy glue provides perfect coupling with the motor system.
  • Woofer with high current fast-on terminal with double contact on positive and negative poles for high flexibility and quick connection. The terminal features a temperature resistant plastic cover, protecting it against accidental short circuits.
  • Developed with the KLIPPEL suite.

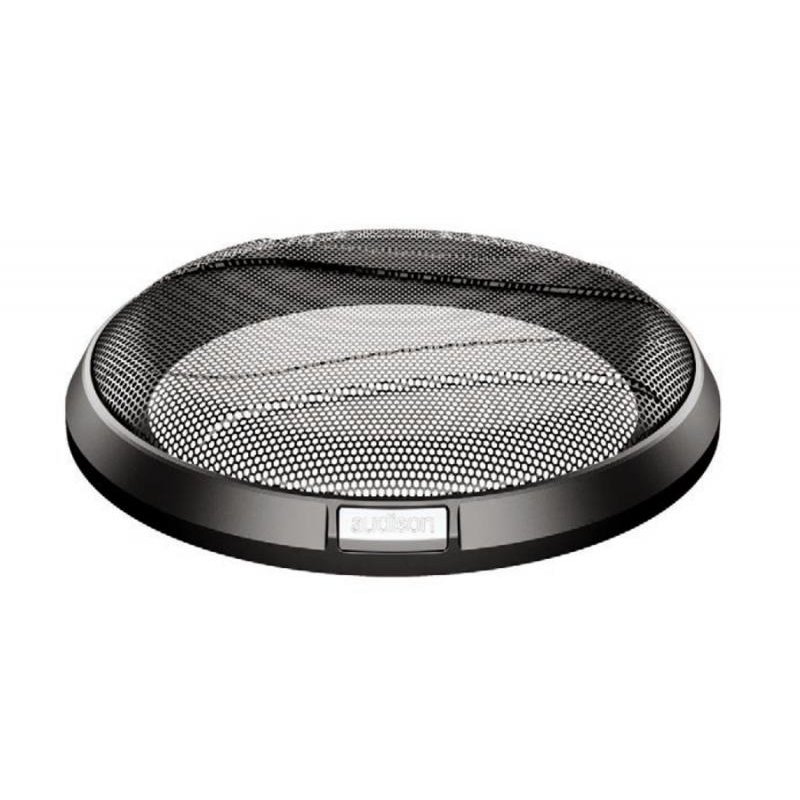

  • * Grille included



Specifications:

  • Comp: 2 way System
  • Size:
    • 165 mm (6.5″) Woofer
    • 26 mm (1″) Tweeter
    • 46,5 x 37,5 x 20,1 mm (1.83″ x 1.47 x 0.8) Crossover
  • Power Handling:
    • 100 W Continuous Power
    • 300 W Peak Power
  • Impedance: 2 ohms
  • Frequency Response: 50 – 20k Hz
  • Sensitivity: 95 dB/Spl



  • UPC: 8018823119023
  • Weight: 8
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
