Hertz  CS 300 S4

Cento Series 12" 700W Peak Power Handling at 4 Ohms, Single Voice Coil Component Car Subwoofer

Item #54369

Condition:   Brand New

Product Highlights

  • 12" Subwoofer
  • 700W Peak Power
  • 4 Ohms Impedance
  • Single Voice Coil
  • Component Car Subwoofer

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$329.99

Reg. Price $414.99  Save $85.00
Add Extended Warranty
  Free 2-Years Warranty Included!

No Credit needed for acima logoLearn More

Hertz Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


Brand Banner

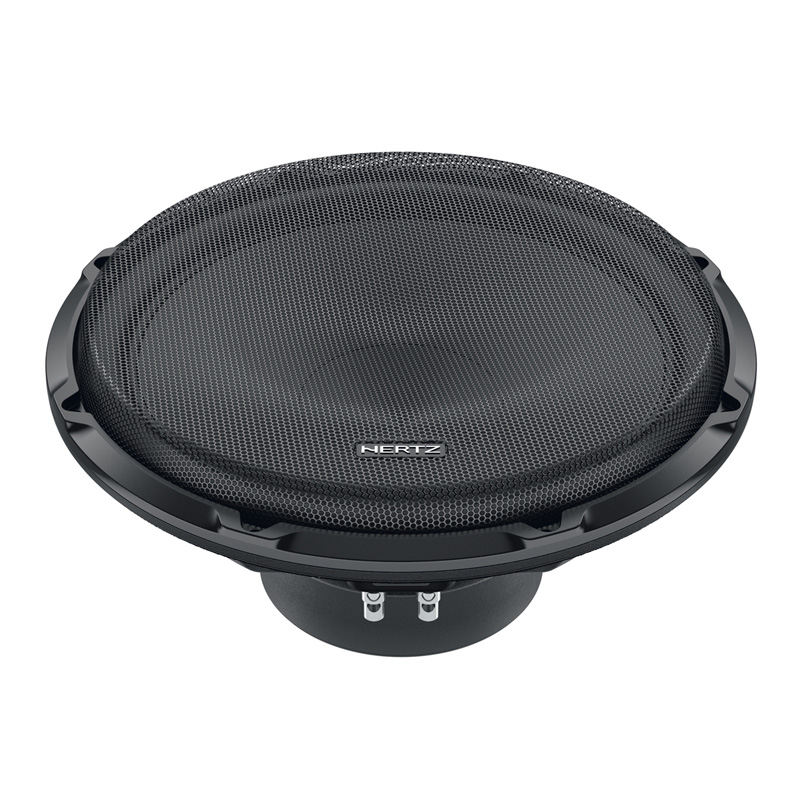

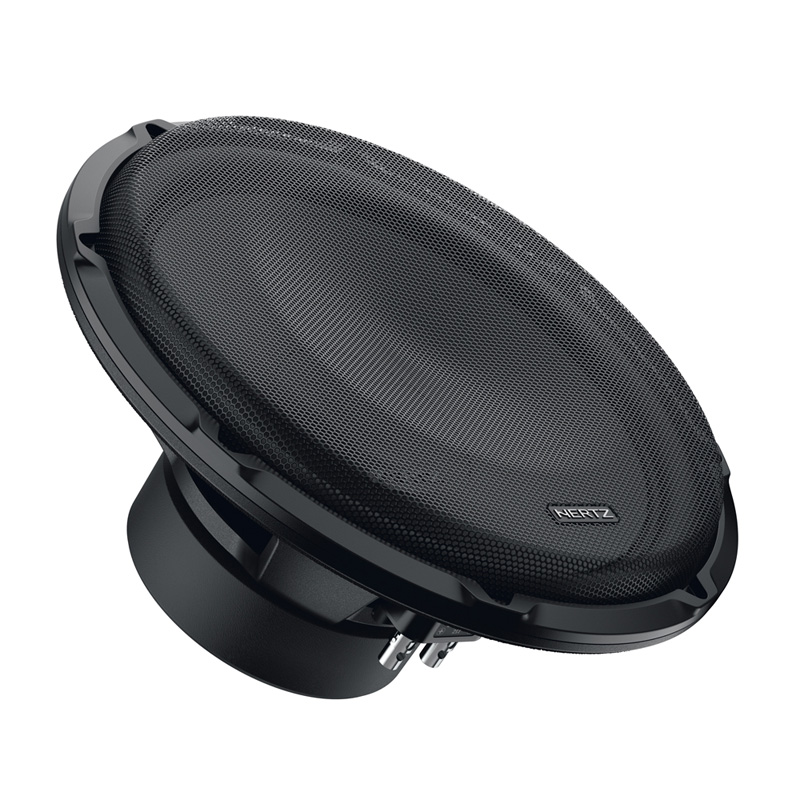

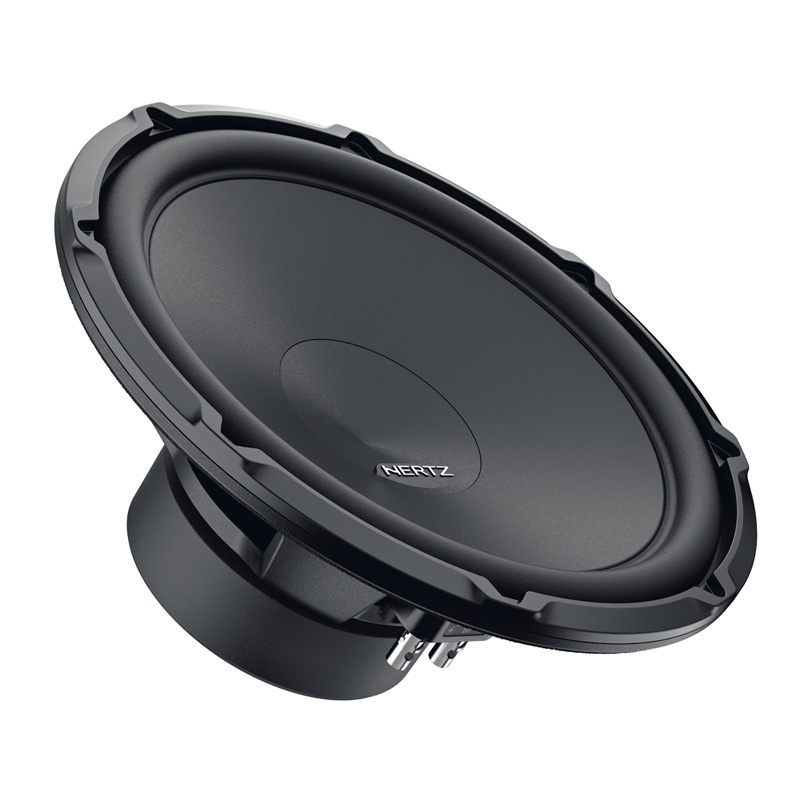

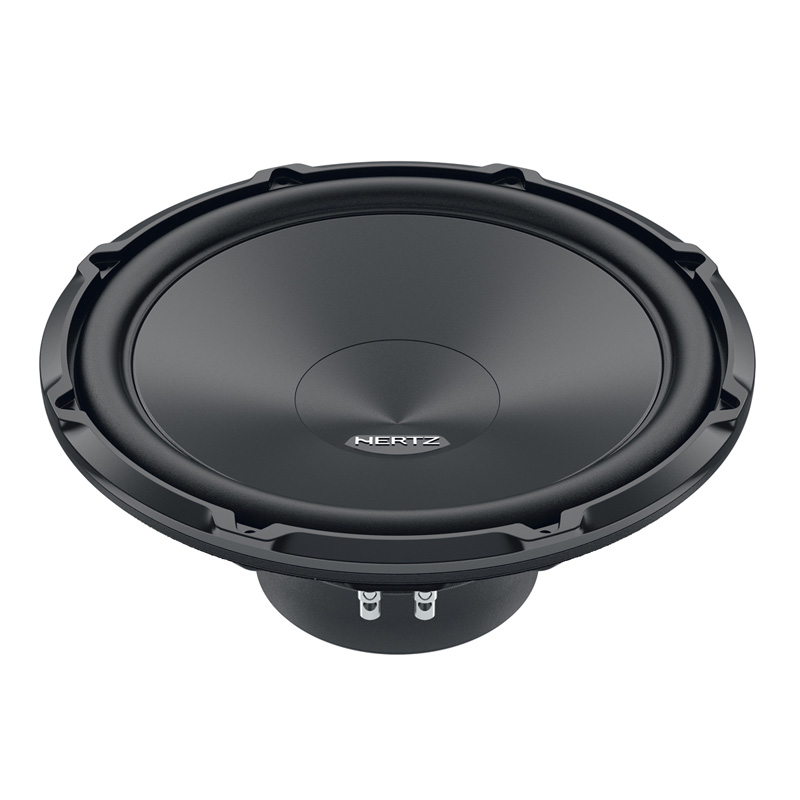

Hertz CS 300 S4 Cento Series 12" 700W Peak Power Handling at 4 Ohms, Single Voice Coil Component Car Subwoofer


Alpine Banner for OCS

We are a Hertz authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • (1) 12" Single Voice Coil Component Car Subwoofer
  • • Trim ring
  • • (8) 1-1/2" Screws
  • • (8) Speed clips
  • • Template on the box
  • Owner's Manual
Advanced Low-Frequency Subwoofer

Electroacoustic design optimized for enclosures starting at 32L delivers powerful, precise bass. Fluid dynamic optimization drastically reduces distortion caused by air compression at high excursions. Polypropylene cone and dust cap, engineered via FEM simulations, ensure clean, low-frequency performance.

Compact High-Power Subwoofer

Equipped with a 35mm 4Ω voice coil wound on six layers of pure copper with high-thermal-resistance glass fiber for maximum durability. Proprietary magnetic geometry delivers high SPL with minimal distortion, even at extreme excursions. Its compact, hole-free design makes it perfect for custom enclosures tailored to your setup.

Secure & Easy Connections

Solid push-contact terminal block supports cables up to 8AWG for low-resistance, hassle-free wiring, even with multiple subwoofers. Rubber-protected magnetic assembly ensures long-lasting durability and reliability. High-strength ABS gasket allows seamless installation of the optional grille for a sleek, professional look.


SPECIFICATIONS


  • Diameter : 12 Inch
  • Sensitivity : 86.5 dB
  • Impedance : 4 Ohm
  • Peak Power Handling : 700 Watts
  • Shallow Mount : Yes Inch
  • Number of Voice Coils : Single

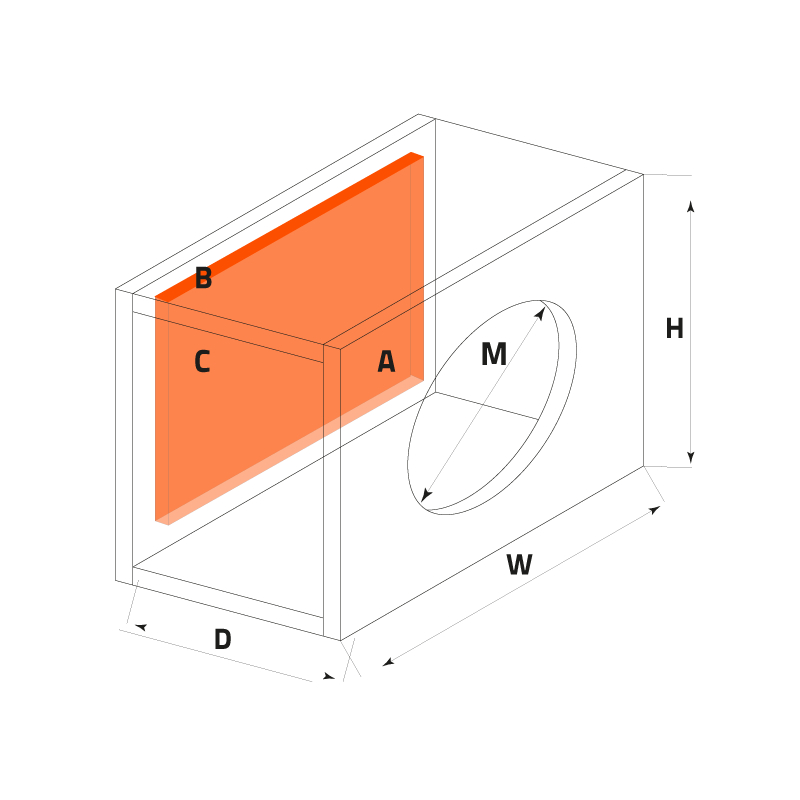

  • Suggested Sealed Box Volume : 1.13 Cubic ft.
  • RMS Power Handling : 350 Watts

FEATURES


Features:

  • Electroacoustic design optimized for enclosures starting from 32 liters.
  • Fluid dynamic optimization system that drastically reduces the acoustic distortions generated by the air compression at high excursions.
  • Polypropylene cone and dust cap geometry engineered through FEM simulations for low frequency distortion reduction.
  • 35 mm 4 Ω voice coil wound on six layers of pure copper on a high thermal resistance glass fiber support.
  • Magnetic group geometry optimized with proprietary software for high undistorted SPL at high excursions.
  • Ideal for use in custom boxes that can be shaped around the subwoofer thanks to its compact size and lack of the decompression hole.
  • Terminal block featuring solid push contacts that accept cables up to 8 AWG to offer low wiring resistance and maximum ease of connection even in installations with multiple subwoofers.
  • Rubber protection of the magnetic assembly and high-strength ABS plastic gasket allowing the application of the optional grille for an elegant finish.



Specifications:

  • Size: 300 millimeters (12 inches)
  • Continuous Power Handling: 350 watts
  • Peak Power Handling: 700 watts
  • Impedance: 4 ohms
  • No Filter Component: Subwoofer
  • Voice Coil Diameter: 35 millimeters (1.38 inches)
  • Magnet Size: 134 x 45 x 34 millimeters (5.28 x 1.77 x 1.34 inches)
  • Weight: 4.844 kilograms (10.68 pounds)
  • Magnet: High density flux ferrite
  • Cone: Polypropylene
  • Xmech: 16.5 millimeters (0.65 inches)

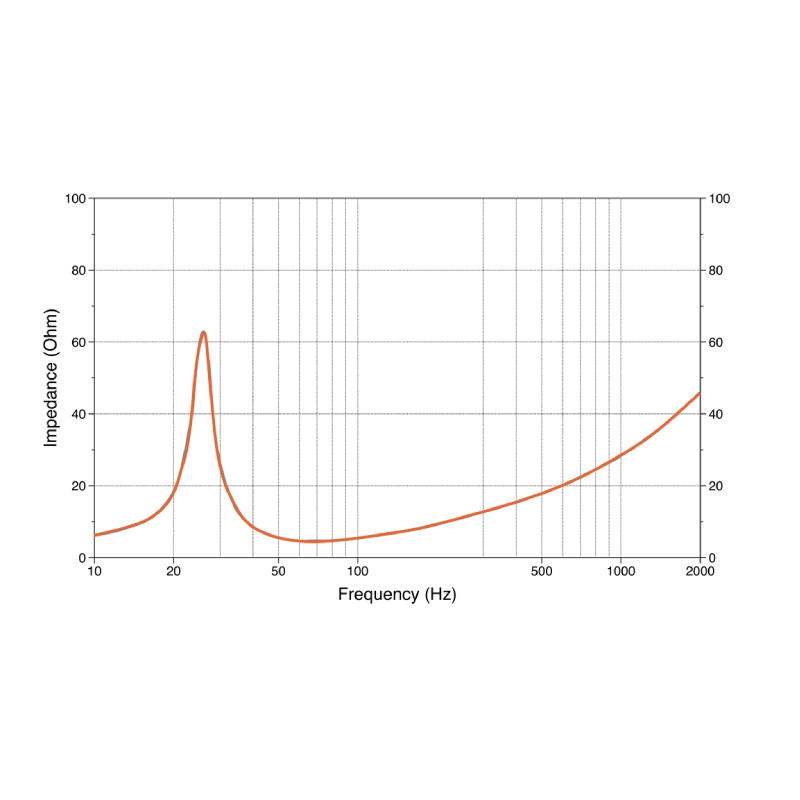

Electro-Acoustic Specifications:

  • Diameter (D): 267.7 millimeters
  • Maximum Excursion (Xmax): 12.5 millimeters
  • DC Resistance (Re): 3.6 ohms
  • Resonance Frequency (Fs): 25 Hz
  • Voice Coil Inductance (Le): 3.64 millihenrys
  • Equivalent Volume of Compliance (Vas): 93.42 liters
  • Effective Cone Mass (Mms): 193 grams
  • Mechanical Compliance of Suspension (Cms): 0.21 millimeters per Newton
  • Force Factor (BL): 14.8 Tesla meters
  • Total Quality Factor (Qts): 0.47
  • Electrical Quality Factor (Qes): 0.50
  • Mechanical Quality Factor (Qms): 7.2
  • Sound Pressure Level (SPL): 86.5 dB
  • UPC: 8018823130387
  • Weight: 11
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
