MPCX 2 TM.3 PRO Crossover
The MPCX 2 TM.3 car audio crossover is specifically developed for MP 70.3 and MP 25.3 when installed in a 3-way multi-amplification system and combined with an MP 165.3/ MP 165P.3 woofer actively driven.
Features:
- Passive crossover specifically developed for MP 70.3 and MP 25.3 when installed in a 3-way multi-amplification system and combined with an MP 165.3/ MP 165P.3 woofer actively driven.
- Two-position (0 / +2 dB) switch for tweeter level adjustments, to fine-tune the transducers emission.

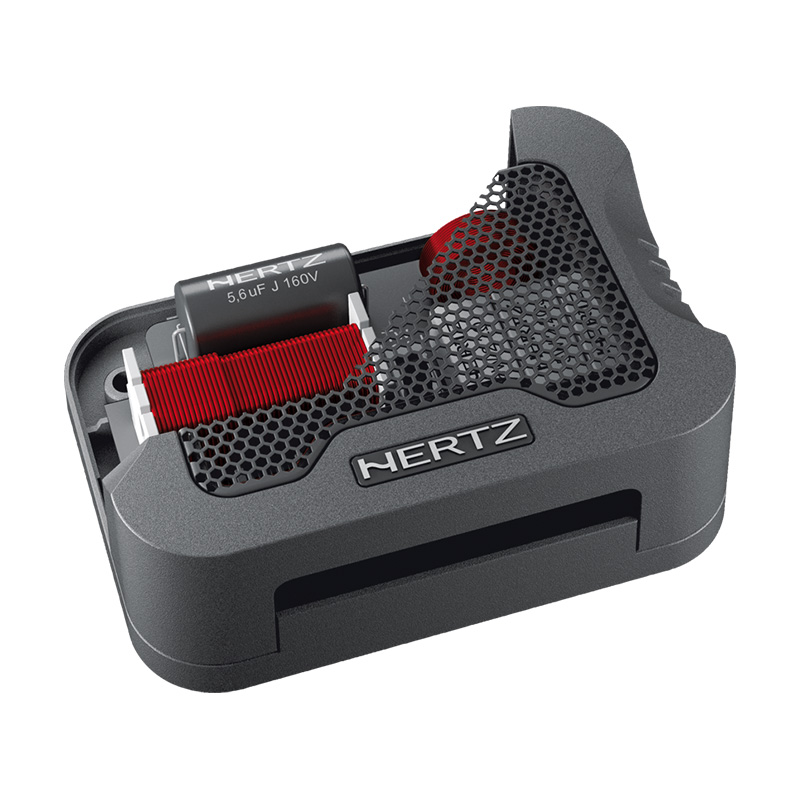

- 160V extremely high quality bi-metallized polyester film capacitors with ultra-low DF, for maximum sound transparency and neat mid/hi-frequencies.
- 1mm pure copper wire low series resistance inductors, for low dissipation losses in the mid-range section where high transient currents are demanded.

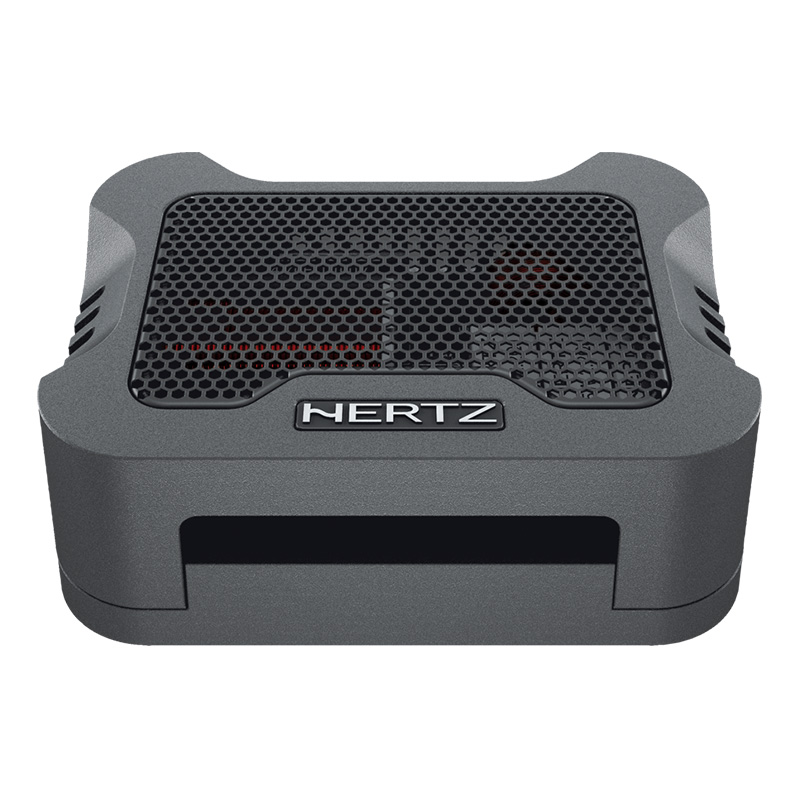

- Small footprint design for easy installation, with top vent grille for efficient heat dissipation.
Specifications:
- Component: Crossover
- Crossover:
- Midrange: Low pass 5,5 kHz @ - 6 dB Oct.
- Tweeter: Hi pass 5,5k Hz @ - 12 dB Oct.
- Adjustement Tweeter: 0 / +2 dB
- Size mm (in.): 102 x 76.5 x 37 (4.02 x 3.01 x 1.46)
- Weight kg (lb.): 0,16 (0.35)
- UPC: 8018823113984
- Weight: 2
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
