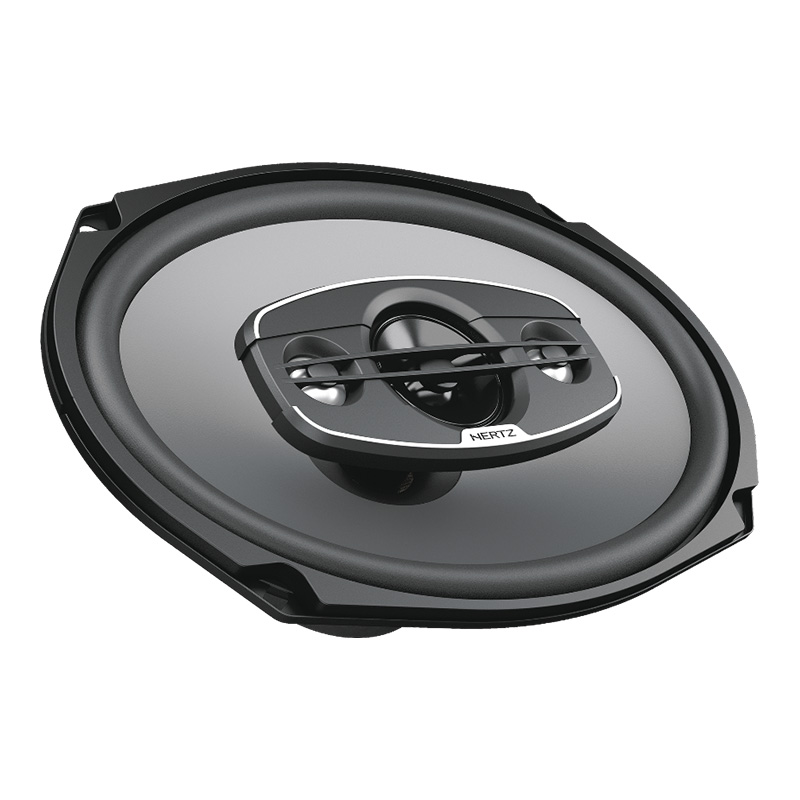

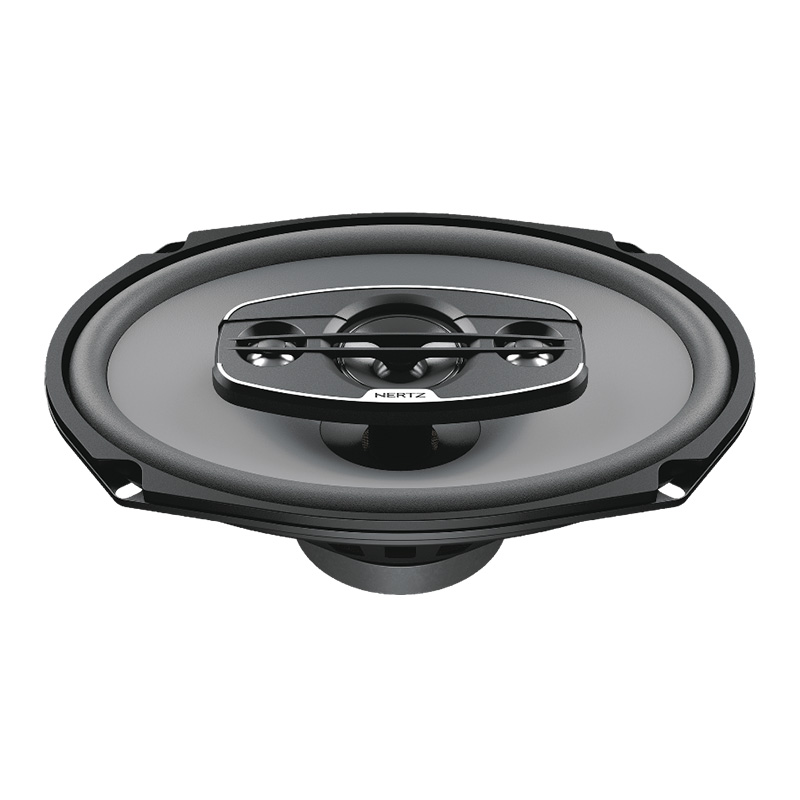

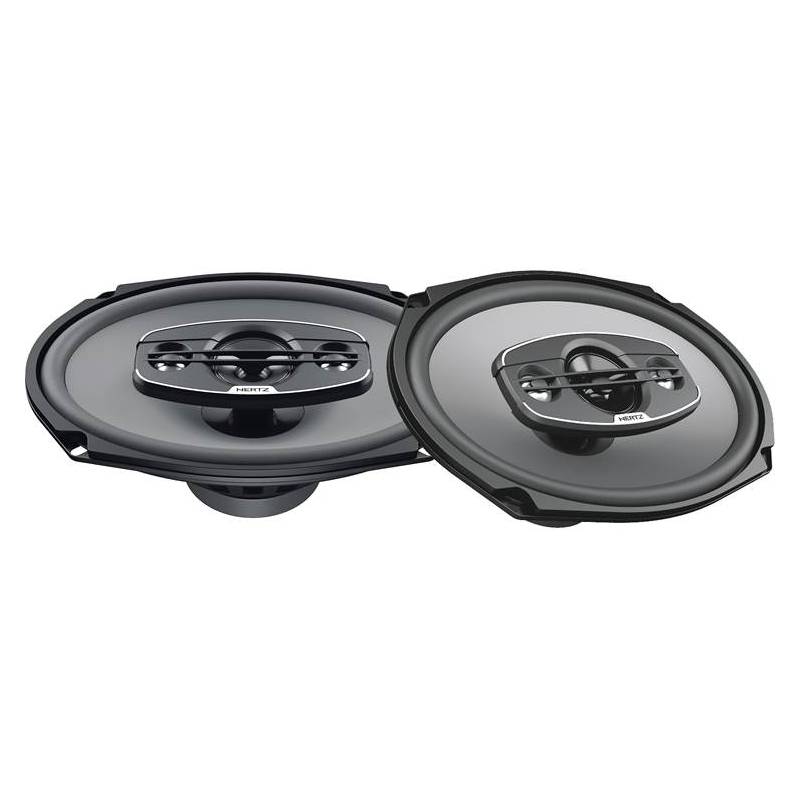

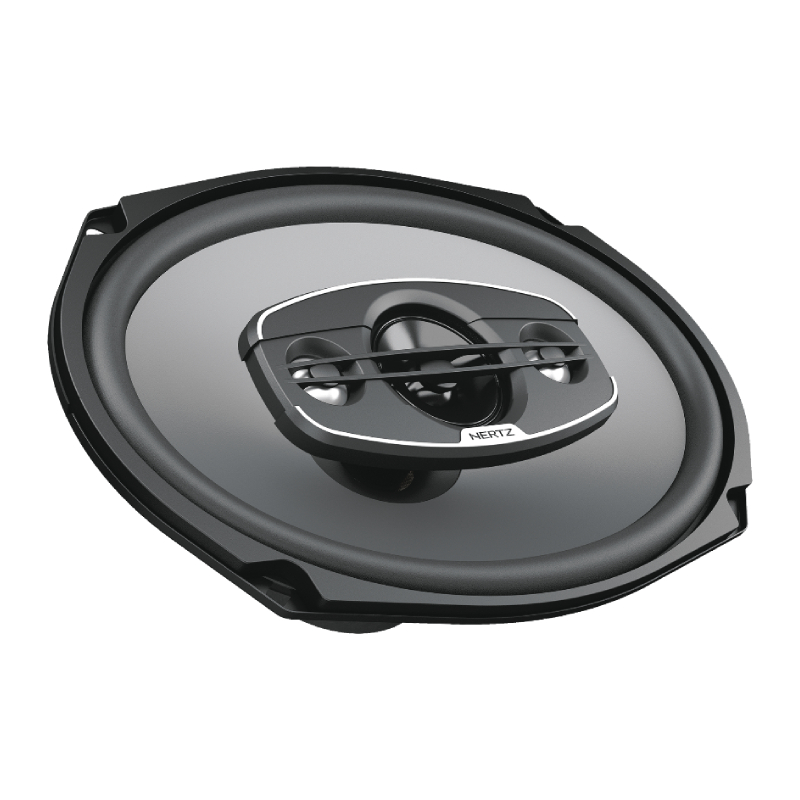

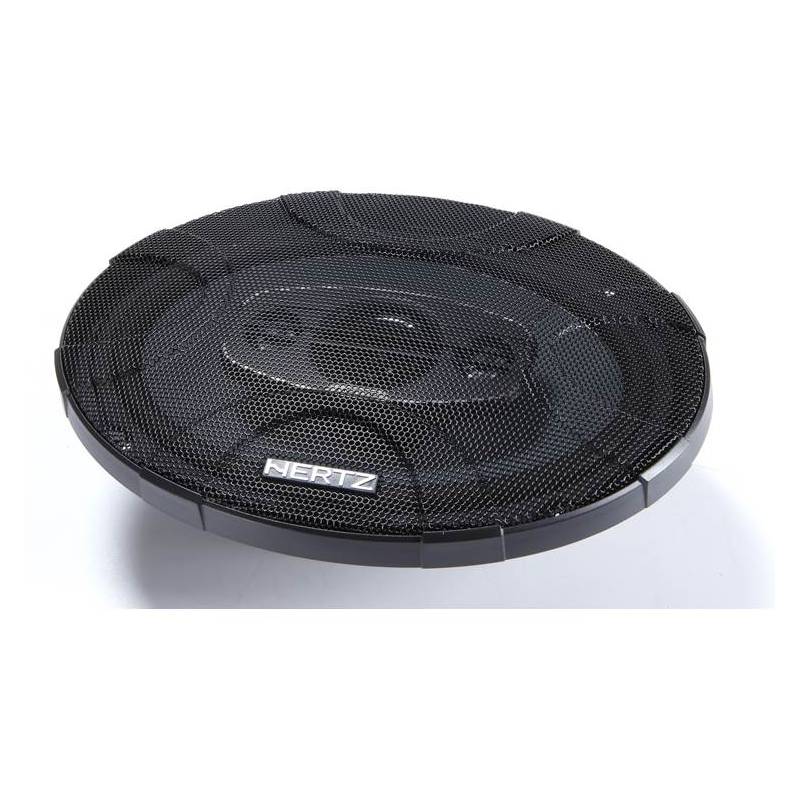

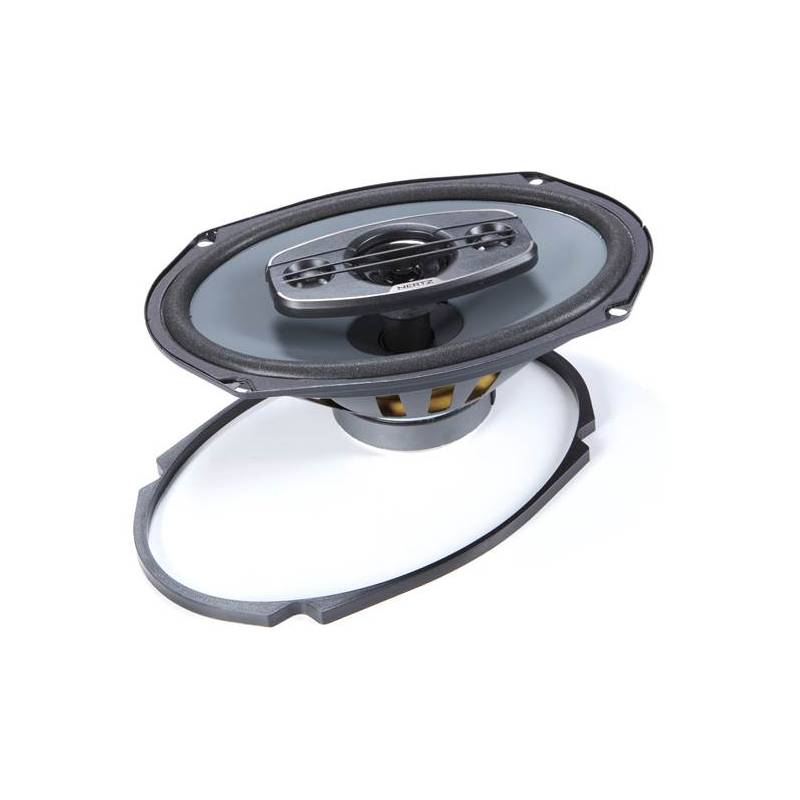

X690 Uno coaxials
For our fans seeking strong emotions who have a 6”x9” OEM setup, Hertz offers the X 690, a 4 way monster with a power handling of 340 W. The double 15 mm piezoelectric super-tweeter with PEI dome extends the frequency response above 20 kHz, maximizing the stereo image.
- Diameter : 6X9 Inch
- Sensitivity : 94 dB
- Impedance : 4 Ohm
- Frequency Response : 45-22000 Hz
- Peak Power Handling : 340 Watts
- Design : 4 Way

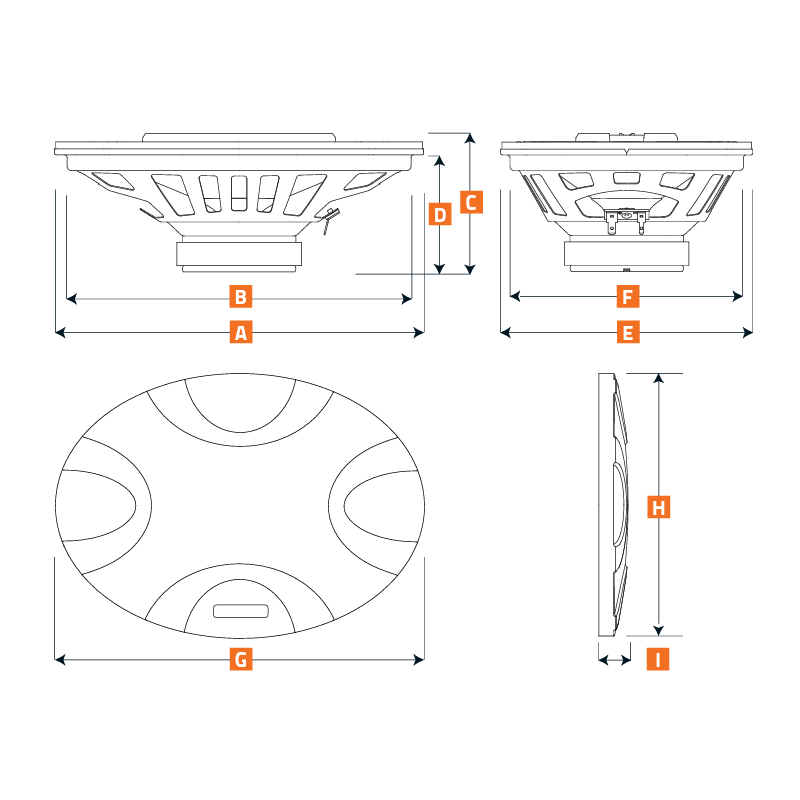

- Top Mount Depth : 3-1/16 Inches
- Bottom Mount Depth : 3-7/16 Inches
- RMS Power Handling : 85 Watts
- Double 15 mm piezoelectric super-tweeter with PEI dome to extend the frequency response above 20 kHz.

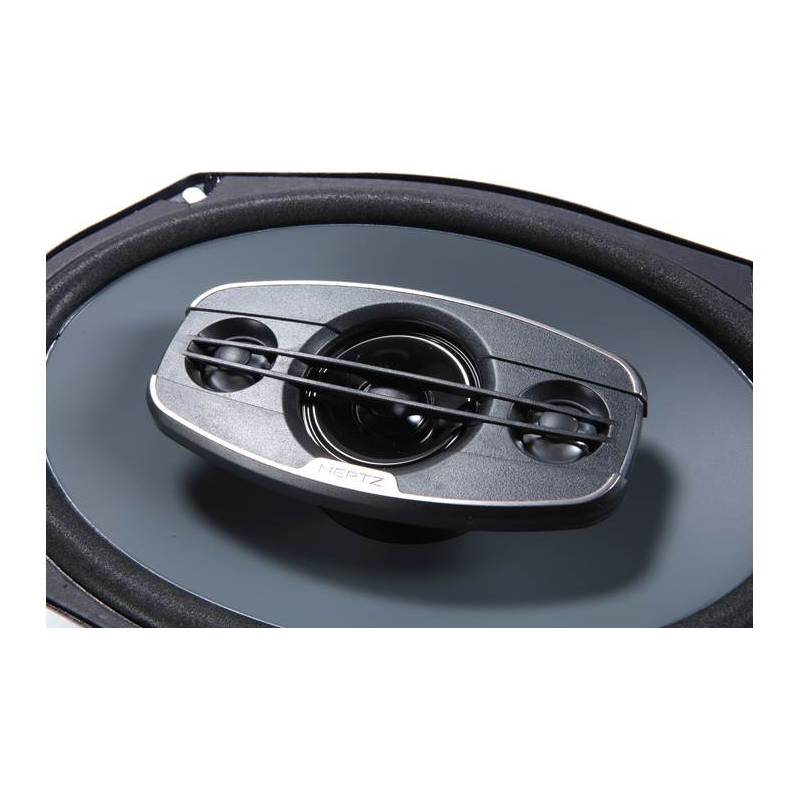

- 40 mm PEI tweeter with ferrite motor, for a brilliant reproduction of mid-high frequencies and compactness.
- Tweeter and super-tweeter faceplate optimized for exceptional off-axis performance.
- High stiffness metallic-grey finish pressed-paper cone with water-repellent treatment.
- Foam surround combining high sensitivity and deep bass response.
- Pure copper 25mm (1 in.) voice coil woofer for high dynamic power handling.

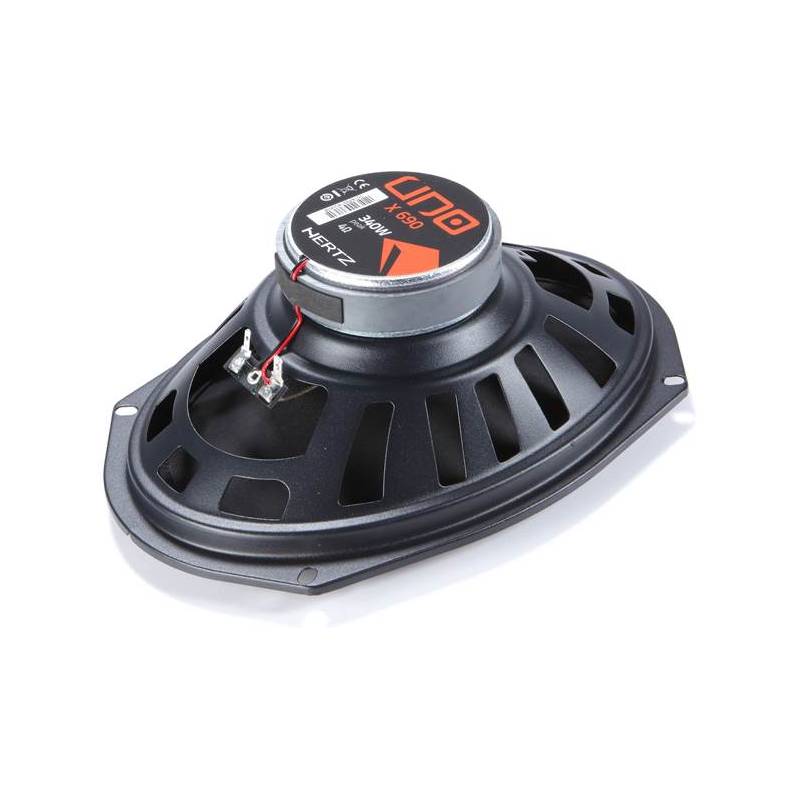

- High flux density 80mm (3.15 in.) ferrite magnet for a powerful undistorted sound.
- Easy-to-install DIN size basket protected by abrasion-resistant dust paint.
- Power Handling - Peak W: 340
- Power Handling - Continuous W: 85
- Impedance: 4 ohms
- Frequency response Hz: 45 ÷ 22k
- Sensitivity dB SPL: 94
- Woofer size mm (in.): 6 x 9
- Tweeter size mm (in.): 40 (1.6)
- Supertweeter size mm (in.): 2 x 15 (0.6)
- Woofer Voice Coil Ø mm (in.): 25 (1)
- Tweeter voice coil Ø mm (in.): 20 (0.8)
- Woofer magnet: High density flux ferrite
- Tweeter magnet: Ferrite
- Woofer cone: Water-repellent pressed paper
- Tweeter dome: PEI
- Supertweeter dome: PEI
- UPC: 8018823120678
- Weight: 6.5
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
