Hertz CK130 - Cento Series 5" 210W Peak Power Handling 4 Ohm, 2-Way Car Component System
We are a Hertz authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

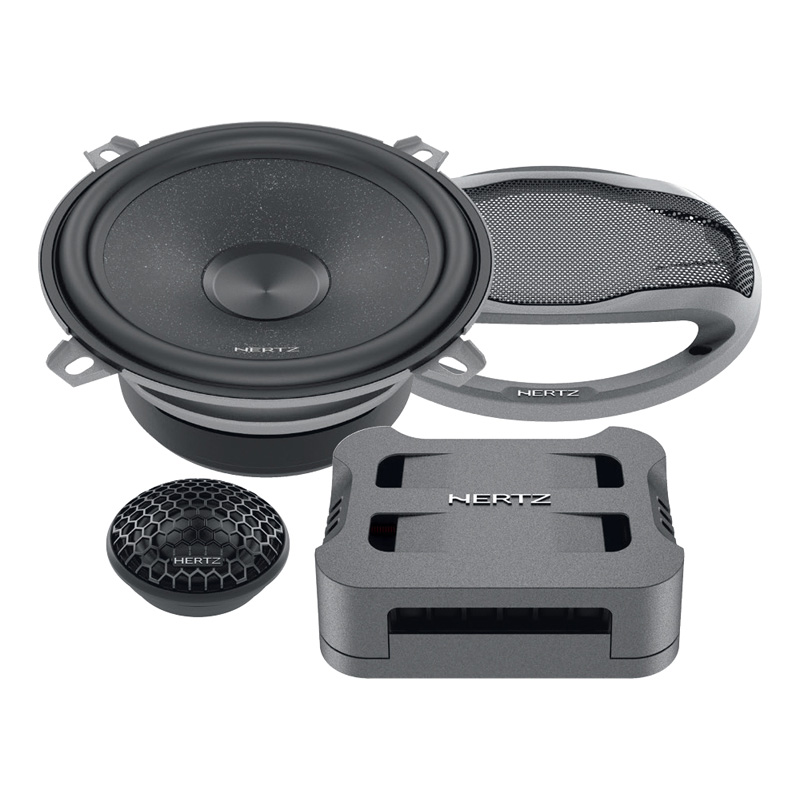

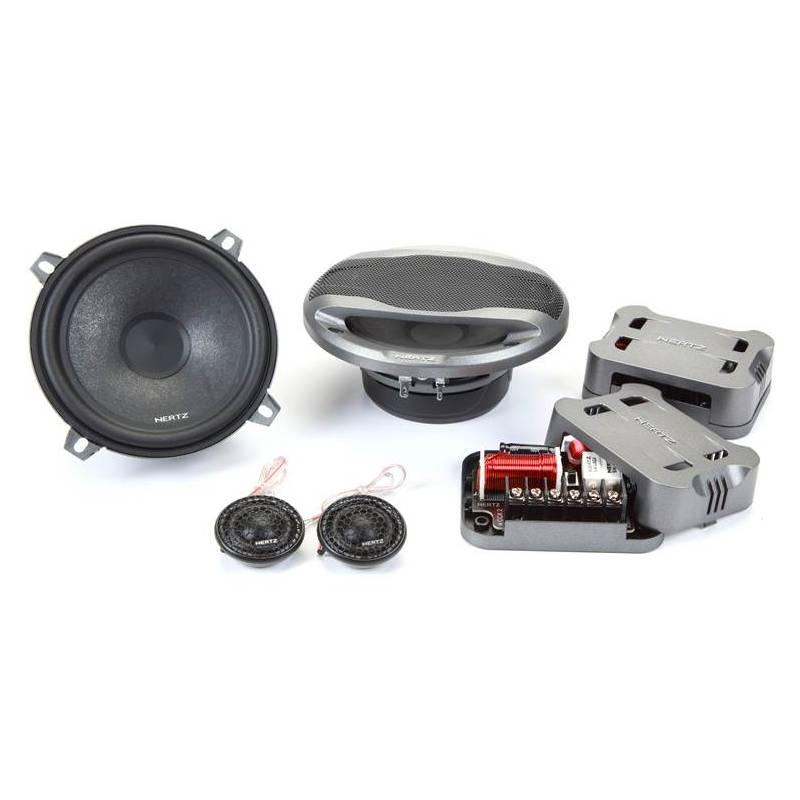

What's Inside?
- • (2) C 130 Woofers
- • (2) C 26 Tweeters (with attached 9" length of speaker wire)
- • (2) CCX 2 Crossover networks
- • (2) Tweeter flush mount clamps
- • (2) Angled surface mount housings
- • (2) Woofer grilles
- • (16) 3/4" Screws
- • (4) 5/8" Flat head screws
- • (8) Large speed clips
- • (4) Small speed clips
- • Templates on box
- • Owner's Manual
Crisp, Balanced Sound
This component speaker system includes two woofers, two tweeters, and two crossovers for a complete audio upgrade. The 5-1/4" semi-pressed paper woofers with mica coating and 1" Tetolon dome tweeters deliver clear, dynamic sound. With a 2-way 2500?Hz crossover and 70W RMS (210W peak) power handling, every note is reproduced with precision.
Wide-Range, High-Sensitivity Audio
Delivering a frequency range of 65–22,500?Hz and 92.5?dB sensitivity, this speaker system brings every detail of your music to life. With 4-ohm impedance and a 2" top-mount woofer depth, installation is simple and versatile. Included woofer grilles provide added protection without compromising sound quality.
- Diameter : 5 Inch
- Sensitivity : 92.5 dB
- Impedance : 4 Ohm
- Frequency Response : 65-22500 Hz
- Peak Power Handling : 210 Watts
- RMS Power Handling : 70 Watts
Features:

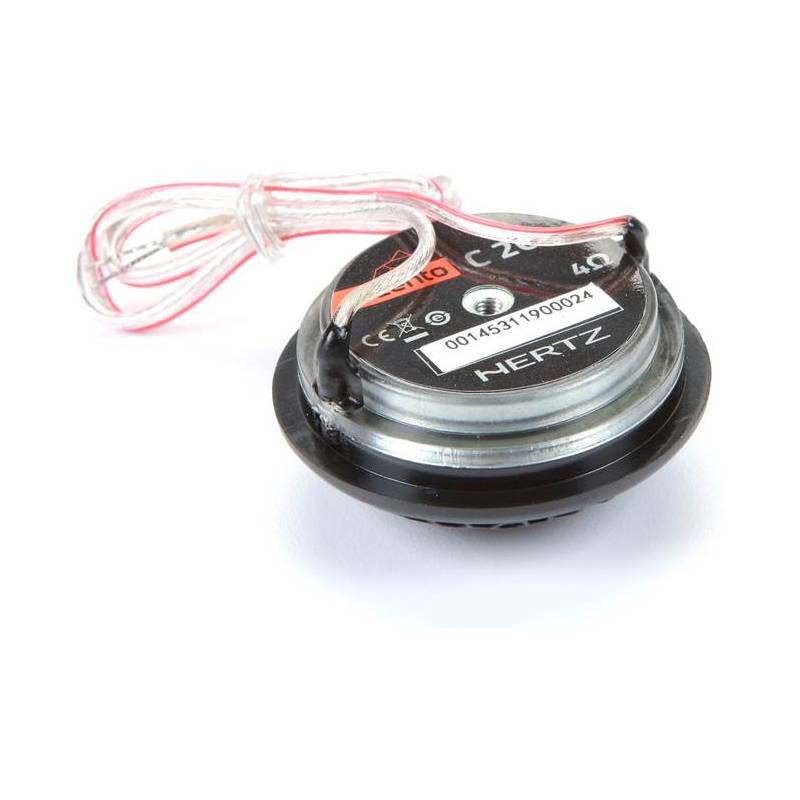

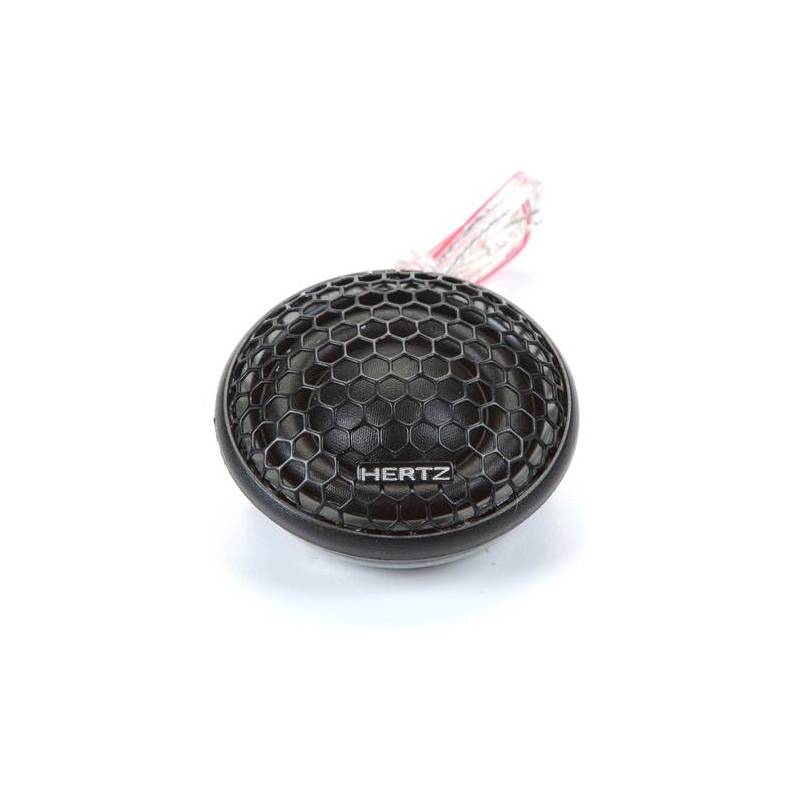

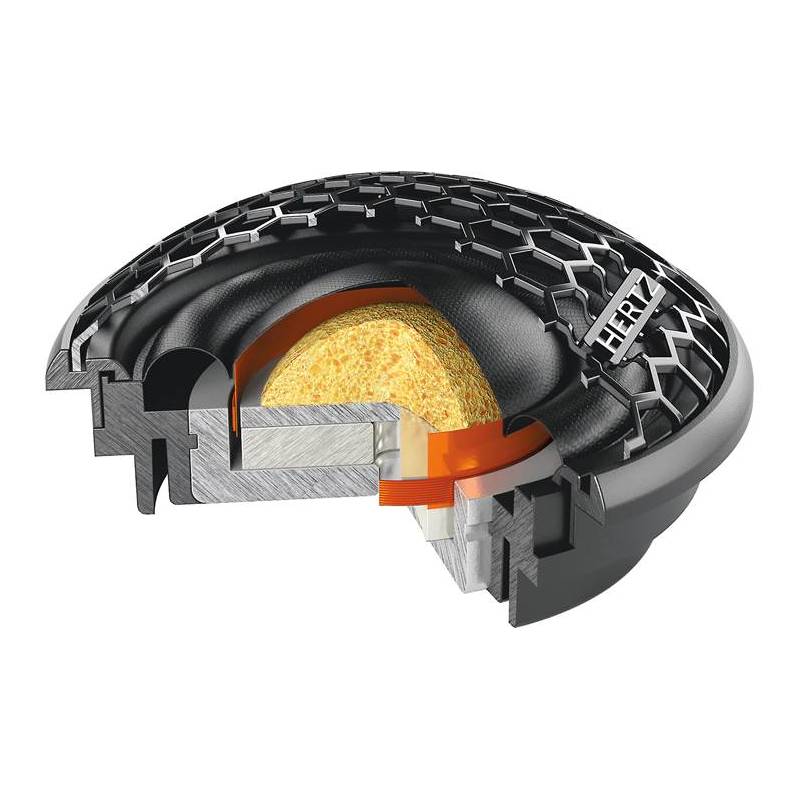

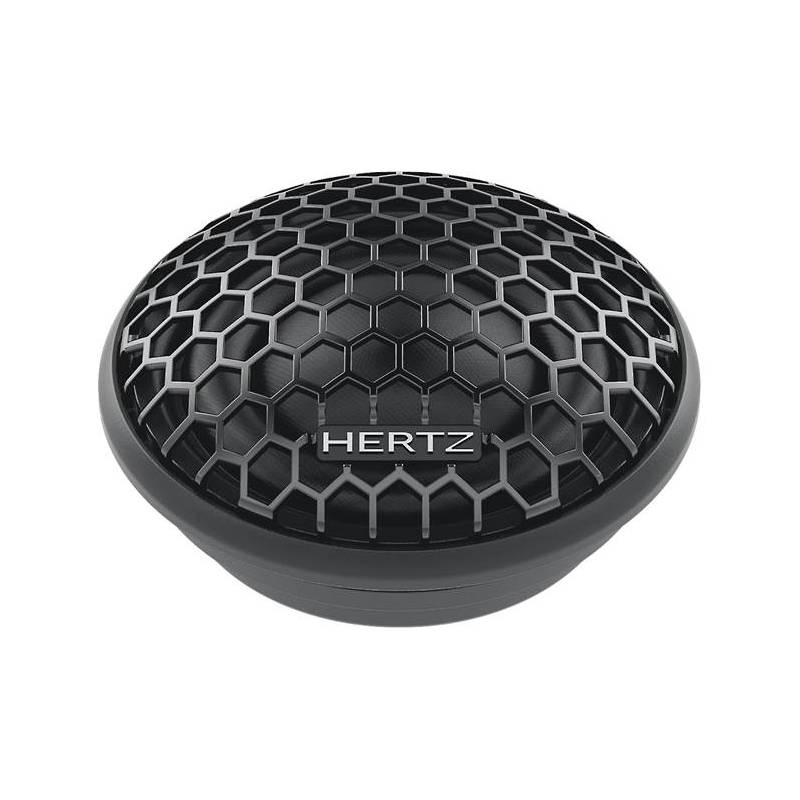

C 26:
- Soft Tetolon® fiber 26 mm (1 in.) dome and 20 mm (0.8 in.) voice coil, for a natural and yet detailed reproduction of musical nuances.
- Neodymium magnet with high-density magnetic flux, optimized for maximum control during high-energy dynamic transients in the mid-high frequency range.
- Faceplate geometry optimized with FEM (Finite Element Modeling) technique for a linear frequency response in off-axis installations.
- Wide range of accessories, for easy integration in OEM placements.
C 130:

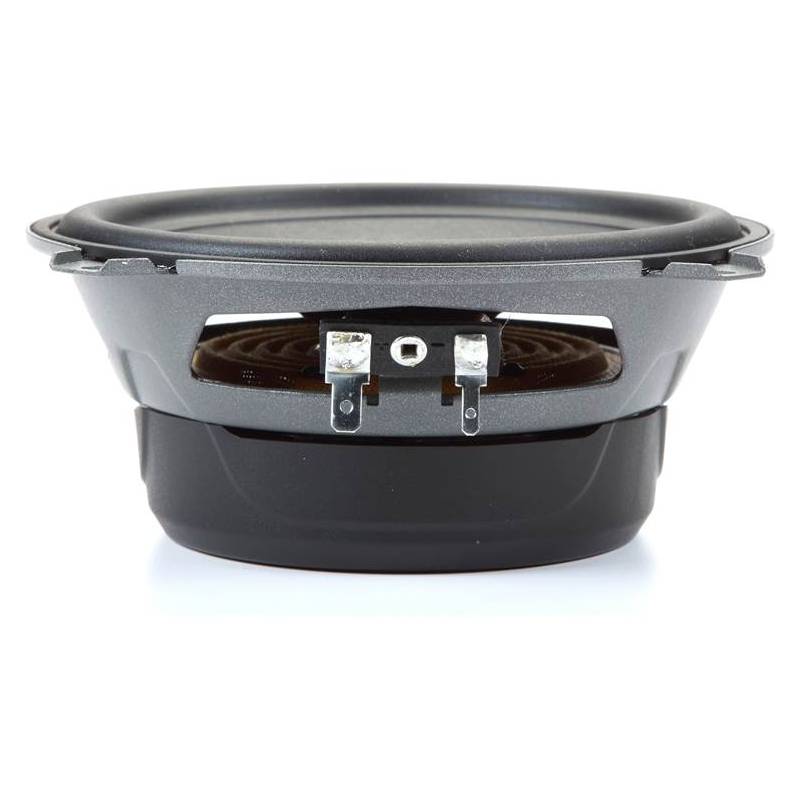

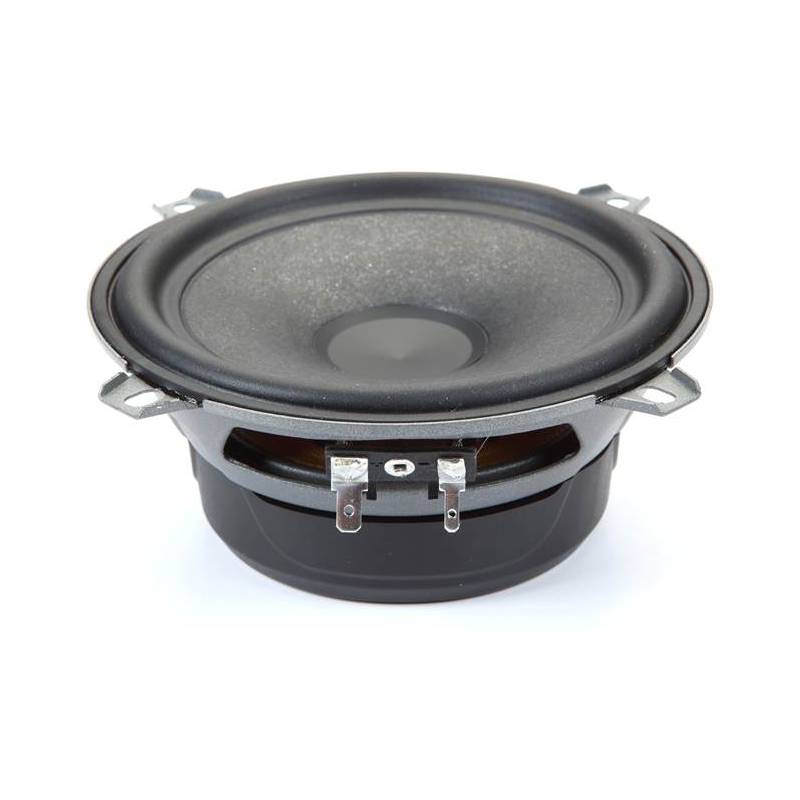

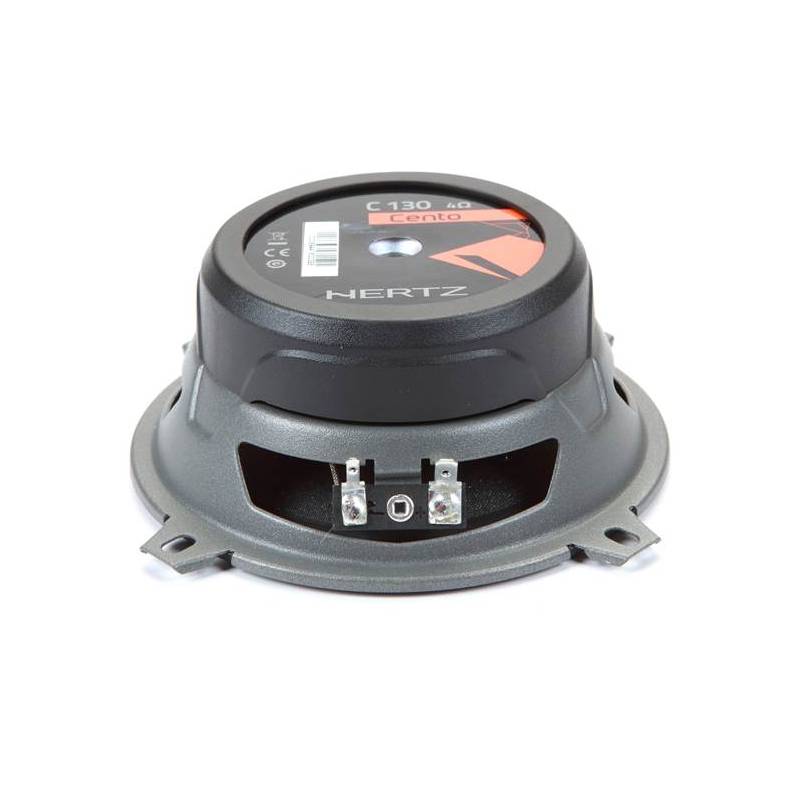

- 130 mm (5 in.) semi-pressed paper cone SPP-M (Semi Pressed Paper-Mica) enhanced with Mica powder for an excellent balance between lightness and damping.
- High-density flux ferrite magnet combined with low-carbon polar plates for reduced distortion at high power levels.
- 25 mm (1 in.) voice coil featuring an aluminum former to guarantee high excursion and power handling.
- Compact and transparent three-spoke basket acoustically combined with a rubber magnet cover for total damping of spurious vibrations.
- Provided elegant grille made with high-resistance ABS plastic structure with a metallic finish combined with a protective metal mesh.

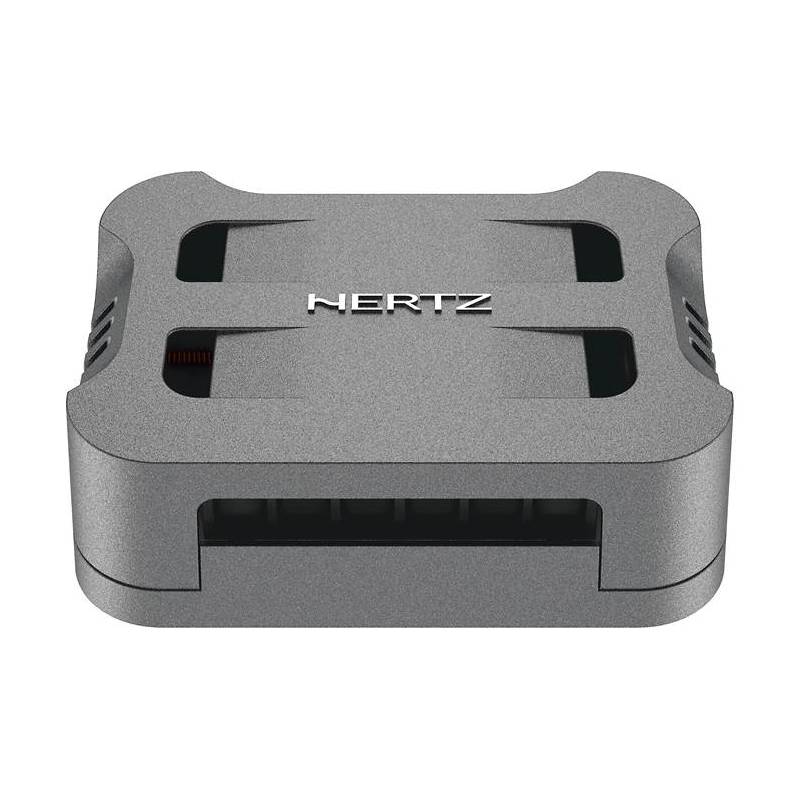

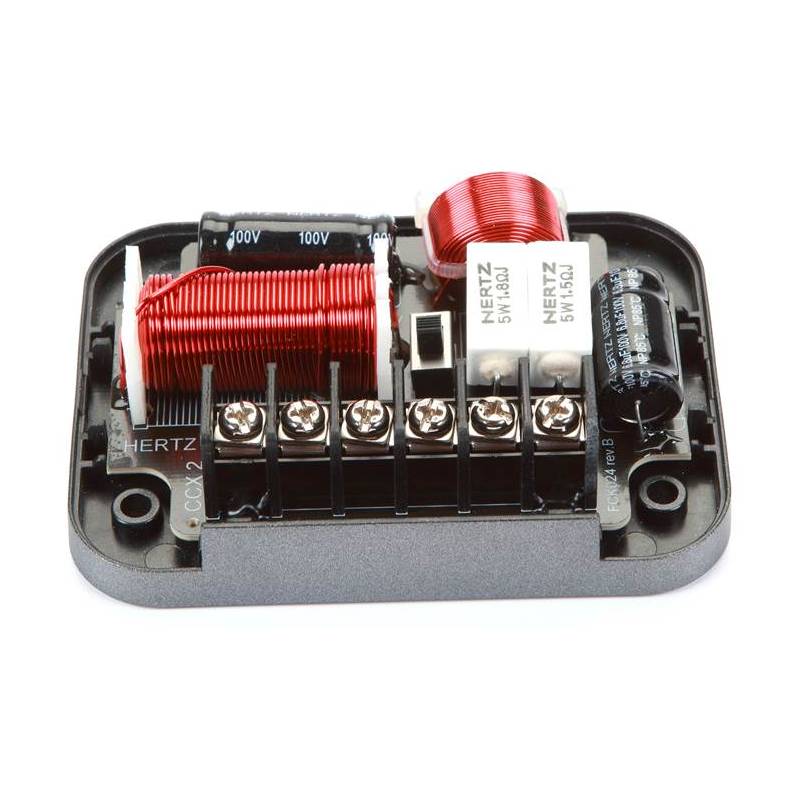

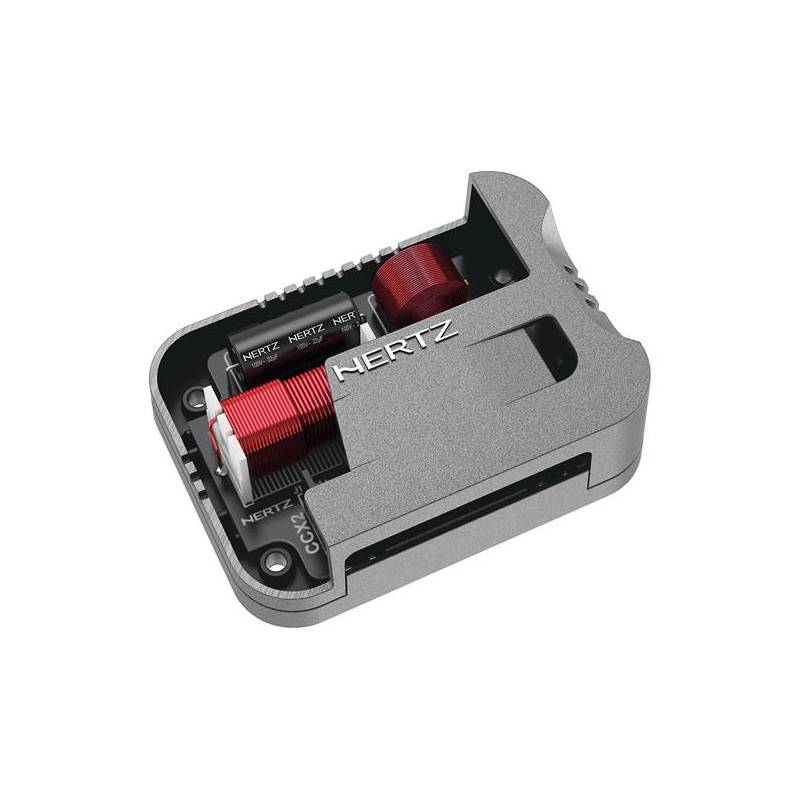

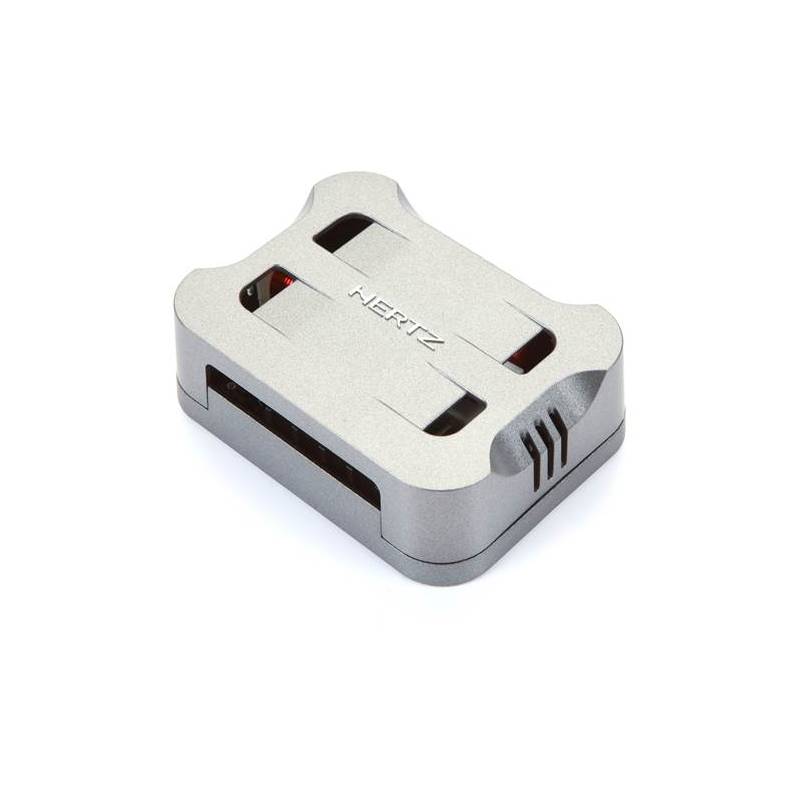

CCX 2:
- Tweeter level adjustment through a three-position switch (0, +3 dB) for an optimal tone balance that can be customized by the user.
- Low-loss factor capacitors and low resistance inductances made with pure copper, for maximum sound transparency and clear high frequencies.
- Compact design with metallic finish for an easy installation, with air vents for efficient heat dissipation.
Specifications:
- Power Handling - Peak W: 210
- Power Handling - Continuous W: 70
- Impedance: 4 ohms
- Frequency response Hz: 65 ÷ 22,5k
- Sensitivity dB SPL: 92.5
- Voice coil Ø mm (in.): 25 (1)
- Woofer size mm (in.): 130 (5)
- Tweeter size mm (in.): 26 (1)
- Woofer magnet: High density flux ferrite
- Tweeter magnet: Neodymium
- Woofer cone: Semi Pressed Paper-Mica
- Tweeter dome: Tetolon®
- Crossover type: 2 Way Passive Crossover
- Crossover cut off: 2,5 kHz @ 12 dB Oct.
Electro-Acoustic Specifications:
- Diameter (D): 110 mm
- DC Resistance (Re): 3.1 Ohm
- Resonant Frequency (Fs): 80 Hz
- Inductance (Le): 0.17 mH
- Equivalent Volume Compliance (Vas): 6.30 liters
- Moving Mass (Mms): 8 grams
- Mechanical Compliance (Cms): 0.50 mm/N
- Magnetic Flux Density (BL): 4.1 T*m
- Total Quality Factor (Qts): 0.61
- Electrical Quality Factor (Qes): 0.72
- Mechanical Quality Factor (Qms): 3.9
- Sound Pressure Level (SPL): 92.5 dB
- UPC: 8018823126908
- Weight: 5
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
