Hertz  DSK130.3

Dieci Series 5.25" 120W Peak Power Handling at 4 Ohm, 2-Way Car Component System

Item #54443

Condition:   Brand New

Product Highlights

  • Dieci Series
  • 5.25" Component Speaker System
  • 120W Peak Power Handling
  • 4 Ohms Impedance
  • 2-Way Design

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Special offer:
CYBER MONDAY EXTENDED SALE!
Save 30% on Component Systems!

Use Code: CBR30

Ends in:

$199.99

Reg. Price $212.50  Save $12.51
In Stock
In Stock

Limited Stocks left!
Add Extended Warranty
Getting Delivery Estimate...
  Free 2-Years Warranty Included!

No Credit needed for acima logoLearn More

Hertz Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


PAC Banner

Hertz DSK130.3 Dieci Series 5.25" 120W Peak Power Handling at 4 Ohm, 2-Way Car Component System


Alpine Banner for OCS

We are a Hertz authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

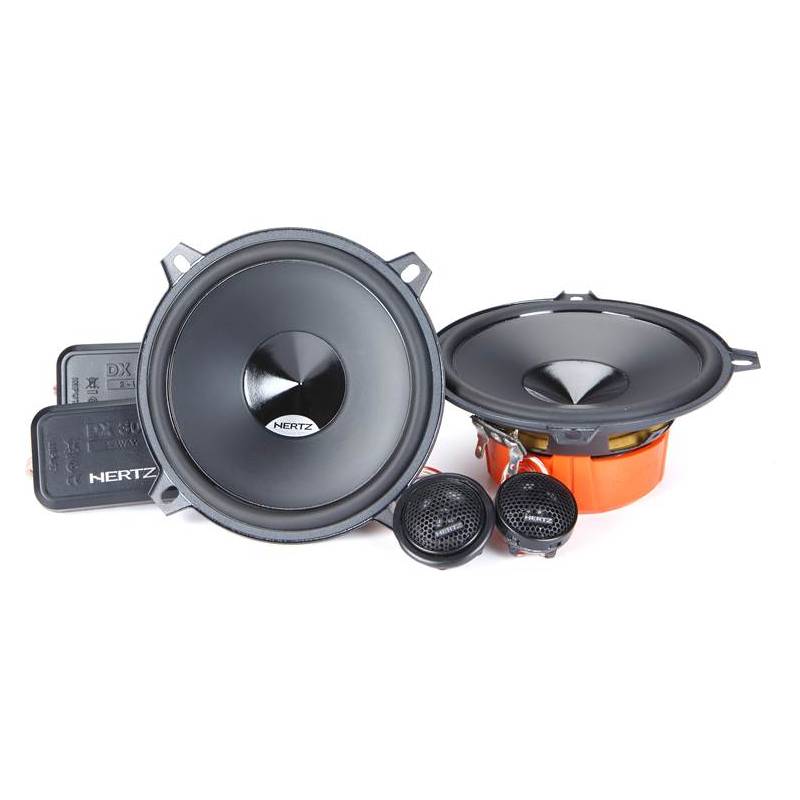

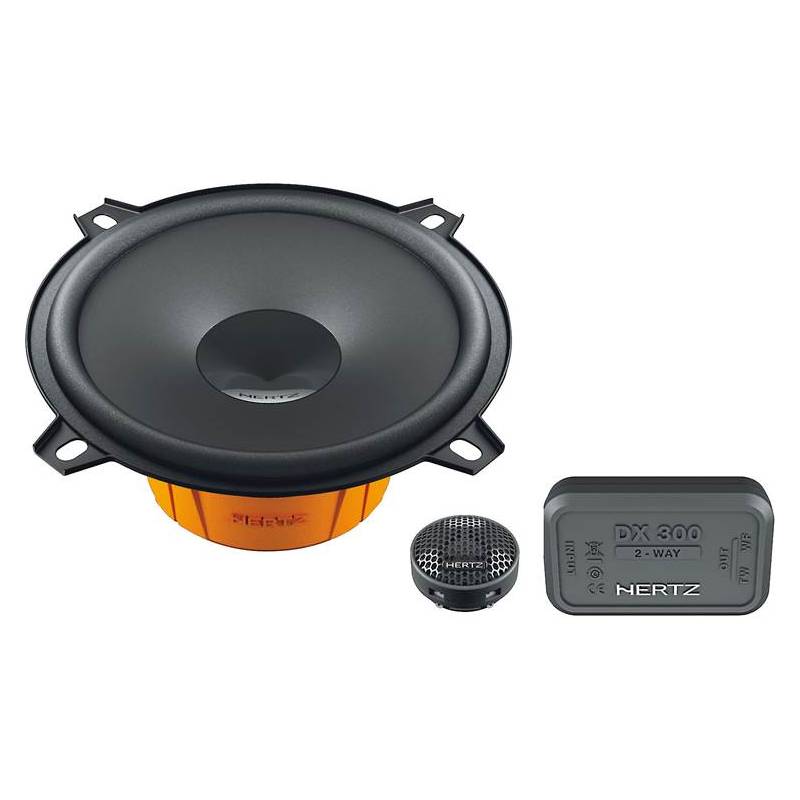

What's Inside?
  • • (2) DV 130.3 Woofers
  • • (2) DT 24.3 Tweeters (with attached 6" length of speaker wire)

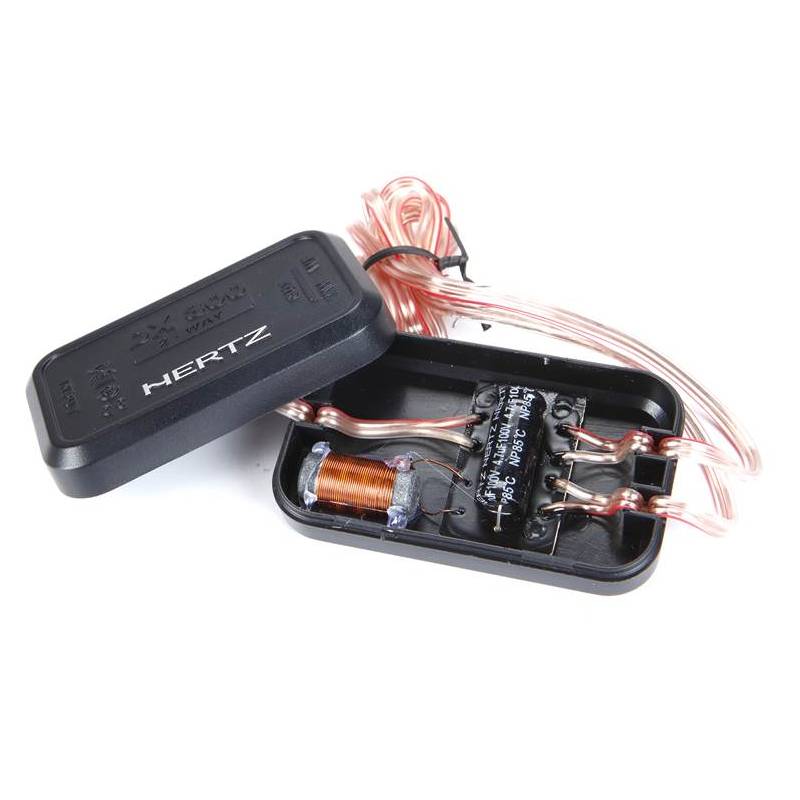

  • • (2) DX 300 Crossover networks
  • • (2) Tweeter flush mount trim rings
  • • (2) Tweeter flush mount clamps
  • • (2) Angled surface mount housings
  • • (2) Tweeter grilles (installed)
  • • (8) 3/4" Screws
  • • (8) Speed clips
  • • (2) Rectangular adhesive foam pads
  • • (2) Round adhesive foam pads
  • • Template on box
  • Owner's Manual

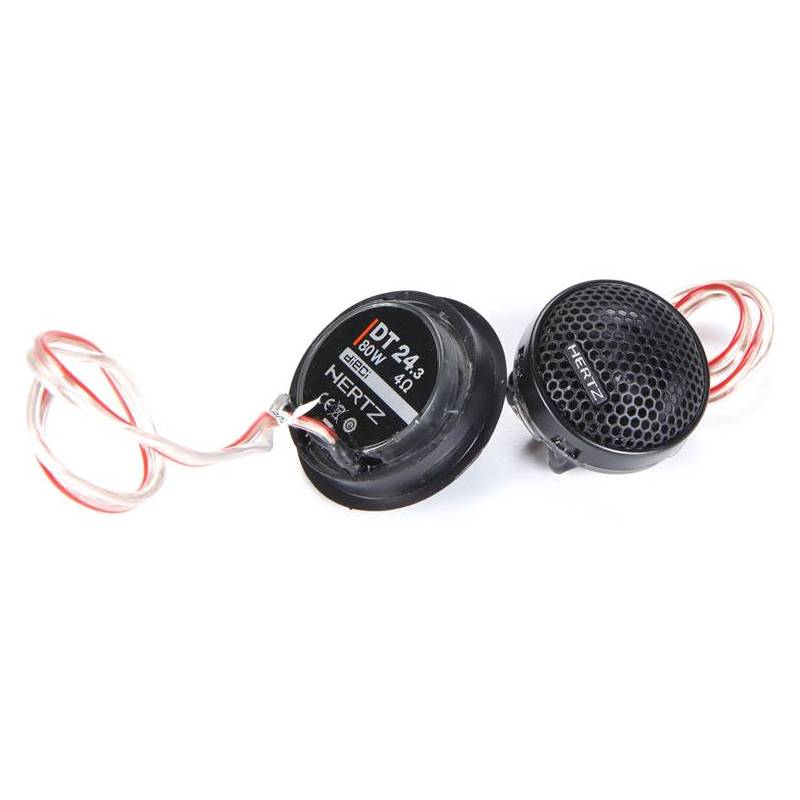

High-Performance 24mm Tweeter with Acoustic Lens

Experience crystal-clear highs with our 24?mm PEI dome-cone tweeter, designed for precise sound reproduction. Its high-efficiency annular acoustic lens ensures every note is rich, detailed, and immersive. Upgrade your audio system and enjoy professional-grade clarity in every listening session.

Powerful Neodymium Magnet Speaker

Experience powerful sound with a high-energy neodymium magnet that delivers exceptional audio performance. Designed for versatility, this speaker comes with mounting accessories for both external and embedded installations. Upgrade your system easily and enjoy clear, dynamic sound wherever you mount it.


SPECIFICATIONS


  • Diameter : 5.25 Inch
  • Sensitivity : 93 dB
  • Frequency Response : 60-23000 Hz
  • Peak Power Handling : 120 Watts
  • RMS Power Handling : 60 Watts

FEATURES


Features:

DT 24.3

  • 24 mm PEI dome-cone tweeter.
  • High efficiency annular acoustic lens.
  • High energy neodymium magnet.
  • Mounting accessories for external or embedded mounting
  • included.

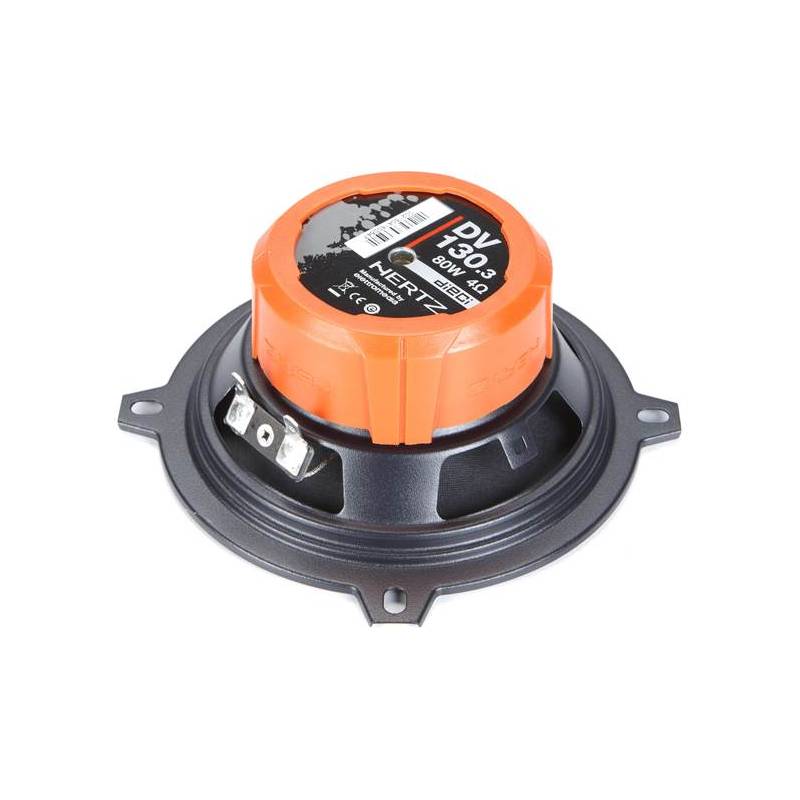

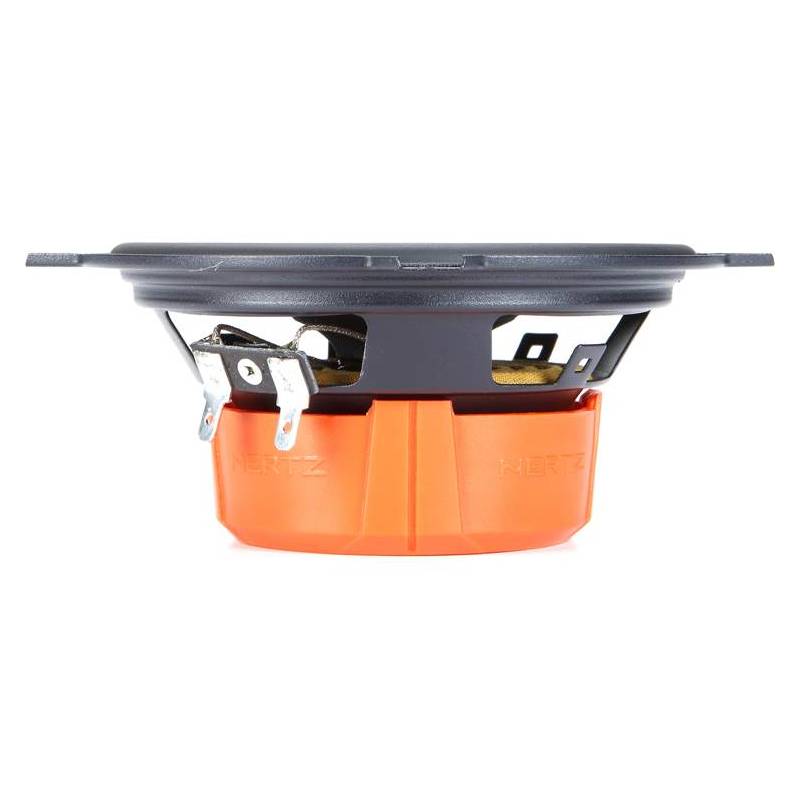

DV 130.3

  • Large motor assembly for mobile voice coil control.
  • Pure copper voice coil, wound on conex former, for maximum \ lightness.
  • V-cone® for best off-axis response, clear mid-high frequency detail and
  • powerful bass.
  • TPU surround, for wide excursion and resonance damping.
  • DIN size basket protected by abrasion-proof dust paint.
  • Tin-plated, high current terminals.
  • Silver-plated lead wires for maximum reliability and conductivity.
  • Butyl rubber protective cover, against crashes and abrasions.
  • Epoxy glue for basket and motor system provides perfect coupling.
  • Low carbon content plates for maximum magnetic permeability and high
  • heat dissipation.



Specifications:

  • Power Handling - Peak W: 120
  • Power Handling - Continuous W: 60
  • Impedance: 4-Ohms
  • Frequency response Hz: 60 ÷ 23k
  • Sensitivity dB SPL: 93
  • Voice coil Ø mm (in.): 25 (1.0)
  • Woofer size mm (in.): 130 (5.0)
  • Tweeter size mm (in.): 24 (0.9)
  • Woofer magnet: High density flux ferrite
  • Tweeter magnet: Neodymium
  • Woofer cone: Water-repellent pressed paper
  • Tweeter dome: PEI
  • Crossover type: Hi Pass
  • Crossover cut off: 3,5 kHz @ 12 dB Oct.



Electro-Acoustic Specs:

  • Diameter (D): 112 mm
  • DC Resistance (Re): 3.3 Ohms
  • Resonant Frequency (Fs): 81 Hz
  • Voice Coil Inductance (Le): 0.26 mH
  • Equivalent Volume of Compliance (Vas): 7 liters
  • Mechanical Mass (Mms): 7.4 grams
  • Mechanical Compliance (Cms): 0.51 mm per Newton
  • Force Factor (BL): 3.9 Tesla meters
  • Total Q Factor (Qts): 0.76
  • Electrical Q Factor (Qes): 0.93
  • Mechanical Q Factor (Qms): 4.3
  • Sound Pressure Level (SPL): 93 dB
  • UPC: 8018823104128
  • Weight: 2
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
