Hertz  DSK160.3

Dieci Series 5.25" 160W Peak Power Handling 4 Ohm, 2-Way Car Component System

Item #54445

Condition:   Brand New

Product Highlights

  • Dieci Series
  • 5.25" Component Speaker System
  • 160W Peak Power Handling
  • 4 Ohms Impedance
  • 2-Way Design

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
CYBER WEEK DEALS!
Save 5% on Component Systems!

Use Code: CYBW5

Ends in:

$199.99

Reg. Price $212.50  Save $12.51
Add Extended Warranty
  Free 2-Years Warranty Included!

No Credit needed for acima logoLearn More

Hertz Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


PAC Banner

Hertz DSK160.3 Dieci Series 5.25" 80W RMS (160W Peak Power Handling) 4 Ohms, 2-Way Car Component System


Alpine Banner for OCS

We are a Hertz authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

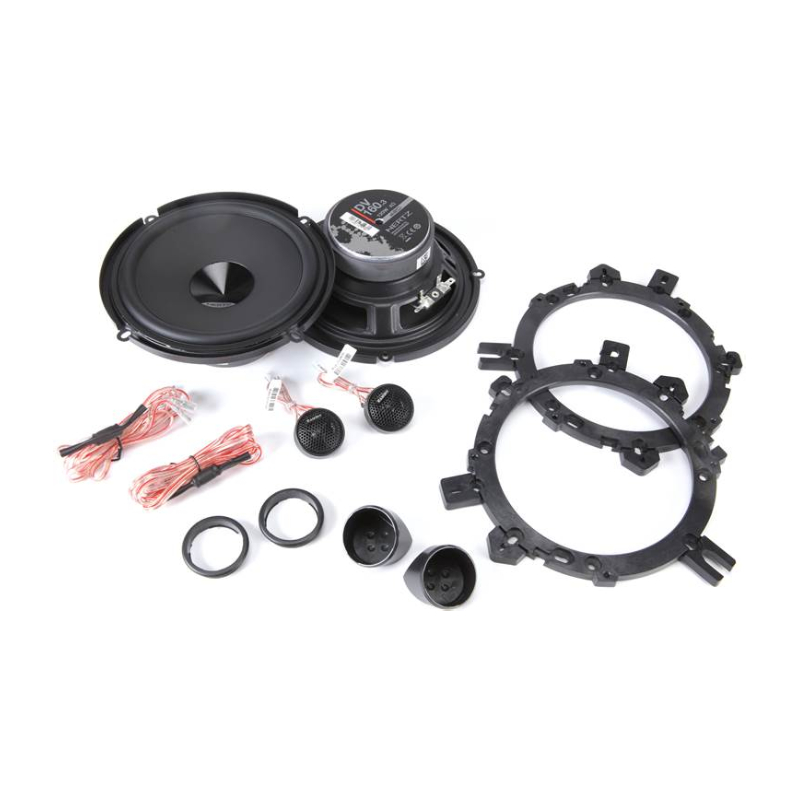

What's Inside?
  • • (2) DV 160.3 Woofers
  • • (2) Woofer Mounting brackets
  • • (2) DT 24.3 Tweeters (with attached 6" length of speaker wire)
  • • (2) 48" Lengths of tweeter wire with in-line crossovers
  • • (2) Tweeter flush mount trim rings
  • • (2) Tweeter flush mount clamps
  • • (2) Angled surface mount housings
  • • (2) Tweeter grilles (installed)
  • • (8) 3/4" Screws
  • • (4) 1/2" Flat head screws
  • • (8) 1/4" Screws
  • • (8) Large speed clips
  • • (4) Small speed clips
  • • (2) Round adhesive foam pads
  • • Owner's manual (English/ Spanish/ French/ German/ Italian/ Portuguese/ 28 Others)
  • • Template on box

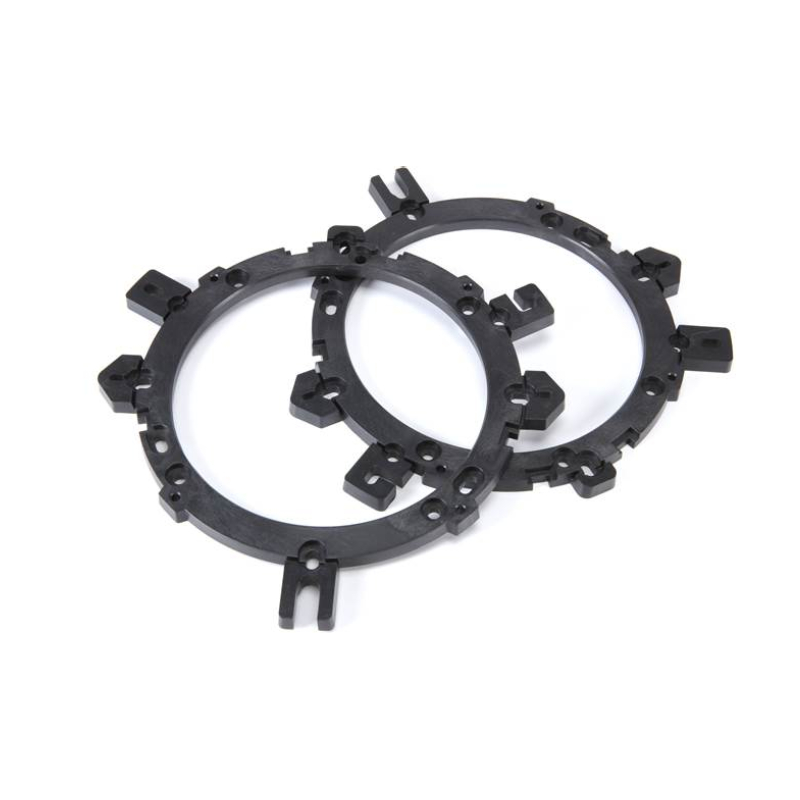

Comes Equipped With An Adaptor Ring

The Hertz DSK 160.3 car audio two-way speaker system comes equipped with an adaptor ring tailored for effortless installation in GM and Honda models featuring 6” OEM speakers. Additionally, it features a built-in crossover cable specifically designed for the DT 24.3 tweeter, optimizing space utilization in OEM upgrade setups.

Each Equipped with External Crossovers

The component speaker system comprises two woofers and two tweeters, each equipped with external crossovers, featuring a 6" treated paper woofer with polyurethane surround, and a separate PEI dome tweeter, inclusive of tweeter mounts and adapter rings suitable for select GM and Honda vehicles, capable of handling up to 80 watts RMS (180 watts peak power), with a frequency range of 50 to 23,000 Hz, boasting a sensitivity of 94 dB (1 watt at 1 meter), and a woofer mounting depth of 2-1/4", all operating at an impedance of 4 ohms.

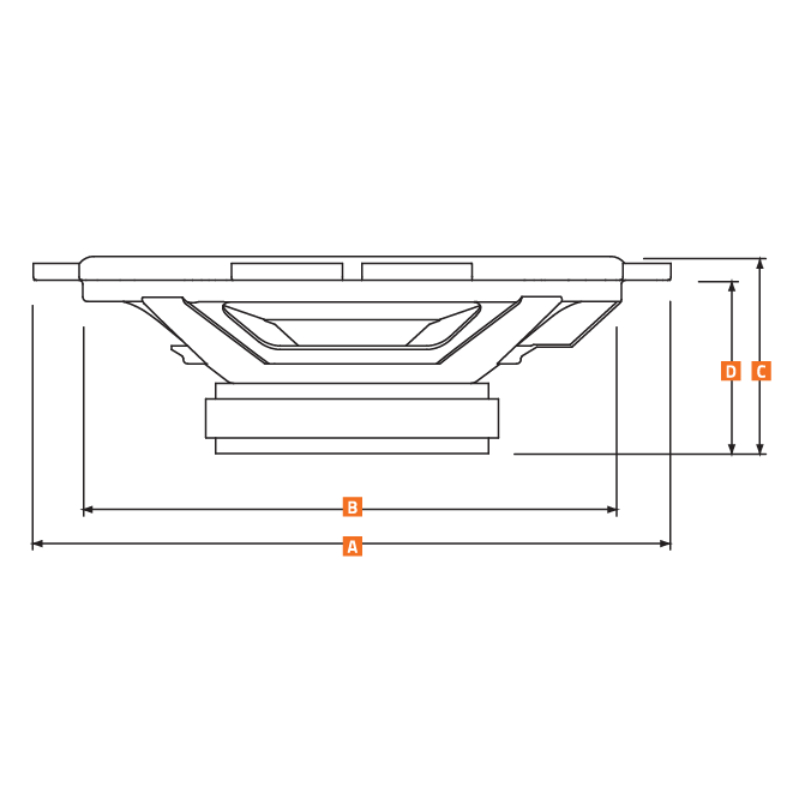

Physical Specifications
  • A: 167 mm (6.57 in.)
  • B: 127 mm (5 in.)
  • C: 66.5 mm (2.62 in.)
  • D: 56.5 mm (2.22 in.)

SPECIFICATIONS


  • Diameter : 5.25 Inch
  • Sensitivity : 93 dB
  • Frequency Response : 50-23000 Hz
  • Peak Power Handling : 160 Watts
  • RMS Power Handling : 80 Watts

FEATURES


Features:

DT 24.3

  • 24 mm PEI dome-cone tweeter.
  • High efficiency annular acoustic lens.
  • High energy neodymium magnet.
  • Mounting accessories for external or embedded mounting included.

DV 160.3

  • Large motor assembly for mobile voice coil control.
  • Pure copper voice coil, wound on conex former, for maximum lightness.
  • V-cone® for best off-axis response, clear mid-high frequency detail and powerful bass.
  • TPU surround, for wide excursion and resonance damping.
  • DIN size basket protected by abrasion-proof dust paint.
  • Tin-plated, high current terminals.
  • Silver-plated lead wires for maximum reliability and conductivity.
  • Butyl rubber protective cover, against crashes and abrasions.
  • Epoxy glue for basket and motor system provides perfect coupling.
  • Low carbon content plates for maximum magnetic permeability and high heat dissipation.
  • Provided adaptor ring designed for installation in GM and Honda models with 6”.
  • Provided cable with built-in crossover designed to save space in a OEM upgrade scenario.

Specifications:

  • Power Handling - Peak W: 160
  • Power Handling - Continuous W: 80
  • Impedance: 4-Ohms
  • Frequency response Hz: 50 ÷ 23k
  • Sensitivity dB SPL: 93
  • Voice coil Ø mm (in.): 25 (1)
  • Woofer size mm (in.):160 (6)
  • Tweeter size mm (in.): 24 (0.9)
  • Woofer magnet: High density flux ferrite
  • Tweeter magnet: Neodymium
  • Woofer cone: Water-repellent pressed paper
  • Tweeter dome: PEI
  • Crossover type: 2 Way Passive Crossover



Electro-acoustic Specs:

  • Diameter (D): 124 mm
  • DC Resistance (Re): 3.2 Ohms
  • Resonant Frequency (Fs): 70 Hz
  • Voice Coil Inductance (Le): 0.18 mH
  • Equivalent Volume of Compliance (Vas): 10.28 liters
  • Mechanical Mass (Mms): 10 grams
  • Mechanical Compliance (Cms): 0.50 mm per Newton
  • Force Factor (BL): 4.5 Tesla meters
  • Total Q Factor (Qts): 0.62
  • Electrical Q Factor (Qes): 0.69
  • Mechanical Q Factor (Qms): 6.3
  • Sound Pressure Level (SPL): 93 dB
  • UPC: 8018823128131
  • Weight: 2
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
