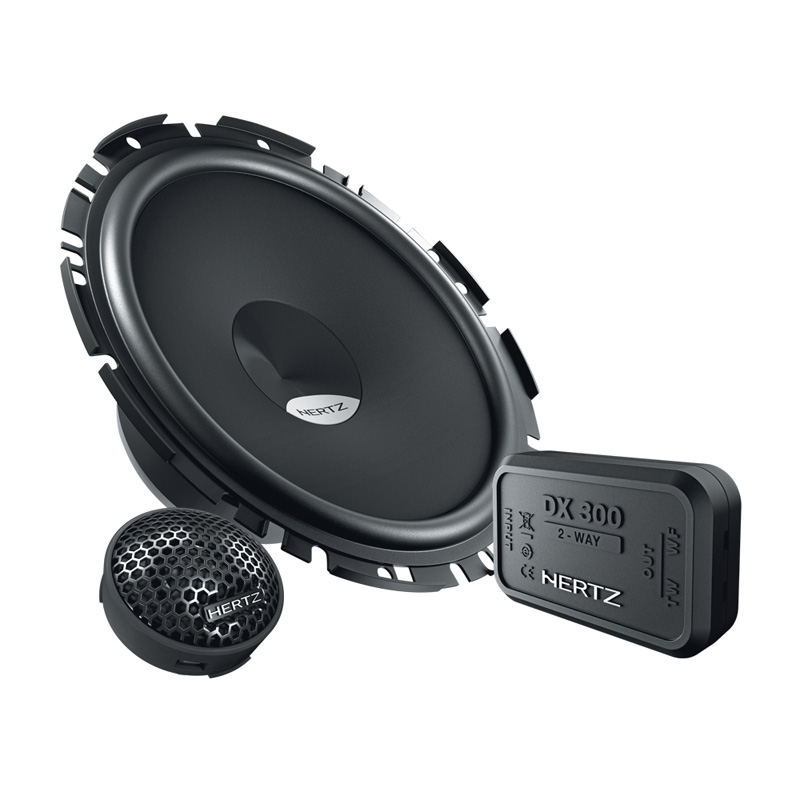

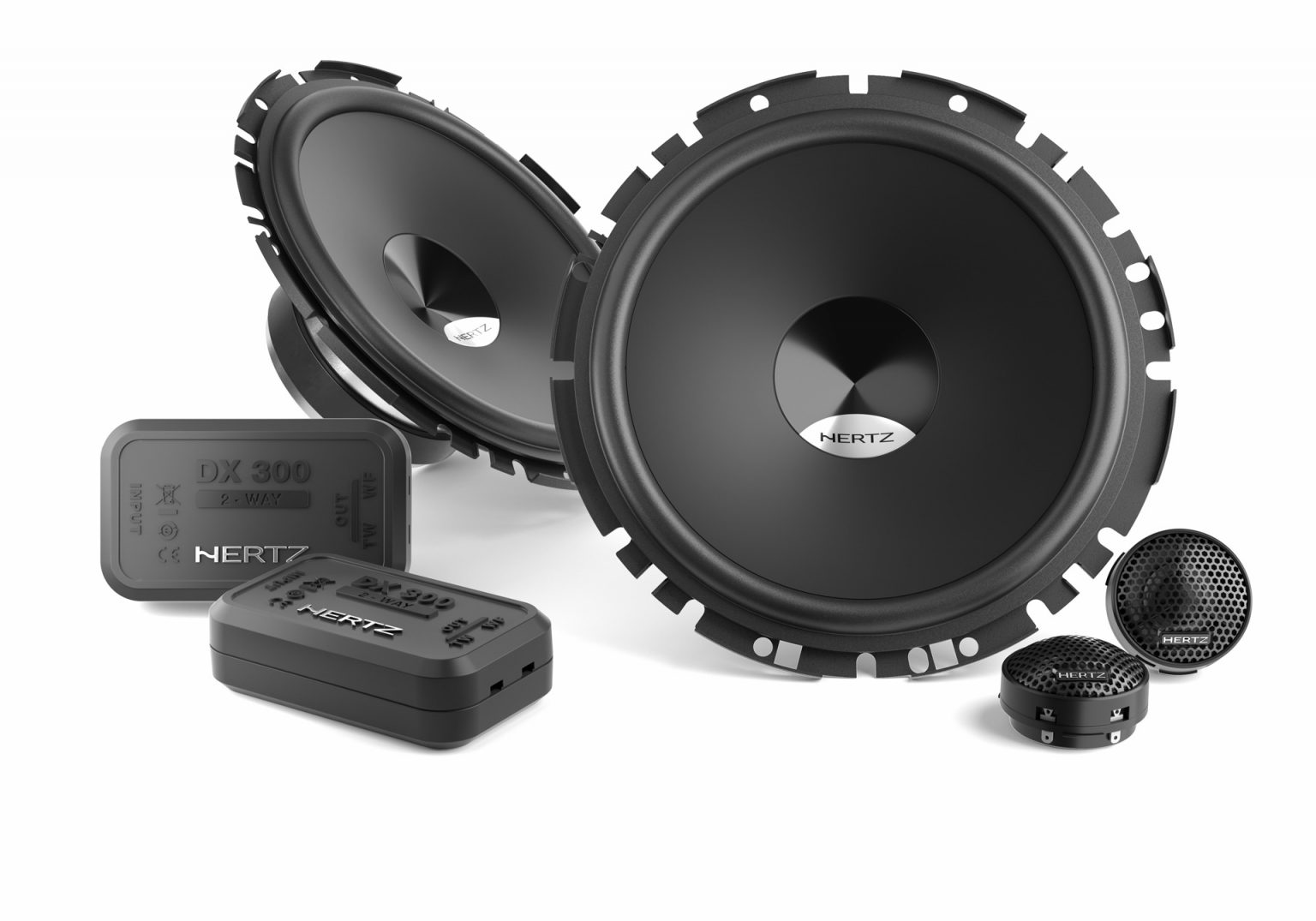

Hertz  DSK170.3

Dieci Series 6.75" 160W Peak Power Handling 4 Ohm, 2-Way Car Component System

Item #54448

Condition:   Brand New

Product Highlights

  • Dieci Series
  • 6.75" Speaker
  • 160W Peak Power
  • 4 Ohms Impedance
  • 2-Way Component System

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
CYBER WEEK DEALS!
Save 5% on Component Systems!

Use Code: CYBW5

Ends in:

$199.99

Reg. Price $212.50  Save $12.51
Add Extended Warranty
  Free 2-Years Warranty Included!

No Credit needed for acima logoLearn More

Hertz Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


PAC Banner

Hertz DSK170.3 Dieci Series 6.5" 80W RMS (160W Peak Power Handling) 4 Ohms, 2-Way Car Component System


Alpine Banner for OCS

We are a Hertz authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

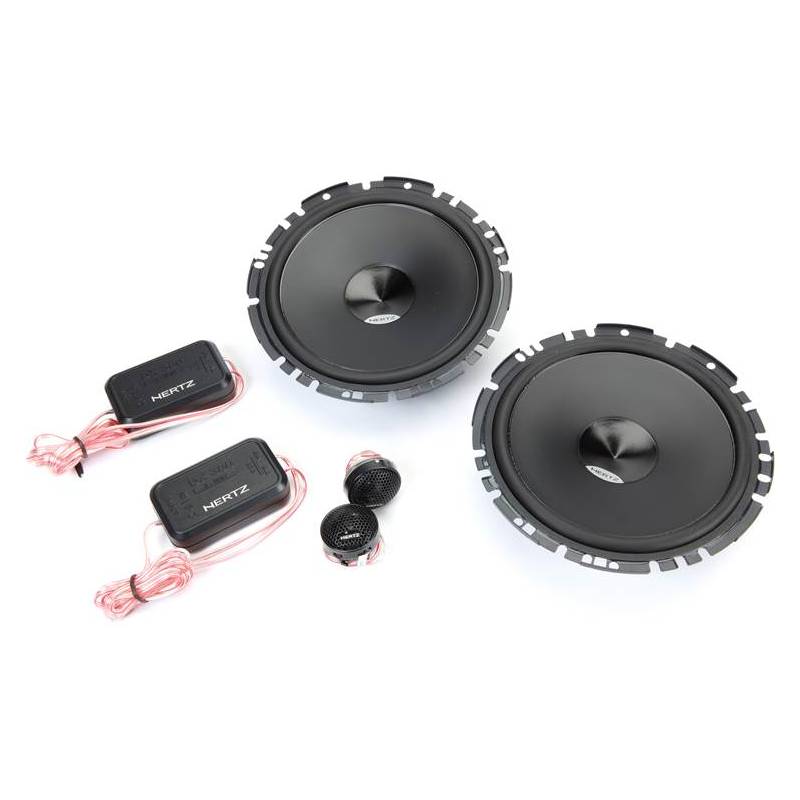

What's Inside?
  • • (2) DV 170.3 Woofers

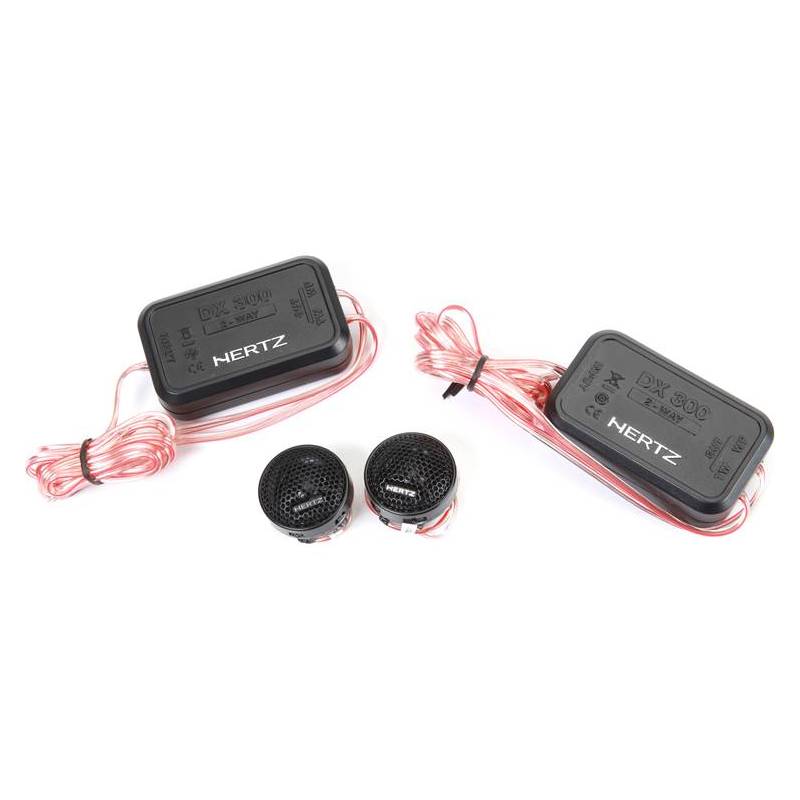

  • • (2) DT 24.3 Tweeters (with attached 6" length of speaker wire)
  • • (2) DX 300 Crossover networks
  • • (2) Tweeter flush mount trim rings
  • • (2) Tweeter flush mount clamps
  • • (2) Angled surface mount housings
  • • (2) Tweeter grilles (installed)
  • • (8) 3/4" Screws
  • • (8) Speed clips
  • • (2) Rectangular adhesive foam pads
  • • (2) Round adhesive foam pads
  • • Template on box
  • • Owner's Manual
High-performance Materials

Dieci car audio systems let you realize a high quality audio system with the utmost in simplicity. The woofers employ the exclusive V-cone® profile for amazing off-axis response and detailed mid-high range. The TPU (Thermoplastic polyurethane) surround ensures linearity and reduction of unwanted resonance, even at high excursion. High-performance materials, such as the neodymium motor assembly and the PEI membrane, ensure an extended high frequency range. The passive filters are found directly on the supplied connection cables, along with a rich array of accessories increasing the install-friendliness and installation time.

High-quality components

These features provide the ability to maximally exploit the power of the Hertz HCP and HDP amplifiers as well as all the 2 Ω stable electronics. The ferrite 95 mm diameter magnet enables a +/-4.5 mm voice coil linear excursion, ensuring utmost control at all times. The Boundary Free Surround moves a bigger amount of air, and the V-cone® profile improves the offaxis dispersion, the real in-car listening condition. The sophisticated aluminium alloy basket neutralizes the undesired vibrations.

Physical Specifications
  • • A: 165 mm (6.5 in.)
  • • B: 144 mm (5.7 in.)
  • • C: 72 mm (2.8 in.)
  • • D: 64 mm (2.5 in.)

SPECIFICATIONS


  • Diameter : 6.75 Inch
  • Sensitivity : 93 dB
  • Frequency Response : 50-23000 Hz
  • Peak Power Handling : 160 Watts
  • RMS Power Handling : 80 Watts

FEATURES


Features:

DT 24.3

  • 24 mm PEI dome-cone tweeter.
  • High efficiency annular acoustic lens.
  • High energy neodymium magnet.
  • Mounting accessories for external or embedded mounting included.

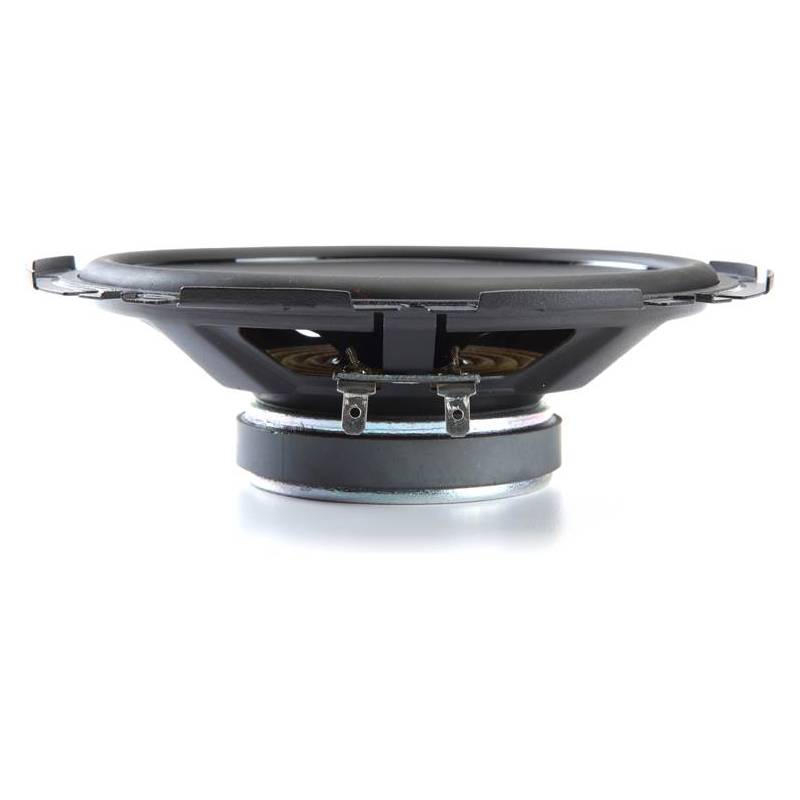

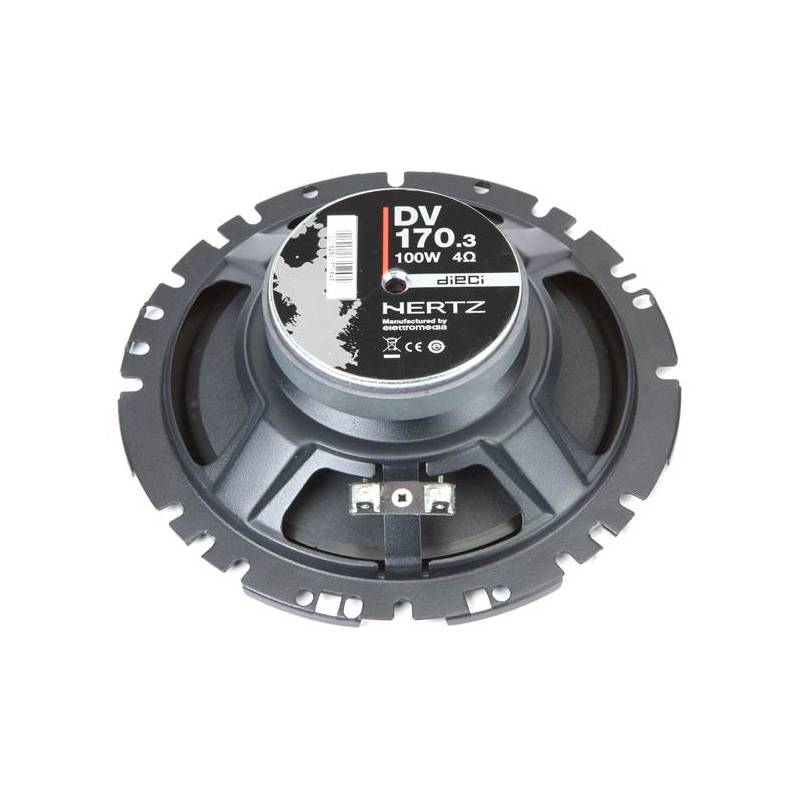

DV 170.3

  • Large motor assembly for mobile voice coil control.
  • Pure copper voice coil, wound on conex former, for maximum lightness.
  • V-cone® for best off-axis response, clear mid-high frequency detail and
  • powerful bass.
  • TPU surround, for wide excursion and resonance damping.
  • DIN size basket protected by abrasion-proof dust paint.
  • Tin-plated, high current terminals.
  • Silver-plated lead wires for maximum reliability and conductivity.
  • Epoxy glue for basket and motor system provides perfect coupling.
  • Low carbon content plates for maximum magnetic permeability
  • and high heat dissipation.



Specifications:

  • Power Handling - Peak W: 160
  • Power Handling - Continuous W: 80
  • Impedance: 4-Ohms
  • Frequency response Hz: 50 ÷ 23k
  • Sensitivity dB SPL: 93
  • Woofer size mm (in.): 170 (6.7)
  • Tweeter size mm (in.): 24 (0.9)
  • Woofer Voice Coil Ø mm (in.): 25 (1.0)
  • Woofer magnet: High density flux ferrite
  • Tweeter magnet: Neodymium
  • Woofer cone: Water-repellent pressed paper
  • Tweeter dome: PEI
  • Crossover type: Hi Pass
  • Crossover cut off: 3,5 kHz @ 12 dB Oct.



Electro-Acoustic Specs:

  • Diameter (D): 135 mm
  • DC Resistance (Re): 3.3 Ohms
  • Resonant Frequency (Fs): 67 Hz
  • Voice Coil Inductance (Le): 0.26 mH
  • Equivalent Volume of Compliance (Vas): 14.6 liters
  • Mechanical Mass (Mms): 11.3 grams
  • Mechanical Compliance (Cms): 0.51 mm per Newton
  • Force Factor (BL): 4.2 Tesla meters
  • Total Q Factor (Qts): 0.81
  • Electrical Q Factor (Qes): 0.90
  • Mechanical Q Factor (Qms): 7.59
  • Sound Pressure Level (SPL): 93 dB
  • UPC: 8018823104142
  • Weight: 10
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
