JL Audio  SB-J-JL4DPAS/10TW1-4

Stealthbox One thin-line 10" 600W Peak Power Handling 4 Ohms, Shallow Mount Car Subwoofer in Sealed Enclosure for 2018-Up Jeep Wrangler Unlimited (Passenger Side - 4 O)

Item #54575

Condition:   Brand New

Product Highlights

  • Stealthbox® One TW1 Series
  • 10" Subwoofer
  • 600W Peak Power Handling
  • 4 Ohms Impedance
  • Fits 2018-Up Jeep Wrangler Unlimited (Passenger Side)

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.

$1,349.99

Reg. Price $1,399.99  Save $50.00
Add Extended Warranty
  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.

No Credit needed for acima logoLearn More

JL Audio Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


JL Audio Banner for Onlinecarstereo

JL Audio SB-J-JL4DPAS/10TW1-4 Stealthbox thin-line 10" 300W RMS (600W Peak Power Handling) 4 Ohms, Shallow Mount Car Subwoofer in Sealed Enclosure for 2018-Up Jeep Wrangler Unlimited (Passenger Side - 4 O)


We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • 10" Stealthbox One Shallow Mount Car Subwoofer in Sealed Enclosure
  • Owner's Manual




Why Choose JL Audio SB-J-JL4DPAS/10TW1-4 Stealthbox System?

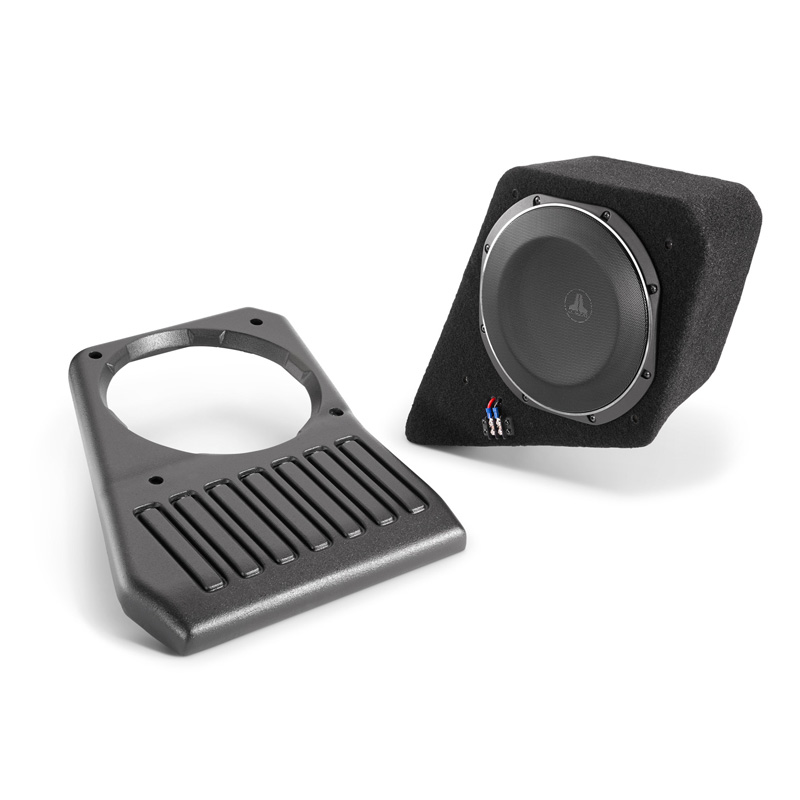

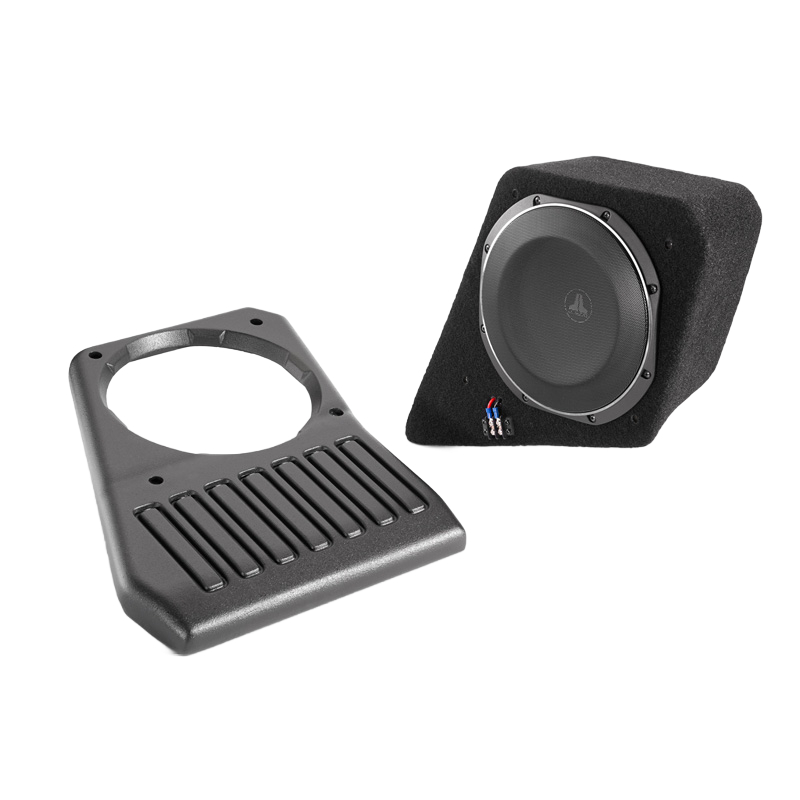

JL Audio SB-J-JL4DPAS/10TW1-4 Stealthbox System Front Right Angled Exploded View with Unattached Trim Panel
Deliver Outstanding Sub-bass Performance

Combining JL Audio's advanced thin-line subwoofer technology with a form fitting enclosure design, these Stealthbox® systems deliver outstanding sub-bass performance in your 4-door Wrangler, without consuming excess cargo space.

Constructed from 100% fiberglass, each Stealthbox® houses a 10TW1 thin-line subwoofer and mounts solidly above each rear wheel well. A matching trim panel and sturdy steel-mesh grille are included, so you can carry plenty of gear without worrying about damage. Separate driver and passenger side Stealthbox® models are available, each with 2 or 4 ohm drivers.

Vehicle is Factory-equipped With Premium Audio

The Hard Data: Contains one 10TW1 in a sealed enclosure with 300 watt power handling. Choose from 2 ohm or 4 ohm models, driver or passenger side. Each enclosure installs above one rear wheel well. Black steel mesh grille is included with each.

If vehicle is factory-equipped with Premium Audio, passenger side Stealthbox® installation requires removal of OEM “subwoofer” and purchase of interior trim parts from Jeep®. Will not fit any "JK" Jeep® model or 2-Door "JL" models. Soft-top models: Stealthbox® installation does not interfere with normal top operation, except for the final position where the top mechanism is detached from the rails.

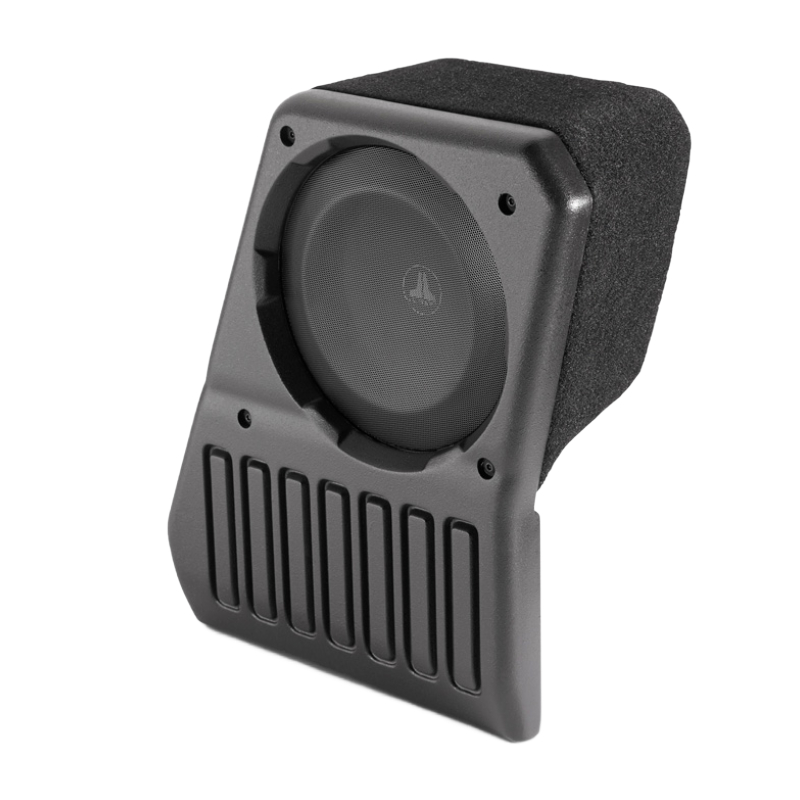

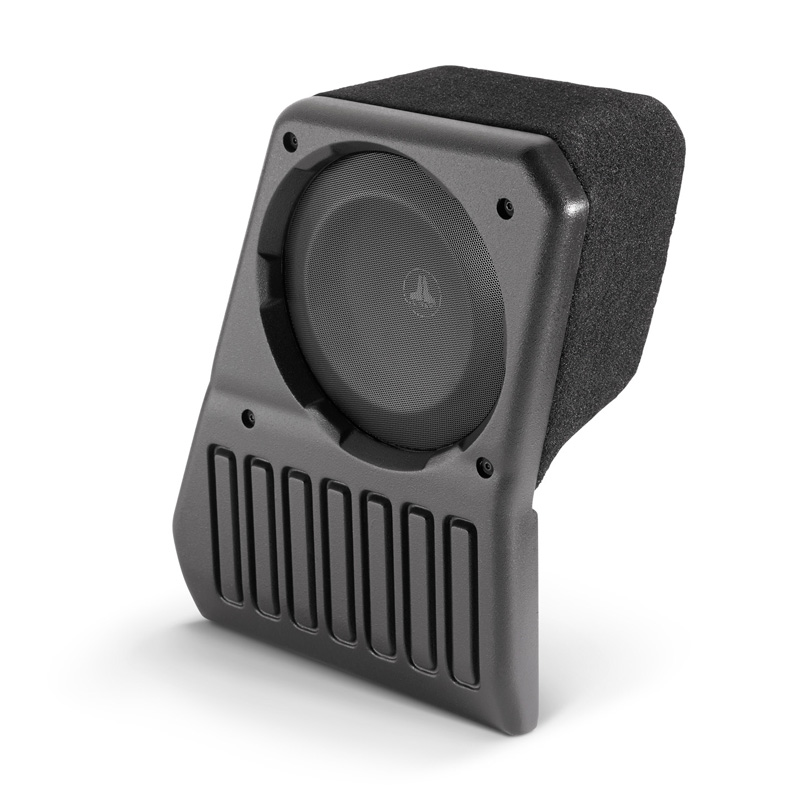

JL Audio SB-J-JL4DPAS/10TW1-4 Stealthbox System Front Right Angled View with Trim Panel and Grille Attached




Frequently Asked Questions (FAQ)


  • • Is this Stealthbox compatible with the 2-door JL Wrangler or older JK models?
    No. This enclosure is specifically engineered for the 2018-Up 4-door Jeep Wrangler Unlimited (JL) and Unlimited 4xe chassis; it will not fit 2-door or JK-generation Wranglers.
  • • Will I have any issues opening or closing my soft top with this box installed?
    No. The enclosure is contour-molded to clear all factory soft top hardware and mechanisms, except for the final stowed position where the top frame is unlatched from the rails.
  • • What parts do I need to source if my Jeep came with the factory Alpine audio system?
    You must unbolt and remove the factory OEM subwoofer assembly and purchase specific replacement interior trim panels from a Jeep dealer to properly house this Stealthbox.
  • • Why is securing the box firmly to the wheel well structure so important?
    A loose box is dangerous during hard braking, and any movement of the enclosure caused by vibration will cause bass cancellation and loss of output.
  • • What is the main difference between the 10TW1-2 and this 10TW1-4 model?
    The primary difference is the voice coil impedance (4-ohm vs 2-ohm), which allows you to match the subwoofer to your monoblock amplifier's preferred stable power load.
  • • What continuous amplifier power is recommended for this 10-inch subwoofer?
    The 10TW1 thin-line driver is rated for 300 watts continuous RMS. For best performance, pair it with a quality monoblock amplifier outputting 150W to 300W RMS at 4 ohms.
  • • Does this enclosure take up valuable floor space in my cargo area?
    No. It mounts solidly against the passenger-side rear wheel well, leaving your primary trunk floor completely clear for hauling gear or groceries.
  • • Do I need to buy an aftermarket grille to prevent cargo damage?
    No. Every Stealthbox includes a custom-fitted, heavy-duty black steel-mesh grille designed to protect the woofer cone from shifting cargo or trail equipment.



Learn how to wire subwoofers


SPECIFICATIONS


  • Diameter : 10 Inch
  • Impedance : 4 Ohm
  • Peak Power Handling : 600 Watts
  • Number Of Subwoofers : 1
  • Vehicle Make : Jeep
  • RMS Power Handling : 300 Watts

FEATURES


Features:

  • Powerful Bass Performance: Delivers deep, punchy sub-bass with a 300W RMS / 600W peak output, perfect for American drivers who love booming music on the road.
  • Precision Sealed Design: The sealed enclosure ensures tight, accurate, and musical bass without rattling or distortion.
  • Vehicle-Specific Fit: Designed to fit neatly in the rear corner of the trunk on the driver’s side, preserving cargo space and vehicle aesthetics.
  • Durable Construction: Built with high-quality black carpet covering and steel-mesh grille for long-lasting performance and protection against gear damage.
  • Premium Subwoofer Included: Preloaded with a 10" TW1 Series subwoofer featuring a mica-filled polypropylene cone and rubber surround for superior sound quality.
  • Seamless Integration: Works with most 4-door Jeep® Wrangler models without interfering with interior functionality or soft-top operation.

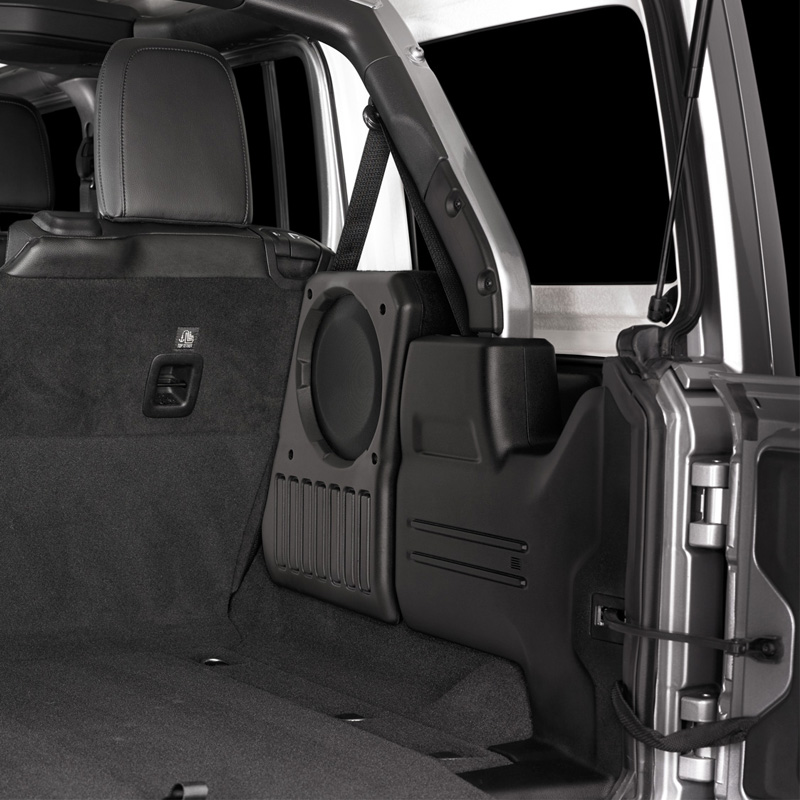

  • Easy Installation: Mounts securely above the rear wheel well with included trim panel and hardware for a clean, professional look.



Specifications:

  • Power Handling: 300W RMS, 600W Peak
  • Impedance: 4 ohms
  • Subwoofer Size: Single 10" TW1 Series
  • Enclosure Type: Sealed, black carpet finish
  • Frequency Response: 26–200 Hz
  • Sensitivity: 82.2 dB
  • Construction: 100% fiberglass enclosure with steel-mesh grille
  • UPC: 699440946674
  • Weight: 20
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
