Kenwood KDC-BT278U
alternate product image 1alternate product image 2alternate product image 3
Item# 54796 / Condition:  Brand New    Review this product

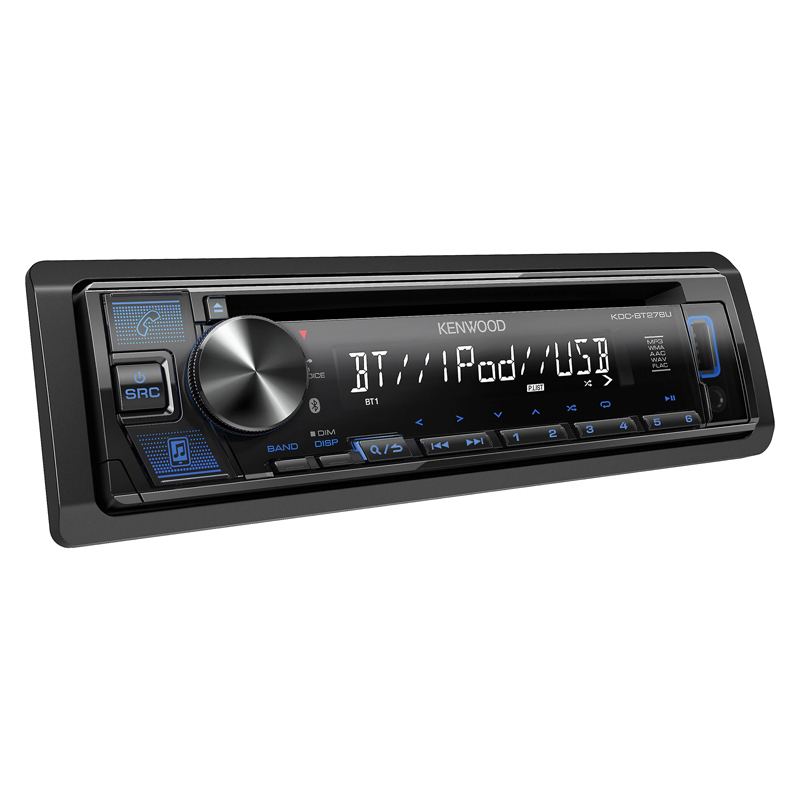

Kenwood KDC-BT278U

KDC-BT278U
Single-DIN Bluetooth CD Receiver with Spotify, Pandora
$89.99

FREE Shipping in US 48!

Save $18.00 | Reg. Price $107.99 In Stock
Add Extended Warranty

FM:

  • Frequency Range (Frequency step): 87.9MHz to 107.9MHz(200kHz)
  • Channel Space Selection
  • Usable Sensitivity(S/N 30dB): 8.2dBf (0.71μV/75Ω)
  • Quieting Sensitivity (DIN S/N:46dB): 17.2dBf (2.0μV/75Ω)
  • Frequency Response (±3.0dB): 30Hz to 15kHz
  • S/N: 64.0dB(MONO)

AM:

  • Stereo Separation: 40dB(1kHz)
  • Frequency Range (Frequency Step): 530kHz to 1700kHz (10kHz)
  • Channel Space Selection
  • Usable Sensitivity S/N: 20dB: 29dBμ (28.2μV)

CD:

  • Laser Diode: GaAlAs
  • Digital Filter(D/A): 8 Times OverSampling
  • Spindle Speed: 500 to 200rpm (CLV)
  • Wow & Flutter: Below Measurable Limit
  • Frequency Response: 20Hz to 20kHz(±1dB)
  • Total Harmonic Distortion: 0.02%(1kHz)
  • S/N Ratio (dB): 99dB(1kHz)
  • Dynamic Range: 92dB
  • Channel Separation: 90dB
  • MP3 Decode: Compliant with MPEG-1/2 Audio Layer-3
  • WMA Decode: Compliant with WINDOWS MEDIA AUDIO
  • AAC Decode: AAC-LC ".aac" files
  • WAV Decode: -

Preout Level(mV)/Load:

  • Unbalanced: 2500mV/10kΩ

Preout Impedance(ohms):

  • =<600 ohms

Speaker Impedance(ohms):

  • 4 to 8 ohms

USB I/F:

  • USB: USB 1.1 / 2.0 High Speed
  • File System: FAT12 / 16 / 32
  • Maximum Supply current: DC5V(DC logo) 1.5A
  • MP3 Decode: Compliant with MPEG-1/2 Audio Layer-3
  • WMA Decode: Compliant with Windows Media Audio
  • AAC Decode: AAC-LC ".aac",".m4a" files
  • WAV Decode: Linear-PCM
  • FLAC Decode: FLAC file (Up to 24bit/96kHz)

AUX:

  • Frequency Response: 20Hz to 20kHz ±3dB

Input:

  • Input Maximum Voltage: 1000mV
  • Input Impedance: 30k ohms

AMP:

  • Maximum Power: 50Wx4
  • Full Bandwidth Power (at less than 1%THD): 22Wx4

TONE:

  • Band1: 62.5Hz ±9dB
  • Band2: 100Hz ±9dB
  • Band3: 160Hz ±9dB
  • Band4: 250Hz ±9dB
  • Band5: 400Hz ±9dB
  • Band6: 630Hz ±9dB
  • Band7: 1kHz ±9dB
  • Band8: 1.6kHz ±9dB
  • Band9: 2.5kHz ±9dB
  • Band10: 4kHz ±9dB
  • Band11: 6.3kHz ±9dB
  • Band12: 10kHz ±9dB
  • Band13: 16kHz ±9dB

Bluetooth:

  • Version: Bluetooth 4.2
  • Frequency Range: 2.402 to 2.480GHz
  • RF Output Power (E.I.R.P.): +4dBm (MAX), Power Class 2
  • Maximum Communication range: Line of sight approx.10m(32.8ft)
  • Profile:
    • HFP 1.7.1 (Hands Free Profile)
    • SPP (Serial Port Profile)
    • PBAP (Phonebook Access Profile)
    • A2DP (Advanced Audio Distribution Profile)
    • AVRCP 1.6.1 (Audio/Video Remote Control Profile)

General:

  • Operating voltage: 12V DC car battery
  • Installation Size:
    • (W) 182(mm) 7-3/16(in)
    • (H) 53(mm) 2-1/16(in)
    • (D) 155.5(mm) 6-1/8(in)
  • Net Weight (trim plate and mounting sleeve included): 1.2(kg) 2.7 (lbs)
  • Weight: 8
