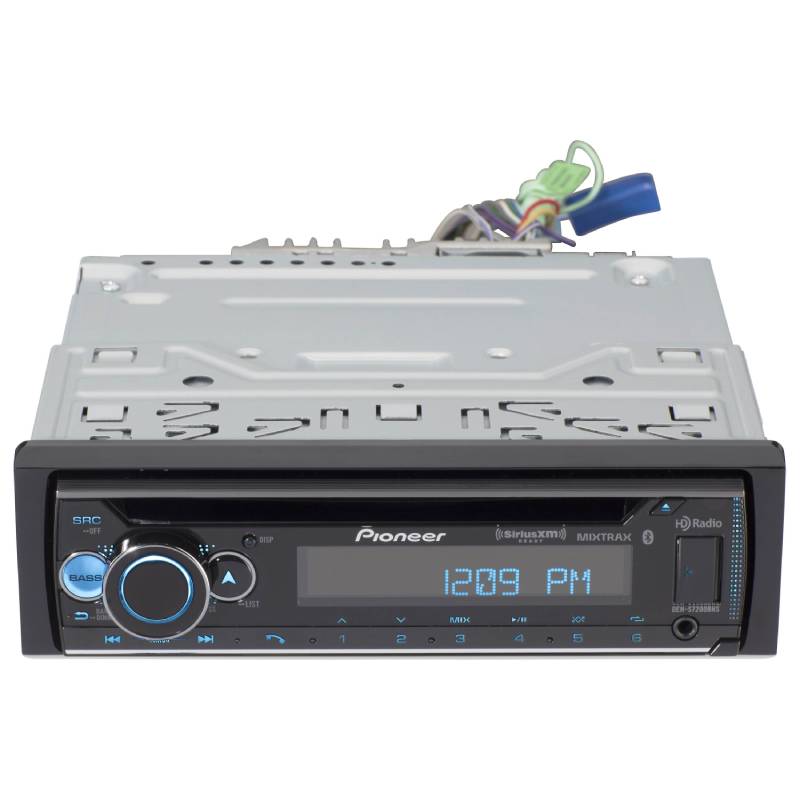

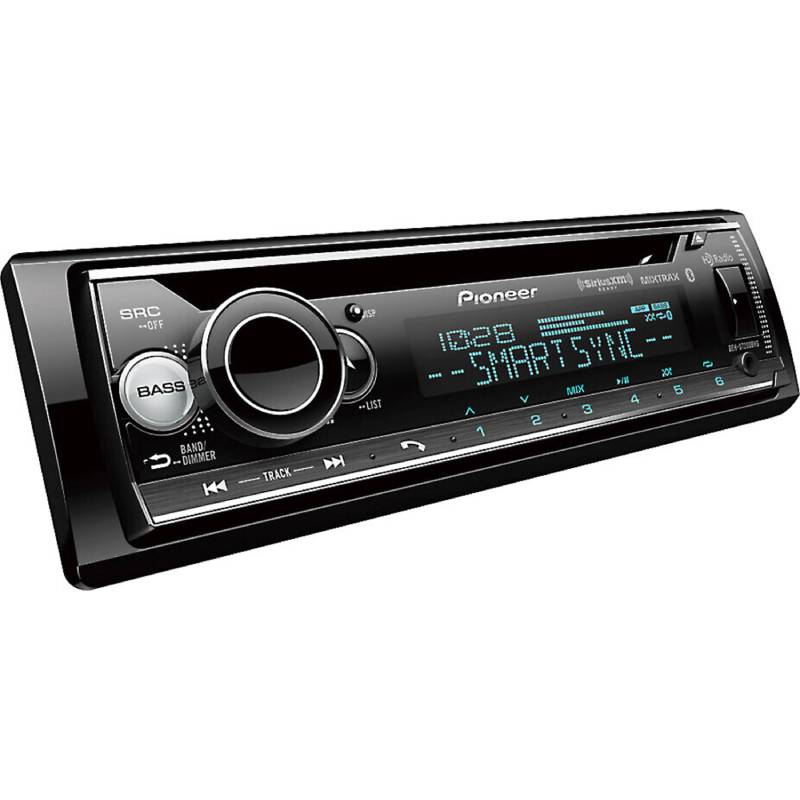

Pioneer DEH-S7200BHS In-dash Audio CD Receiver with Amazon Alexa, Pioneer Smart Sync App, Bluetooth®, Android™, iPhone®, HD Radio™
We are a Pioneer authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

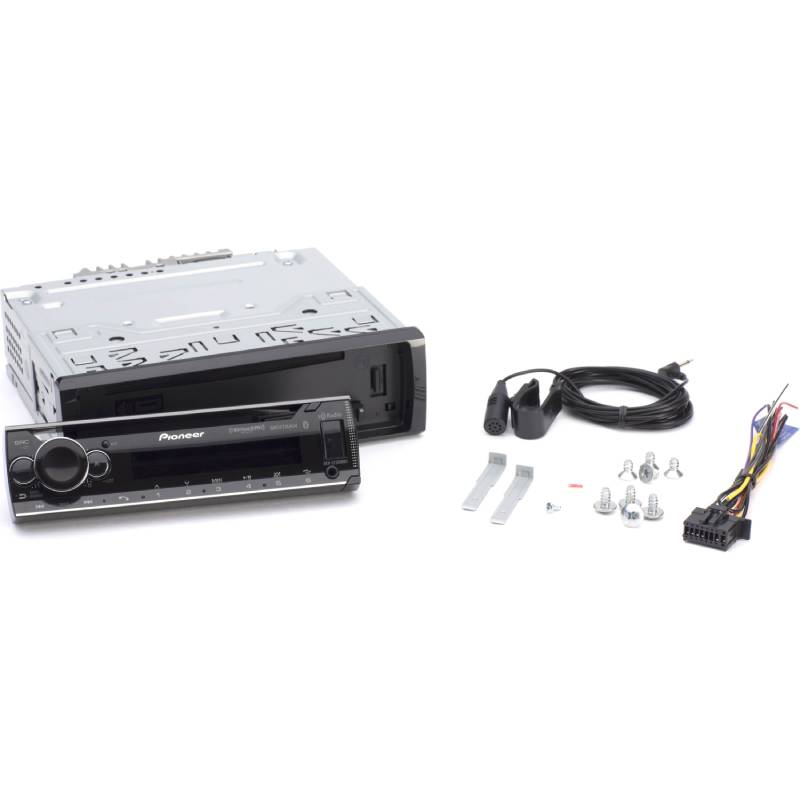

What's Inside?
- • CD receiver (10A fuse)

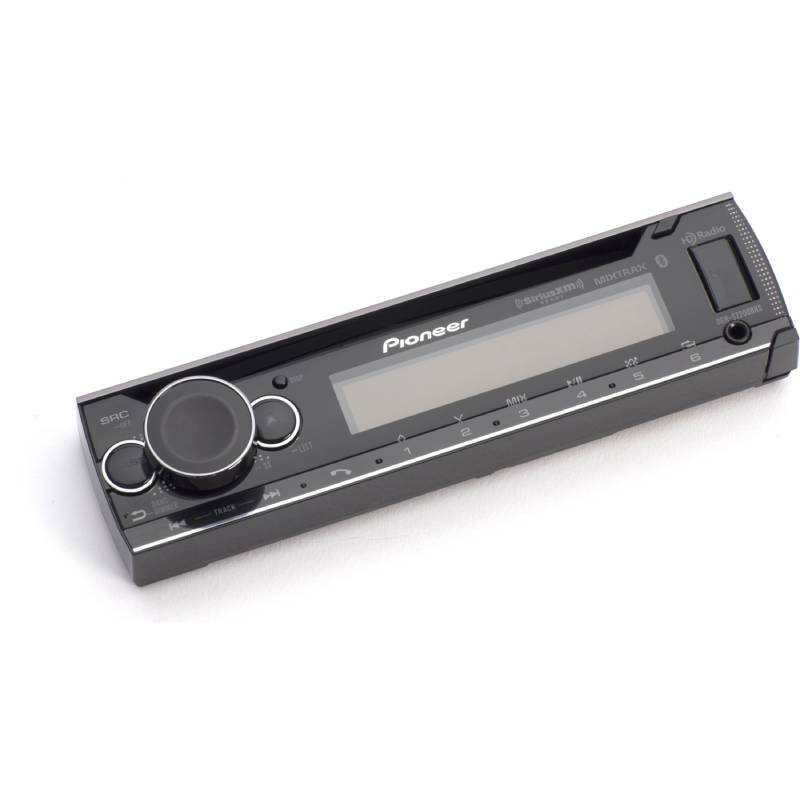

- • Face (attached)
- • Trim-ring (installed)
- • Sleeve (installed)
- • Wiring harness
- • Microphone w/ bracket (attached 10' cable terminated by a right-angle 2.5mm connector)
- • Face Locking Screw
- • (10) Installation Screws
- • (2) Removal tools
- • (1) Year Warranty Sheet
- • Owner's Manual
Why Choose Pioneer DEH-S7200BHS CD Receiver?
Smarter Driving Starts Here with Smart Sync
The Pioneer DEH-S7200BHS unifies navigation, messaging, and music into a single app-based system by syncing with iOS and Android devices via USB or Bluetooth. Featuring one-touch controls and hands-free voice commands through the included microphone, it allows you to safely manage calls, maps, and audio while staying focused on driving.
Full Entertainment Control Right at Your Fingertips
This receiver doesn’t limit your music it opens everything up. Stream from Spotify, Pandora, Tidal, YouTube Music, SoundCloud, and TuneIn, or go old-school with CD, USB, AM/FM, and AUX inputs. The Bluetooth 4.0 dual-phone pairing lets you stay connected to two devices at once, with support for phonebook transfer, call history, and voice dialing.
Serious Sound Power Built for Enthusiasts
If sound quality matters, this unit delivers. The 24-bit DAC and MOSFET amplifier (up to 50W x 4) ensure clean, powerful output with low distortion even at higher volumes. Fine-tune your system with the 31-band EQ, Super Todoroki bass boost, and Smart Sync sound customization tools, giving you full control over how your music hits.
Complete Media, Radio & System Flexibility
The Pioneer DEH-S7200BHS supports broad audio playback—including CD, USB, Pandora, and SiriusXM—handling high-resolution FLAC files alongside MP3, WAV, WMA, and AAC formats. Built for visual customization and future system expansion, it features an AM/FM Supertuner IIID with RDS, customizable 2-line dual-zone color lighting, 4V RCA preouts, and steering wheel control support.
Frequently Asked Questions (FAQ)
- • Why does the receiver keep restarting while I'm driving?
This is usually caused by a loose power connection, poor ground, or an unstable vehicle electrical system. Check the wiring harness and battery voltage to ensure the unit receives consistent power.
- • Why can't I control Spotify from the receiver?
Spotify control may not work if the app is outdated or the phone isn't connected properly. Update the app, reconnect your device, and verify that the correct source is selected.
- • Why is my iPhone not recognized through the USB port?
An incompatible cable, outdated iOS version, or connection issue can prevent proper detection. Use a certified data cable and make sure your iPhone is unlocked when connecting.
- • Why does Bluetooth audio have a noticeable delay?
Some delay is normal with wireless audio depending on the phone and streaming application. Closing background apps and keeping your phone's software updated may improve performance.
- • Why won't the receiver display song information correctly?
Missing metadata is often caused by unsupported file tags or streaming app limitations. Updating your music files or app can improve artist and track information display.
- • Can I pair two smartphones at the same time?
Yes. The receiver supports multiple paired devices, allowing convenient switching between compatible phones for calls and music playback.
- • Why does the receiver stop responding to button presses?
Temporary software glitches or electrical interruptions can occasionally cause the controls to freeze. Restarting the receiver or disconnecting power briefly usually restores normal operation.
- • Why does FM radio reception seem weaker than my previous stereo?
Poor antenna connections or a damaged antenna adapter are common causes of weak reception. Inspect the antenna wiring and verify it is securely connected.
- • Why is there no sound from my external amplifier?
The amplifier may not be receiving a remote turn-on signal or the RCA cables may not be connected properly. Verify the remote wire, RCA connections, and amplifier settings.
- • Can I customize the audio for different types of music?
Yes. The receiver includes equalizer presets and manual sound adjustments so you can fine-tune the audio for your personal listening preferences.
- Satellite Radio Ready : Yes
- DIN : 1
- Preamp Voltage : 4 volts
- Bluetooth : Yes
- Aux Input : Yes
- MP3 Playback : Yes
- WMA Playback : Yes
- HD Radio : Yes
- Preamp Outputs : Front, Rear & Sub
- Apple CarPlay : No
- Android Auto : No
Features:
- Pioneer Smart Sync App Integration (iOS & Android): Seamlessly connects smartphone via USB or Bluetooth combining navigation messaging music and audio controls into one app based interface for safer smarter in car operation.
- Advanced Safe Driving & Voice Control Tools: Supports one touch access from front panel and voice recognition via included microphone enabling hands free control of calls music navigation and messaging.
- Comprehensive Media & Streaming Compatibility: Works with Spotify Pandora Tidal YouTube Music SoundCloud and TuneIn plus CD USB AM FM and AUX sources for full playback flexibility.
- Advanced Bluetooth 4.0 with Dual Phone Pairing: Enables hands free calling phonebook transfer up to 1000 contacts call history access voice dialing and dual phone connection for easy switching.
- High Resolution Audio Playback Support: Supports MP3 AAC WAV WMA and FLAC formats via USB and Bluetooth with full song metadata display including artist album and track info.
- Advanced 31 Band EQ & Smart Sync Sound Customization: Offers detailed tuning with 31 band equalizer Super Todoroki bass enhancement live sound simulation and Easy Sound Fit for vehicle acoustic optimization.
- Premium Audio Performance with 24 bit DAC & MOSFET Amplifier: Delivers up to 50W x 4 clean output with high efficiency low distortion and strong clarity even at high volume levels.
- Siri Eyes Free & Voice Assistant Integration: Enables iPhone Siri access through external microphone for hands free calls messaging navigation reminders and music control.
- Pandora & SiriusXM Ready Support: Provides direct Pandora control and optional SiriusXM satellite radio compatibility for expanded entertainment options.
- Multi Format CD USB Playback: Supports CD USB and digital files with folder browsing repeat shuffle functions and full ID3 tag display for easy music navigation.
- AM FM Supertuner IIID with RDS: Improves radio reception clarity reduces interference and displays station artist and song information when available.
- Custom Display MIXTRAX Lighting & Security Features: Includes 2 line LCD with over 210000 color options brightness control detachable face security and dynamic MIXTRAX lighting effects.
- Flexible System Expansion & Installation Options: Includes 4V preouts subwoofer control crossovers and steering wheel control support for advanced system integration.
Specifications:
STANDARDS:
PERFORMANCE:
- Continuous Power Output: 22 W x 4-Channel
- Load Impedance Allowance: 4 Ohm (4 Ohm to 8 Ohm Allowable)
- Max Power Output: 50 W x 4-ch 4 ohm / 50 W x 2-ch 4 ohm 70 W X 1-ch (subwoofer) 2 Ohm
- RCA Preamp Outputs: 6-ch
- RCA Pre-out: 4V
- RMS Power Output (CTA-2006): 14 W RMS x 4-ch 4 ohm
DISPLAY:
- Display with LED Backlight: VA LCD (2-Line)
- Dimmer Setting (On/Off): Yes
- Brightness Control: 10-Level
- Color Customization: 210,000 Colors, Dual-Zone
- Illumination Timer: Yes
BLUETOOTH:
- Built-in Bluetooth®: Yes
- Hands-Free Profile (HFP): HFP 1.6
- Audio/Video Remote Control Profile (AVRCP): AVRCP 1.5
- Advanced Audio Distribution Profile (A2DP): Yes
- Secure Simple Profile (SSP): Yes
- Serial Port Profile (SPP): Yes
- Dual Phone Connection(HFP): Yes
TUNER:
- Built-in HD Radio™: Yes
- HD Radio Multicasting: Yes
- Presets: 18 FM, 6 AM
- Best Station Memory (BSM): Yes
- Local Seek Tuning: Yes
- RDS: Yes
- Supertuner® IIID: Yes
PIONEER SMART SYNC APP:
- iPhone: Yes (USB/BT)
- Android: Yes (USB/BT)
ANDROID™ CONNECTIVITY:
- Android™ music playback (MTP): Yes
- Pandora® control: Yes (via Bluetooth®)
- Voice Control: Yes (via Bluetooth®)
- Spotify® control: Yes (via Bluetooth®)
IPHONE® CONNECTIVITY
- Pandora® control: Yes (via Bluetooth® and USB)
- Voice Control: Yes (via Bluetooth® and USB)
- Spotify® control: Yes (via Bluetooth® and USB)
DIGITAL MEDIA PLAYBACK:
- CD/CD-R/RW Playback: Yes
- MP3 Audio Playback: Yes
- WMA Audio Playback: Yes
- AAC Audio Playback: Yes
- WAV Audio Playback: Yes
- FLAC Audio Playback: Yes
AUDIO:
- RCA Preouts: 3 (2V)
- Built-in Amplifier: MOSFET 50W x 4
- MIXTRAX®: Yes
- Equalizer: 13 Band EQ+ 31 Band with Pioneer Smart Sync
- D/A Converter: 24-bit
- Time Alignment: Manual
- Crossover Network: 3-Way Network Mode
- Subwoofer Control: Yes
- Loudness: 3-Mode
- Listening Position Selector: Yes
- Advanced Sound Retriever: Yes
- Dynamic Bass Enhancer: Yes (Direct Access Key)
- Super Todoroki Sound: Yes with Pioneer Smart Sync
EXPANDABILITY:
- USB: Yes
- AUX Input: Yes
- Wired Remote Input: Yes
- SiriusXM-Ready™ (tuner sold separately): Yes
- SiriusXM Tune Start & Tune Scan: Yes
GENERAL:
- Detachable Face Security: Yes
- Remote Control: Optional
- Multi-Language Display: English, French, Spanish
- Warranty (must be purchased from a Authorized Pioneer Dealer): 1 Year
- UPC: 884938434140
- Weight: 5
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
