Pioneer DMH-WC6600NEX 1-DIN 9" Multimedia Digital Media Receiver with Amazon Alexa, Android Auto™, Apple CarPlay™, Bluetooth®
We are a Pioneer authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

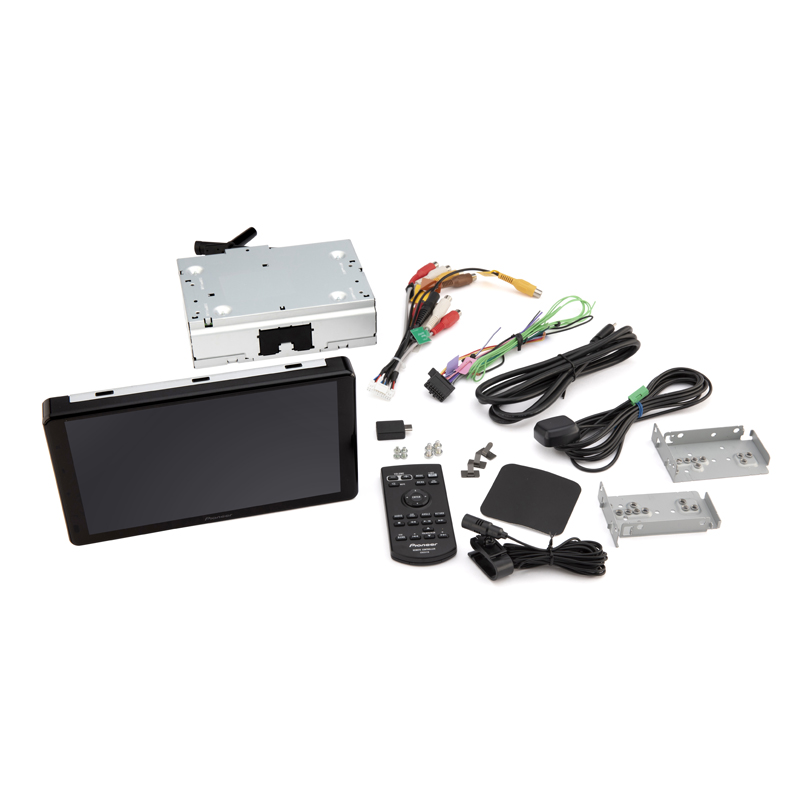

What's Inside?
- • Touchscreen monitor
- • Chassis body (10A fuse)
- • Wiring harness
- • Preout/AV harness
- • 58" USB-C extension cable
- • USB-C to USB-A adapter
- • Remote control (CXE5116)
- • CR2025 (3)V battery (pre-installed in remote)
- • Microphone w/ bracket (attached 10' cable terminated by a right-angle 2.5mm connector)
- • GPS antenna (attached 11.5' cable)
- • Self-adhesive square
- • (3) Self-adhesive clips
- • Two-sided tape
- • (2) Mounting brackets
- • (6) Pan-head ISO screws (M5 x 9mm)
- • (6) Counter-sunk ISO screws (M5 x 9mm)
- • (8) Pan-head screws (M4 x 5mm)
- • Quick Start Guide
- • Installation Manual
- • "About Alexa Built-In" note
- • Warranty Information
- • "Caution" note
- • Owner's Manual
Why Choose Pioneer DMH-WC6600NEX Apple CarPlay Receiver?
Multimedia Receiver
A multimedia receiver that is not only made to easily fit almost all vehicles but is also loaded with voice control features to make your driving experience more comfortable, the Pioneer DMH-WC6600NEX comes with the modern technologies that you only get from a high-end receiver.

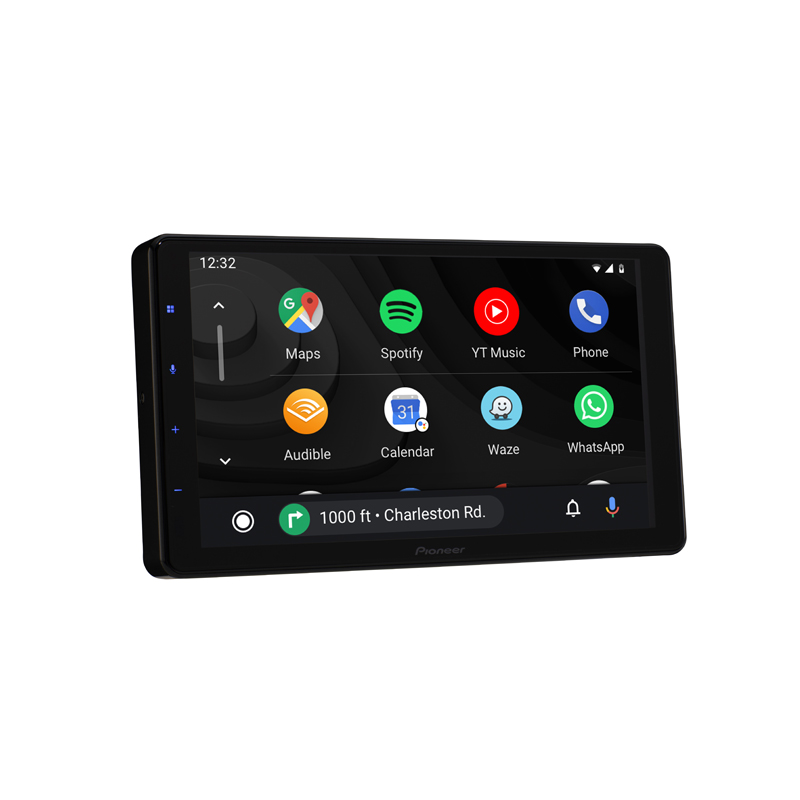

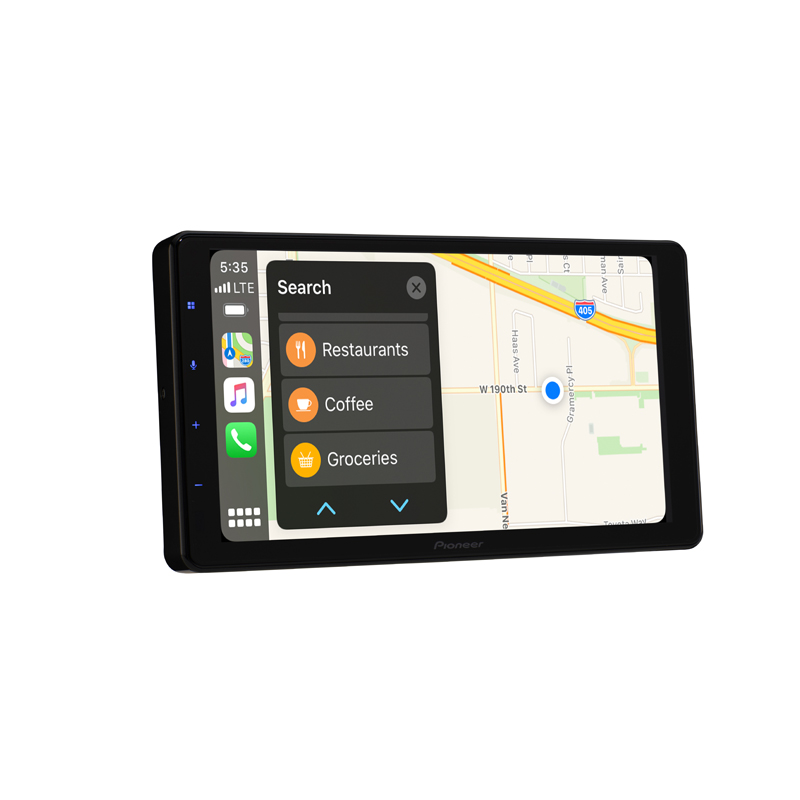

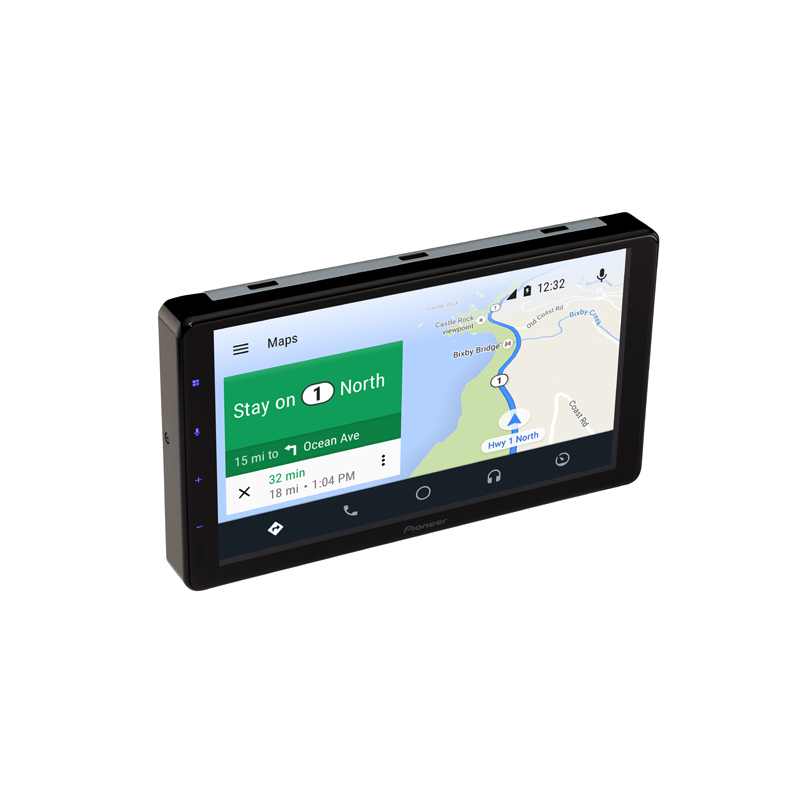

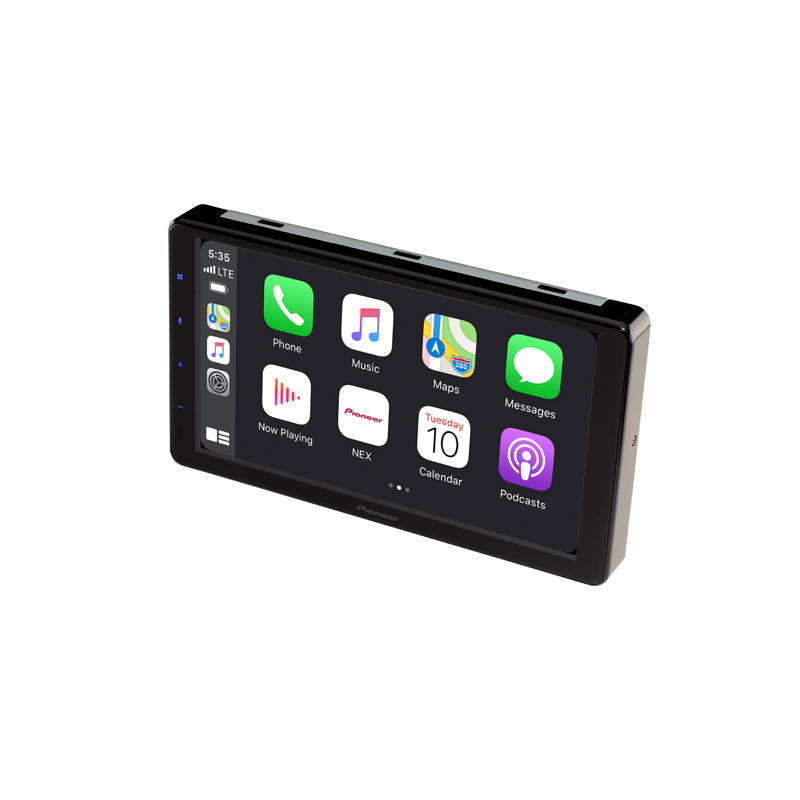

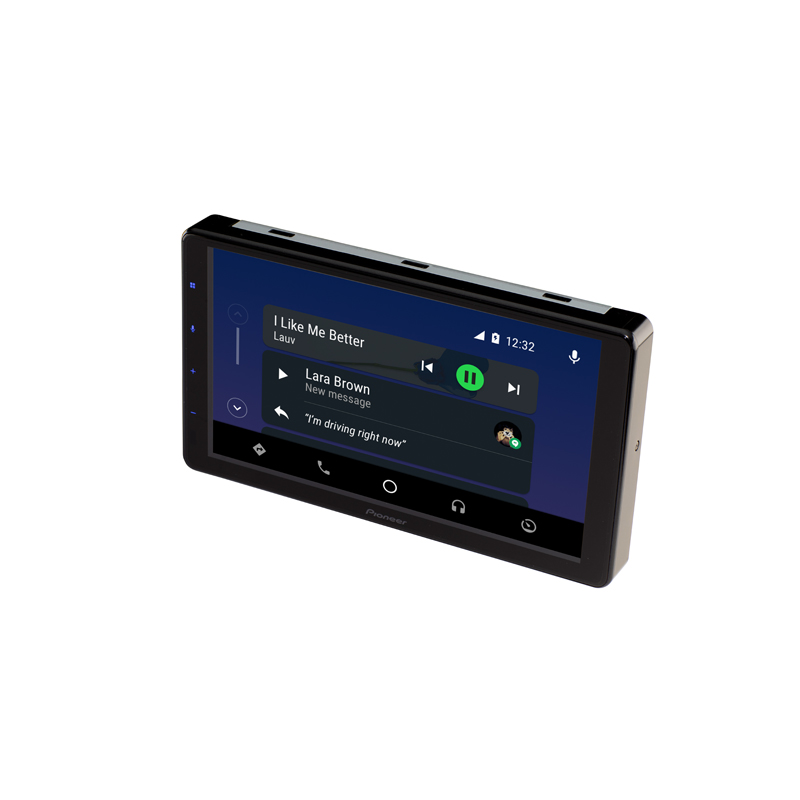

Apple CarPlay and Android Auto Compatible
Aside from the fact that it is Android Auto and Apple CarPlay-ready, the Pioneer DMH-WC6600NEX is also compatible with Amazon Alexa, allowing you to check out the latest news, ask for directions, read and send text messages, take and make calls, listen to voicemails, and play music using voice commands. It also has a Bluetooth feature to stream music or answer phone calls hands-free. You can mirror your phone's display to the receiver as well, giving you a better viewing experience.
SiriusXM Satellite Radio Tuner Ready
Although the Pioneer DMH-WC6600NEX is equipped with an HD Radio tuner, you can still connect a SiriusXM satellite radio tuner to the receiver, allowing you to follow and listen to your favorite shows while on the road. You do not have to worry about upgrading with this receiver as it is compatible with iDatalink's Maestro module, which lets you keep your car's factory features while being able to check out the engine's performance data on your receiver's touchscreen display.
Built-In Amplifier
The Pioneer DMH-WC6600NEX comes with a built-in amplifier with a six-channel preamp output and can deliver a power output of 14 Watts RMS and can reach up to 50 Watts of peak power per channel. It has a 13-band graphic EQ to shape up the amplifier's frequency response to suit your vehicle's acoustic, while it also has a time alignment feature, so you can hear all the speakers simultaneously for a better audio listening experience.
Frequently Asked Questions (FAQ)
- • Why won't wireless Apple CarPlay connect automatically?
Wireless CarPlay issues are commonly caused by outdated iPhone software, Bluetooth pairing conflicts, or Wi-Fi settings. Remove the existing pairing from both devices and complete the pairing process again.
- • Can I use Android Auto with this receiver?
Yes. The receiver supports both Android Auto and Apple CarPlay, allowing compatible smartphones to access navigation, calls, messages, and music.
- • Why isn't the backup camera displaying when I shift into reverse?
This is usually caused by incorrect reverse trigger wiring or disabled camera settings. Verify the camera wiring and enable the rear camera input in the receiver's setup menu.
- • Why does the receiver randomly restart while driving?
Loose power connections, poor grounding, or unstable vehicle voltage can cause unexpected restarts. Inspect the wiring harness and ensure all electrical connections are secure.
- • Why is there no sound even though music is playing on the screen?
Incorrect audio output settings, loose speaker wiring, or amplifier issues can prevent sound from reaching the speakers. Check all audio connections and verify that the correct outputs are enabled.
- • Can I retain my factory steering wheel controls after installation?
Yes. Most vehicles require a compatible steering wheel control interface to preserve the factory audio buttons.
- • Why does Bluetooth audio skip or disconnect?
Wireless interference, outdated smartphone software, or pairing conflicts are common causes of Bluetooth interruptions. Updating your phone and repairing the Bluetooth connection usually improves stability.
- • Why won't the receiver remember my settings after the car is turned off?
This typically means the constant 12-volt memory wire is connected incorrectly. Verify the power wiring so the receiver receives uninterrupted battery power.
- • Can I connect external amplifiers and subwoofers?
Yes. The receiver includes multiple preamp outputs that make it easy to connect aftermarket amplifiers and powered subwoofers for enhanced audio performance.
- • Why is the floating touchscreen slow or occasionally unresponsive?
Temporary software glitches, outdated firmware, or excessive background activity can reduce touchscreen responsiveness. Restart the receiver and install the latest firmware update if one is available.
- Preamp Voltage : 4 volts
- Display Size : 9 Inch
- Bluetooth : Yes
- Aux Input : Yes
- MP3 Playback : Yes
- WMA Playback : Yes
- HD Radio : Yes
- Rear View Camera Input : Yes
- Apple CarPlay : Yes
- Android Auto : Yes
Features:
- 9" Modular Display
- 1-DIN Separate Installation Chassis (Hide-away)
- HD Screen
- Amazon Alexa Built-in
- Apple CarPlay™ (Wired, Wireless)
- Android Auto™ (Wired, Wireless)
Specifications:
- NON-DIN/Modular Unit: Yes
- Screen Size/Aspect Ratio: 9"/16:9
- Resolution: 720P
- Touchscreen: Capacitive
- LED Backlight: Yes
- Display Off Mode: Yes
- Color Customization: 5 Display Colors, 112-Key Colors
- Display Customization: 5-Backgrounds (w/2 animated wallpapers
- Illumination Timer: Yes
- Dimmer Setting (ON/OFF): Yes
- Brightness Control: Yes
- Built-in Bluetooth®: Yes
- Hands-Free Profile (HFP): SBC/AAC
- Dual Phone Connection: Yes
- SiriusXM-Ready™ (tuner sold separately): Yes
- Built-in HD Radio™: Yes
- Presets: 18 FM, 6 AM
- Best Station Memory (BSM): Yes
- Local Seek Tuning: Yes
- RDS: Yes
- Voice Control: Yes
- Apple CarPlay™: Wireless, USB
- Android Auto™: Wireless, USB
- Siri® Eyes Free: Yes
- Android™ Music Support: Yes
- MP3 Audio Playback: USB
- WMA Audio Playback: USB
- AAC Audio Playback: USB
- WAV Audio Playback: USB
- FLAC Audio Playback: USB
- MPEG-1 Video Playback: USB
- MPEG-2 Video Playback: USB
- MPEG-4 Video Playback: USB
- AVI/DivX Video Playback: USB
- JPEG Photo Slideshow Viewer: USB
- RCA Preouts: 3 (4V)
- Built-in Amplifier: MOSFET 50 W x 4
- Customizable Graphic Equalizer: 13-Band
- D/A Converter: 24-Bit
- Time Alignment (CD-MC20 required): Manual
- Subwoofer Control: Yes
- Advanced Sound Retriever: Yes
- HDMI® Input: Yes
- USB: Single Type-C, Rear (3 Amp)
- AUX Input: Rear
- Back-Up Camera Input: Yes
- Dual Camera Input: Yes
- iDatalink® Maestro™: Yes
- Wired Remote Input: Yes
- Composite Video Output: Yes
- Mini-jack AV Cable: 1 (Audio/Video)
- USB Direct Control for iPhone®: Yes
- Detachable Face Security: Fixed
- Remote Control: Included
- Multi-Language Display: English, Chinese (Simplified), French, Spanish, Portuguese
- Warranty (must be purchased from an Authorized Pioneer Dealer): 1 Year
- 2006 CEA Compliant: Yes
- UPC: 884938444415
- Weight: 8
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
Do you own this product?
Write a review!
-
Huge screen and crystal clear interface. Expensive but works as it should. I use the Android Auto feature and it’s smooth.
-
Sound quality is what you expect from a Pioneer: Excellent! The 9” screen is a huge plus and carPlay is wireless which is also what I preferred before buying the head unit.
-
This receiver is outstanding! I regret not purchasing it earlier.
