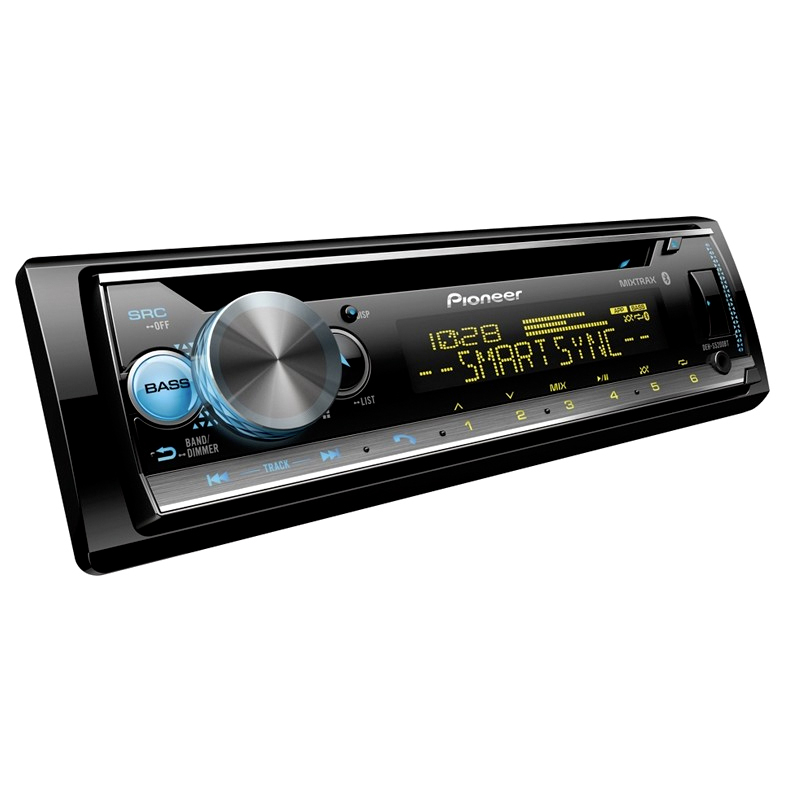

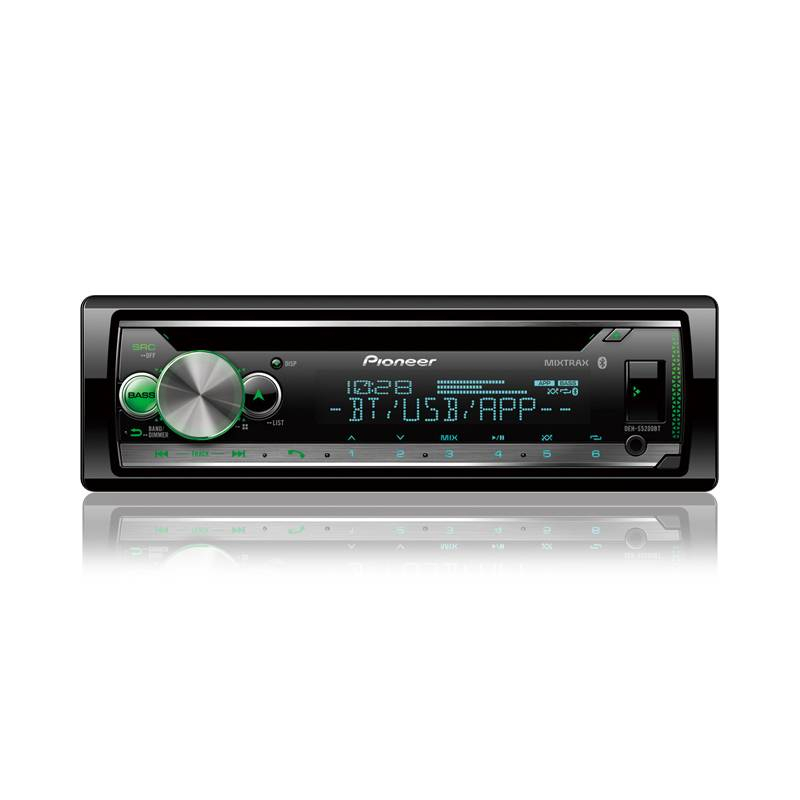

Pioneer DEH-S5200BT 1-DIN In-dash Audio CD Receiver with Amazon Alexa, Pioneer Smart Sync App, Bluetooth®, Android™, iPhone®
We are a Pioneer authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- •CD receiver (10A fuse)
- • Face (attached)
- •Trim-ring (installed)
- •Sleeve (installed)
- •Wiring harness
- •Microphone w/ bracket (attached 10' cable terminated by a right-angle 2.5mm connector)
- •(8) various Installation screws
- •(2) Removal tools
- •Quick Start Guide
- •1 Year Warranty Sheet
- •Owner's Manual
A Better-Than-Ever Listening Experience
A superb car radio system, the Pioneer DEH-S5200BT combines cutting-edge technology with amazing music quality. You can easily operate your smart home appliances, access information, and plan your day with voice commands while driving thanks to built-in Amazon Alexa compatibility.
Hands-free Calling
The DEH-S5200BT delivers seamless Bluetooth communication and is made to accommodate both Android and iPhone users. To experience hands-free calling and wireless music streaming, simply pair your device. Thanks to the system's support for well-known music streaming apps like Pandora and Spotify, you can access your favorite playlists and find new music on the go.
Excellent Sound Quality
The DEH-S5200BT offers simple access to a variety of functionalities thanks to its stylish and user-friendly interface. The bright display offers a simple menu and setting navigation, and the adaptable sound controls, which include a 13-band equalizer and time alignment, let you fine-tune the audio to your tastes. The Pioneer DEH-S5200BT offers an exceptional in-car audio experience that blends simplicity, versatility, and excellent sound quality thanks to its compatibility with Amazon Alexa, Android, iPhone, and support for Pandora and Spotify.
- Maximum Power : 50x4 Watts
- Remote Control : Yes
- Detachable Face : Yes
- Built-in EQ : Yes
- DIN : 1
- Preamp Voltage : 2 volts
- Bluetooth : Yes
- Aux Input : Yes
- MP3 Playback : Yes
- WMA Playback : Yes
- HD Radio : No
- Front USB Input : 1
- Preamp Outputs : 6
- RDS - Radio Data System : Yes
- Apple CarPlay : No
- Android Auto : No
Features:
- Pioneer Smart Sync App Compatible
- Android™ Compatibility
- Works with Pandora® and Spotify®
- iPhone® Compatibility
- Built-in Bluetooth®
- Color Customization
Specifications:
STANDARDS
PERFORMANCE
- Continuous Power Output: 22 W x 4-Channel
- Load Impedance Allowance: 4 Ohm (4 Ohm to 8 Ohm Allowable)
- Max Power Output: 50 W x 4-ch 4 ohm / 50 W x 2-ch 4 ohm 70 W X 1-ch (subwoofer) 2 Ohm
- RCA Preamp Outputs: 6-ch
- RCA Pre-out: 2V
- RMS Power Output (CTA-2006): 14 W RMS x 4-ch 4 ohm
Display
- Display with LED Backlight: VA LCD (2-Line)
- Dimmer Setting (On/Off): Yes
- Brightness Control: 10-Level
- Color Customization: 210,000 Colors, Dual-Zone
- Illumination Timer: Yes
Bluetooth
- Built-in Bluetooth®: Yes
- Hands-Free Profile (HFP): HFP 1.6
- Audio/Video Remote Control Profile (AVRCP): AVRCP 1.5
- Advanced Audio Distribution Profile (A2DP): Yes
- Secure Simple Profile (SSP): Yes
- Serial Port Profile (SPP): Yes
- 5-Phone CONNECTION (A2DP): Yes
- Dual Phone Connection(HFP): Yes
Tuner
- Presets: 18 FM, 6 AM
- Best Station Memory (BSM): Yes
- Local Seek Tuning: Yes
- RDS: Yes
- Supertuner® IIID: Yes
Pionner Smart Sync App
- iPhone: Yes (USB/BT)
- Android: Yes (USB/BT)
Android™ Connectivity
- Android™ music playback (MTP): Yes
- Pandora® control: Yes (via Bluetooth®)
- Voice Control: Yes (via Bluetooth®)
- Spotify® control: Yes (via Bluetooth®)
iPhone® Connectivity
- iPhone music playback: Yes
- Pandora® control: Yes (via Bluetooth® and USB)
- Voice Control: Yes (via Bluetooth® and USB)
- Spotify® control: Yes (via Bluetooth® and USB)
Digital Media Playback
- CD/CD-R/RW Playback: Yes
- MP3 Audio Playback: Yes
- WMA Audio Playback: Yes
- AAC Audio Playback: Yes
- WAV Audio Playback: Yes
- FLAC Audio Playback: Yes
Audio
- RCA Preouts: 3 pairs (2V)
- Built-in Amplifier: MOSFET 50W x 4
- MIXTRAX®: Yes
- Equalizer: 13-Band EQ+ (31-Band with Pioneer Smart Sync app)
- D/A Converter: 24-bit
- DSP: Yes
- Time Alignment: Manual
- Crossover Network: HPF/LPF
- Subwoofer Control: Yes
- Loudness: 3-Mode
- Listening Position Selector: Yes
- Advanced Sound Retriever: Yes
- Dynamic Bass Enhancer: Yes(Direct Access Key)
- Super Todoroki Sound: Yes with Smart Sync app
Expandability
- USB: Yes
- AUX Input: Yes
- Wired Remote Input: Yes
General
- Detachable Face Security: Yes
- Remote Control: Optional
- Multi-Language Display: English, Spanish, French (Canadian)
- Warranty (must be purchased from a Authorized Pioneer Dealer): 1 year
- UPC: 884938434096
- Weight: 5
- Authorized Internet Dealer
Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warrantied if the defect is due to physical damage.
Do you own this product?
Write a review!
-
I’ve had this receiver for a couple of months now, it was my first time trying a Pioneer receiver. It has USB, AUX, Bluetooth AND a CD receiver? Score! I know people now are more into touchscreen and app-loaded multimedia receivers, but I am holding to analog things and I still love playing my CDs, so this receiver is perfect for me.
-
I had to upgrade from my older Pioneer model on my Silverado and luckily it utilized the same harness which made the installation a breeze. The Bluetooth connection to my iPhone was seamless and quick, and it also boasts a multitude of fantastic features including the EQ.
