Jensen CMM710 2-DIN 10.1" Touchscreen Bluetooth Receiver
We are a Jensen authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

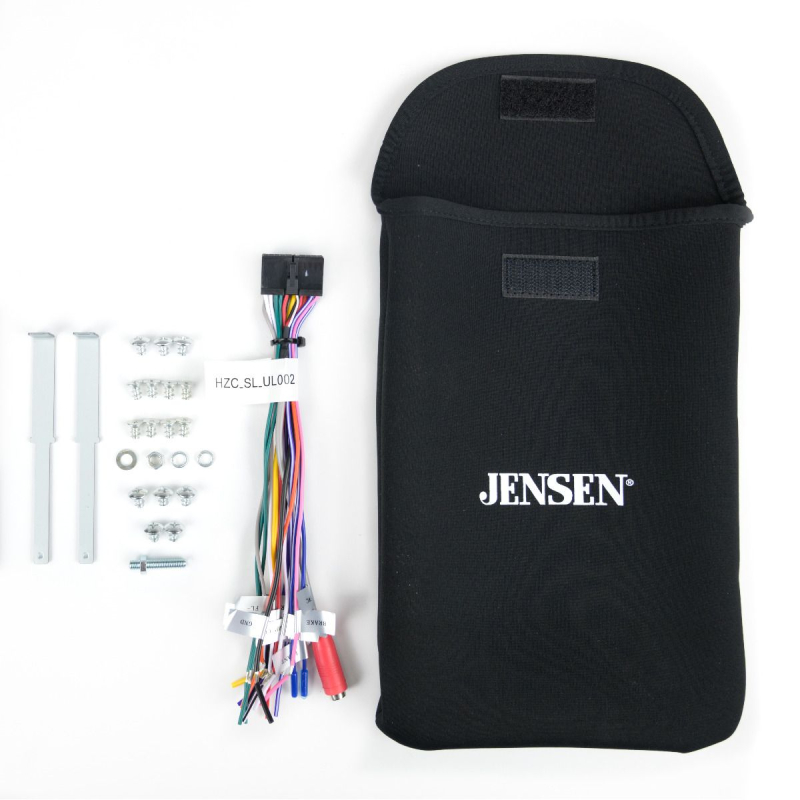

What's Inside?
- • Digital media receiver chassis (10A fuse)
- •10.1" Touchscreen monitor
- •Mounting-pin (pre-installed)
- • Wiring harness
- •Trim-ring (attached)
- •Sleeve (installed)

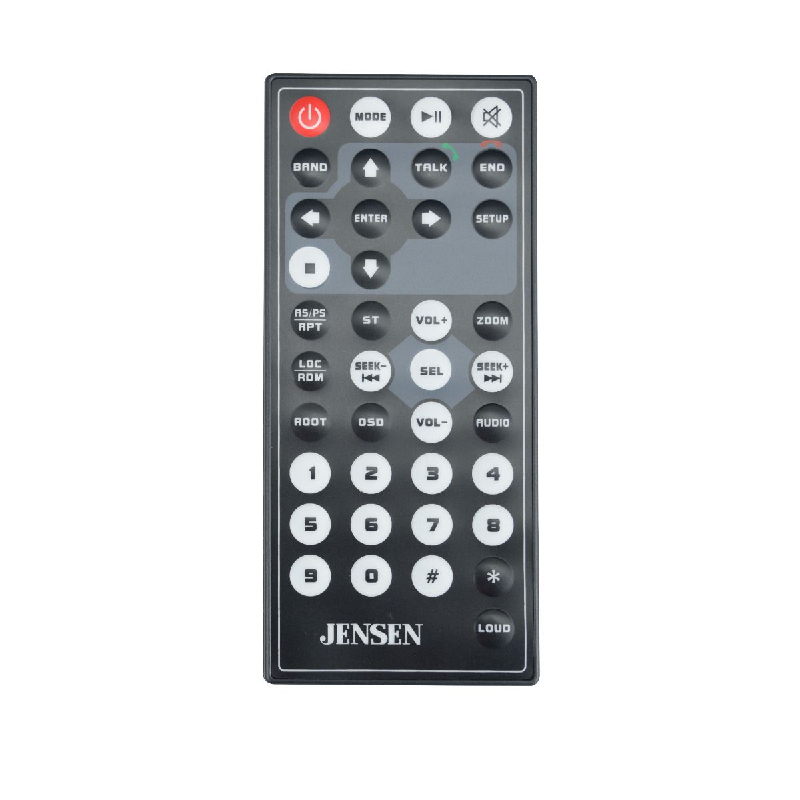

- •Remote control (CR2025 battery installed)
- • 8 Counter-sunk ISO screws
- •Rear-support bolt
- •Hex-nut
- •Lock-washer
- •2 Removal tools
- •Storage pouch (for touchscreen monitor)
- •Quick Start Guide
- •Owner's Manual
Bluetooth Hands-Free Calling
Safely answer and make calls from your receiver using touchscreen icons and the included microphone. Use the Jensen j-Link Smart Remote app on an Apple or Android smartphone to control the receiver via bluetooth. Change the mode, station, song, and volume directly from your smartphone without being in the receiver's line-of-sight.
j-Link Smart Remote App
Your LCD high resolution touch screen provides a comfortable viewing experience and keeps all your favorite presets/apps within fingers reach! The 7 preset EQ curves lets you tweak the audio settings to suit your listening preferences. Switch between Pop, Jazz, Rock, Flat, Classic, Beat and Usser.
7 Preset EQ Curves
The 7 preset EQ curves lets you tweak the audio settings to suit your listening preferences. Switch between Pop, Jazz, Rock, Flat, Classic, Beat and Usser.Communicates via your phone's bluetooth connection to the radio. Interact with your smartphone's assistant while you drive with only a push of a button. You have the option to install a backup camera to your car receiver so you are always aware of your surroundings as you reverse
- Maximum Power : 60 Watts
- Satellite Radio Ready : Yes
- Subwoofer Preamp Outputs : Yes
- Built-in EQ : Yes
- DIN : 2
- Preamp Voltage : 2 volts
- Display Size : 10.1 Inch
- Audio/Video Inputs : 1
- Bluetooth : Yes
- Aux Input : Yes
- MP3 Playback : Yes
- WMA Playback : Yes
- HD Radio : No
- Front USB Input : 1
- Preamp Outputs : 3
- Rear View Camera Input : Yes
- Apple CarPlay : No
- Android Auto : No
- USB Mirroring : Yes
Features:

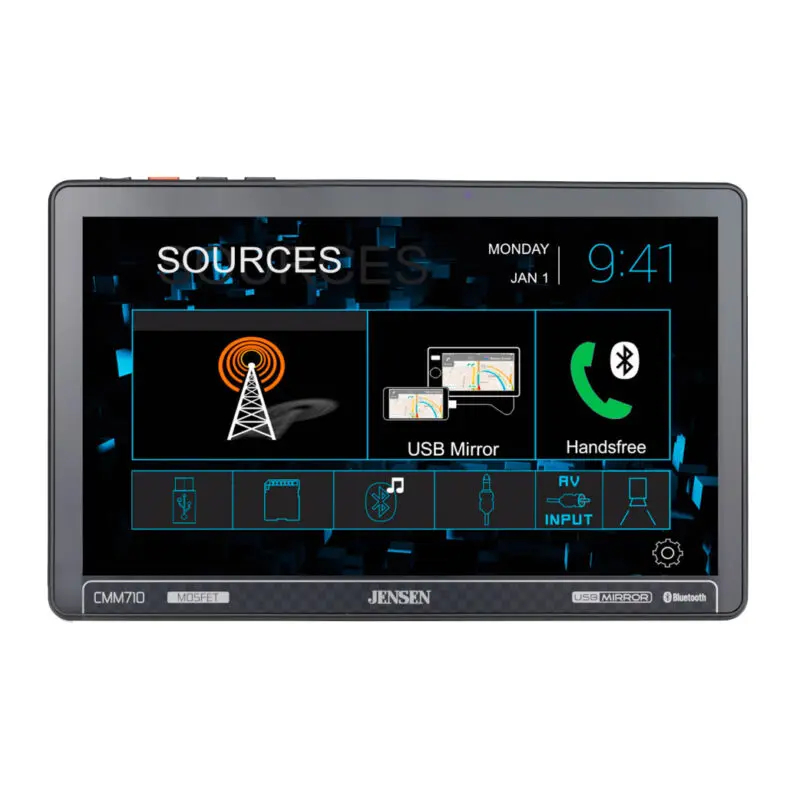

- 10.1" Capacitive Touchscreen: The Jensen CMM710 includes an extra-large 10.1" capacitive touchscreen LCD monitor with LED backlit and a resolution of 1024x600 (614,400 total pixels). The large display is easy to see and navigate. The capacitive touchscreen provides a high contrast ratio, crystal clear display, and vivid text. It also provides highly responsive touchscreen operation. The 10.1" capacitive monitor attaches and plugs into the front of the CMM710's separate source unit which mounts in a standard 2" single-DIN opening in a variety of vehicles.

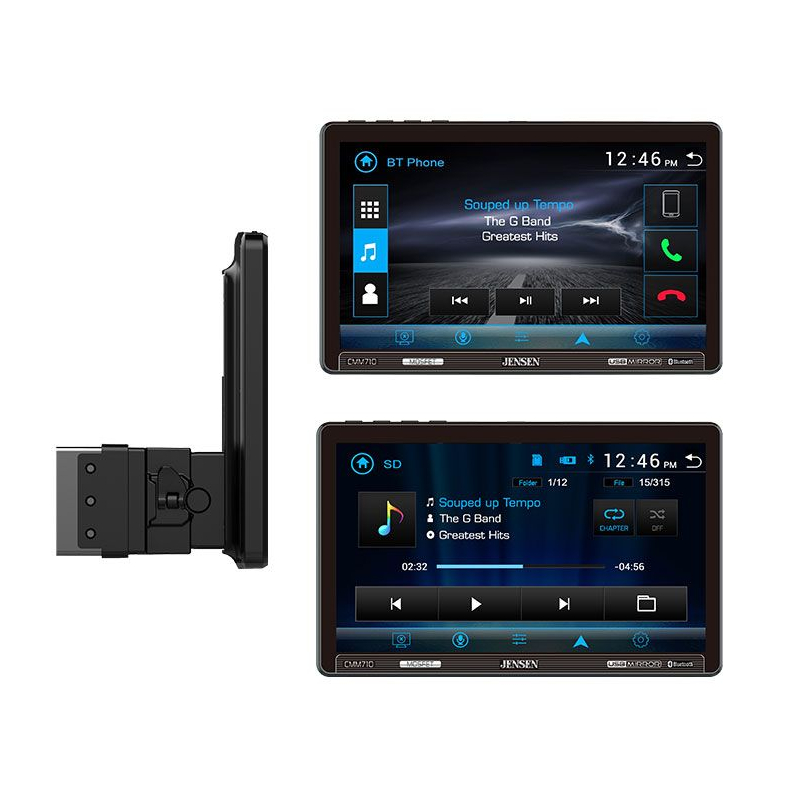

- Single-DIN Source Unit: The included source unit fits in a standard 2" single-DIN opening (applicable kit, harness, etc. will be required and sold separately for your vehicle). Once the source unit is mounted in the dash, the 10.1" touchscreen monitor attaches and plugs into the front of the source unit using the integrated wiring harness and mounting pin.

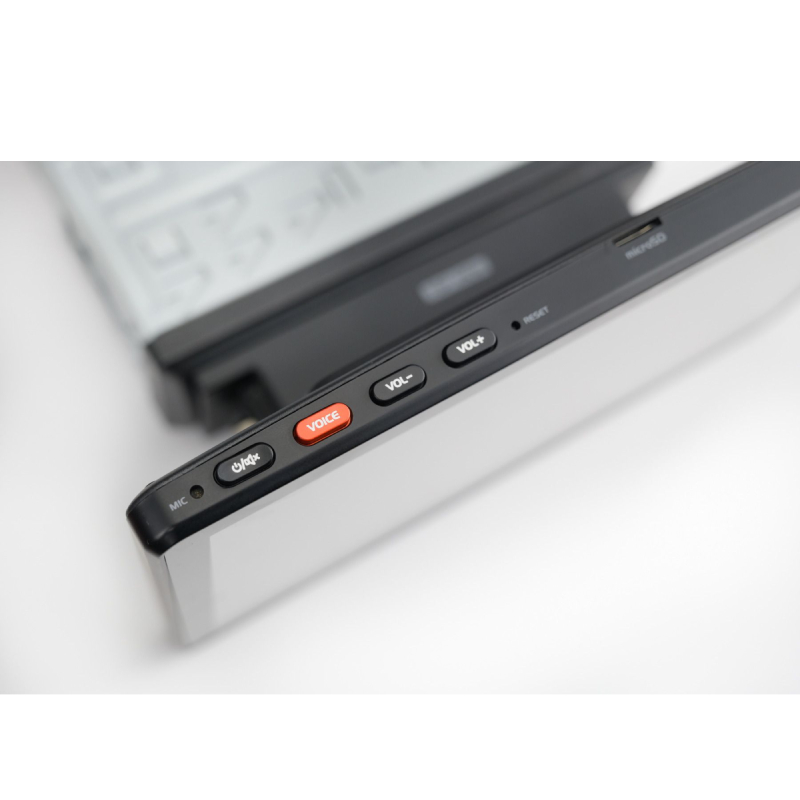

- Hard-Key Controls: In addition to its 10" capacitive touchscreen, the Jensen CMM710 offers hard-key controls on top of the touchscreen monitor. These hard-key controls consist of four push-buttons that operate Power, Volume, Mute, and Push-to-Talk functions.
- J-Link Smart Remote App: The free J-Link Smart Remote app (for Apple iOS 12.1+ and Android OS 4.4+) turns your Bluetooth connected Apple or Android mobile device into a wireless remote control for the Jensen CMM710 receiver, and provides a "NAV" button.
- Optional Steering Wheel Controls: The unit features a SWC (steering wheel control) input which lets you keep your vehicle's factory radio steering wheel remote controls when used with an optional steering wheel control adapter from PAC or Metra (see Accessories tab).
- USB Screen Mirroring: Through the USB port (on side of touchscreen monitor) and Bluetooth connection, the Jensen CMM710 can mirror the screen of your Apple iPhone (iOS 12.1+) with Lightning connector or Android smartphone (OS 4.4+) on its 7" LCD touchscreen monitor. You'll also be able to hear audio from your mirrored device through your car speakers. USB Mirroring allows you to integrated your favorite apps with the Jensen receiver. Enjoy navigation apps, entertainment apps, and more through the Jensen CMM710. Some video and photo images and apps may not display horizontally across the entire screen of Jensen receiver; some images will only display vertically. The Jensen receiver does not offer touchscreen of your mobile device; you will still continue to use your mobile device's touchscreen for control.
- USB MSC Playback: The USB port (on side of touchscreen monitor) can also be used to connect a USB MSC (mass storage class device), such as a USB thumbdrive. The CMM710 supports playback of MP3 and FLAC music files, as well as Xvid and MP4 video files. The unit will recognize up to 2000 files, 200 folders, and 2000 files per folder on a USB MSC device formatted in FAT 16 or FAT 32.
- microSD Card Slot: In addition to USB integration, the Jensen CMM710 features a microSD card slot (on top of touchscreen monitor) for plabyack of MP3 and FLAC music files, as well as Xvid and MP4 video files on a microSD/SDHC memory card. The unit will recognize up to 2000 files, 200 folders, and 2000 files per folder on a microSD/SDHC memory card formatted in FAT 16 or FAT 32.
- Bluetooth Technology: The Jensen CMM710 is equipped with built-in Bluetooth 4.1+EDR, allowing you to make and receive phone calls wirelessly through the receiver; as well as stream music wirelessly from your smartphone to the head unit. In order to use Bluetooth wireless technology, your phone must also be Bluetooth compatible and be able to interpret certain profiles.
- Hands-Free Communication (w/ integrated mic): The CMM710 supports Bluetooth hands-free communication from your Bluetooth enabled mobile phone. You can answer an incoming call from the head unit's touchscreen and carry on a phone conversation hands-free. The unit's front-panel integrated microphone carries on your side of the conversation while your car's speakers are used to hear the other person. You can increase or decrease the volume level of a call, using the head unit's rotary knob on the front panel. You can also transfer calls between the receiver and your Bluetooth enabled phone.

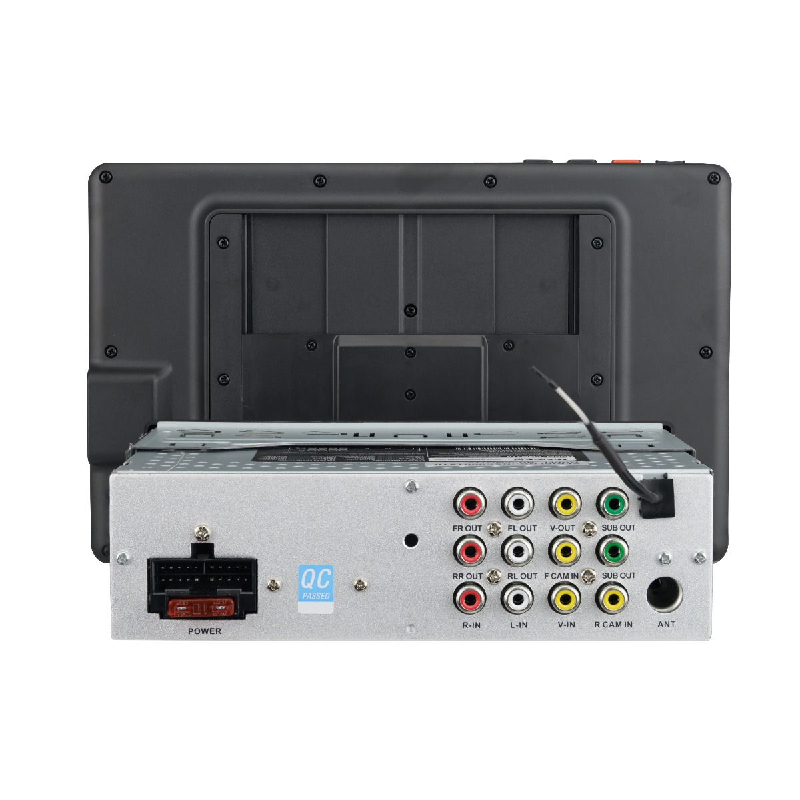

- AV Inputs: The Jensen CMM710 is equipped with an Aux input (on side of touchscreen monitor) that consists of a 3.5mm jack for connection of an external portable audio device with a headphone jack or analog output. The Aux input only supports audio playback (not video compatible). There is also a rear-panel AV input that consists of a composite video and stereo RCA jacks for connecting an external audio/video source (Parking Brake must be applied to view video on-screen).
- Video Output: A single RCA composite video-output jack allows you to an add external monitor, such as rear headrest or overhead monitor (sold separately). The video outputs will display whatever image is being displayed on the head unit's touchscreen monitor. This includes the warning "Video Is Disabled For Your Safety" when trying to watch video from a USB device, microSD card, or AV input without the vehicle's parking brake engaged. You will need to engage the vehicle's parking brake to see video from these sources through the head units' video output. However, you can view USB Mirrored content from a mobile device through the video output without the parking brake engaged.
- Dual Camera Inputs: The Jensen CMM710 is outfitted with two camera inputs; one backup camera input and one front camera input.
Specifications:
- 10.1” Capacitive touchscreen (1024x600)
- USB screen mirroring for Apple®/Android™
- Built-in Bluetooth technology with hands-free calling, music streaming, ID3 tags and phonebook support
- Internal mic
- SiriusXM-Ready™ (SiriusXM Connect Vehicle Tuner and Subscription sold separately)
- Supports album art
- AM/FM tuner with 30 presets (18FM / 12AM)
- Push-to-talk button to access smartphone voice assistant
- J-Link Smart Remote app via Bluetooth (Apple®/Android™)
- Front panel USB input with 1A charging
- Backup camera RCA input / Front camera RCA input
- Front 3.5mm Aux input and microSD card input
- Rear A/V Input / Video output (RCA)
- 3 Pairs of RCA preamp outputs (F/R/S)
- File formats: MP3, MP4, WMA and FLAC
- 7 Preset EQ curves (Pop, Jazz, Rock, Flat, Classic, Beat, & User)
- 240 Watts max power (60W x 4) MOSFET
- Steering Wheel Control (SWC) Input
- UPC: 827204115893
- Weight: 8
