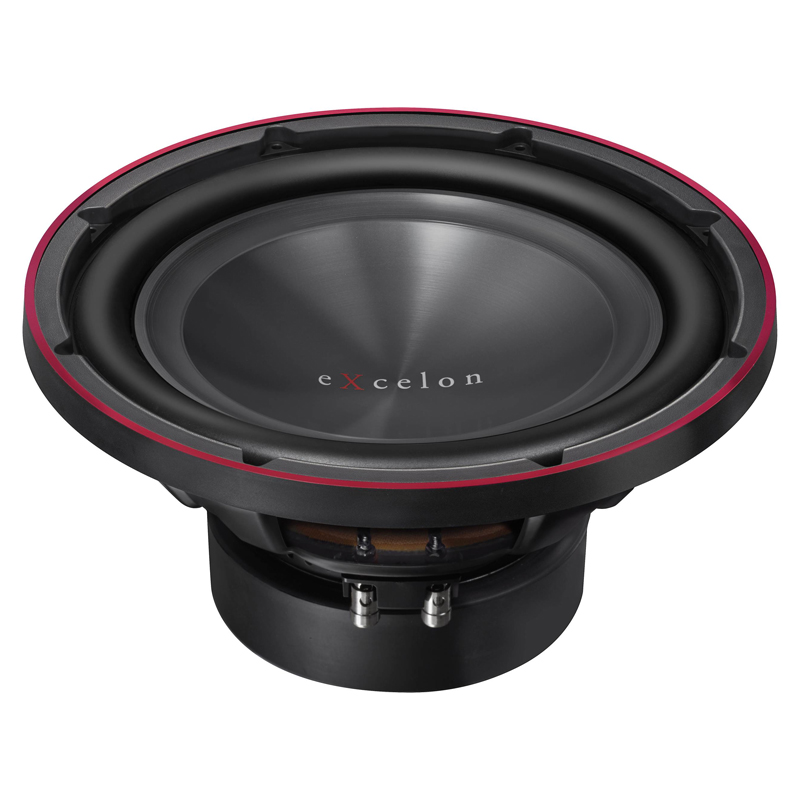

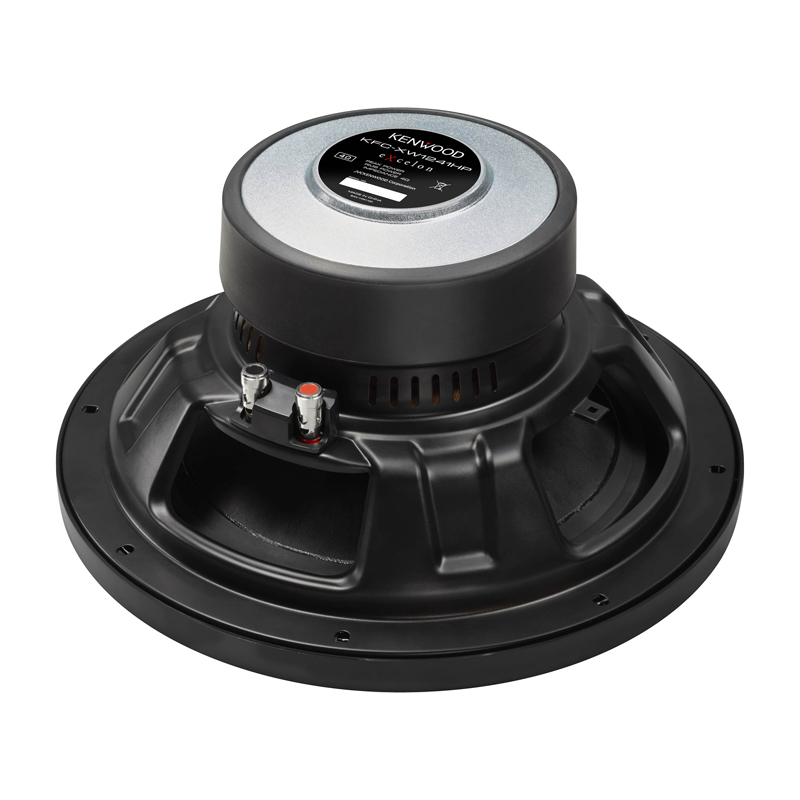

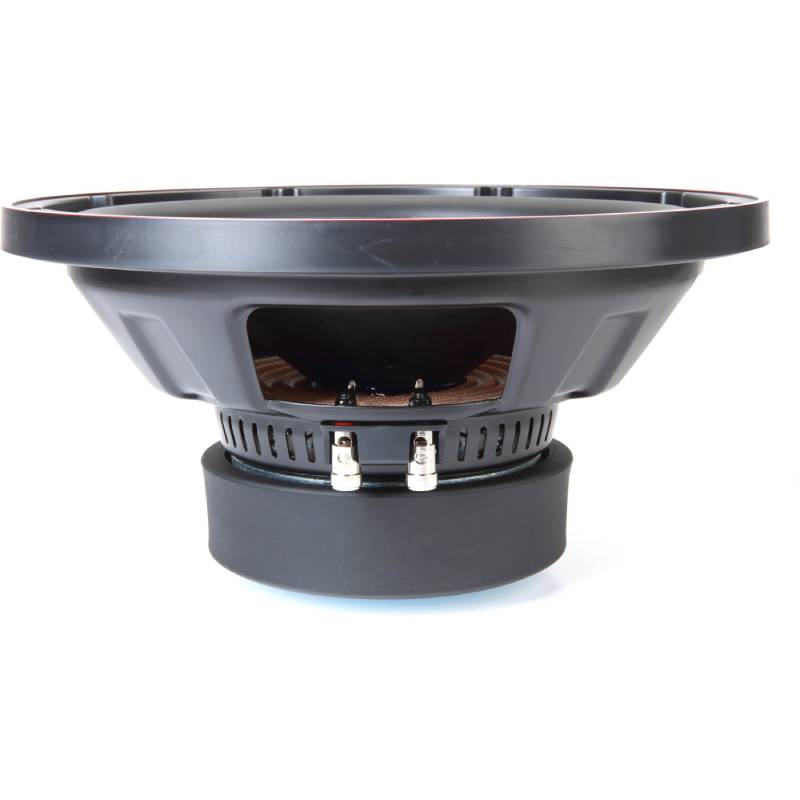

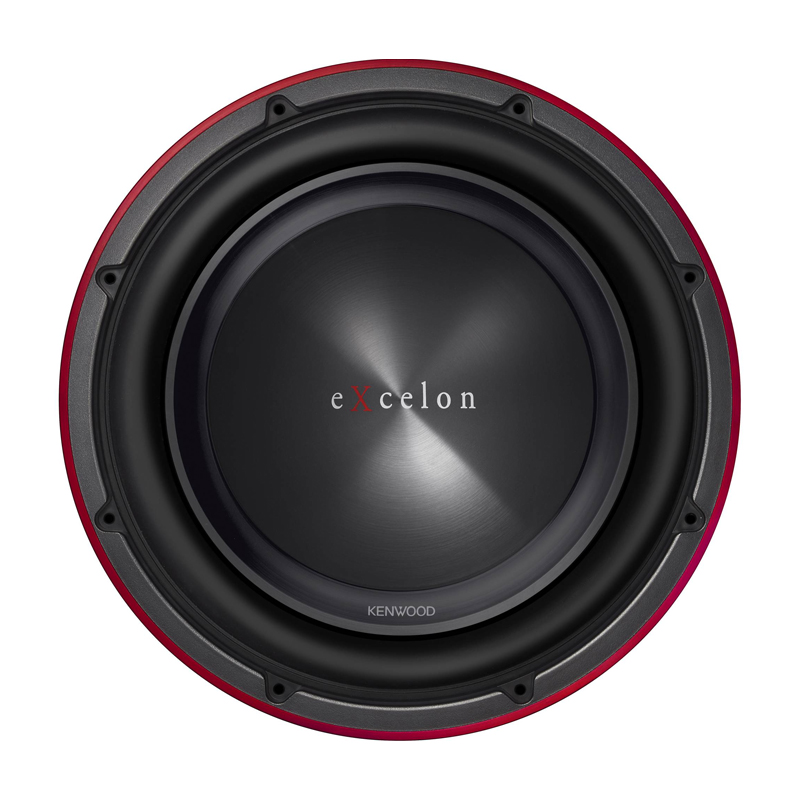

Kenwood Excelon KFC-XW1241HP Excelon Series 12" 500W RMS (2000W Peak Power Handling) Single 4-Ohm Impedance Voice Coil Component Subwoofer
We are a Kenwood Excelon authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- •One 12" Subwoofer
- •Trim ring
- •Eight 1-3/8" Screws
- •Adhesive backed foam gasket
- •Connection guide
- •Template on box lid
- •Specs printed on the box
- •Owner's Manual
Boasting an Array of Impressive Features
The Kenwood Excelon KFC-XW1241HP is a top-of-the-line 12-inch subwoofer designed to deliver exceptional bass performance in-car audio systems. Boasting an array of impressive features, this subwoofer is built to provide powerful and accurate low-frequency reproduction.
One of the standout features of the KFC-XW1241HP is its high-performance cone structure. It features a cone made of durable two-piece polypropylene material that is both lightweight and rigid, allowing for precise and responsive bass output. The cone is further enhanced by a rubber surround that provides excellent cone excursion control, resulting in clean and distortion-free bass reproduction.
Can Deliver Powerful and Impactful Bass Performance
With a peak power handling of 2000 watts and a continuous power handling of 500 watts, the KFC-XW1241HP can deliver powerful and impactful bass performance. It also features a dual voice coil configuration, providing flexibility in wiring options and impedance matching.
Furthermore, the subwoofer's sleek and stylish design adds a touch of sophistication to any car audio setup. Its slim depth allows for easier installation in various enclosures, making it suitable for multiple vehicle applications.
Robust Construction
The Kenwood Excelon KFC-XW1241HP is a high-quality subwoofer that combines advanced features, robust construction, and impressive power-handling capabilities. Its precise bass reproduction and versatile design make it an excellent choice for car audio enthusiasts looking to enhance their audio experience with deep and immersive bass.
- Diameter : 12 Inch
- Sensitivity : 83 dB
- Impedance : 4 Ohm
- Frequency Response : 26-300 Hz
- Peak Power Handling : 2000 Watts
- Top Mount Depth : 5-7/8 Inches
- Number of Voice Coils : Single
- Suggested Sealed Box Volume : 1.25 Cubic ft.
- Suggested Ported Box Volume : 1.5 Cubic ft.
- Mounting Depth : 5-13/16 Inches
- RMS Power Handling : 500 Watts
Features:
-
- 12" 4-ohm component subwoofer
- 2-piece polypropylene cone with rubber surround
- power handling: 500 watts RMS (2000 watts peak)
- frequency response: 26-300 Hz
- mounting depth: 5-11/16"
- sealed box volume: 1.25 cubic feet
- ported box volume: 1.5 cubic feet
- grille sold separately
General Features:
- Size: 12 -inch
- Impedance (Ohms): 4
- Cone Material: Polypropylene over Paper
- Surround Material: Urethane
- Port diameter (inches): N/A
- Port length (inches): N/A
- Free-Air: No
- Dual Voice Coil: No
- Sensitivity: 83 dB at 1 watt
- Frequency Response: 26 - 300 Hz
- Max RMS Power Handling: 500
- Peak Power Handling (Watts): 2000
- Top Mount Depth (inches): 5 7/8
- Bottom Mount Depth (inches): N/A
- Cutout Diameter or Length (inches): 10 15/16
- Vas (liters): 114
- Fs (Hz): 20.5
- Qts: 0.268
- Xmax (millimeters): 7.8
- Parts Warranty: 2 Years
- Labor Warranty: 2 Years
- Box Requirements
- Ideal Sealed Box Volume (cubic feet): 1.25
- Minimum Sealed Box Volume (cubic feet): 0.8
- Maximum Sealed Box Volume (cubic feet): 1.8
- Ideal Ported Box Volume (cubic feet): 1.5
- Minimum Ported Box Volume (cubic feet): 1.2
- Maximum Ported Box Volume (cubic feet): 2
- UPC: 019048230195
- Weight: 8
