JVC  KS-DR1004D

DRVN Series 400 Max Power, 4-Channel Compact Amplifier for Compact Car, Marine, UTV and Motorcycle, Class-D

Item #55924

Condition:   Brand New

Product Highlights

  • DRVN Series 400 Max Power
  • 4-Channel Compact Amplifier
  • Suitable for Compact Car, Marine, UTV, Motorcycle
  • Class-D

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.
Special offer:

$209.00

Reg. Price $309.00  Save $100.00
In Stock
In Stock

Limited Stocks left!
Add Extended Warranty
Getting Delivery Estimate...
  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.

No Credit needed for acima logo. Learn More

JVC Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


JVC Banner

JVC KS-DR1004D - DRVN Series 400 Max Power, 4-Channel Compact Amplifier for Compact Car, Marine, UTV and Motorcycle, Class-D


We are a JVC authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • 4-Channel amplifier
  • • 5' Power/output harness
  • • Two 40" RCA cables
  • • Two 15" wire ties
  • • Two 4" wire ties
  • • Four 5/8" screws
  • • 4 Control covers
  • • Owner's Manual
Clarity and Impact to the Basic Sound System

JVC's compact drvn Series KS-DR1004D amplifier will add new clarity and impact to the basic sound system in almost any kind of vehicle on land or water, and it'll fit in a lot of places where space is tight.

This marine-rated 4-channel amp will power your audio system with 45 watts RMS per channel — about twice the power of most factory radios or aftermarket marine receivers. The amp features conformal-coated circuit boards that keep damaging moisture and dirt away from delicate circuits.

Mode to Run a Pair of High-performance Speakers

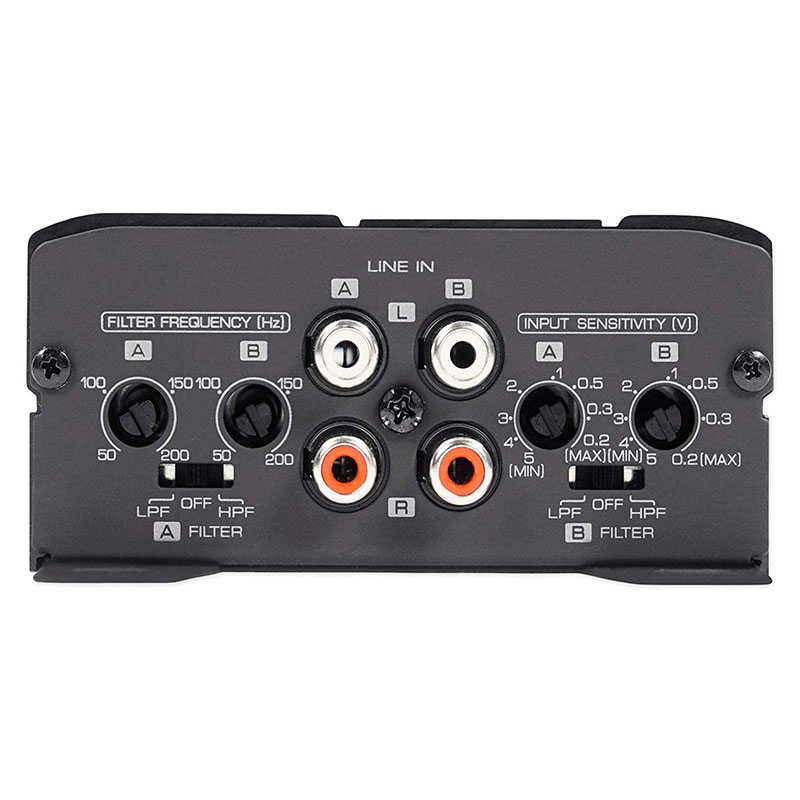

You can use this amp in bridged 2-channel mode to run a pair of high-performance speakers with up to 90 watts RMS each. The KS-DR1004D comes with the controls you need to get music sounding right. You'll find separate low- and high-pass filters for the front and rear channels at your disposal, allowing you to tailor the amp for driving full-range, midrange, or low-frequency speakers.

Offer Additional Protection Against Moisture and Condensation

Receivers and amplifiers for marine and motor sports applications need to perform in harsh environments exposed to outdoor elements. JVC’s marine and motor sports receivers and amplifiers feature compact size for versatile installation even in tight spaces.

Conformal coated main PCBs (printed circuit boards) offer additional protection against moisture and condensation from damaging the product.Incorporates a rotary type HPF and LPF which enables fine adjustment. Compared with fixed type switching, more precise sound adjustment is possible to match your preferences.


SPECIFICATIONS


  • Maximum Power : 400 Watts
  • Number of Channels : 4
  • RMS Power Output : 45x4 Watts
  • Amplifier Class : D

FEATURES


Features:



  • Compact 4-Channel Class-D Amplifier:Delivers powerful audio performance in a space-saving design ideal for cars, marine applications, UTVs, and motorcycles.
  • 400W Maximum Power Output: Provides up to 400 watts of maximum power for an enhanced listening experience.
  • Conformal-Coated Circuit Board:Helps protect internal electronics from moisture, condensation, salt spray, and environmental contaminants.
  • Variable High-Pass Filter (HPF): Adjustable from 50Hz to 200Hz with a 12dB/octave slope for precise sound tuning.
  • Variable Low-Pass Filter (LPF): Adjustable from 50Hz to 200Hz to help customize audio output for compatible speakers and subwoofers.
  • High-Level Input Support:Connects directly to compatible speaker-level outputs when RCA connections are unavailable.
  • Signal-Sensing Auto Turn-On:Automatically powers on when an audio signal is detected through supported high-level inputs.
  • Dual RCA Input Channels: Supports A-channel and B-channel left/right RCA inputs for flexible system integration.
  • Circuit Separation Construction: Separates pre-amplifier and power-amplifier circuit boards to help reduce unwanted radiation noise.
  • Large LPF Coil: Designed to support stable, high-quality sound reproduction at higher volume levels.
  • Flexible Installation: Compact dimensions allow convenient mounting in tight spaces and a variety of vehicle audio setups.



Specifications:

  • Maximum Power Output: 400 watts
  • RMS Power Output (4 Ohms): 45W × 4
  • RMS Power Output (2 Ohms): 45W × 4
  • Bridged RMS Power Output (4 Ohms): 90W × 2
  • Amplifier Class: Class-D
  • Speaker Impedance: 2–8 ohms
  • Signal-to-Noise Ratio: Greater than 98 dB
  • RCA Inputs: A-Channel L/R, B-Channel L/R
  • High-Level Input: Yes
  • Signal-Sensing Auto Turn-On: Yes
  • Input Sensitivity: 0.2–5.0V
  • High-Pass Filter (HPF): 50–200Hz, variable, -12dB/octave
  • Low-Pass Filter (LPF): 50–200Hz, variable, -12dB/octave
  • Dimensions (W × H × D): 5-11/16" × 1-3/4" × 3-7/8" (145 × 45 × 99 mm)
  • UPC:
  • Weight: 6
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
