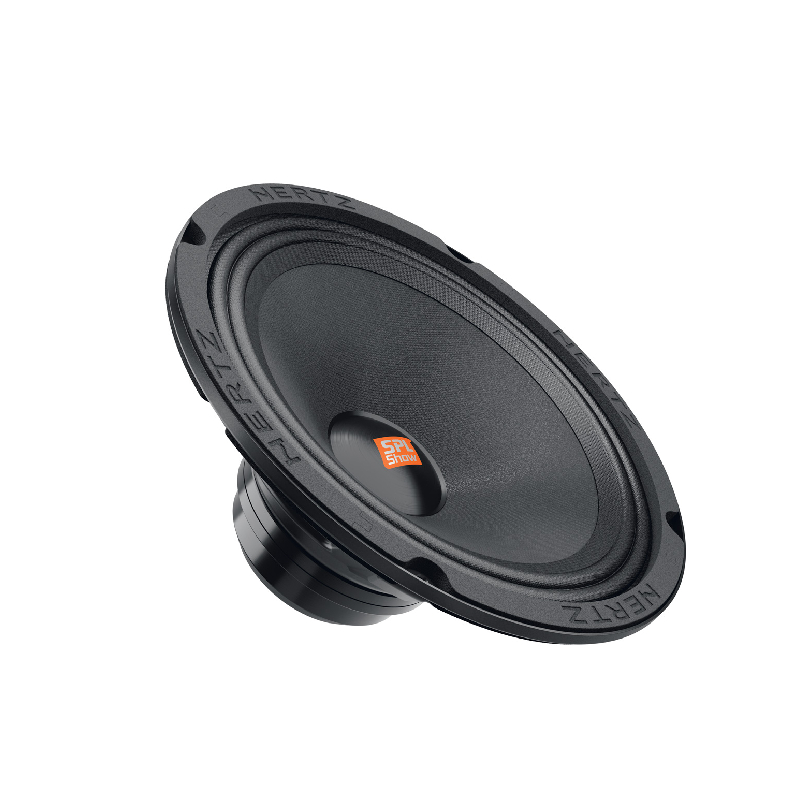

Hertz SV 200 NEO impedance midrange speakers
We are a Hertz authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- •2 Midrange drivers
- •Eight 1" Screws
- •8 Speed clips
- •Template on box
- •Owner's Manual
Waterproofing and Anti-uv Treatment
New SV 200 NEO features compact dimensions and light weight preserving excellent performance thanks to the use of Neodymium N38 H for the motor units. To allow a safe outdoor use without discoloration over time, cones has waterproofing and anti-UV treatment and motor units is painted with cataphoresis with insulated lead-wires to avoid oxidation. The terminals and mounting holes are compatible for installation on Harley-Davidson motorbikes!
- Diameter : 8 Inch
- Maximum Power : 500 Watts
- Sensitivity : 100 dB
- Impedance : 4 Ohm
- Frequency Response : 100-8000 Hz
- Peak Power Handling : 500 Watts
- RMS Power Handling : 200 Watts
TECHNICAL SPECIFICATIONS:
- Component: SPL Midrange
- Size: mm (in.), 200 (8)
- Power Handling: W, peak 500
- W, continuos 200
- Impedance: Ω, 4
- Frequency Response: Hz 100 ÷ 8k
- Sensitivity: dB/SPL 100
- Magnet size D x d x h: mm (in.) 80 x 50 x 6 (3.15 x 1.97 x 0.24)
- Voice Coil: Ø mm (in.), 38,6 (1.5)
- Magnet: Neodymium
- Cone: Water repellent pressed paper
- Weight of one component: kg (lb.), 1,2 (2.65)
ELECTRO-ACOUSTIC PARAMETERS:
- D: mm 168
- Xmax: mm 2,7
- Re: Ω 3,2
- Fs: Hz 103
- Le: mH 0,06
- Vas: I 8,1
- Mms: g 19,9
- Cms: mm/N 0,12
- BL: T•m 6,5
- Qts: 0,52
- Qes: 0,55
- Qms: 7,4
- Spl: dB 100
- UPC: 8018823132596
- Weight: 10
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
