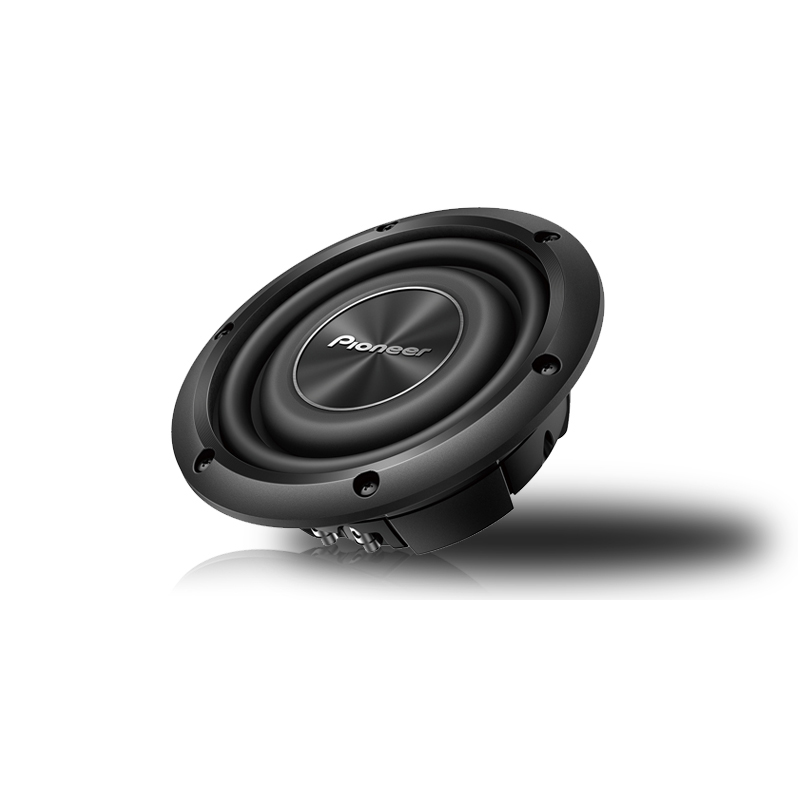

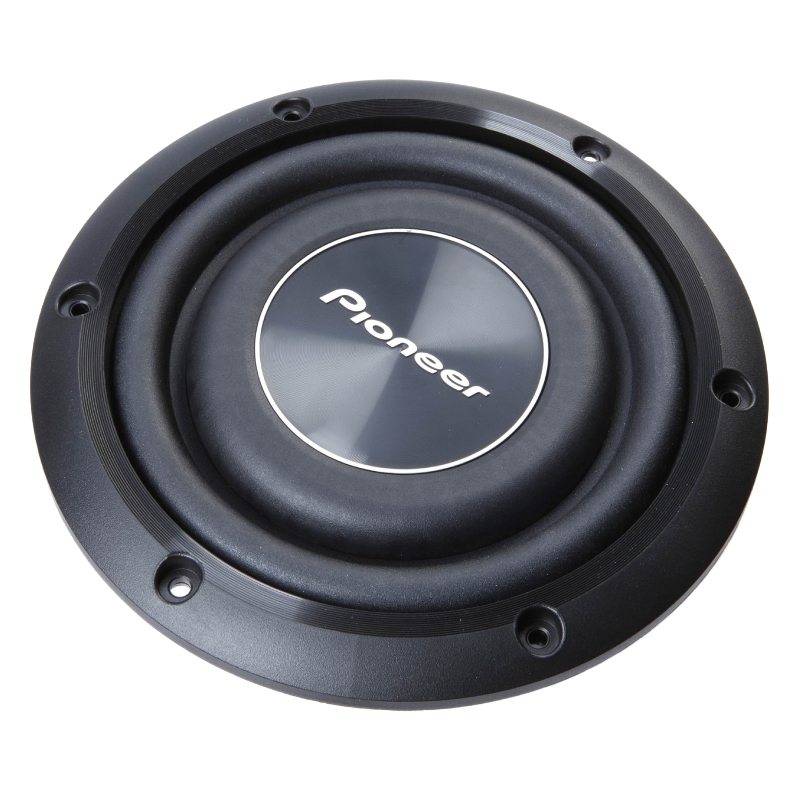

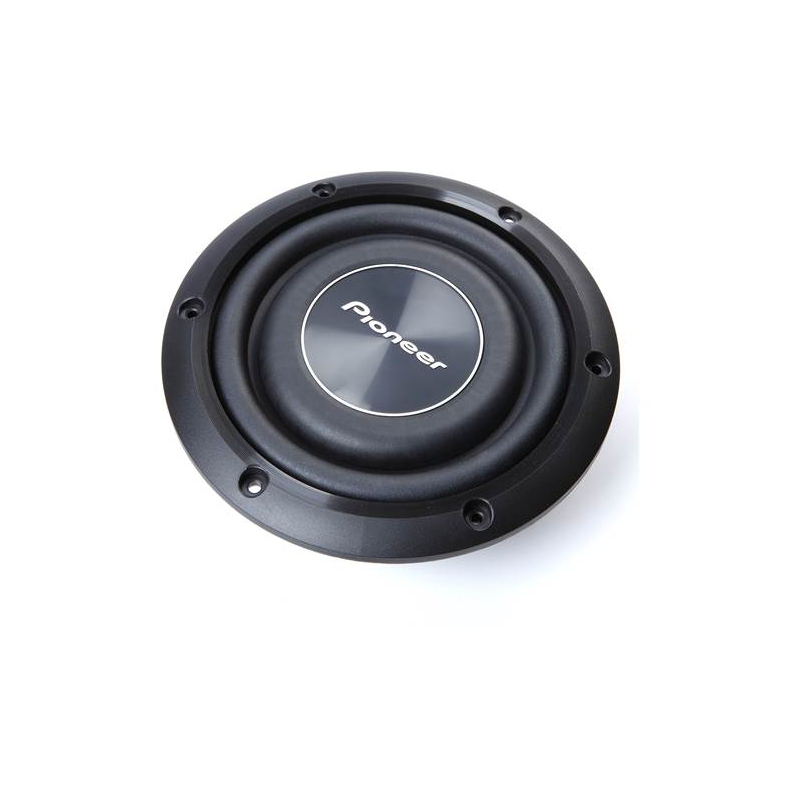

Pioneer S-A3000LS4 8" 250W (700W Peak Power Handling) Dual 2 Ohms Voice Coil Shallow Mount Subwoofer
We are a Pioneer authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

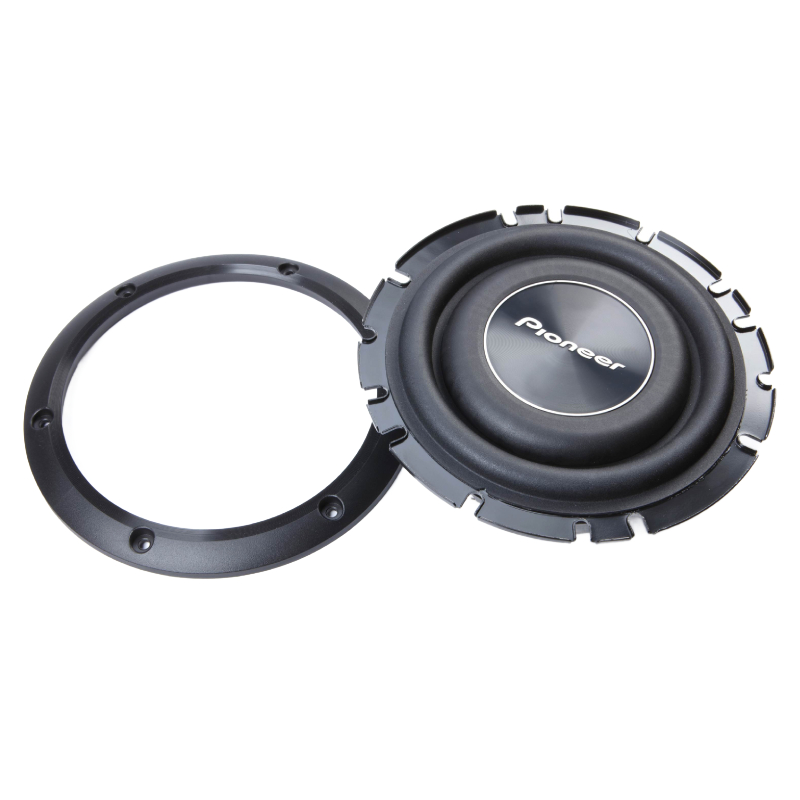

• (1) 8" Pioneer shallow mount subwoofer

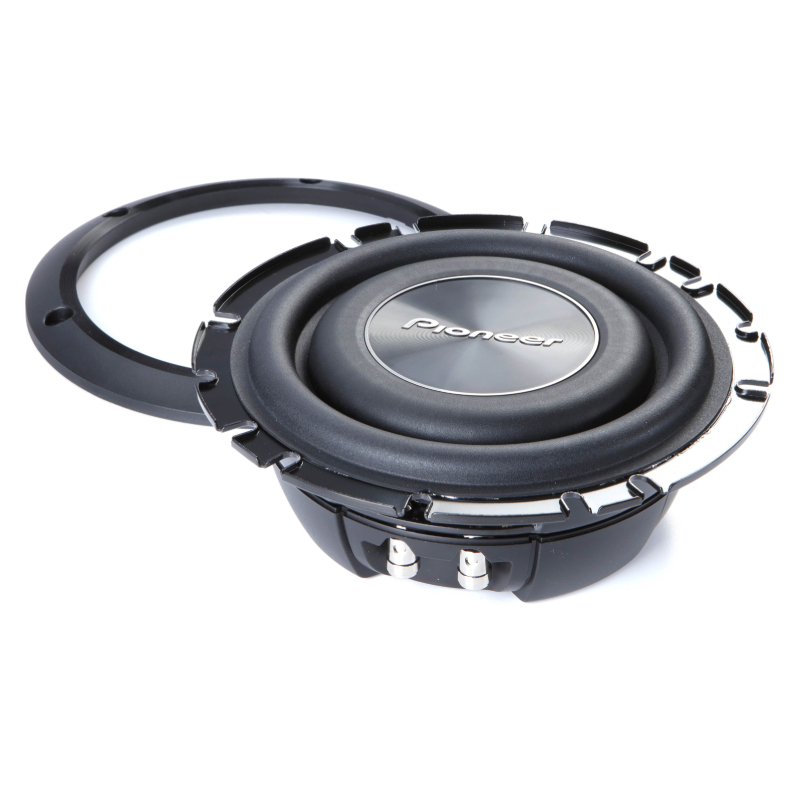

• Trim ring
• (6) 1-1/8" Screws
• Adhesive backed foam gasket
• Owner's Manual
Easily Upgrade to High Performance
The Pioneer A Series speakers offer a high-quality audio experience with strong bass. Using their OPEN & SMOOTH method, Pioneer achieves smooth transitions between midrange and tweeter drivers for consistent off-axis frequency response, perfect for cars. The A Series improves flexibility and sound quality with a built-in crossover network, reducing the need for extra parts. The package includes multi-fit adapters and user-friendly tweeter mounts for simple installation.
Reinforced Cone Structure

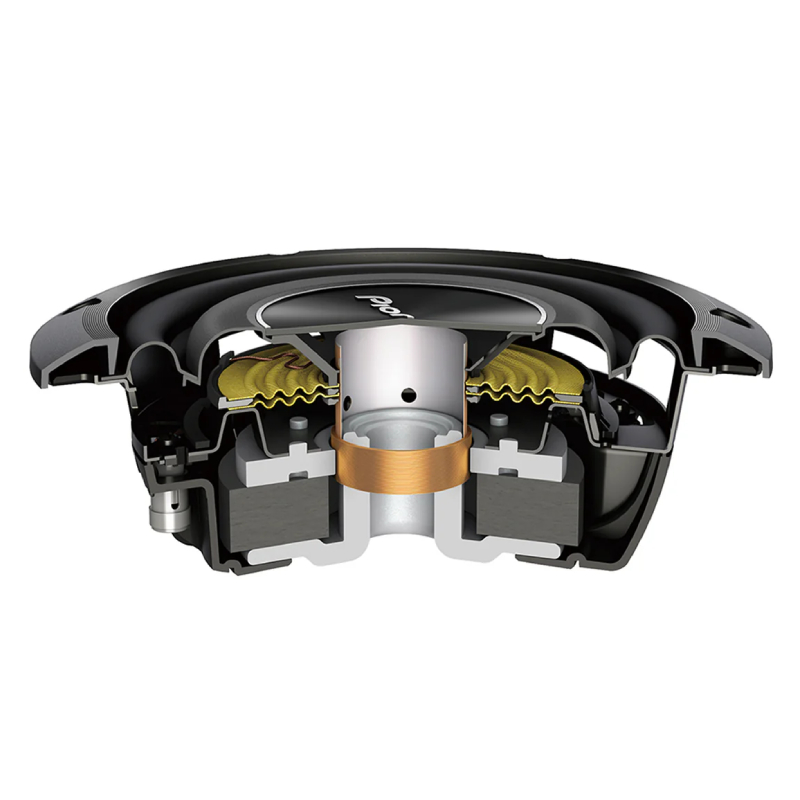

The cone structure of this subwoofer uses a highly rigid cone made with MICA injected molded resin which creates a rigid and durable cone, giving it the ability to produce accurate bass.
Shallow Compact Design
Our shallow subwoofers offer versatile installation for various vehicles. They have unique patent-pending features that provide powerful bass like larger subwoofers, but in a compact design suitable for under-seat or behind-seat placement. With a mounting depth of only 3-1/2", they're much slimmer than standard subwoofers in this category.
Diameter : 8 Inch
Sensitivity : 83 dB
Impedance : 2 Ohm
Frequency Response : 20-1400 Hz
Peak Power Handling : 700 Watts
Top Mount Depth : 2-11/16 Inches
Shallow Mount : Yes
Number of Voice Coils : Dual
Suggested Sealed Box Volume : 0.5 Cubic ft.
Suggested Ported Box Volume : 0.5 Cubic ft.
Mounting Depth : 2-5/8 Inches
RMS Power Handling : 250 Watts
Free Air : Yes
700 Watts Max Power (250 Watts Nominal)
Unique Design with just 2-5/8" Mounting Depth
Small Enclosure Use (0.15 ~ 0.5 cu. ft.)
2 ohms Dual Voice Coil
Glass Fiber and Mica Reinforced IMPP Cone
Double reinforced Spider

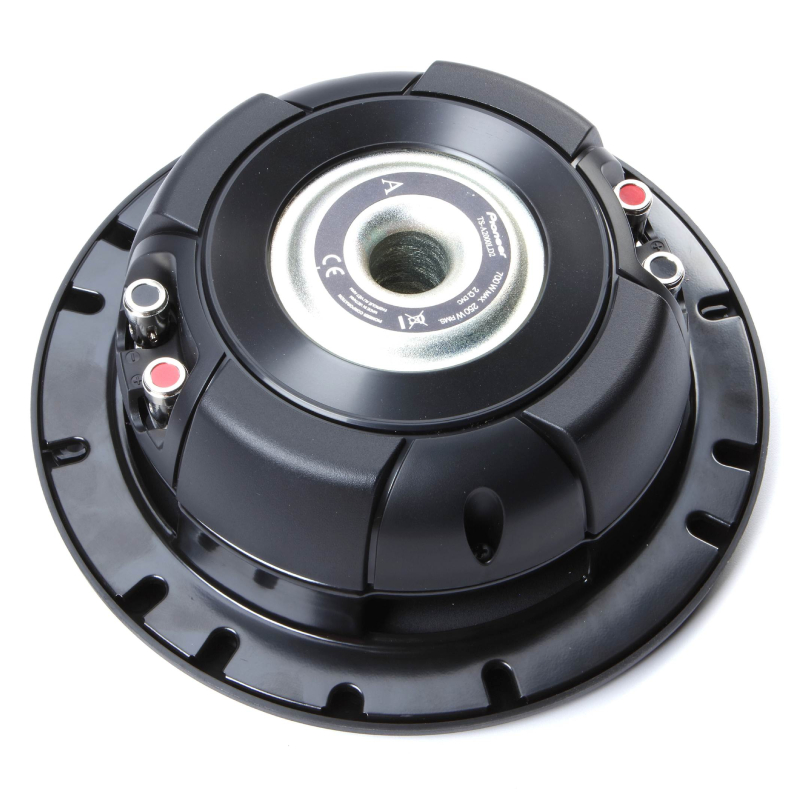

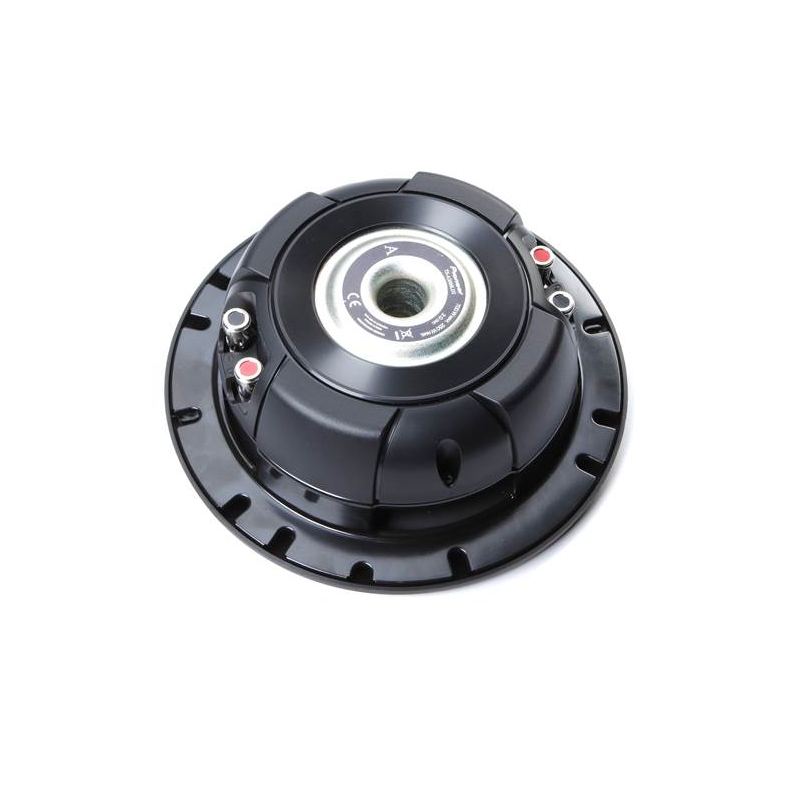

8-AWG Push Terminals
System Type: Component Subwoofer
Sensitivity (1W/1m): 83 dB
Frequency Range: 20 Hz to 1.4 kHz
CTA-2031 Compliant: Yes
Warranty: 1 Year
Continuous Power Handling (RMS): 250 Watts
Maximum Peak Power Handling: 700 Watts
Nominal Impedance: 2 DVC (Dual Voice Coil)
Cone Material: IMPP - Composite
Center Cap Material: ABS
Surround Material: Rubber
Surround Type: Rolled
Basket Material: Stamped Metal
Custom Fit Basket: Yes
Magnet Material: Ferrite
Magnet Weight: 29.6 oz
Voice Coil Type: Dual Voice
Voice Coil Bobbin: Aluminium
Voice Coil Wire: Copper
Damper: Poly cotton
Wire Terminals: Push Type

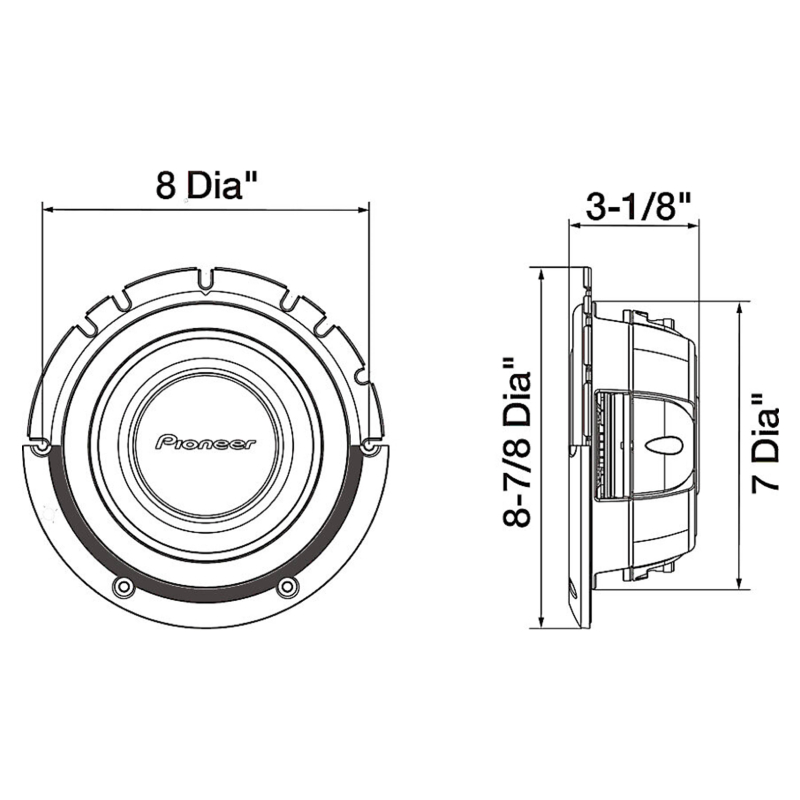

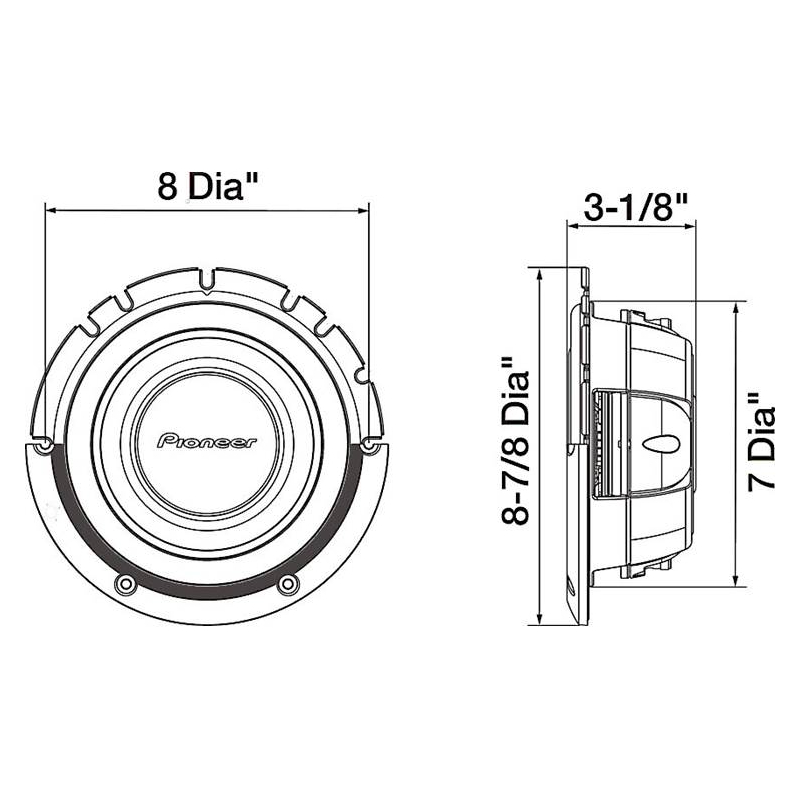

Unit Size (Dimensions): 8-7/8"
Mounting Depth: 2-5/8"
Cut Out Dimensions: 7"
Equivalent Compliance (VAS) [L]: 4.11
Free Air Resonance (Fs) [Hz]: 63
Total Speaker "Q" (Qts): 0.99
Linear Excursion (Xmax) [mm]: 2.3
Recommended Sealed Box Volume [L]: 14.2
Port Box Volume [L]: 14.2
Port Length: 8"
Port Diameter: 3"
