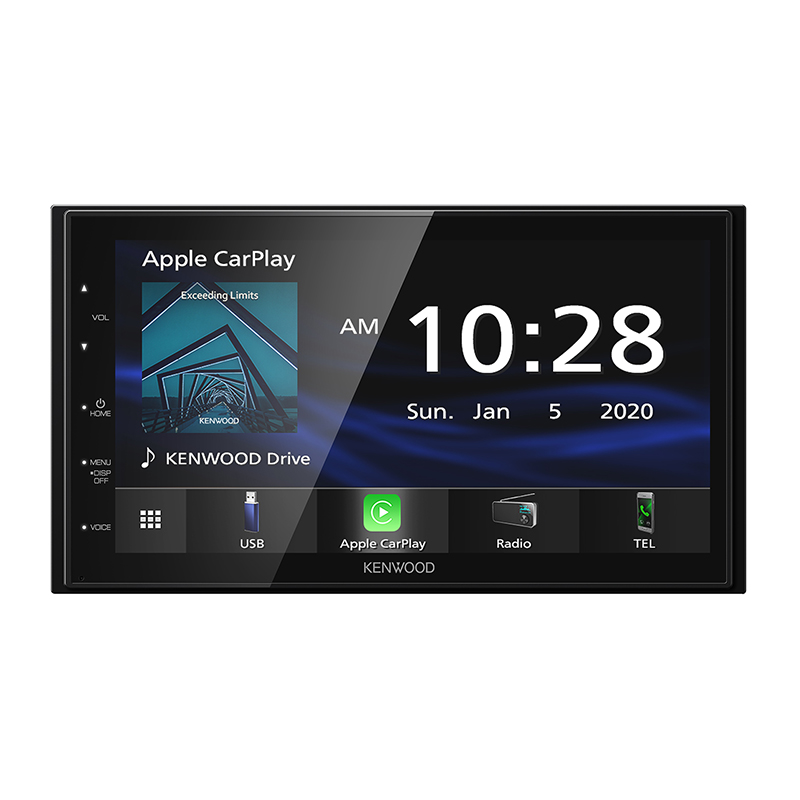

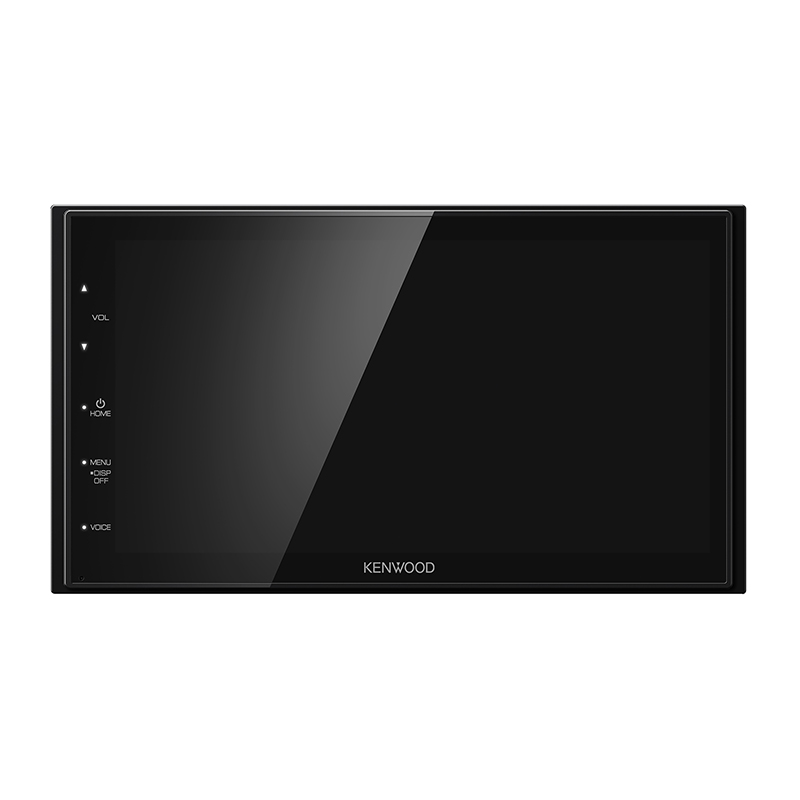

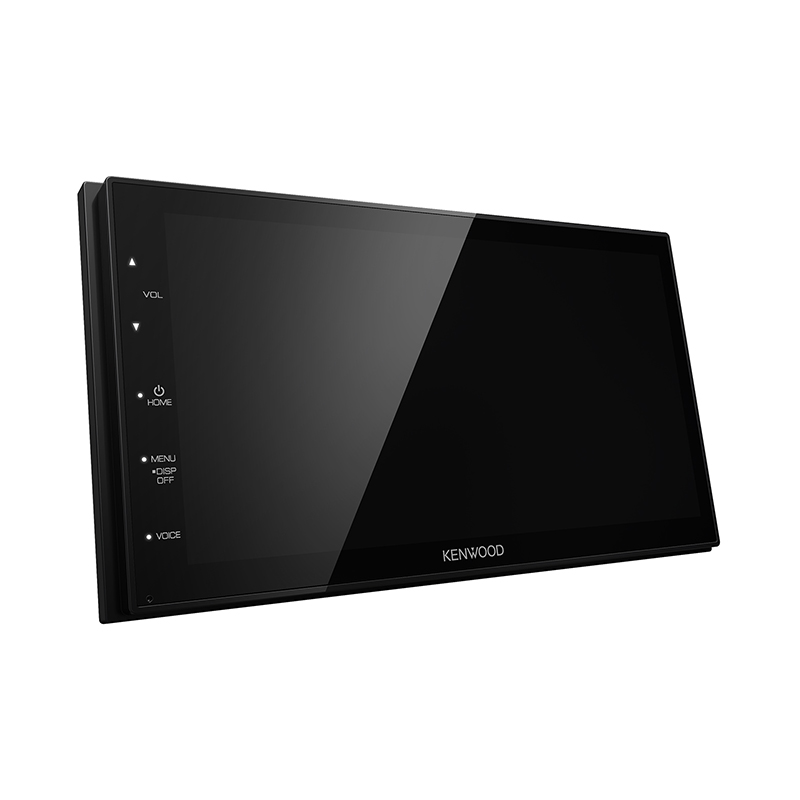

Kenwood 6.8" Digital Multimedia Receiver
We are a Kenwood authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • Digital media receiver w/ fixed 6.75" touchscreen monitor (15A fuse)
- • Sleeve (attached)
- • Trim ring
- • Power harness
- • Speaker harness
- • 6.5" Light-green parking brake wire (pre-installed)
- • Microphone w/ bracket (attached 10' cable terminated by a right-angle mono 3.5mm connector)
- • (2) Radio removal tools
- • Trim-ring removal tool
- • (6) Pan-head ISO-mount screws
- • (6) Flat-head ISO-mount screws
- • Owner's Manual
Comes With Many Features That Improve Your Driving and Entertainment Experience
In today's situation, having a multimedia receiver like the Kenwood DMX47S is a massive advantage for any car owner. Not only is it affordable, but it also comes with many features that improve your driving and entertainment experience while on the road.
Allows You to Stream Music and Answer Phone Calls Hands-free
Apple CarPlay and Android Auto-ready, the Kenwood DMX47S allows you to read and send messages, take and make calls, ask for directions, play music, listen to voicemails, and many more. Its Bluetooth connectivity feature allows you to stream music and answer phone calls hands-free.
You Can Listen to Your Favorite Shows While on the Road
Using a USB connection, you can mirror your phone's display to the Kenwood DMX47S' 6.75-inch touchscreen display. Aside from its radio tuner, it also supports SiriusXM radio tuner, so you can still listen to your favorite shows while on the road.
High and Low-pass Filters for a More Defined Audio
The Kenwood DMX47S has a built-in 5-channel amplifier that can deliver 21 Watts of RMS power and a peak power of 50 Watts per channel. It has a 13-band graphic EQ, digital alignment technology, and a bass boost control. Lastly, it has high and low-pass filters for a more defined audio quality while protecting the speakers from blowing off.
- Maximum Power : 50 Watts
- Satellite Radio Ready : Yes
- Built-in EQ : Yes
- DIN : 2
- Preamp Voltage : 2 volts
- Display Size : 6.8 Inch
- Bluetooth : Yes
- MP3 Playback : Yes
- WMA Playback : Yes
- Rear USB Input : 1
- Preamp Outputs : 6
- Rear View Camera Input : Yes
- Apple CarPlay : No
- Android Auto : Yes
- USB Mirroring : Yes
Features:
- 6.8" WVGA Monitor with Capacitive Touch Panel
- Apple CarPlay™ & Android Auto™
- USB Mirroring for Android
- 13 Band EQ with Digital Time Alignment
- Rear View Camera Input with Parking Guidelines
- Built-in Bluetooth
- Short Chassis
- 2 Preouts 2V + Subwoofer Out
Monitor Section:
- Picture size: 6.75inches(diagonal) wide
- W x H: 151.8 x 79.7mm, 5-15/16 x 3-1/8 inch
- Display system: Transparent TN LCD panel
- Drive system: TFT active matrix system
- Number of pixels:1,152,000
- 800H x 480V x RGB
- Effective pixels: 99.99%
- Pixel arrangement: RGB striped arrangement
- Back lighting: LED
USB I/F Section:
- USB Standard: USB2.0 High Speed
- File System: FAT 16/32 , exFAT
- Maximum Power Supply Current: DC5V=1.5A
- D/A Converter: 24Bit
- Audio Decoder: MP3 / WMA / AAC / WAV / FLAC
- Video Decoder: MPEG1/2,MPEG4 / WMV / H.264 / .mkv
- Frequency response 192k Sampling: 20 - 20,000 Hz
- 96k Sampling: 20 - 20,000 Hz
- 48k Sampling: 20 - 20,000 Hz
- 44.1k Sampling: 20 - 20,000 Hz
- Total harmonic distortion 1kHz: 0.2
- Signal to Noise ratio: 75dB
- Dynamic range: 75dB
Bluetooth Section:
- Technology: Bluetooth Ver4.1
- Frequency: 2.402 – 2.480 GHz
- RF Output Power: (E.I.R.P.) +8dBm (Avg.), Power Class 1
- Maximum Communication range: Line of sight approx.10m(32.8ft)
- Audio Codec: SBC / AAC
- Multi Profile Support: Multi Profile
Profile:
- HFP (V1.6) (Hands Free Profile)
- SPP (Serial Port Profile)
- A2DP (Advanced Audio Distribution Profile)
- AVRCP (V1.5) (Audio/Video Remote Control Profile)
- PBAP (Phonebook Access Profile)
Graphics equalizer:
- BAND: 13 Band
- frequency (Hz) (BAND1-13): 62.5/ 100/ 160/ 250/ 400/ 630/ 1k/ 1.6k/ 2.5k/ 4k/ 6.3k 10k/ 16k
- Gain: -09 to +09 (-9dB to +9dB)
2Way X'Over:
- HIGH PASS FILTER frequency (Hz): Through/ 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250
- SLOPE: -6/ -12/ -18/ -24 dB/Oct.
- Gain: -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB
- LOW PASS FILTER frequency (Hz): 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250/ Through
- SLOPE: -6/ -12/ -18/ -24 dB/Oct.
- Gain: -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB
Position:
- Front / Rear /Subwoofer Delay: 0 to 6.1m (0.01m Step)
- Gain: -8 to 0dB
- Subwoofer Level: -40 to +6dB
FM:
- Frequency Range: 87.9 - 107.9 MHz
- (Frequency step): (200kHz)
- Usable sensitivity: 16.2dBf
- S/N:30dB: 1.8μV/75 Ohms
- Quieting sensitivity -
- DIN S/N 46dB -
- Frequency response / (±3.0dB): 30Hz - 14kHz
- S/N (dB): 50dB (MONO)
- Selectivity -
- Stereo separation: 35dB (1kHz)
AM:
- Frequency Range: 530 - 1700 kHz
- (Frequency step): (10kHz)
- Usable sensitivity: 99μV(40dBμ)
- Video: Color system of external video input NTSC/ PAL
- External video input level (Mini jacks): 1.0Vp-p / 75 Ohms
- External audio max input level (RCA jacks): 1.5V / 25k Ohms
- Video Output level (RCA jacks): 1.0Vp-p / 75 Ohms
Audio:
- Maximum Power Output (Front&Rear): 45Wx4
- Full Bandwidth Power / (at less than 1%THD): 21Wx4
- Output frequency band: 20 - 20,000Hz
- Preout level (V): 2.0V / 10k Ohms
- Preout impedance (Ω): 1.4k Ohms
- Speaker Impedance (Ω): 4-8 Ohms
General:
- Operating voltage: 12V DC Car Battery
- Installation Dimensions WxHxD: 182 x 112 x 75 (mm) 7-3/16 x 4-7/16 x 2-15/16 (inch)
- Main Unit Installation size W x H x D(w/o sleeve): 178 x 100 x 75 (mm) 7 x 3-15/16 x 2-15/16 (inch)
- Weight Main unit: 1.1 kg / 2.4 lbs
- (Including Sleeve and Trim plate): 1.3 kg / 2.8 lbs
- UPC: 0019048230706
- Weight: 10
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
