JL Audio MM80-HR Hideaway Marine Source Unit for use with compatible NMEA 2000® control devices - 30 Watts x 4 @ 4 ohms

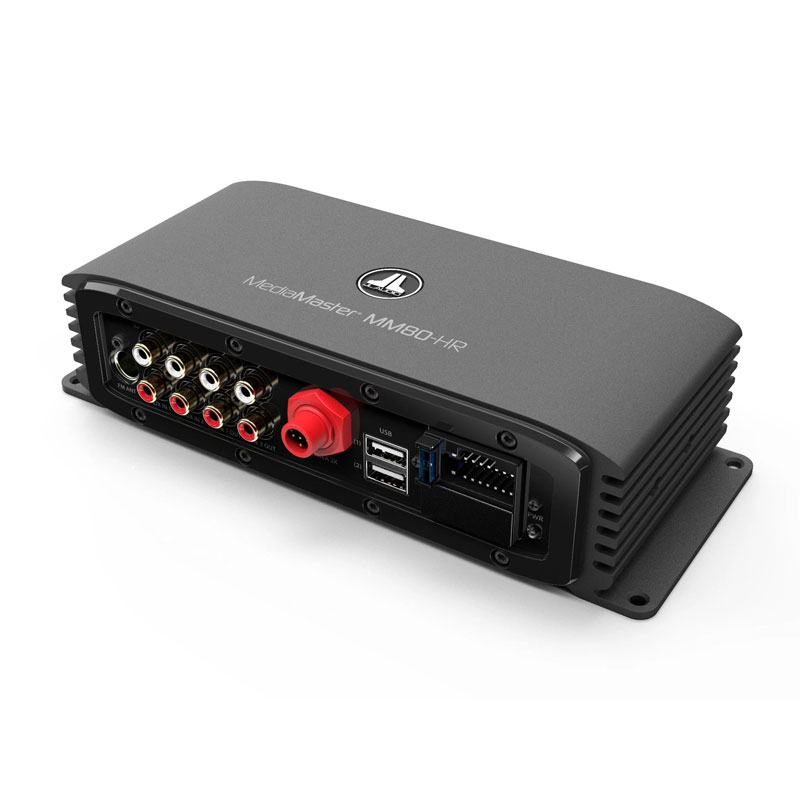

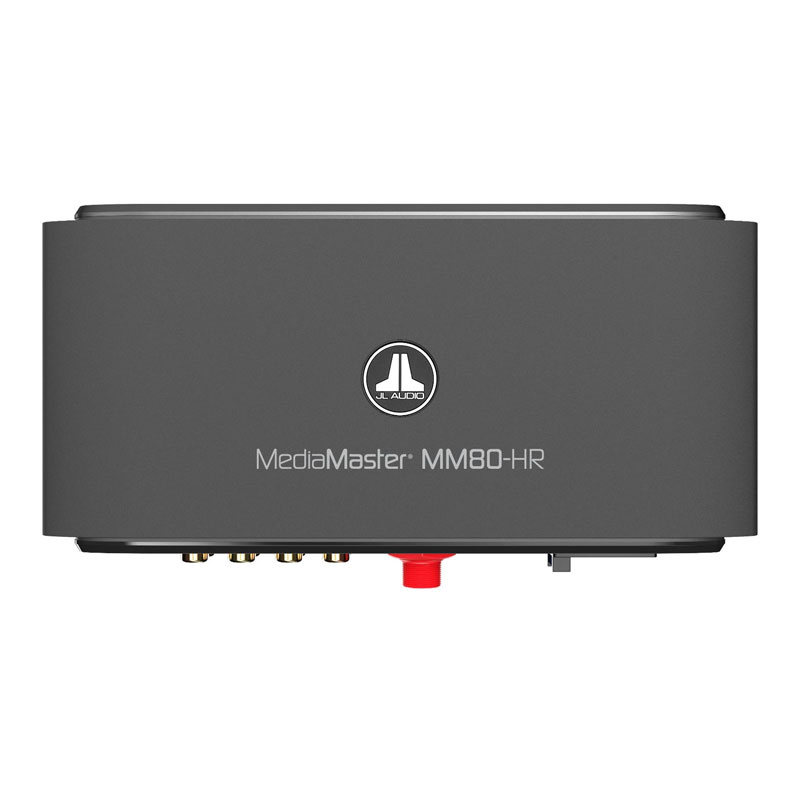

The MediaMaster® 80-HR is a high-performance, powered source unit engineered specifically for marine applications. Designed for out-of-the-way installations, the MM80-HR features certified NMEA 2000® connectivity, with all command functionality handled via two control methods:
A compatible MFD (Multi-Function Display) from Simrad, Lowrance or B&G via your vessel’s NMEA 2000® network. (Refer to MFD manufacturer for compatibility info.)
MediaMaster® MMR-40 NMEA 2000® Network Controller (sold separately): This comprehensive remote controller with color LCD display delivers the full-function MediaMaster® experience via your vessel’s NMEA 2000® network.
A variety of mechless source and media options deliver uninterrupted playback of your favorite stations and playlist while on the water. Available sources include a Digital AM/FM Tuner, Bluetooth® connectivity, dual USB connections (with charging output) for a USB drive or iPhone®, plus a pair of Analog AUX inputs. An auxiliary high-level, MIC source input is also on-hand allowing hailer commands to be broadcasted through the audio system.
Audio output options include a built-in amplifier, capable of driving your speakers with 120 watts (30W x 4 @ 4 ohms) of high-fidelity sound, plus four channels of top-quality preamp outputs from two independent audio zones (Zones 1 and 3).
Zone Output options:
Zone 1: Preamp (RCA) and Speaker-Level
Zone 2: Speaker Level (only)
Zone 3: Preamp only (RCA)
The configurable master volume control permits level adjustments of all zones together, plus:
Independent level control of Zones 1 and 2
Separate attenuation control of Zone 3
Max Volume Limit - Set independent volume level limits for Zones 1 and 2
Tone Controls - Customize your sound with Bass, Mid and Treble controls

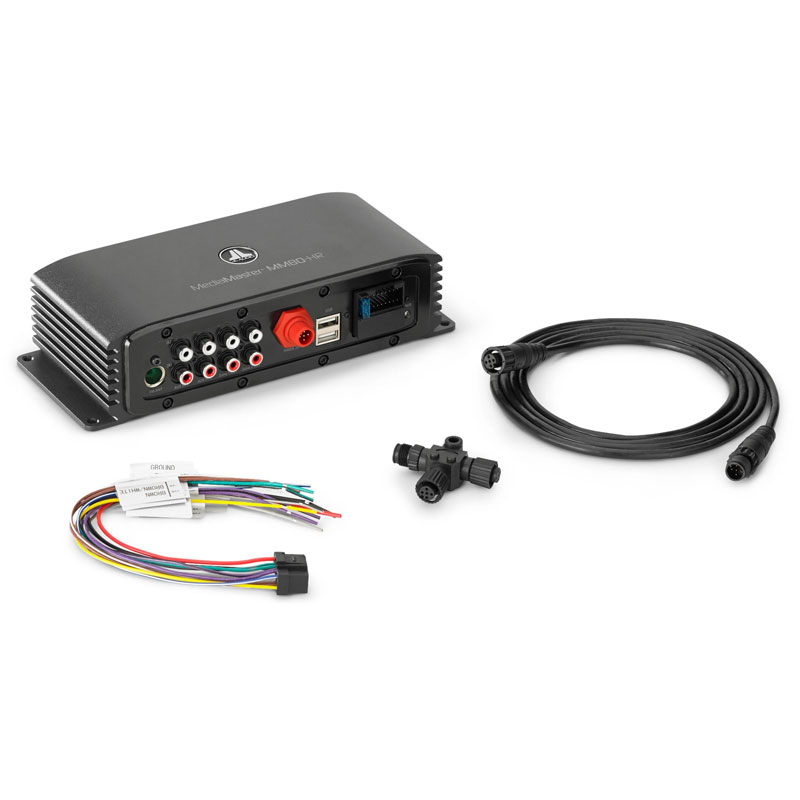

Note: A MMR-40 NMEA 2000® Network Controller (sold separately) or Simrad, Lowrance or B&G Multi-Function Display (not included/refer to MFD manufacturer for compatibility info) is required to use the MM80-HR. One NMEA 2000® Micro-C drop cable (6.3 ft / 1.92 m) and T-connector are included with the MM80-HR. Additional cables and connectors may be required for your specific vessel network. You may also use our MMC-PN2K Powered Network Cables (sold separately) to create your own isolated, stand-alone network.
Input Operating Voltage:10 - 16 VDC
Standby Current Draw: 5 mA
Operating Current Draw: 15 A
Recommended Fuse Value: 15 A
Operating Temperature Range: -4 F to +140 F (-20 C to +60 C)
Display Size / Type: N/A
Display Resolution: N/A
Output Channels: Zones 1&3: Two stereo pairs of RCA plugs (2V RMS) Zones 1&2: Two stereo pairs of Speaker Outputs (30 W RMS x 4)
Maximum Output Voltage: 2V RMS
FM Tuner: 87.9 MHz to 107.9 MHz (0.2 MHz step)
AM Tuner: 530 kHz to 1710 kHz (10 kHz step)
Favorites: 24 presets across AM/FM bands (12 each)
Profile: A2DP, AVRCP, PBAP, HSP
Core Specification: Version 4.0
Connection Range: Up to 35 ft / 11 m
Interface: USB 2.0 host
Maximum Current Output: 1 A
File Support Types: FAT16, FAT32, NTFS
Apple Compatibility: iPhone 5 or beyond (functionality contingent upon compatible iOS release)
Authorized Internet Dealer
Warranty: 2 Years Manufacturer warranty.
