JL Audio  12TW3-D4-Bundle

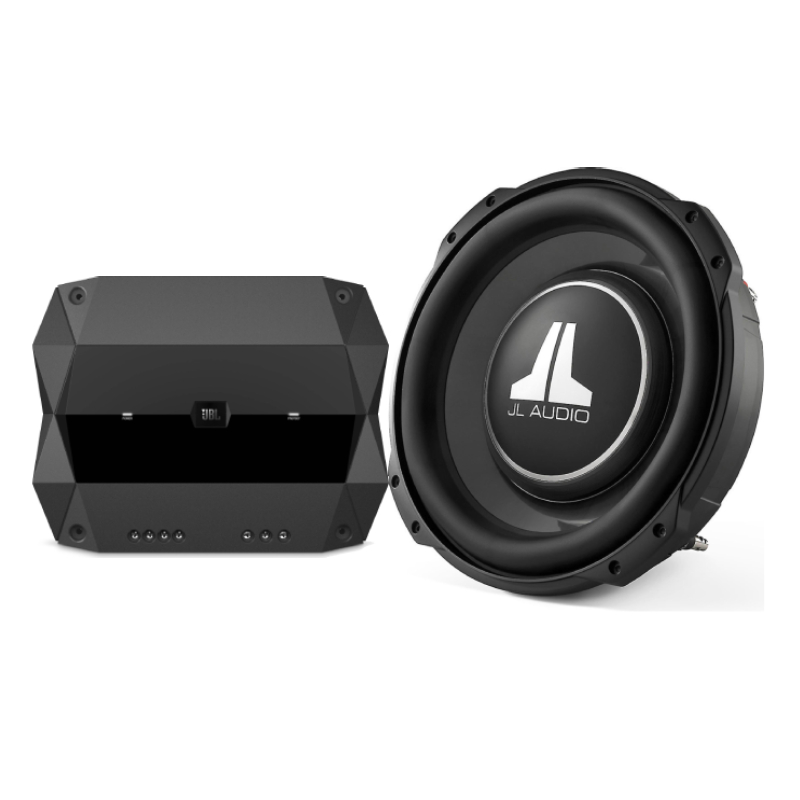

JL Audio 12TW3-D4 + JBL CLUB-5501 Exclusive Bundle

Item #56086

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:


Other products you might be interested in:


Huge Saving on Other items:


Exclusive Bundle Banner for OCS

Onlinecarstereo Exclusive Bundle

This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.


JL Audio 12TW3-D4

Building on the core technology of JL Audio's TW5 thin-line subwoofers, the TW3’s deliver a powerful combination of shallow mounting depth and excursion capability. In fact, they are capable of greater excursion than the W3v3’s.

To allow this remarkable feat to be achieved, JL Audio’s patented thin-line woofer technology compresses the architecture of the TW3’s using a “concentric tube” structure built into the injection-molded cone body. This structure supports the voice coil and a full annular spider, while permitting the placement of the large motor structure further forward in the speaker than with conventional designs.

TW3’s are optimized for small enclosures and offer JL Audio's tab-ear mounting design to maximize cone area within their mounting footprints. We know you’re going to love working with these amazing subwoofer drivers.

Sold as each

12TW3-D4 12 inch 400W RMS (800W Peak Power) 4-ohm DVC Subwoofer


JBL ClUB-5501

The full range CLUB amps feature an ADAS input which overrides the audio signal when connected to ADAS accessories. In addition, ADAS alert routing can be assigned during amplifier setup using panel mounted control. CLUB can also work with HALOsonic systems of select vehicles, which helps reduce external noise for a better sonic experience.

Club-5501 Club Series Class D Monoblock Amplifier 1300W Peak Power


SPECIFICATIONS



FEATURES


12TW3-D4 12" 400W RMS (800W Peak Power) 4-ohm DVC Subwoofer

  • 12" subwoofer with dual 4-ohm voice coils
  • shallow-mount design with small airspace requirements
  • mica-filled polypropylene cone with rubber surround
  • cast alloy basket
  • top-mount depth: 3-1/2"
  • power range: 100-400 watts RMS
  • peak power handling: 800 watts
  • frequency response: 22-200 Hz
  • sensitivity: 82.1 dB
  • sealed box volume: 0.75 cubic feet

Club-5501 Club Series Class D Monoblock Amplifier 1300W Peak Power

  • mono subwoofer amplifier
  • 350 watts RMS x 1 at 4 ohms (550 watts RMS x 1 at 2 ohms)
  • Class D amp technology
  • variable low-pass filter (32-320 Hz, 12 dB/octave)
  • variable bass boost (0-9 dB at 45 Hz)
  • phase switch (0, 180 degrees)
  • preamp and speaker-level inputs
  • fuse rating: 30A x 2
  • 8-gauge power and ground leads recommended — wiring and hardware not included with amplifier
  • 9-5/8"W x 2-3/8"H x 7-7/16"D
  • UPC: 798418844896
  • Weight: 25
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
