A powerful car amplifier made by the gods, the Hifonics ZG-1800.1D is a mono subwoofer amplifier that has the ability to maximize your subwoofer's potential. If your new car subwoofer is not producing the bass output you expect, then feel free to go with this subwoofer amplifier.
It comes with a MOSFET power supply for more stable power, while it is also equipped with Hifonics' aluminum heat sink to cool the amplifier efficiently. Its preamp circuit allows you to push the volume to high levels with minimal distortion. It also has a monitor to protect the amplifier from overload and speaker short circuit issues that could damage it.
The Hifonics ZG-1800.1D can deliver a power output of 450 Watts RMS at 4 ohms and 900 Watts RMS at 2 ohms, and as it is also a 1-ohm stable, you can get a massive 1,800 Watts of continuous power at the said impedance. Its frequency response of 10 up to 500 Hz allows the amplifier to produce an extensive low-frequency performance.
Maximum Power : 1800 Watts
Low Frequency Response : 10-500 Hz
Number of Channels : 1
Frequency Response : 10-500 Hz
Built In Crossovers : Yes
RMS Power Output : 900x1 Watts
Amplifier Class : D
Fuse Rating : 80 A
Features of ZG-1800.1D: Low Noise Preamplifier Circuit: Maximum low voltage signal from the source unit comes into the amplifier circuit with minimal distortion, RCA Inputs: Nickel plated high temperature impact resistant with hex screw terminals that allow for secure connections and is erosion resistant, High Level Inputs: Easily tie into OEM audio systems that do not offer RCA output to maximize after market amplifier power, Operation Mode: Mono only
Crossover Type: Onboard electronic crossover, Electronic Equalizer: Control of amplifier output with on-board electronic crossover to tailor specific frequencies to speakers and subwoofers, Class/Topology: "Class D, High efficiency with big power in a small footprint, Output Device Technology: PWM MOSFET Power Supply, Stable power through the PC board with minimal heat generation, Heat Sink: Aluminum, Old School Hifonics Heat sink for Superior Heat Dissipation.

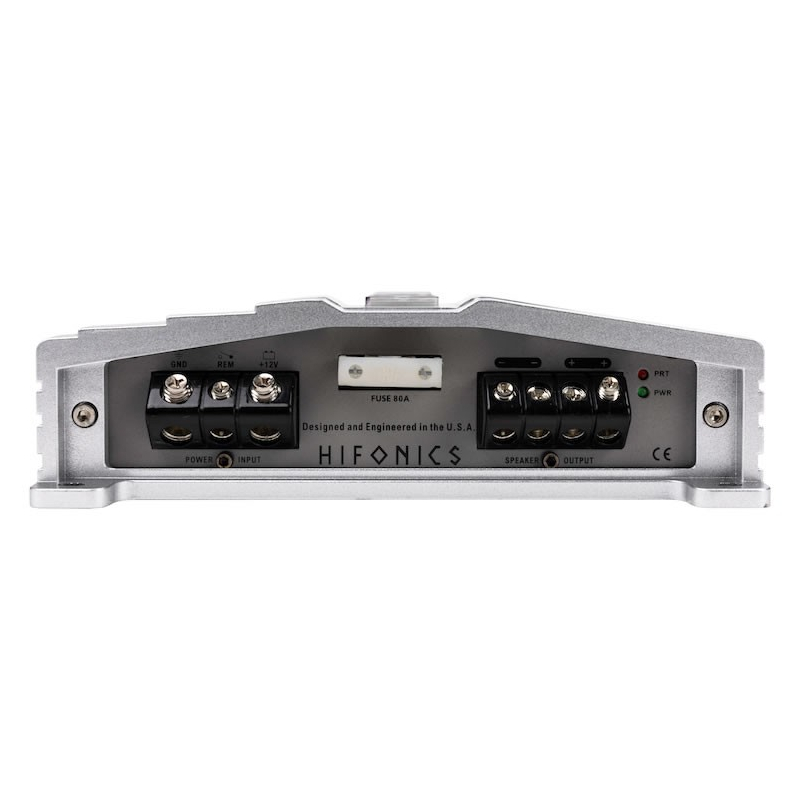

Power Supply: Simpatico Coil Design, The dual coil Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devices, Output Connections: RCA Outputs, Daisy chain multiple amplifier to eliminate additional signal cables from the source unit, Connection Type: Secure molded connection terminal for all Power, Ground and Speaker connections. Angled for ease of access while creating a clean wire mangement profile.
CLASS: Class D
TOTAL CHANNELS: 1
POWER @ 1 OHM (CH X WATTS): 1 x 1800
POWER @ 2 OHMS (CH X WATTS): 1 x 900
POWER @ 4 OHMS (CH X WATTS): 1 x 450

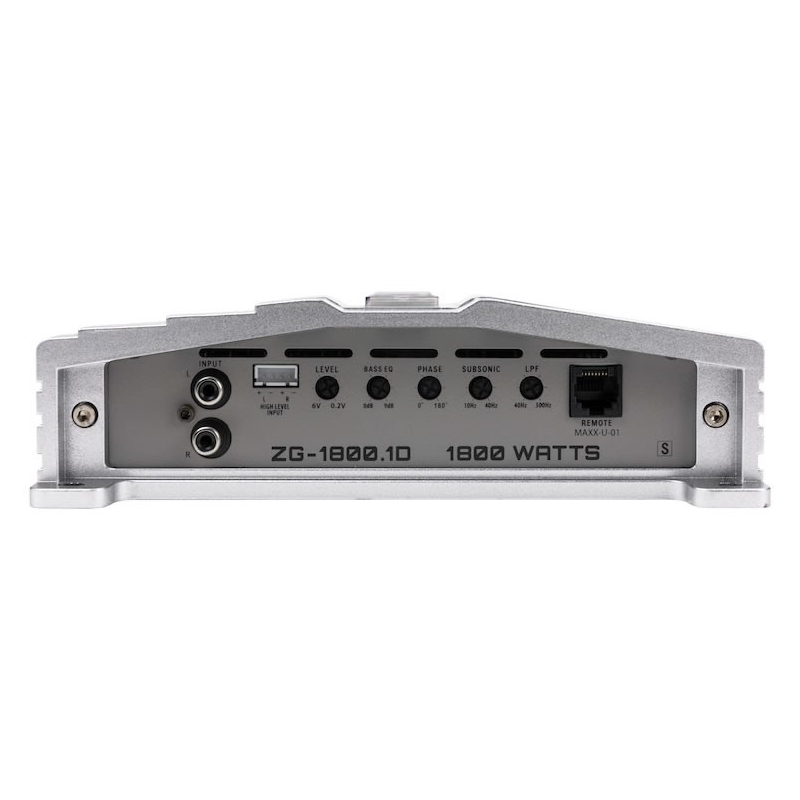

CROSSOVER: Variable Electronic 12dB Per Octave
VARIABLE LOW PASS CROSSOVER 12DB PER OCTAVE: 40Hz-300Hz
TONE CONTROL/PARAMETRIC EQ: Built-in bass control
BASS BOOST: 0-9dB
SUBSONIC FILTER: 10Hz-40Hz
PHASE SHIFT: 0-180 Degrees
VARIABLE VOLTAGE: .2 to 6V
FREQUENCY RESPONSE: 10Hz-500Hz
TOTAL HARMONIC DISTORTION (THD): < 0.10%
SPEAKER LEVEL AUDIO INPUTS: Yes
POWER TERMINAL 12V/GND: 4 AWG
SPEAKER TERMINAL WIRE GAUGE: 12 AWG
