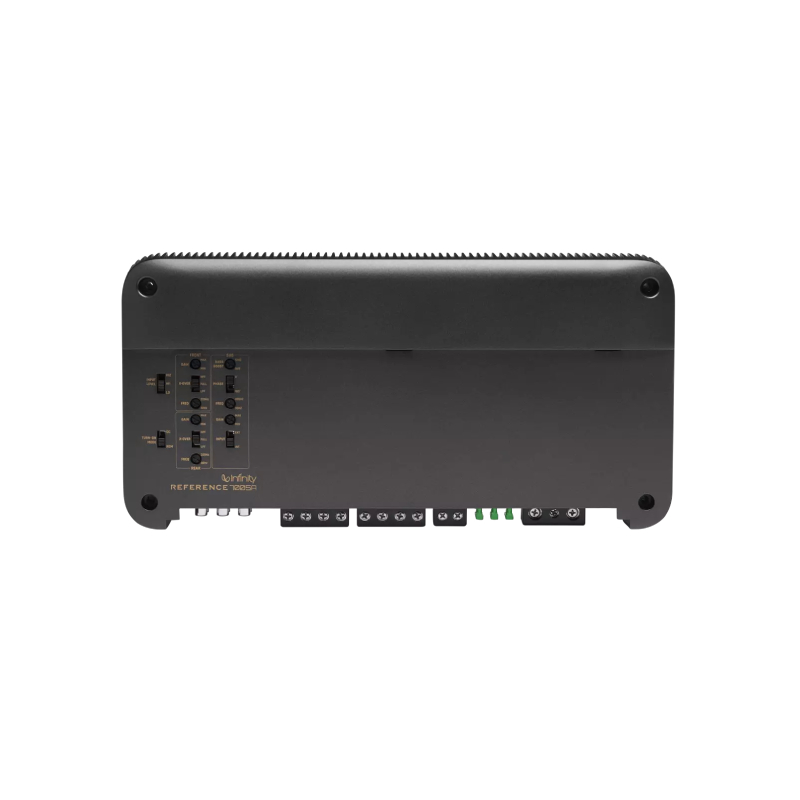

Infinity Reference Class AB+D 5-Channel Car Amplifier

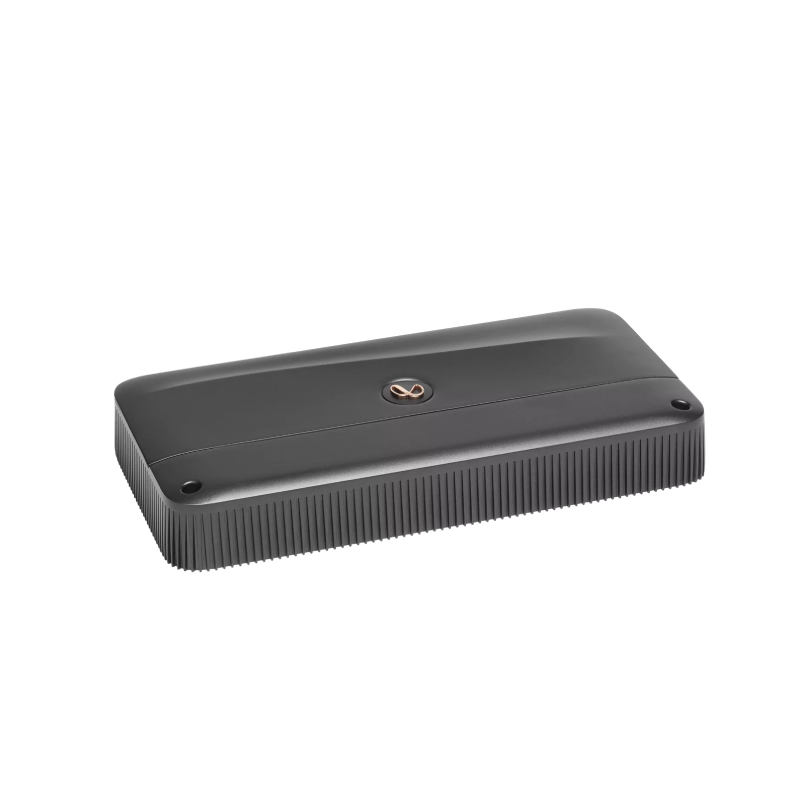

Compact size
The Infinity Reference 7005A amplifier feature a low-profile chassis and a small overall footprint to fit in more vehicles where available space is limited.
High and low level input
Speaker-level and low-level inputs allow the Reference 7005A to integrate with both aftermarket and factory car stereo systems.
Variable crossover and bass boost
Unlike many amplifiers available at similar prices, Infinity Reference amps feature variable electronic crossovers and bass boost circuit to allow for fine-tuning.
Low noise and distortion
Produces tight bass with low distortion at high SPL. Balanced Differential Inputs are used to ensure low noise.

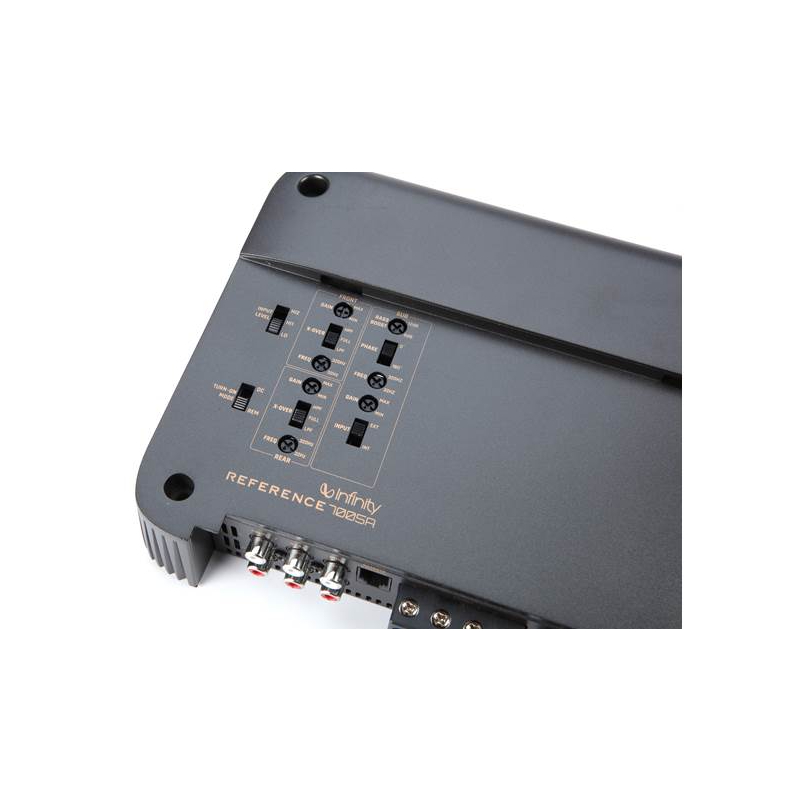

Input Level Control
When low-level inputs are used, this control adjusts the input sensitivity between 200mVrms and 2.0 Vrms. When high-level inputs are used, this control adjusts the input sensitivity between 2Vrms and 20Vrms.
Full on-board protection
The on-board circuitry to protect them from shorts, temperature, overvoltage and undervoltage. An LED indicator is included on all four models to let you know when one of these conditions exists.
Phase Switch
This switch changes the input phase to inverted or non-inverted. This is especially helpful with the subwoofer channel.
RBC wired remote
The RBC wired remote is an easy installation and can be mounted for convenient volume adjustment from driver's seat.
- Maximum Power : 780 Watts
- Low Frequency Response : 32-300 Hz
- High Frequency Response : 32-300 Hz
- Number of Channels : 5
- Frequency Response : 10-40000 Hz
- Built In Crossovers : Yes
- RMS Power Output : 65x4 Watts
- Amplifier Class : A/B
- Fuse Rating : 90x1 A
What’s Inside?
- 1 x Reference 7005A five channel amplifier

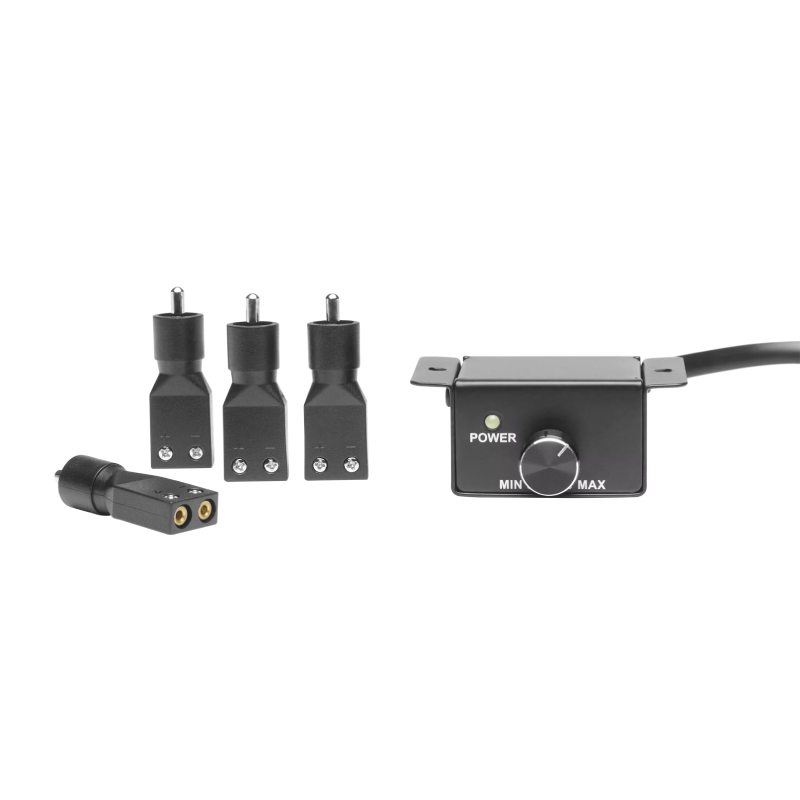

- 4 x Bare wire-to-RCA adapters
- 6 x 30A ATO fuses (3 installed, 3 spare)
- 1 x Remote bass control module
- 1 x 16.5' Remote control cable (RJ-25 plugs on both ends)
- 2 x Self-tapping screws for remote (M3 x 15mm)
Features:
- Compact size
- High and low level input
- Variable crossover and bass boost
- Low noise and distortion
- Input Level Control
- Full on-board protection
- Phase Switch
- RBC wired remote
- Class AB+D amp technology
- Turn-on mode
Specifications:
- 5 channel car amplifier
- 50 watts RMS x 4 + 320 watts RMS x 1 at 4 ohms
- 65 watts RMS x 4 + 500 watts RMS x 1 at 2 ohms
- 140 watts RMS x 2 bridged at 4 ohms + 500 watts RMS x 1 at 2 ohms
- Variable high- and low-pass filters (32–320Hz, 12dB/octave) on front and rear channels
- Low-pass filter (32–320Hz, 12dB/octave) on subwoofer channel
- Bass boost on subwoofer channel (0-12dB at 45Hz)
- Phase switch on subwoofer channel (0, 180 degrees)
- Preamp and speaker-level inputs
- Fuse rating: 30A x 3
- 4-gauge power and ground leads recommended —
- wiring and hardware not included with amplifier
- W x H x D = 360mm x 55.5mm x 180mm
- W x H x D = 14-3/16" x 2-3/16" x 7-1/8"
- UPC: 050667375508
- Weight: 8
