MB Quart  NA3-560.4 Hot Deal

Nautic Series 10" 560W Peak Power Handling, 4-Channel, Class AB Marine Amplifier

Item #56473

Condition:   Brand New

Product Highlights

  • Nautic Series 10"
  • 560W peak power
  • 4-channel Class
  • Durable and water-resistant
  • Enhances audio performance

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$379.99

Reg. Price $399.99  Save $20.00

Out of Stock Check out other products listed below
MB Quart Authorized Dealer

Huge Saving on Other items:



Huge Saving on Other items:


MB Quart Banner

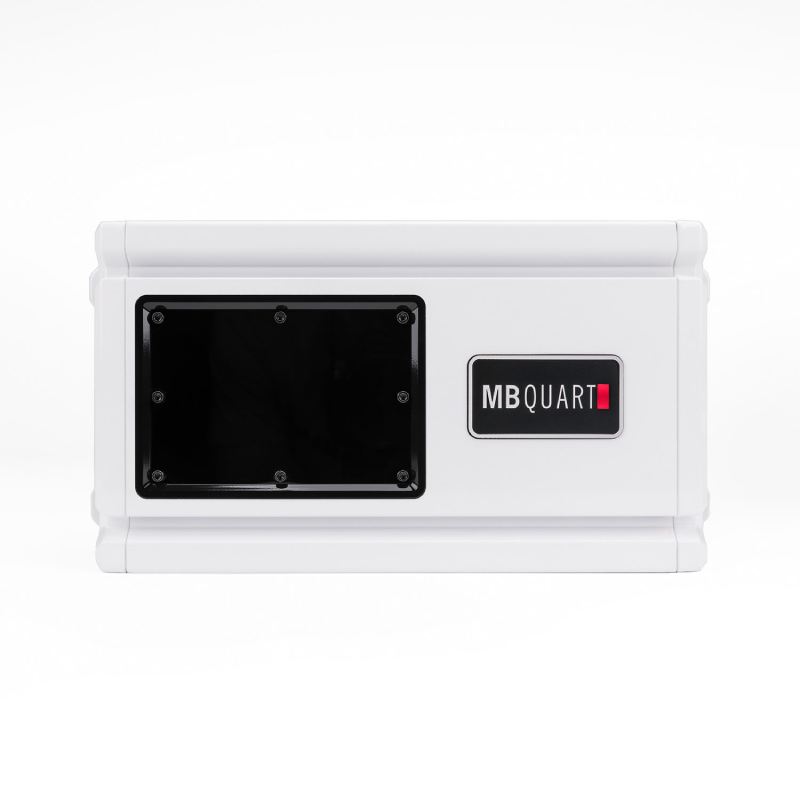

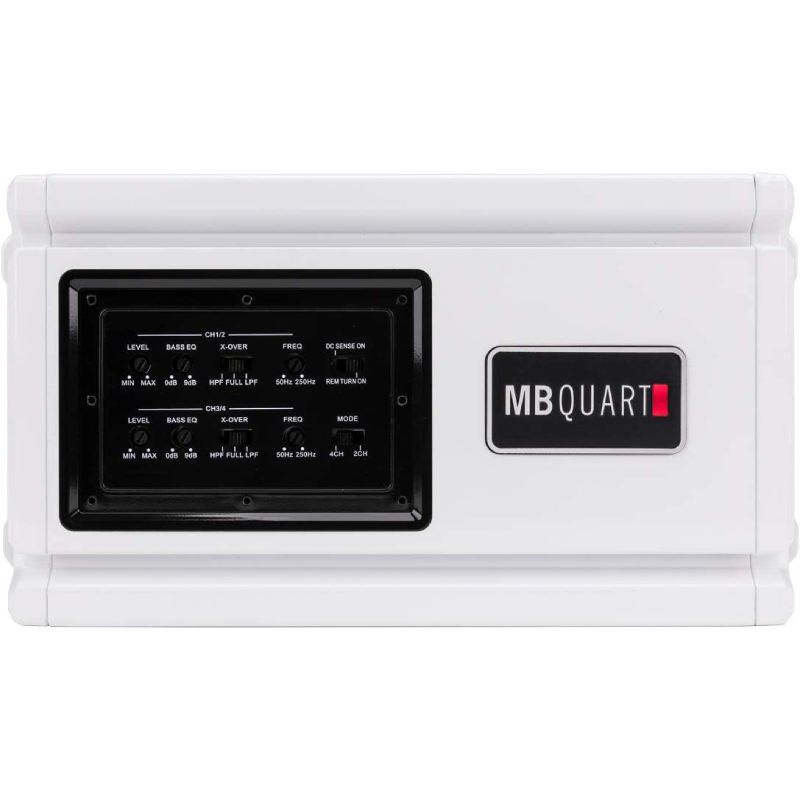

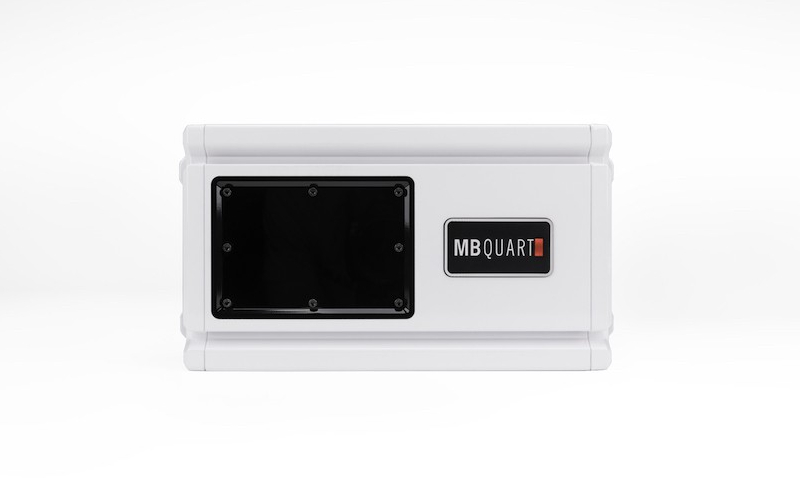

MB Quart NA3-560.4 - Nautic Series 10" 560W Peak Power Handling, 4-Channel, Class AB Marine Amplifier


We are a MB Quart authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

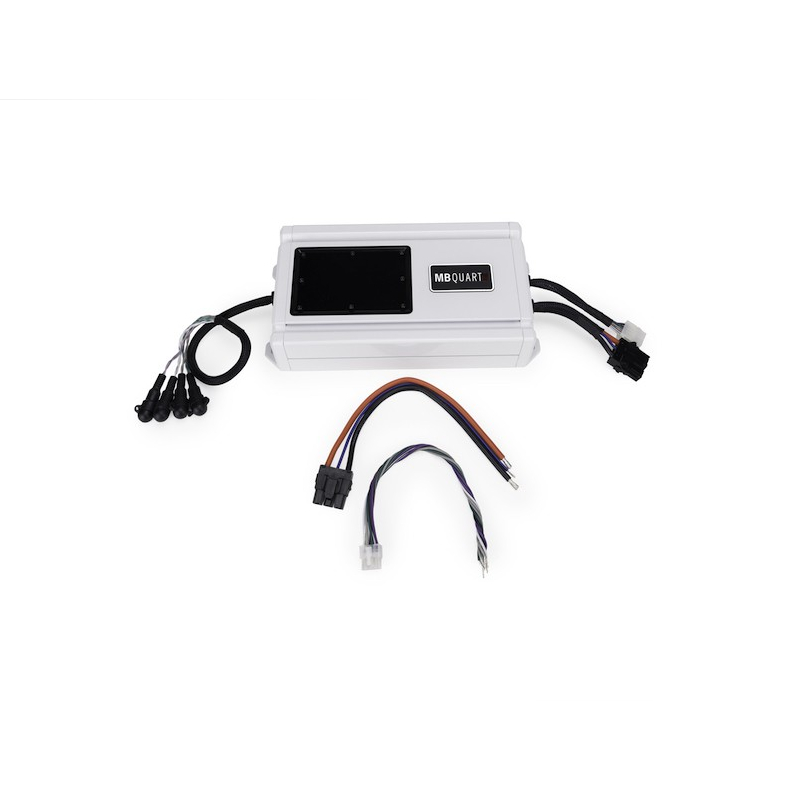

What's Inside?
  • •4-Channel amplifier
  • •10" Power harness
  • •10" Speaker output harness
  • •Adhesive backed MB Quart logo panel
  • •(4) 3/4" Screws
  • •2.5mm Allen wrench
  • •Quick start installation guide
  • •MB Quart logo installation note
  • Owner's Manual
Whether Cruising Through Waves

Whether cruising through waves, sand, or mud — you want to hear your tunes clearly over the noise of having fun. MB Quart's NA3-560.4 marine amplifier can send four speakers 70 watts each to keep the music playing no matter where you are. This rugged and compact amplifier utilizes a number of technologies that ensure normal operation no matter what the conditions are — like over/under voltage protection, thermal slow-down (not shut-down), and current limiting on the outputs to protect speakers.

Maximum Low Voltage Signal

Q-Stasis Pre Amplifier Stage: Maximum low voltage signal from the source unit comes into the amplifier circuit with minimal distortion.Prewired to PC Board for additional protection. Leave connector cover closed on RCA jacks that are not used. Variable electronic crossovers allow for complete control of the sound. FLUID-FETS: MB Quart output devices, FLUID-FETS are painstakingly selected for their ability to efficiently produce power and mimic the sound quality of the highest end home amplifiers.

Control of Amplifier Output

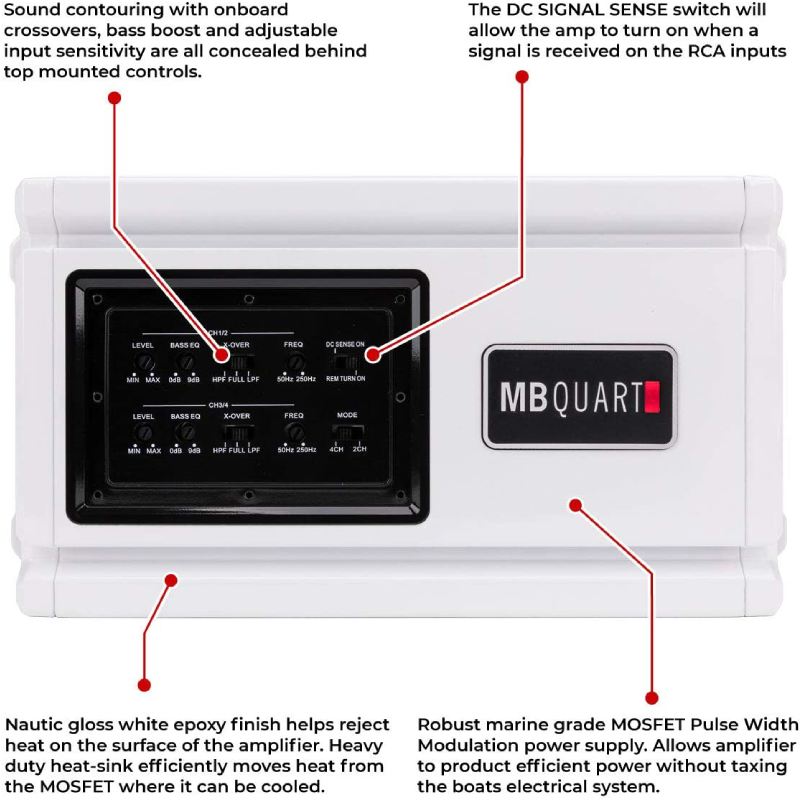

Control of amplifier output with on-board electronic crossover to tailor specific frequencies to speakers and subwoofers. Check specifications for specific frequencies for this amplifier.Class SQ: Multi-channel amplifiers utilize the unique MB Quart Class SQ topology. Matched with Q-Stasis the sonic accuracy and clarity exceeds standard Class A/B amplifiers.Nautic gloss white epoxy finish helps reject heat on the surface of the amplifier. Heavy duty heat-sink efficiently moves heat from the MOSFET where it can be cooled.

Pulse Width Modulation Power Supply

Robust marine grade MOSFET Pulse Width Modulation power supply. Allows amplifier to product efficient power without taxing the boats electrical system. Connection from amplifier are sealed and grommeted.Monitor overload and speaker short protection with illuminated indicators on the amplifier end panel. DC SIGNAL SENSE: The DC SIGNAL SENSE switch will allow the amp to turn on when a signal is received on the RCA inputs, so an amplifier remote turn on wire is not needed to turn on the amplifier. This feature can also be turned off.

  • Maximum Power : 560 Watts
  • Low Frequency Response : 50-250 Hz
  • High Frequency Response : 50-250 Hz
  • Number of Channels : 4
  • Frequency Response : 10-45000 Hz
  • Built In Crossovers : Yes
  • RMS Power Output : 70x4 Watts
  • Channel Separation : Yes
  • Amplifier Class : A/B
  • Fuse Rating : 35 A
Features:
  • Marine Grade Protection / IPX Rating: Meets or exceeds IPX standards for waterproof and dustproof.
  • Low Noise Preamplifier Circuit: Q-Stasis Pre Amplifier Stage: Maximum low voltage signal from the source unit comes into the amplifier circuit with minimal distortion.
  • RCA Inputs: Prewired to PC Board for additional protection. Leave connector cover closed on RCA jacks that are not used.
  • High Level Inputs: See Auto-Sense Feature.
  • Operation Mode: 2 / 4 Channel
  • Crossover Type: Variable electronic crossovers allow for complete control of the sound.
  • Electronic Equalizer: Control of amplifier output with on-board electronic crossover to tailor specific frequencies to speakers and subwoofers. Check specifications for specific frequencies for this amplifier.
  • Class / Topology: Class SQ - Multi-channel amplifiers utilize the unique MB Quart Class SQ topology. Matched with Q-Stasis the sonic accuracy and clarity exceeds standard Class A/B amplifiers.
  • Output Device Technology: FLUID-FETS - MB Quart output devices, FLUID-FETS are painstakingly selected for their ability to efficiently produce power and mimic the sound quality of the highest end home amplifiers.
  • Heat Sink: Nautic gloss white epoxy finish helps reject heat on the surface of the amplifier. Heavy duty heat-sink efficiently moves heat from the MOSFET where it can be cooled.
  • Power Supply: Robust marine grade MOSFET Pulse Width Modulation power supply. Allows amplifier to product efficient power without taxing the boats electrical system.

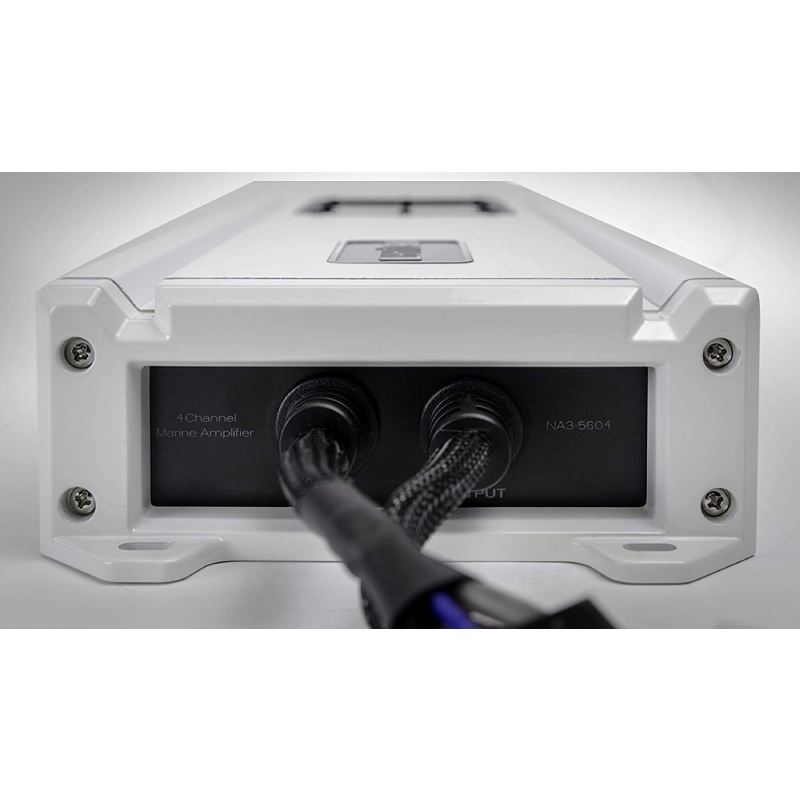

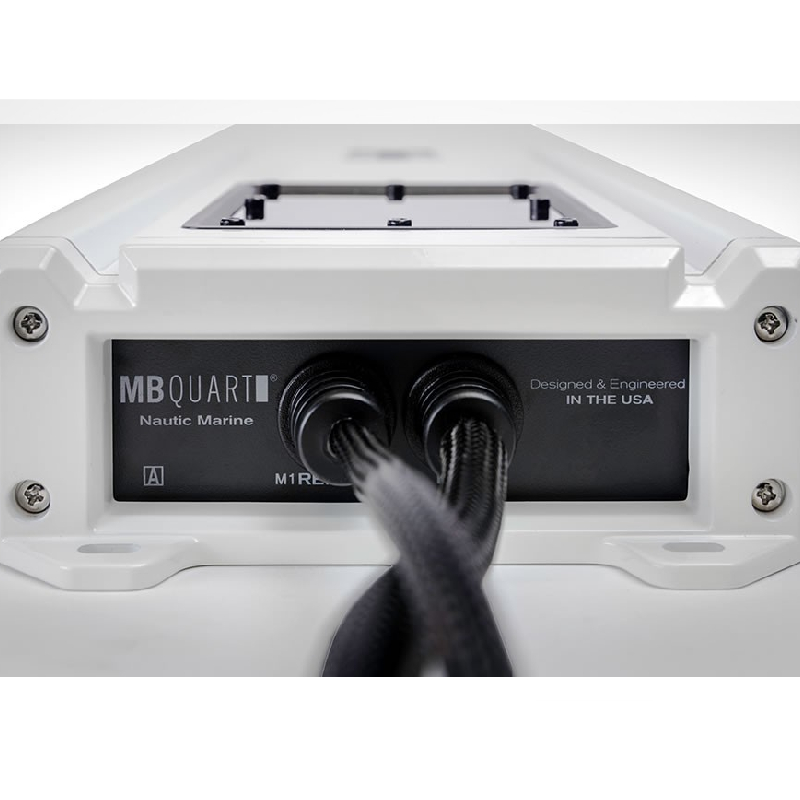

  • Output Connections: Connection from amplifier are sealed and grommeted.
  • LED System Protection Circuitry Diagnostics: Monitor overload and speaker short protection with illuminated indicators on the amplifier end panel.
  • Auto Turn-On: DC SIGNAL SENSE: The DC SIGNAL SENSE switch will allow the amp to turn on when a signal is received on the RCA inputs, so an amplifier remote turn on wire is not needed to turn on the amplifier. This feature can also be turned off.

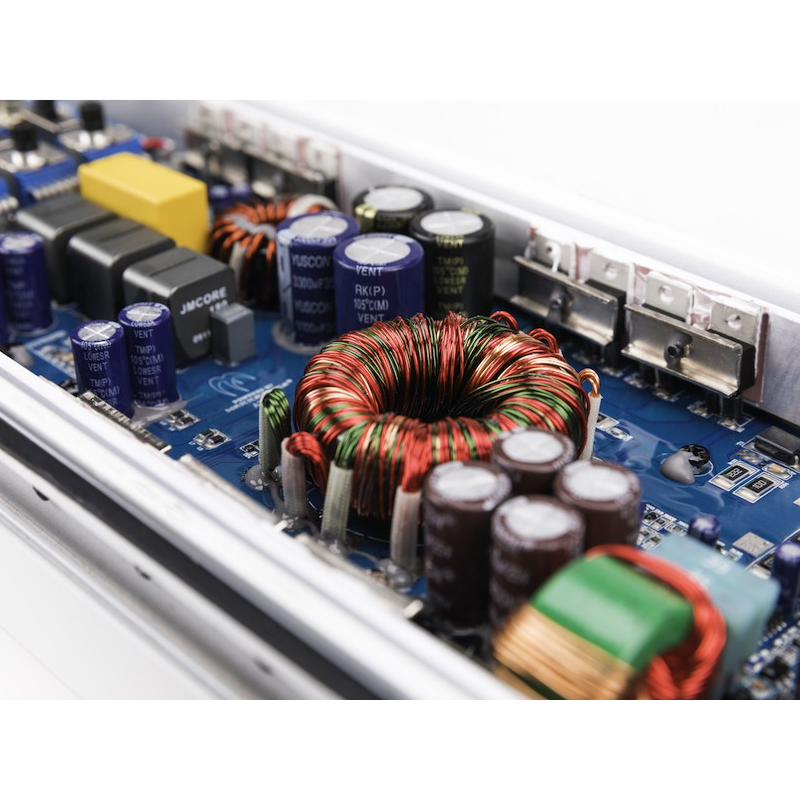

  • SMT Inside: With Surface Mount Technology the typical "through-hole" placement and the larger tolerances from human placement is dramatically improved. In addition, circuit engineers can design better circuits for power and sound quality as the tolerances of SMT components are superior to larger "through-hole" components. Because of their lower mass SMT components withstand shock and vibration making them perfect for audio designed for all vehicles.
  • Additional Features:With Surface Mount Technology the typical "through-hole" placement and the larger tolerances from human placement is dramatically improved. In addition, circuit engineers can design better circuits for power and sound quality as the tolerances of SMT components are superior to larger "through-hole" components. Because of their lower mass SMT components withstand shock and vibration making them perfect for audio designed for all vehicles.



Specifications:
  • Class: Class SQ (Class A/B)
  • Total Channels: 4
  • Power @ 2 Ohms: 4 X 140
  • Power @ 4 Ohms: 4 X 70
  • Crossover: Electronic

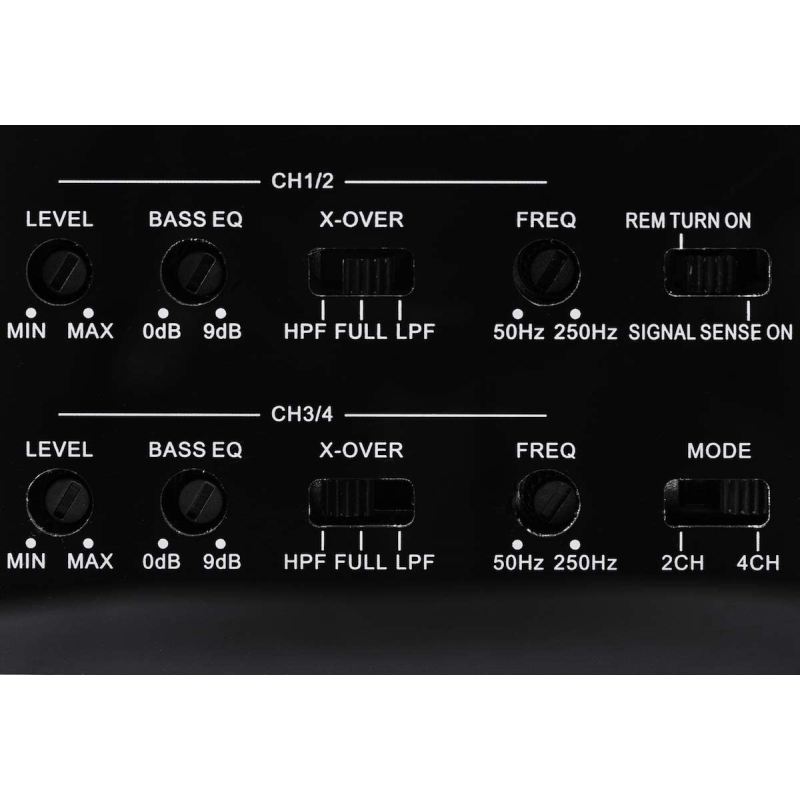

  • Variable High Pass Crossover 12db Per Octave: Switched, Hpf / Full / Lpf, 50hz - 250hz
  • Bass Boost: 0-9db
  • Variable Voltage: .02 - 9v
  • Signal To Noise: >90
  • Frequency Response: 10hz-45khz
  • Total Harmonic Distortion (Thd): <0.2%
  • Power Terminal 12v/gnd: 10 Awg
  • Speaker Terminal Wire Gauge: 12 Awg
  • Ipx Rating: Ipx Rated For Water Resistance
  • UPC: 806576230014
  • Weight: 7
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
