XS Power  HF1615

16V High Frequency AGM IntelliCharger, 15A

Item #56515

Condition:   Brand New

Product Highlights

  • 16V
  • High Frequency
  • AGM IntelliCharger
  • 15A

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.

$299.99

Reg. Price $395.99  Save $96.00
Add Extended Warranty
  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.

No Credit needed for acima logoLearn More

XS Power Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


Morel Banner

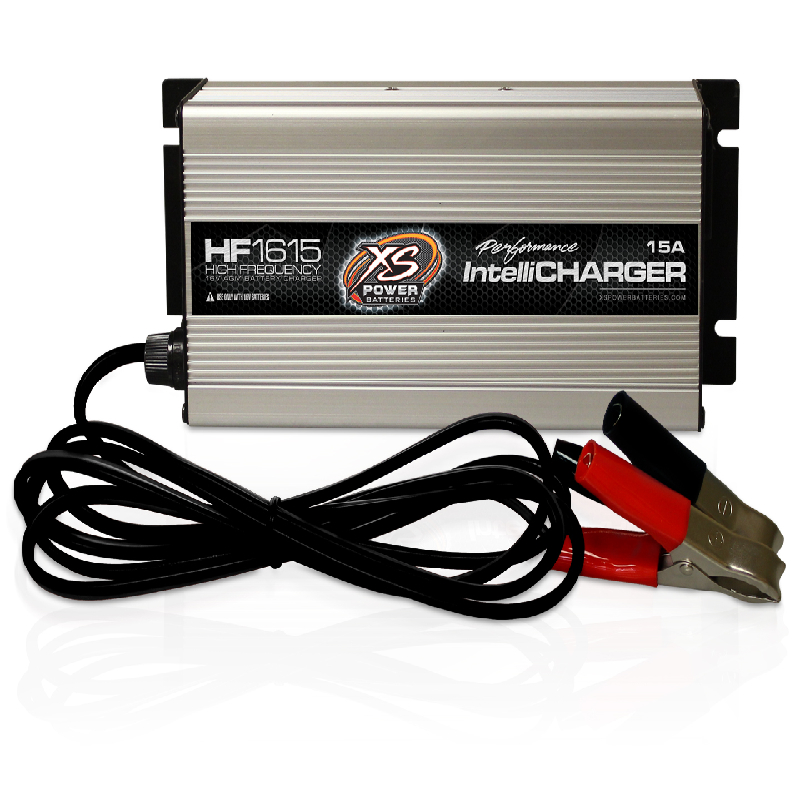

XS Power HF1615 16V High Frequency AGM IntelliCharger, 15A


Morel Banner

We are a XS Power authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • 15A IntelliCharger
  • • Owner's Manual
High-Performance 15A HF IntelliCharger for 14V AGM Batteries

Power up your 14V AGM battery with confidence using this 15A High-Frequency IntelliCharger. Its advanced MOSFET design and microprocessor-controlled charging system deliver fast, reliable, and precise charging for demanding applications. Compact yet powerful, it features heavy-duty AWG 10 DC connections and supports maintenance-free, deep-cycle, gel-cell, and AGM batteries. A smart choice for keeping high-performance battery systems charged and ready to go.




Frequently Asked Questions (FAQ)


  • • Why does my HF1615 refuse to recognize my battery?
    If the battery is extremely discharged, the HF1615 may not begin its normal charging cycle. The charger may fail to illuminate the charge indicator when battery voltage is below approximately 4V, so check the battery voltage before assuming the charger has failed.
  • • Why is the HF1615 still showing the orange charging light after hours?
    The orange indicator can remain active when the battery has not completed the charging cycle. XS Power states that the charger will remain in this condition if the battery cannot reach a full charge within its 10-hour operating window.
  • • Can I connect the HF1615 to my normal 12V car battery?
    No. The HF1615 is designed specifically for 16V AGM batteries and is not intended for standard 12V or 14V battery systems. Using the wrong voltage charger can create an improper charging condition.
  • • Why doesn't my HF1615 have a voltage display?
    One customer specifically mentioned that a built-in voltmeter would be a useful improvement. The HF1615 uses LED status indicators rather than providing a dedicated numerical voltage readout, so a separate multimeter is useful when you need to monitor exact battery voltage.
  • • Why does my HF1615 stop before the battery seems completely charged?
    The charger has a built-in 10-hour limit. If the battery cannot complete the charging process within that period, the charging indicator may remain orange rather than reaching the final green stage. A weak or aging battery can be responsible.
  • • What should I check when the HF1615 power light doesn't turn on?
    Start with the wall outlet, AC cable, and the charger's fuse. The manufacturer's troubleshooting instructions identify the fuse, cord, and incoming power as the first things to inspect when the power indicator remains off.
  • • Why won't the HF1615 charge when my battery is connected correctly?
    A correct connection alone does not guarantee that charging will begin. Check that the battery is above the minimum detection voltage, verify polarity, and remove unnecessary electrical loads from the battery while charging.
  • • Can I permanently mount the HF1615 inside a race car?
    One product Q&A raised concerns about mounting the charger directly to a race car because continuous vibration could eventually damage the unit. For mobile installations, a protected mounting location away from excessive vibration is the safer approach.
  • • Why does my HF1615 seem to restart its charging process?
    The HF series can automatically restart its charging sequence when the charge current rises above a preset threshold. Electrical loads connected to the battery can therefore affect how the charger behaves during operation.
  • • What if my HF1615 still stays orange after checking the connections?
    If the polarity is correct and the battery remains unable to complete the cycle within the specified time, the battery itself may be unable to accept a full charge. XS Power's troubleshooting guidance recommends replacing the battery if the condition continues rather than attempting to open or repair the charger internally.

SPECIFICATIONS



FEATURES


Features:

  • TYPE: 14V High Frequency AGM IntelliCharger, 15A
  • AC Input Connections: 5.0’ (1.5 m) AWG 16
  • DC Output Connections: 3.9’ (1.19m) AWG 10
  • Dimensions (W x H x D) : 8.3” x 4.7” x 2.3” (211mm x 119mm x 60mm)

Physical Specifications:

  • Dimensions (W x H x D) : 8.3” x 4.7” x 2.3” (211mm x 119mm x 60mm)
  • AC Input Connections : 5.0’ (1.5 m) AWG 16
  • DC Output Connections : 3.9’ (1.19m) AWG 10



AC Input Specifications:

  • AC Input Voltage : 100-120 VAC, 47-63 Hz
  • AC Input Current : 7A RMS fuse protected
  • UPC: 692209015451
  • Weight: 4
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
