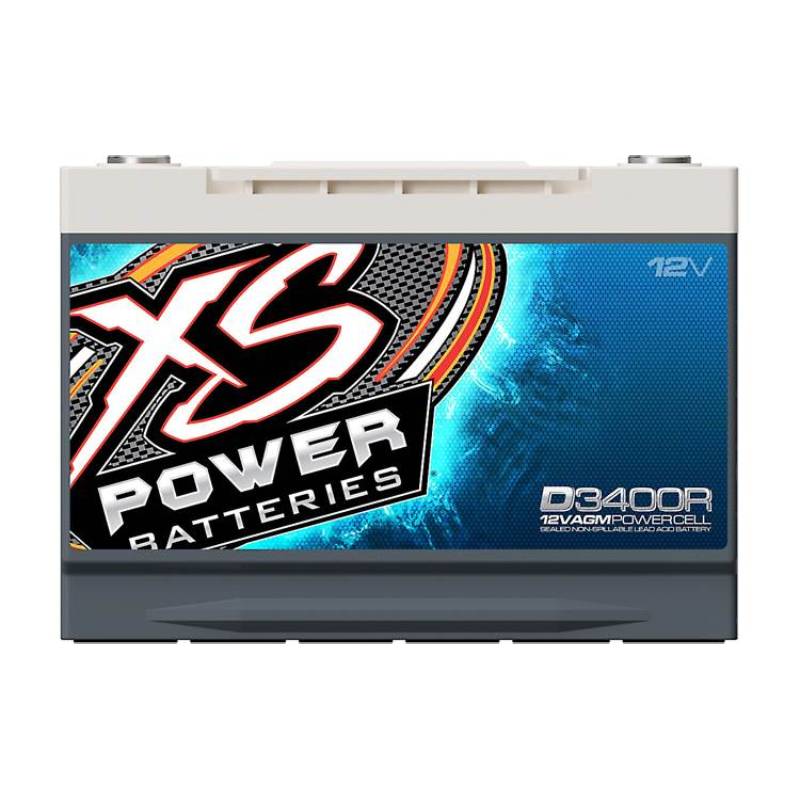

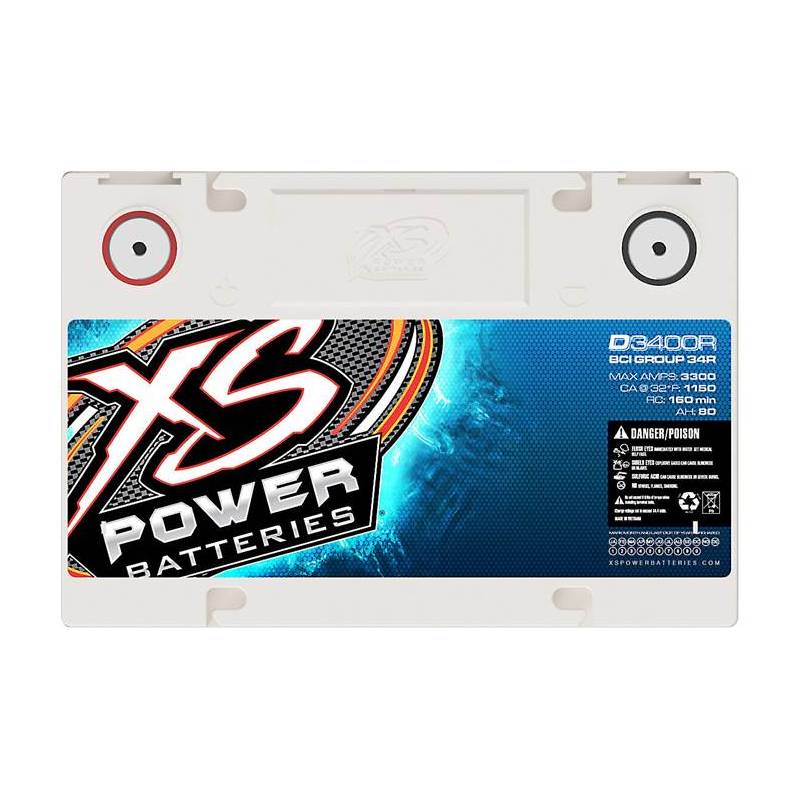

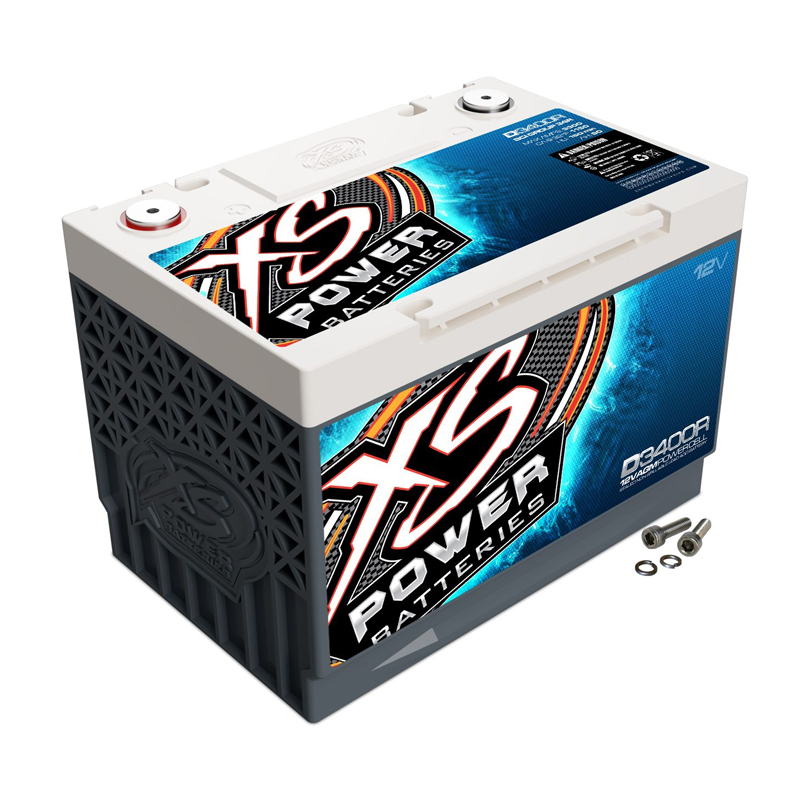

XS Power D3400R - D Series 3300A Max Amps with 12V BCI Group 34 AGM Battery (Reversed Polarity)
We are a XS Power Authorized Dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • D3400R AGM Deep cycle 12 volt battery
- • (2) M6 bolts
- • (2) Split lock washers
- • Owner's Manual
Unmatched Power for European Vehicles
Experience extreme cranking power, massive energy reserve, and exceptional durability with the XS Power D3400R, designed for high-performance European vehicles. Trusted by top brands like Ferrari, Lamborghini, and Saab, it delivers reliable performance every time. Use the “Find My Battery” tool to quickly find the perfect fit and power your vehicle with confidence.
Safe, Reliable, Powerful
The D3400R delivers consistent, high-performance power for your vehicle and all aftermarket accessories with advanced AGM technology. Its fully sealed, spill-proof design protects against leaks, keeping your vehicle safe. Built to withstand even the roughest rides, it ensures dependable performance wherever you go.
Extreme Power & Massive Capacity
Start your engine effortlessly in extreme hot or cold conditions with the D3400R’s 1,150 cranking amps. It powers your vehicle as a main battery while running an audio system up to 2,500 watts. As a secondary battery, it delivers an impressive 4,000-watt capacity for high-power accessories like winches or premium stereo systems.
Frequently Asked Questions (FAQ)
- • Why does the D3400R sit differently from my original battery?
The D3400R’s Group 34R dimensions can differ noticeably from the factory battery in some vehicles. One Evo X owner found that the factory tie bar was about 1/8 inch off, while another Mazda 3 owner needed a small spacer because the battery was shorter than stock.
- • Are SAE battery posts included with the D3400R?
Not always. Several buyers have discovered that the D3400R uses its included M6 hardware rather than traditional SAE posts, meaning additional terminal posts may be necessary when connecting standard factory cables.
- • Could the reversed terminals actually make installation easier?
Yes, depending on the vehicle. The D3400R reverses the positive and negative terminal positions, and owners have specifically chosen it because the orientation can place the connections closer to the factory cable locations.
- • Why is my battery bar not tightening down completely?
The issue may be physical fitment rather than a problem with the battery. An Evo X owner reported that the factory tie bar was slightly too short for the D3400R, while another owner used a spacer beneath the battery to achieve a secure hold-down.
- • Can the D3400R prevent voltage from collapsing during bass-heavy music?
It can make a substantial difference, but performance depends on the complete charging system. Owners have reported replacing severe voltage drops with much more stable readings and eliminating headlight dimming after installing the D3400R.
- • Why is my D3400R no longer holding a charge after several years?
Battery life can eventually decline even when there is no visible physical damage. One owner reported that their D3400R stopped retaining a charge for more than four or five days after several years of use, while another reported charging problems after roughly a year.
- • Is a high-output alternator still useful when I already have a D3400R?
Yes. The D3400R supplies stored energy, but the alternator must replenish that energy during operation. Owners running powerful audio systems have specifically paired the battery with high-output alternators and recommended improving the charging system for maximum performance.
- • What if my D3400R arrives charged but I want to top it off first?
Some owners have chosen to charge the battery before installation, particularly when preparing it for demanding electrical loads. One D3400R owner reported receiving the battery at about 12.8V and topping it off with an AGM charger before installation.
- • Can the D3400R work as a second battery instead of replacing the factory one?
Yes. Real-world users have installed the D3400R as a secondary battery for high-powered audio systems, with owners reporting improved reserve power and less voltage fluctuation. XS Power also describes the D3400R as suitable for secondary-battery applications.
- • Why does my D3400R work well but still need better electrical support?
A battery can improve reserve capacity without solving every limitation in the vehicle's electrical system. Owners have reported excellent results from the D3400R while still planning upgrades such as a high-output alternator or additional battery capacity as their audio systems become more powerful.
Features:
- The XS Power D3400R delivers extreme cranking power, a massive energy reserve, and exceptional durability, making it a top AGM battery choice for European vehicles. Trusted by brands like Ferrari, Lamborghini, and Saab, use the “Find My Battery” tool for compatibility details.
- The D3400R provides reliable power for your vehicle and all aftermarket accessories with advanced AGM technology. Its sealed, spill-proof design ensures safe and dependable performance even on the roughest rides.
- The D3400R delivers 1,150 cranking amps for reliable engine starts in extreme temperatures and can power your vehicle as a main battery. With ample energy reserve, it can run an audio system up to 2,500 watts or serve as a secondary battery with 4,000-watt capacity for high-power accessories.
Specifications:
- 12-Volt AGM Battery (Reverse-Polarity)
- Group 34
- Max Amps: 3,300
- Cold Cranking Amps: 1,012
- Reserve Capacity: 160 minutes
- BCI Group Size: Group 34R
- Volts: 12v
- Max Amps: 3300
- CA: 1150
- CCA: 1012
- Ah: 80
- RC: 160
- Primary Watts: 2500 Watts
- Secondary Watts: 4000 Watts
- Polarity: R
Dimensions:
- Length (Inches): 10.24
- Width (Inches): 6.89
- Height (Inches): 7.16
- UPC: 692209051527
- Weight: 54
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
