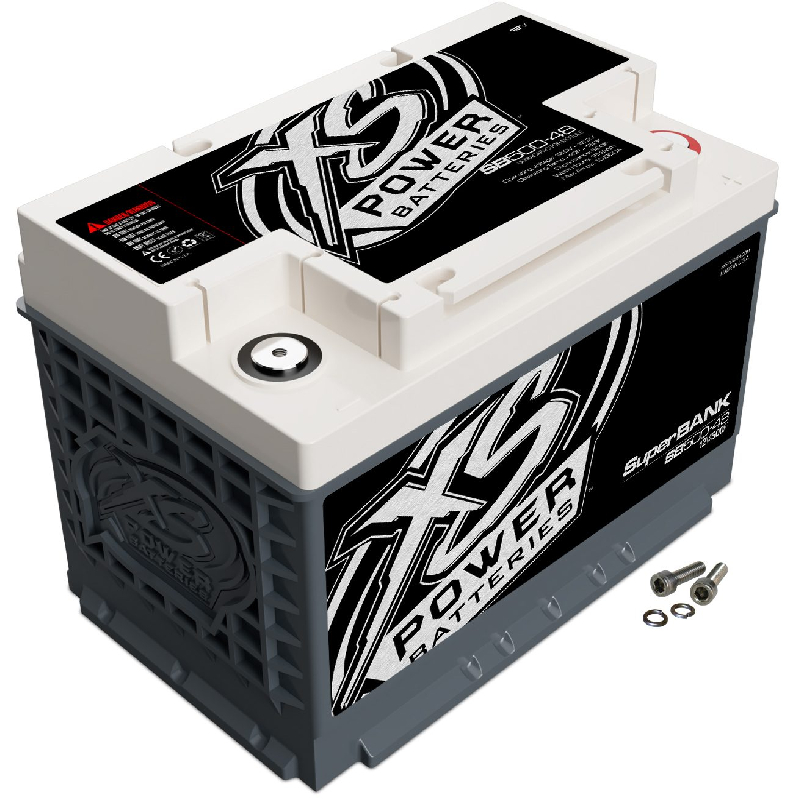

XS Power  SB500-48

12V Super Capacitor Bank, Group 48, Max Power 4,000W, 500 Farad

Item #56610

Condition:   Brand New

Product Highlights

  • 12V Super Capacitor Bank
  • Group 48
  • Max Power: 4,000W
  • Capacity: 500 Farad

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.

$499.99

Reg. Price $529.99  Save $30.00
Add Extended Warranty
  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.

No Credit needed for acima logoLearn More

XS Power Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


Morel Banner

XS Power SB500-48 12V Super Capacitor Bank, Group 48, Max Power 4,000W, 500 Farad


Morel Banner

We are a XS Power authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • 12-Volt Super Capacitor Bank
  • • Owner's Manual
XS Power SB500-48 500F SuperBANK – 4,000W High-Power Energy Boost

Bring instant power support to demanding automotive systems with the XS Power SB500-48 SuperBANK. This Group 48 12V super capacitor bank delivers up to 10,000A and 4,000W, providing rapid energy delivery in a durable, high-performance package.




Frequently Asked Questions (FAQ)


  • • Can the SB500-48 really reduce voltage drop in a high-power audio system?
    Yes, real-world feedback is encouraging. One SB500-48 owner reported little to no voltage drop while running around 5,000 watts with two AGM batteries and a 269-amp alternator. The SuperBANK works best as part of a properly matched electrical system rather than by itself.
  • • Why is my voltage still dropping even after adding the SB500-48?
    A SuperBANK cannot compensate for every weak point in the charging system. Forum users specifically noted that PCM-controlled alternators may stop charging periodically, allowing the capacitor bank to discharge. Battery condition, alternator behavior, grounds, and cable connections should all be checked.
  • • Can I use the SB500-48 instead of buying another AGM battery?
    It depends on the application. One user considering the SB500-48 was specifically weighing it against adding one or two Group 48 AGM batteries, showing that this is a common installation question. XS Power recommends using the SuperBANK in parallel with an AGM or lithium battery for a customized power system.
  • • Why does the SuperBANK discharge when my factory alternator stops charging?
    Unlike a battery that stores substantial energy for longer periods, the SB500-48 has 18.2 Wh of energy storage. Forum users pointed out that when a PCM-controlled alternator stops charging, the capacitor bank can discharge along with the rest of the electrical system.
  • • Is the SB500-48 actually suitable for a daily-driver system?
    Yes, it can be. A real forum discussion involved using one with a daily-driven vehicle rather than a competition-only setup, while a customer review reported successful use in a roughly 5,000-watt audio system. The key is matching the SuperBANK with sufficient battery and charging capacity.
  • • Why doesn't the SB500-48 come with a digital voltage display?
    The SB500-48 is listed without a digital monitor. If you want to keep an eye on system voltage, you'll need to use a separate calibrated meter or vehicle/audio-system voltage monitor.
  • • Will the Group 48 size guarantee that it fits my battery tray?
    Not necessarily. Although it follows the Group 48 format, the SB500-48 measures approximately 10.94 × 7.48 × 6.93 inches and weighs about 11 pounds. Always compare those measurements with your actual tray and cable clearance before installation.
  • • Why does the SB500-48 need ventilation if I'm cycling it heavily?
    Repeated high-current cycling can make thermal management important. XS Power recommends free-air mounting or forced ventilation for SuperBANKs that experience significant cycling, while also advising protection from water spray and corrosive environments.
  • • What happens if I connect the SB500-48 backward?
    Do not reverse the polarity. XS Power specifically warns against reversed connections and requires the SuperBANK to be properly discharged before installation or removal. A calibrated meter should be used to verify that no dangerous residual voltage remains before handling the terminals.
  • • Are customers actually happy with the SB500-48?
    The available feedback is generally positive, although the number of detailed reviews is limited. Down4Sound currently shows two five-star reviews, including one owner who reported little to no voltage drop in a 5,000-watt setup. Other retailer feedback is sparse, so individual results should not be treated as a guarantee for every vehicle.

SPECIFICATIONS


  • Capacitance : 500 Farad
  • Digital Monitor : No

FEATURES


Features:
  • TYPE: 12V Super Capacitor Bank, Group 48
  • Max Amps: 10000A
  • Max Power: 4000 Watt
  • Farads: 500F
  • Operating Voltage: 12.0V - 16.2V
  • Operating Temperature: -40 - 150
  • Capacitance: 500F
  • Watt Hours: 18.2Wh
  • Max Amps: 10,000A
  • Weight Lbs. : 11
  • Weight Kgs. : 4.98
  • Length : 10.94 in
  • Height : 7.48 in
  • Width : 6.93 in
  • UPC: 692209052777
  • Weight: 15
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
