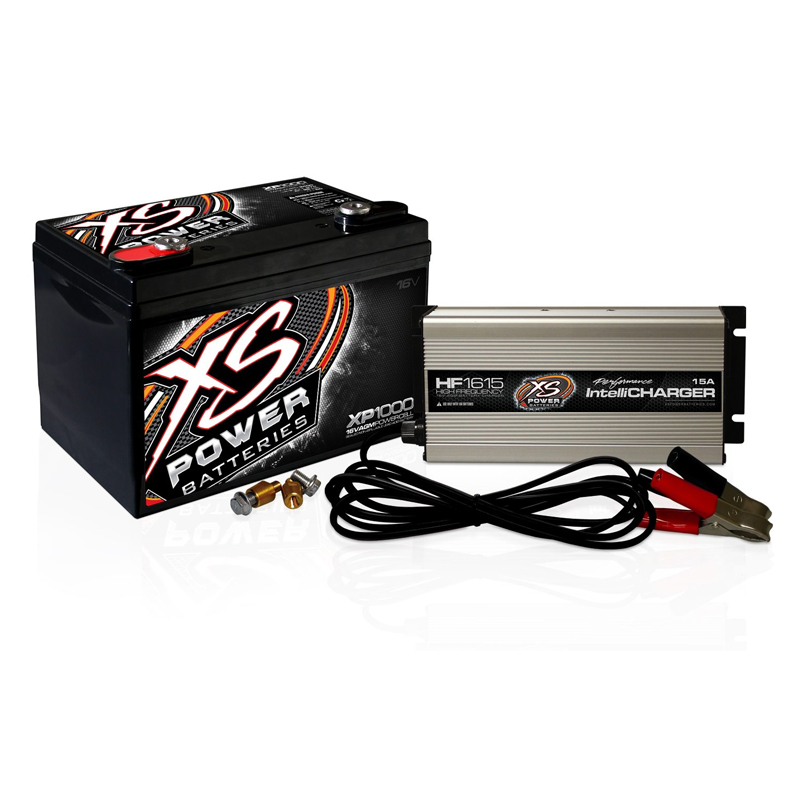

XS Power XP1000CK1 XP1000 16V Battery and HF1615 16V, 15A IntelliCharger Combo
We are a XS Power Authorized Dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • XS Power Battery
- • 15A IntelliCharger
- • Owner's Manual
Complete 16V Power & Charging Solution
Get powerful performance and convenient charging in one package with the XS Power XP1000CK1, combining a 16V AGM battery capable of delivering up to 2400 amps with a 15A IntelliCharger. Its sealed AGM design provides dependable, maintenance-free power, while the included charger makes keeping your battery ready for action simple and convenient. Compact at 10.24" × 6.75" × 7.20", it also includes M10 terminal hardware for an easier installation.
Frequently Asked Questions (FAQ)
- • Why Is My XP1000CK1 Not Suitable for a Normal 12V Electrical System?
The XP1000CK1 is a 16-volt AGM battery and charger combination, designed for vehicles and equipment specifically configured for 16V operation. Connecting it directly to a conventional 12V electrical system can expose vehicle electronics to excessive voltage, so the entire electrical system must be compatible.
- • Why Does the Included HF1615 Charger Take Longer Than I Expected?
The HF1615 is a 15-amp IntelliCharger, so charging time depends on how deeply the 16V battery has been discharged. A heavily discharged XP1000 should not be expected to recharge instantly; allowing the automatic multi-stage charger to complete its cycle is preferable to repeatedly disconnecting it early.
- • Can I Accidentally Overcharge the XP1000 With the Wrong Charger?
Yes, using an unsuitable charger can create a serious problem. XS Power specifies that the 16V AGM battery requires controlled charging, with voltage not exceeding 2.45V per cell ±0.05V for extended periods, and recommends an automatic shutoff charger. The included HF1615 is designed specifically for this application.
- • Why Does My Race Car Have Electrical Problems After Installing a 16V Battery?
The XP1000 raises the vehicle's electrical-system voltage above the normal 12V architecture. Accessories such as ECUs, sensors, lighting, radios, fuel pumps, and other electronics must be rated for the higher voltage or appropriately regulated. The battery itself can be functioning correctly while an incompatible accessory causes the problem.
- • Why Is the XP1000CK1 So Heavy Compared With Other Racing Batteries?
The XP1000 weighs approximately 46.5 pounds and is built as a high-output AGM racing battery rather than an ultralight lithium battery. An owner reviewing the XP1000 reported being satisfied with its reliability after previously experiencing premature failure from a lithium battery, illustrating the tradeoff some racers make between weight and durability.
- • What If the XP1000CK1 Battery Fits the Tray but My Cable Ends Do Not?
The XP1000 uses specialized terminal hardware, and the CK1 includes 575/M10 terminal hardware. XS Power also lists optional brass post adapters for clamp-style installations. If the factory cables do not line up correctly, using the correct adapter is safer than modifying or forcing the cable ends onto the battery.
- • Why Does My XP1000 Still Lose Power During Repeated Racing Runs?
The XP1000 has substantial reserve capacity and is designed for demanding racing applications, but repeated runs can still consume stored energy. One JEGS owner reported completing two rounds without recharging and said the battery continued to perform well. Actual endurance will depend on the vehicle's electrical load and how much charging occurs between runs.
- • Could a Bad Charger Make My XP1000 Look Like It Has Failed?
Yes. If the battery repeatedly remains undercharged, charging stops unexpectedly, or the charger indicates a fault, test the charger and its connections before condemning the battery. The XP1000CK1 is specifically sold as a matched battery-and-HF1615 charger package because correct 16V charging is important to maintaining AGM performance.
- • Is the XP1000CK1 Appropriate for a High-Compression Race Engine?
That is one of its intended applications. XS Power describes the XP1000 as a 16V AGM racing battery built for high-compression engines, with approximately 675 CA and 2,400 maximum amps. It is designed to provide strong cranking power while also supporting equipment such as an ECU, fuel pump, and gauges.
- • What Should I Check If My XP1000 Starts Weak Even After Charging?
Start with the basics: verify that the charger completes its cycle, measure battery voltage after charging, inspect the positive and negative connections, and check the vehicle's charging system. Also confirm that the engine and accessories are actually designed for 16V operation. A properly charged XP1000 should not be diagnosed as defective solely because the vehicle experiences a starting issue.
Features:
- Length: 10.24 in
- Height: 7.20 in
- Width: 6.75 in
- MAX Amps: 2400
- CA: 675
- 575 with M10 Terminal Hardware Included
- UPC: 692209015826
- Weight: 46.5
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
