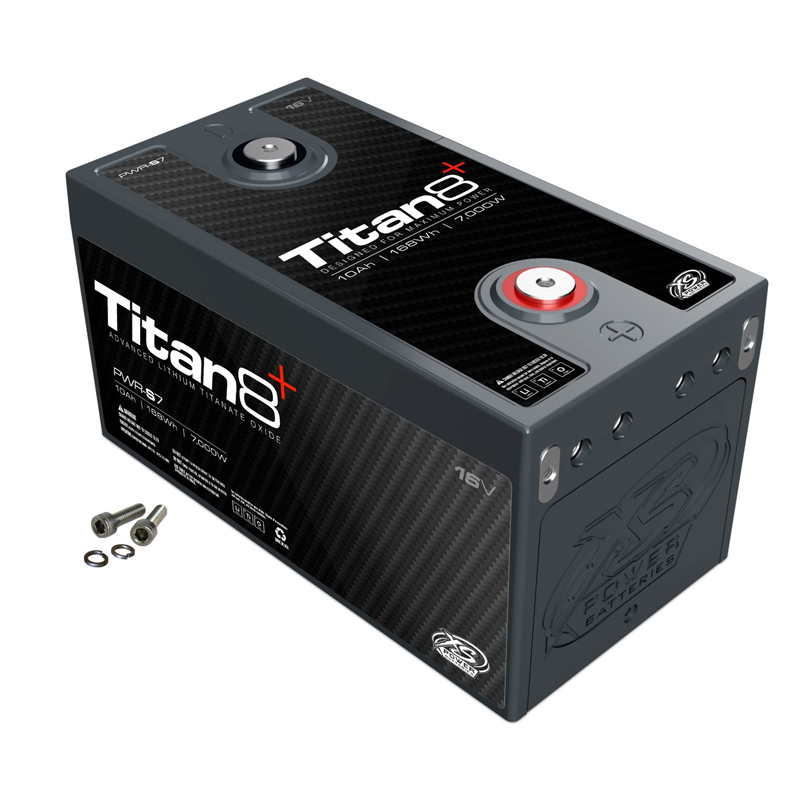

Power Modules - Designed for Peak Power
This Titan8 Series Lithium Titanate Oxide (LTO) series uses a very high power lithium cell that is designed for very high burst output (up to 100 times its capacity) as well as very high charge current (30-60 times its capacity). This translates to a single 10Ah module that can support burst current up to 1,000A, and can accept 300A of continuous charge current. The built in 2/0 bussing allows up to 4 Positive and 4 Negative hidden direct connections to each module without the need for any external exposed bussing, while still leaving two easily accessible top terminals and four series or parallel expansion terminals to easily build a bank of nearly any configuration from 16V, 48V, or any configuration imaginable.
M6 Terminal Hardware Included
The built in 2/0 bussing allows up to 4 Positive and 4 Negative hidden direct connections to each module without the need for any external exposed bussing, while still leaving two easily accessible top terminals and four series or parallel expansion terminals to easily build a bank of nearly any configuration from 12V, 14V, 16V, 24V, 28V, 36V, 48V, or any configuration imaginable. With the unique design, single 2.4V individual modules can be made for even further installation flexibility. Each module comes packed with all the required accessories including two XS Logo cable covers, expansion bussing with rubberized insulating covers, mounting hardware, and all the terminal set screws and bolts required.
Each module comes standard with built in balancing system and can be upgraded to include Bluetooth connectivity that allows remote cell monitoring, internal temperature sensing, battery health monitoring and can be configured to send notifications to any tablet or smartphone when any user preset limit is met, including low voltage, over temp, over charge, etc. Usage data is stored in the app to assist with trouble shooting and allows the user to enjoy an extended warranty up to 4 years. Multiple Titan 8 batteries can be monitored from one app from a single installation, or multiple different vehicle installations.
Features:
Power Modules - Designed for Peak Power
This Titan8 Series Lithium Titanate Oxide (LTO) series uses a very high power lithium cell that is designed for very high burst output (up to 100 times its capacity) as well as very high charge current (30-60 times its capacity). This translates to a single 10Ah module that can support burst current up to 1,000A, and can accept 300A of continuous charge current. The built in 2/0 bussing allows up to 4 Positive and 4 Negative hidden direct connections to each module without the need for any external exposed bussing, while still leaving two easily accessible top terminals and four series or parallel expansion terminals to easily build a bank of nearly any configuration from 16V, 48V, or any configuration imaginable.
M6 Terminal Hardware Included
The built in 2/0 bussing allows up to 4 Positive and 4 Negative hidden direct connections to each module without the need for any external exposed bussing, while still leaving two easily accessible top terminals and four series or parallel expansion terminals to easily build a bank of nearly any configuration from 12V, 14V, 16V, 24V, 28V, 36V, 48V, or any configuration imaginable. With the unique design, single 2.4V individual modules can be made for even further installation flexibility. Each module comes packed with all the required accessories including two XS Logo cable covers, expansion bussing with rubberized insulating covers, mounting hardware, and all the terminal set screws and bolts required.
Each module comes standard with built in balancing system and can be upgraded to include Bluetooth connectivity that allows remote cell monitoring, internal temperature sensing, battery health monitoring and can be configured to send notifications to any tablet or smartphone when any user preset limit is met, including low voltage, over temp, over charge, etc. Usage data is stored in the app to assist with trouble shooting and allows the user to enjoy an extended warranty up to 4 years. Multiple Titan 8 batteries can be monitored from one app from a single installation, or multiple different vehicle installations.
