XS Power  SB630-51R

12V Super Capacitor Bank, 1200 Style, 4000W Max Power, 630 Farad

Item #56623

Condition:   Brand New

Product Highlights

  • 12V Super Capacitor Bank
  • 1200 Style
  • 4000W Max Power
  • 630 Farad

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.

$499.99

Reg. Price $529.99  Save $30.00
Add Extended Warranty
  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.

No Credit needed for acima logoLearn More

XS Power Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


Morel Banner

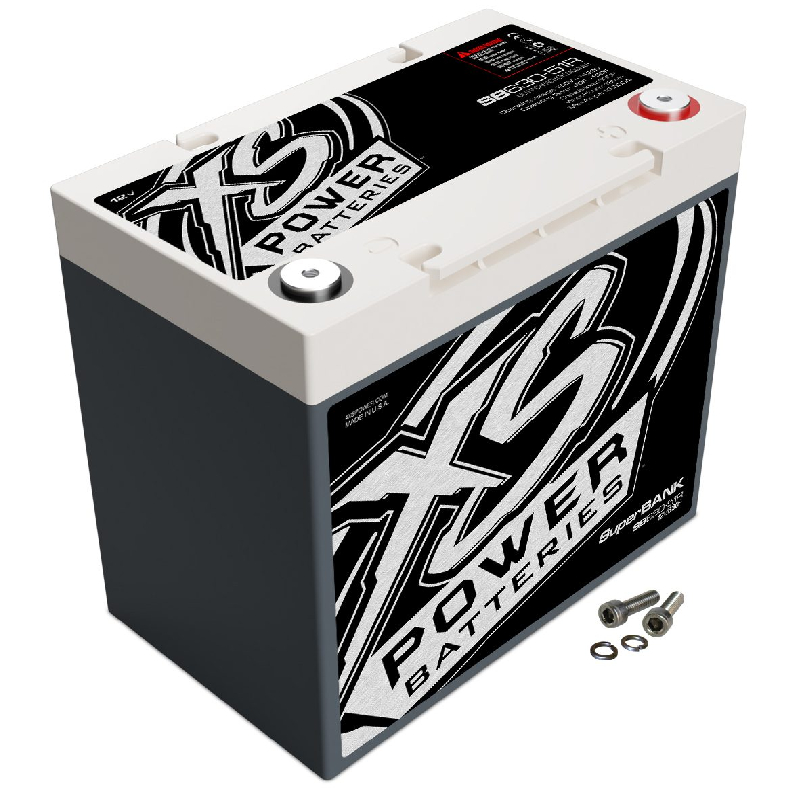

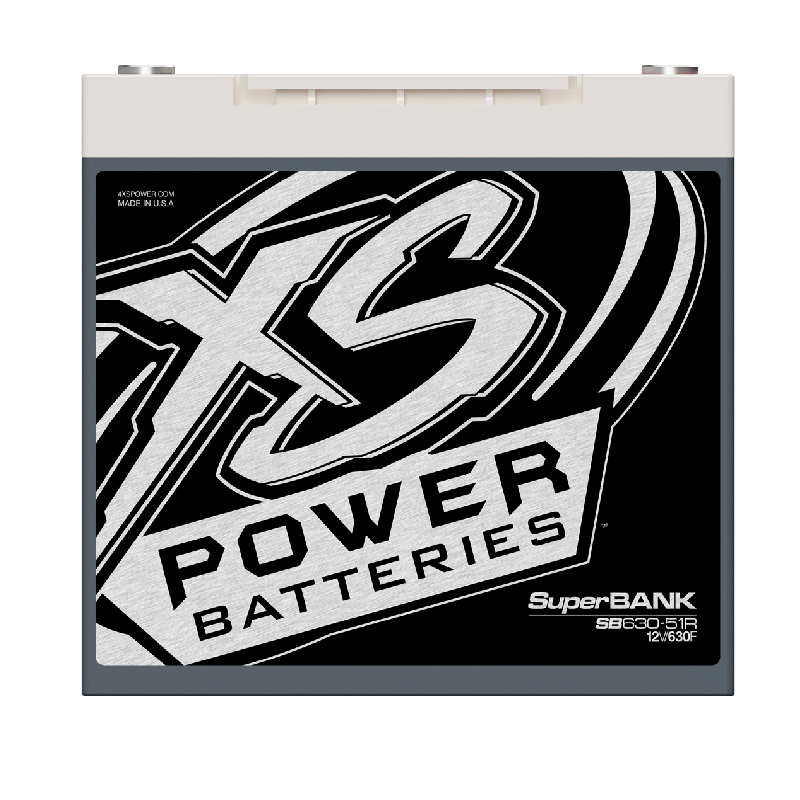

XS Power SB630-51R 12V Super Capacitor Bank, 1200 Style, 4000W Max Power, 630 Farad


Morel Banner

We are a XS Power authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • 12-Volt Super Capacitor Bank
  • • Owner's Manual
12V SuperBANK – 630F, 4,000W

Give high-demand electrical systems a powerful energy boost with the XS Power SB630-51R SuperBANK. With 630F capacitance, up to 15,500A, and 4,000W maximum power, it delivers rapid energy support in a compact 1200-style design.




Frequently Asked Questions (FAQ)


  • • Why isn't my SB630-51R fixing every voltage drop?
    The SB630-51R is built to handle rapid power demands, but it is not a substitute for a properly sized alternator, battery, wiring, and grounding system. If voltage remains low, the rest of the charging system should be checked first.
  • • Why does the SB630-51R need careful charging before I connect it?
    A SuperBANK can accept a very large current surge when discharged. Proper precharging helps prevent an uncontrolled inrush current and is an important part of the installation process.
  • • Can I install the SB630-51R in place of my existing Group 51 battery?
    Not automatically. The SB630-51R is a 51R reverse-terminal Super Capacitor Bank intended to supplement power systems, so verify your vehicle's battery requirements, terminal orientation, and electrical setup before replacing anything.
  • • Why does the reverse-terminal design matter?
    The SB630-51R uses a Group 51R layout, meaning its terminal orientation is reversed compared with a standard Group 51 configuration. Checking cable reach and positive-terminal placement beforehand can prevent an awkward or unsafe installation.
  • • Why does the voltage drop during a long, heavy bass session?
    The 630-farad bank is excellent at delivering short bursts of current, but its total stored energy is only about 16 Wh. Continuous high-power playback still relies heavily on the vehicle's battery and charging system.
  • • Is the SB630-51R too much for a normal daily-driver audio system?
    It can be. The unit is designed for high-power applications, with listings specifying up to 5,000 watts of maximum power and 15,500 amps of maximum current. For a modest audio setup, its capability may exceed what the system actually needs.
  • • Why is my SB630-51R getting warm during repeated use?
    Significant cycling can generate heat, particularly when the unit is repeatedly handling heavy current. XS Power recommends mounting SuperBANKs that experience substantial cycling in free air or in a forced-ventilation enclosure.
  • • Why can't I find many reviews for this exact SuperBANK?
    Review availability is limited on several major retailers. Down4Sound and Car Audio Bargain currently show no customer reviews, while Walmart also shows no ratings, so there is less public user feedback for this exact model than for some established car-audio products.
  • • What should I do if the SB630-51R doesn't fit my battery compartment?
    Measure the installation area before purchasing or mounting it. The bank itself is approximately 9.04 inches long, 8.19 inches high, and 5.43 inches wide, so terminal clearance and cable-routing space should be included in your measurements.
  • • Why is safety such a big concern when removing the SB630-51R?
    Unlike an ordinary disconnected battery, a charged SuperBANK can retain substantial electrical energy. XS Power warns users to verify that the unit is fully discharged before handling it and to never reverse its polarity or touch charged terminals.

SPECIFICATIONS


  • Capacitance : 630 Farad
  • Digital Monitor : No

FEATURES


Features:
  • TYPE: 12V Super Capacitor Bank
  • Max Amps: 15500A
  • Max Power: 4000 Watt
  • Farads: 630F
  • Operating Voltage: 12.0V - 14.25V
  • Operating Temperature: -40 - 150
  • Capacitance: 630F
  • Watt Hours: 16Wh
  • Max Amps: 15,500A
  • Weight Lbs. : 9.5
  • Weight Kgs. : 4.31
  • Length : 9.04 in
  • Height : 8.19 in
  • Width : 5.43 in
  • UPC: 692209053231
  • Weight: 15
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
