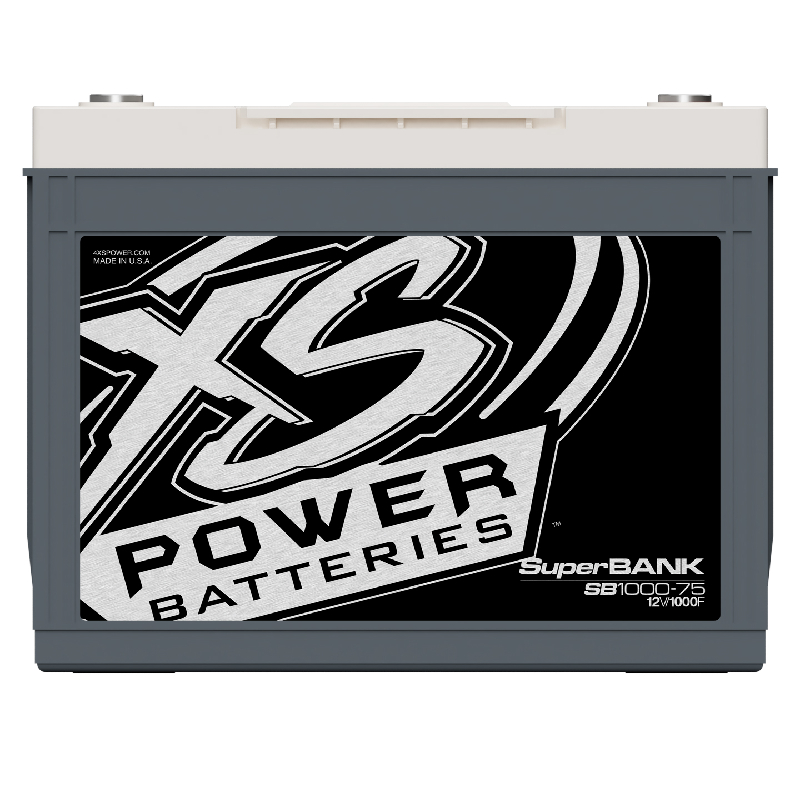

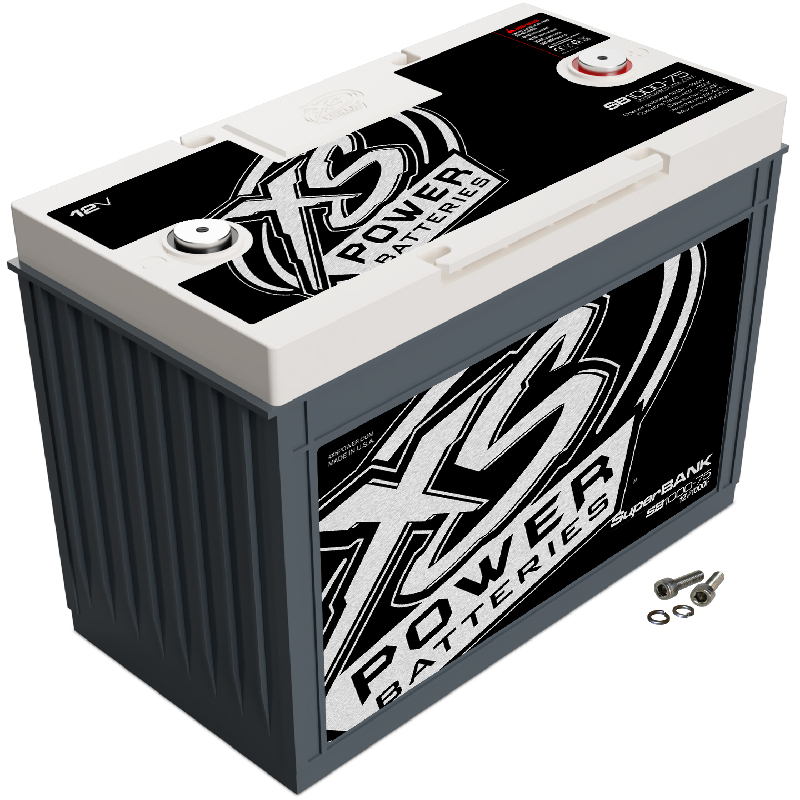

XS Power SB1000-75 12V Super Capacitor Bank, Max Power 8,000W, 1000 Farad
We are a XS Power Authorized Dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • XS Power Battery
- • 12V Super Capacitor Bank
- • Owner's Manual
Massive Power for High-Demand Systems
Take your electrical performance to the next level with the XS Power SB1000-75 12V SuperBANK, delivering up to 20,000 amps, 8,000 watts, and 1,000 farads for rapid bursts of energy when your system needs extra support. Built for demanding applications, its large-capacity design helps provide powerful, responsive performance while fitting neatly into a 12.9" × 7.2" × 10.75" package.
Frequently Asked Questions (FAQ)
- • Why does my SB1000-75 spark when I connect it?
A discharged SuperBANK can draw a large initial current. Use the proper controlled charging procedure before connecting it directly to the vehicle system. XS Power emphasizes following its SuperBANK charging instructions.
- • Why does my audio voltage still dip with the SB1000-75?
The SuperBANK helps handle sudden current demands, but weak alternator output, undersized cables, or poor grounds can still cause voltage drops.
- • Can the SB1000-75 replace my vehicle battery?
No. It is designed to provide rapid current alongside the vehicle's battery, not serve as a conventional battery replacement.
- • Why does the SB1000-75 lose voltage quickly?
Supercapacitors charge and discharge much faster than batteries. A quick voltage change during heavy loads is therefore normal behavior for this type of power-storage device.
- • Why doesn't my Group 75 tray fit the SB1000-75?
Group sizing does not guarantee perfect installation clearance. The SB1000-75 measures about 12.9 × 7.2 × 10.75 inches, so check the tray, hold-down, and terminal clearance first.
- • Why are my terminals getting hot?
Heat around the terminals can indicate a loose connection or excessive resistance. Inspect the M6 hardware, cable ends, and grounding points before continued use.
- • Can I use the SB1000-75 for a high-power car audio setup?
Yes. It is rated for up to 8,000W and is designed to provide fast current during high-demand applications.
- • Why isn't my starter cranking better after installation?
Check the battery, starter cables, grounds, and charging system. A SuperBANK can provide extra burst current, but it cannot repair an existing electrical fault.
- • Should I install the SB1000-75 near a heat source?
Avoid excessive heat and provide suitable ventilation. Keeping the unit protected from harsh environmental conditions can also help maintain long-term reliability.
- • What if my SB1000-75 still has voltage after shutdown?
Do not assume it is electrically empty. Supercapacitors can retain energy after the vehicle is turned off, so follow the proper discharge procedure before servicing or disconnecting it.
Features:
- Operating Voltage: 12.0V - 16.2V
- Operating Temperature: -40 - 150
- Capacitance: 1000F
- Watt Hours: 36.4Wh
- Max Amps: 20,000A
- Weight Lbs. : 22
- Weight Kgs. : 9.98
- Length : 12.9 in
- Height : 10.75 in
- Width : 7.2 in
- UPC: 692209053057
- Weight: 15
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
