XS Power RSV-S7 16V Lithium Battery, MAX Amps: 1000A, CA: 500A, Ah: 20
We are a XS Power Authorized Dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 16V Lithium Battery
- • Owner's Manual
Flexible 16V Power for Custom Builds

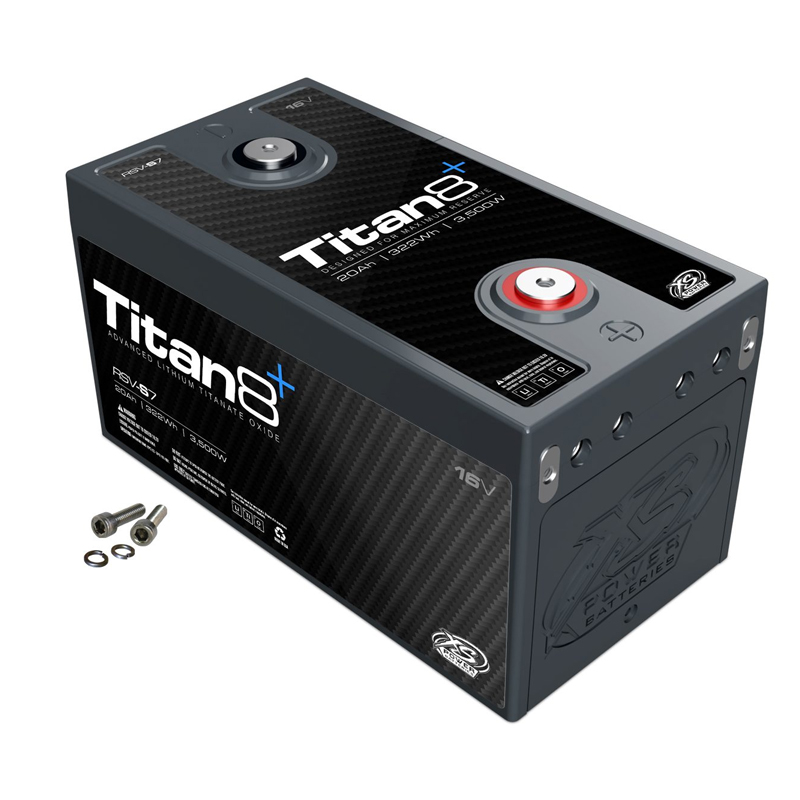

Get dependable reserve capacity and flexible system expansion with the XS Power RSV-S7 Titan8 Lithium Titanate Battery. Its 16V LTO design delivers up to 1,000 amps and 3,500 watts, while the built-in 2/0 bussing gives you multiple connection options without exposed external bussing. With series and parallel expansion capability, built-in balancing, and included M6 terminal hardware, the RSV-S7 makes it easier to build a powerful battery system tailored to your setup.
Frequently Asked Questions (FAQ)
- • Why is the RSV-S7 called a reserve module instead of a regular battery?
The RSV-S7 is designed as a reserve-focused Titan8 LTO module, prioritizing energy storage and deep cycling. XS Power states that the Reserve Series has more storage energy but less instant-discharge capability than its Power Series.
- • Can I connect several RSV-S7 modules together?
Yes. The built-in bussing and expansion terminals are designed to make series or parallel configurations possible. This allows users to build larger banks for applications requiring different voltage or capacity configurations.
- • Why does my 16V setup need a higher charging voltage?
A 16V LTO system requires a charging system designed specifically for its voltage. XS Power's 16V charging guidance specifies approximately 17.25–17.5V when charging through an alternator or stator.
- • What if I accidentally connect the RSV-S7 to a 12V charging system?
A standard 12V charging system may not bring a 16V RSV-S7 to its intended operating voltage. Before installation, make sure the vehicle's charging system, regulator, and accessories are compatible with a 16V electrical architecture.
- • Why are there so many connection points on the RSV-S7?
The multiple connection points are intended for flexible high-current wiring and bank expansion. The module includes built-in 2/0 bussing, allowing hidden direct connections while retaining accessible top terminals and expansion connections.
- • Is the RSV-S7 practical for a total-loss race car?
Yes. XS Power specifically reports that its Titan8 RSV-S7-1600 is being used by drag racers and other total-loss applications where reducing weight is important. The RSV-S7 platform is designed around lightweight LTO energy storage for performance applications.
- • Why does my RSV-S7 installation require more planning than expected?
The module is compact, but its 16V output and multiple connection options make system design important. The physical unit is approximately 9.24 × 4.85 × 5 inches and weighs about 10 lb, so mounting space may be easy while voltage compatibility requires more attention.
- • Can I use the RSV-S7 with high-current racing accessories?
The RSV-S7 is rated for up to 1,000A maximum current and 3,500W, making it intended for demanding performance applications. However, every connected component must be rated for the higher 16V system voltage.
- • What should I do if the RSV-S7 voltage looks inconsistent between runs?
First inspect the charging voltage, terminal connections, grounds, and any series/parallel connections. With a modular battery bank, one poor connection can affect the behavior of the complete system, so test each module and connection individually when troubleshooting.
- • How can I monitor the RSV-S7 when I cannot easily access the battery?
XS Power's RSV-S7 design can be upgraded with Bluetooth monitoring, allowing users to monitor cell condition, internal temperature, battery health, and preset warnings such as low voltage, over-temperature, and over-charge conditions.
Features:
- Length: 9.24 in
- Height: 5 in
- Width: 4.85 in
- Voltage: 16V
- Wattage: 3,500
- MAX Amps : 1,000
- Energy Wh: 322
- CA: 500A
- CA Pb Eq: 750A
- Ah: 20
- Ah Pb Eq: 60
- M6 Terminal Hardware Included
- UPC: 692209054375
- Weight: 10
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
