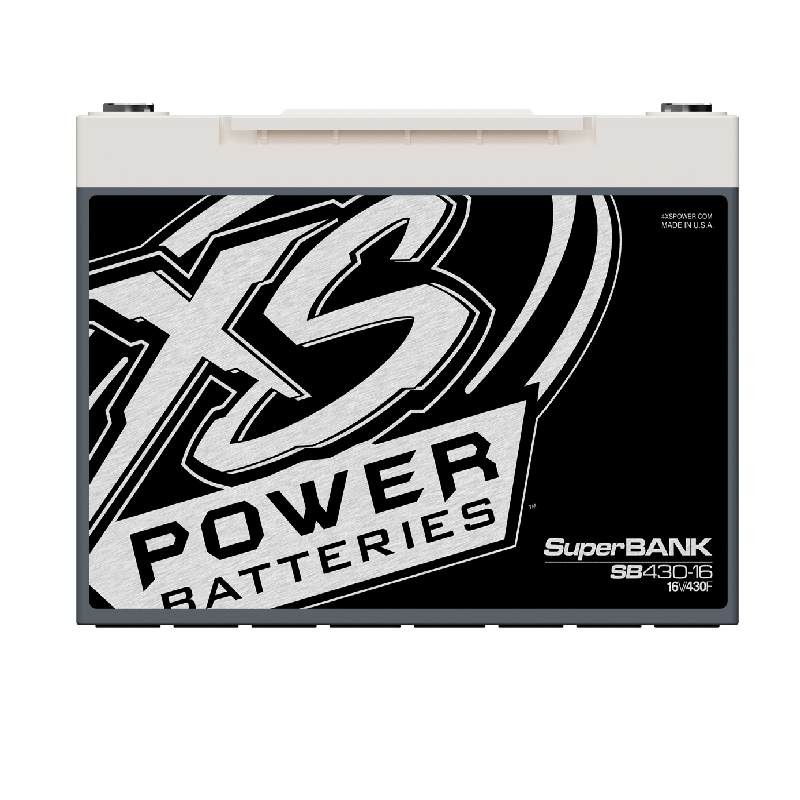

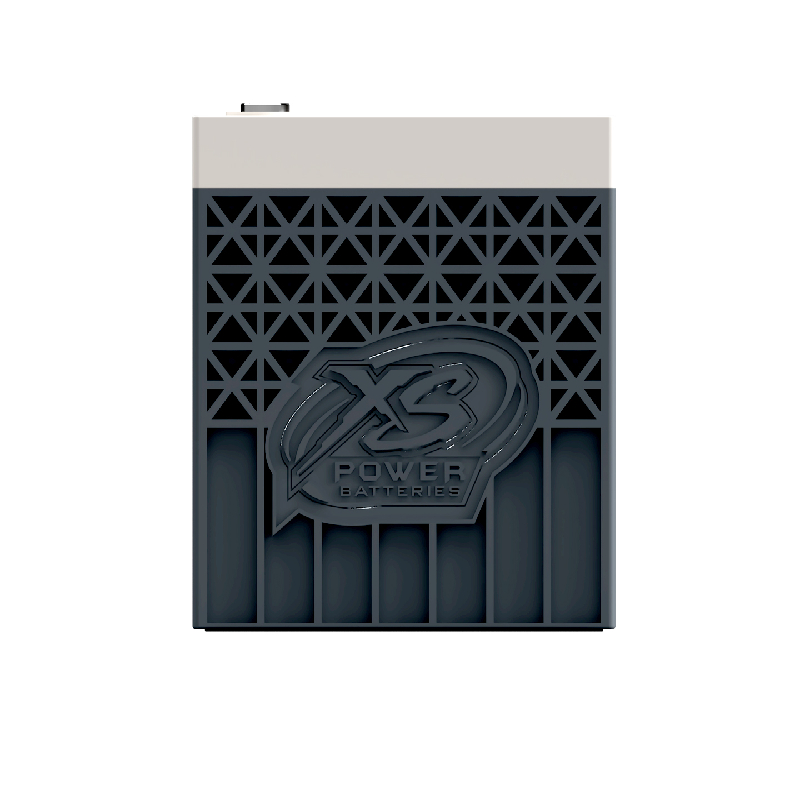

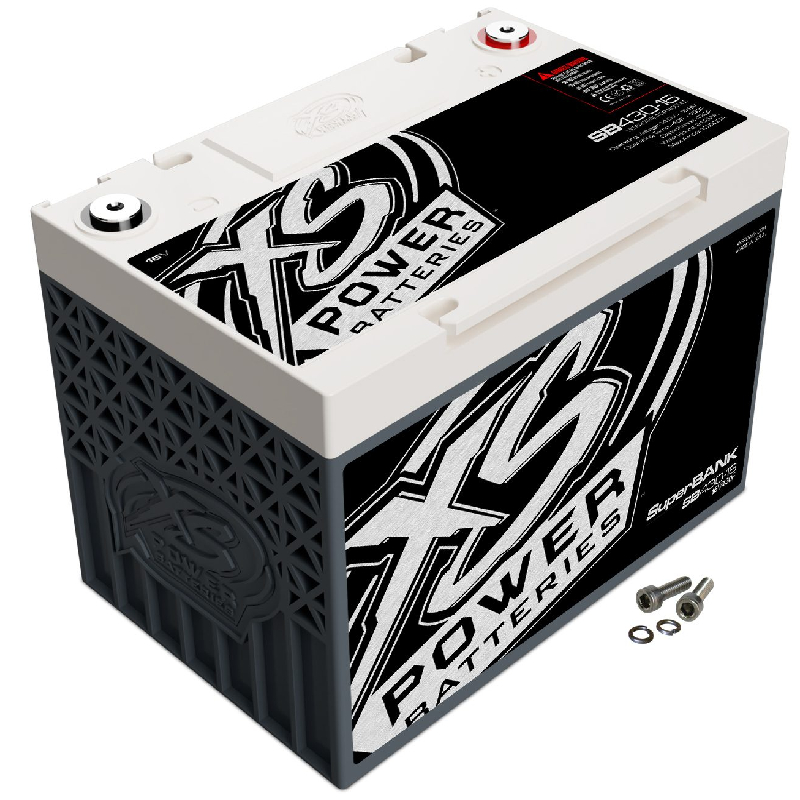

XS Power SB430-16 16V Super Capacitor Bank, Group 34, Max Power 4,000W, 430 Farad
We are a XS Power Authorized Dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • XS Power Battery
- • 16V Super Capacitor Bank
- • Owner's Manual
Rapid-Fire Power for High-Demand Systems
Give your electrical system the instant energy it needs with the XS Power SB430-16 16V SuperBANK. With 10,000A of maximum current, 4,000 watts of power, and 1,000 farads of capacitance, it’s built to deliver powerful bursts of energy when your system demands it most. Its compact Group 34 design fits easily into performance setups while providing a dependable power boost for demanding applications.
Frequently Asked Questions (FAQ)
- • Why does my SB430-16 lose voltage quickly after the audio stops?
The SB430-16 is a supercapacitor bank designed for short, high-current bursts rather than long-term energy storage. Its 21.2Wh capacity means voltage can fall quickly when the system is no longer being actively charged.
- • Can I use the SB430-16 as a replacement for my vehicle battery?
No. The SB430-16 is intended to work in parallel with a regular automotive battery, not replace it. Using it alone can leave the vehicle without the energy storage needed for normal operation.
- • Why does my SB430-16 get a huge spark when I connect it?
A SuperBANK can absorb hundreds of amps almost instantly when first connected. XS Power provides a lamp specifically to limit the initial charging current and reduce sparks or damaged contact points during installation.
- • What charging voltage should I use with the SB430-16?
For a 16V SuperBANK, the recommended alternator or stator charging range is 17.25–17.5V. Running the charging system outside the specified range can cause poor performance or damage.
- • Why won't my SB430-16 work properly in a standard 12V electrical system?
The SB430-16 is a 16V unit with an operating range of approximately 14.0–18.9V. A typical 12V charging system may not provide the voltage needed to properly charge it, so the electrical system must be designed for the SuperBANK's voltage requirements.
- • Why does the SB430-16 seem weak during repeated bass hits?
The SuperBANK provides rapid bursts of current, but it is not designed to supply unlimited energy. If repeated bass hits cause the voltage to fall, check the charging system, wiring, battery support, and overall electrical demand. Its rated energy storage is only 21.2Wh.
- • What should I do if my SB430-16 has been sitting unused?
A SuperBANK should be properly discharged before disconnecting or storing it. XS Power's instructions also recommend using a shorting wire after discharge to prevent the unit from naturally rebuilding a charge while sitting unused.
- • Why are my SB430-16 terminals getting hot?
Hot terminals can result from poor connections, insufficient contact, or extremely high current flow. Inspect the M6 terminal hardware and cable connections carefully, and make sure all connections are clean and secure.
- • Can the SB430-16 handle a 4,000-watt car audio system?
The SB430-16 is rated for up to 4,000 watts and 10,000 amps, making it suitable for high-demand applications. However, the complete charging system, wiring, battery, and amplifier setup still need to support the required power.
- • Why did my SB430-16 show voltage even after I disconnected it?
Supercapacitors can naturally rebound and rebuild some voltage after being discharged. XS Power specifically warns that even a properly discharged SuperBANK can regain voltage, which is why it should be safely discharged and secured before handling.
Features:
- Operating Voltage: 14.0V - 18.9V
- Operating Temperature: -40 - 150
- Capacitance: 430F
- Watt Hours: 21.2Wh
- Max Amps: 10,000A
- Weight Lbs. : 17
- Weight Kgs. : 7.7
- Length : 10.24 in
- Height : 7.20 in
- Width : 6.75 in
- UPC: 692209053040
- Weight: 15
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
