- • Why Does My SB1050-31 Drop Voltage So Quickly After the System Is Shut Off?
The SB1050-31 is a super capacitor bank, not a conventional battery. Its 38.2Wh energy storage is relatively small despite its massive 1,050F capacitance and 31,000A maximum-current rating, so it is designed primarily to deliver and absorb short bursts of power rather than provide long-term reserve energy.
- • Can the SB1050-31 Replace My Vehicle's Regular Battery?
No. XS Power SuperBANKs are not intended to be used as a direct battery substitute. The SB1050-31 is a custom-use capacitor bank intended to work with an appropriately designed electrical system, so removing the vehicle's primary battery without following a purpose-built system design can create starting and power-retention problems.
- • Why Does My Amplifier Still Cause Voltage Dips With a 1050-Farad Bank?
A high capacitance rating does not guarantee that every voltage drop will disappear. Installation wiring, alternator output, battery condition, grounding, amplifier demand, and cable length all affect the electrical system. One real-world car-audio discussion involving an SB1050-31 owner specifically included questions about the vehicle's second battery, amplifier power, and the length and gauge of the positive and negative cables.
- • What Charging Voltage Should I Use With This 16-Volt SuperBANK?
For a 16V SuperBANK charged by an alternator or stator, XS Power specifies 17.25–17.5 volts. Using a charging system intended only for a conventional 12V setup can prevent the bank from reaching its intended operating voltage and may create compatibility problems.
- • Why Did I Get a Spark When Connecting the SB1050-31?
A spark can occur because a discharged capacitor bank can draw a substantial initial current when it is connected to a power source. XS Power's SuperBANK instructions include a controlled charging procedure using the supplied charging lamp; the lamp indicates the state of charge while limiting the initial charging process.
- • Is Group 31 Fitment Enough to Guarantee That the SB1050-31 Will Fit My Vehicle?

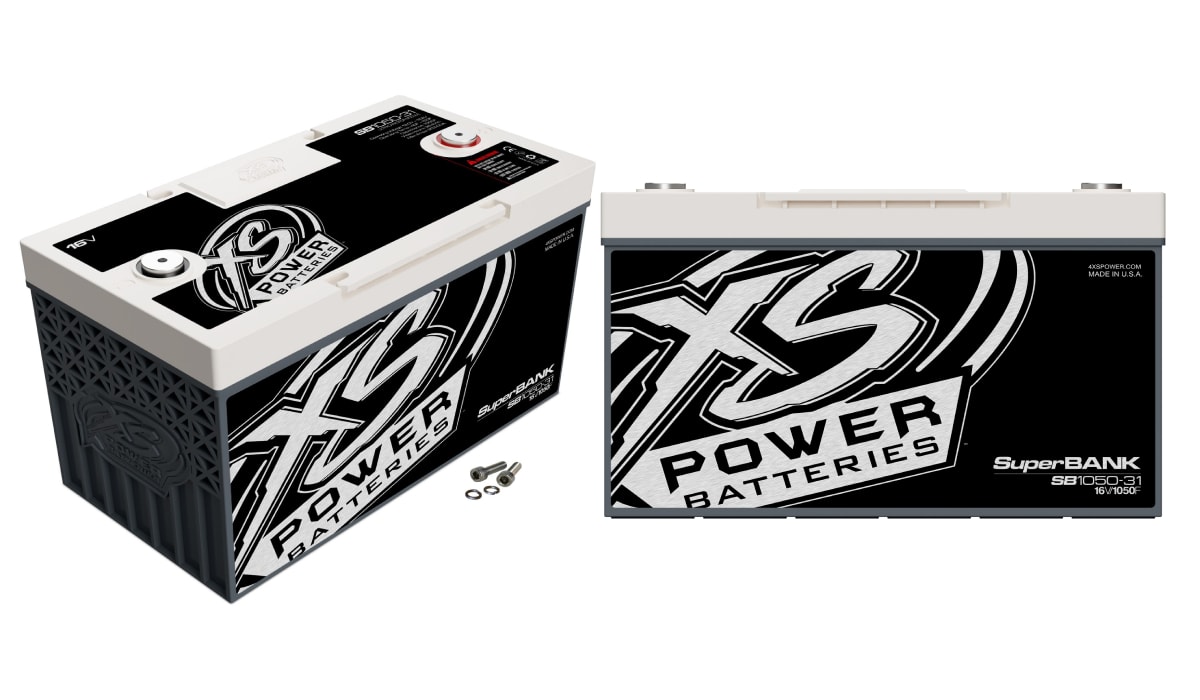

Not necessarily. Although the SB1050-31 uses a Group 31 case format, it measures approximately 12.99 × 6.81 × 8.43 inches and uses M6 terminal hardware. Tray dimensions, hold-down clearance, cable routing, and terminal access should all be checked before installation.
- • Why Are My M6 Connections Getting Warm During Heavy Bass?
Heat around the terminals can point to excessive resistance at the connection. With a high-current system, loose hardware, inadequate cable ends, undersized wiring, or poor grounding can create heat when large amounts of current are demanded. The SB1050-31 includes M6 terminal hardware, so the connections should be installed securely and correctly.
- • Can I Run an 8,000-Watt Audio System With the SB1050-31?
The SB1050-31 is rated for 8,000 watts maximum power, but that rating should not be interpreted as meaning the capacitor bank alone powers an 8,000-watt amplifier indefinitely. The alternator, primary battery, wiring, amplifier efficiency, and complete electrical system still need to support the actual load.
- • Why Does the SB1050-31 Seem Heavy Compared With Other SuperBANK Models?
At approximately 32 pounds, the SB1050-31 is substantially heavier than some smaller SuperBANKs. Its Group 31-sized housing contains a much larger 1,050F capacitor bank designed for extreme current delivery, so its weight should be considered when planning the mounting location and vehicle weight distribution.
- • What Should I Check If My SB1050-31 Isn't Holding the Voltage I Expect?
Start by checking the charging voltage, connections, grounds, initial charging procedure, and the condition of the supporting battery and alternator. Also remember that the SB1050-31 operates across 12.0–17.1V and stores only about 38.2Wh, so a voltage reading that falls after the system is disconnected does not automatically indicate a defective capacitor bank.
