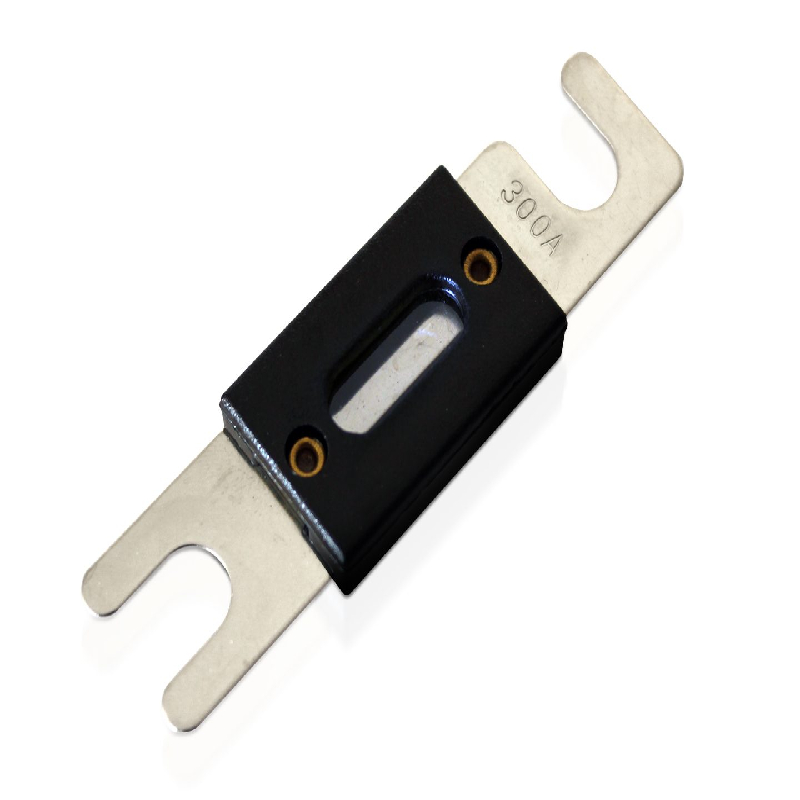

XS Power FU-300, Silver Finish 300 Amp ANL Fuse
We are a XS Power Authorized Dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 300A ANL Fuse
- • Owner's Manual
The Ultimate Fuse for Your Car Audio System
Designed for high-current protection, the XS Power FU-300, 300 Amp ANL fuse is an essential addition to any powerful car audio system. With its sleek silver finish and durable metal construction, this fuse provides superior safety and protection against electrical overloads. The user-friendly holder keeps the power line firmly in place, ensuring your audio equipment stays protected and performs flawlessly.
Frequently Asked Questions (FAQ)
- • What is the FU-300 actually protecting in my audio system?
The FU-300 is a 300-amp ANL fuse designed to protect the main power cable feeding a car-audio system. Its purpose is to interrupt the circuit if a dangerous overcurrent condition occurs, helping protect the wiring and connected equipment.
- • Why does my 300A fuse keep blowing after installing a powerful amplifier?
A repeatedly blown FU-300 should not simply be replaced with a larger fuse. It can indicate that the circuit is drawing more current than the fuse rating, a short exists, or there is another wiring problem that needs to be found before continuing to operate the system. The FU-300 is specifically intended to provide overload protection.
- • Can I use the FU-300 on a 0-gauge power cable?
Yes, the FU-300 is commonly listed for high-current car-audio power wiring, and product listings identify it as a 300A ANL fuse for automotive/audio applications. However, the fuse rating should be selected according to the cable, amplifier requirements, and overall electrical design rather than simply choosing the largest available fuse.
- • Why is the fuse rating important if my amplifier is rated for more than 300 amps?
The fuse is primarily there to protect the power wiring, not to guarantee that an amplifier can operate at its maximum theoretical output. Installing a fuse larger than what the cable and system are designed to safely handle can reduce the protection the circuit is supposed to provide.
- • What should I check if the FU-300 gets hot during use?
Excessive heat around a high-current fuse deserves attention. Check that the fuse connections are tight, the cable ends are properly secured, and there is no damaged or undersized wiring creating unnecessary resistance. The FU-300 uses a set-screw-and-bushing connection arrangement, so a poor connection can be especially important to investigate.
- • Does the FU-300 come with a fuse holder?
No—the FU-300 is the 300A ANL fuse itself. XS Power also sells separate ANL fuse holders, so buyers should make sure they have a compatible holder before beginning the installation.
- • Can I replace a smaller ANL fuse with the FU-300?
Not automatically. A 300A fuse should only be used when the electrical system and cable are appropriately designed for that current level. XS Power's product information specifically advises replacing a fuse with the same amperage, rather than simply increasing the rating when a fuse opens.
- • Why won't the FU-300 fit the fuse holder I already have?
The FU-300 is an ANL-style fuse, so the holder must be designed for the correct ANL fuse format and physical dimensions. A holder intended for another fuse style or incompatible mounting arrangement may not properly secure the FU-300.
- • Is the FU-300 suitable for a dual-battery car audio setup?
It can be used in a dual-battery installation as part of the appropriate power-distribution and protection scheme. The important point is to protect each relevant power cable according to its routing and electrical capacity rather than assuming one 300A fuse automatically protects the entire dual-battery system.
- • Why can't I find many customer reviews for the FU-300?
This is a real limitation when researching this particular part. Several major retailers currently show no customer reviews or very few direct reviews for the FU-300, so there isn't enough evidence to claim recurring product-specific failures. The available listings consistently identify it as a 300A ANL fuse intended for automotive/car-audio applications.
- Fuse Type : ANL
- Fuse Size : 300 A
Features:
- ANL Fuse Design: Specifically designed to protect the main wire of your car stereo system.
- Durable Silver Finish: Offers reliable performance and corrosion resistance.
- Secure Fuse Holder: Includes a set screw and bushing to keep the power line firmly in place.
- Wide Range of Options: Available in sizes from 150 amps to 350 amps.
- Reliable Protection: Essential for safeguarding against electrical damage; always replace with the exact same amperage.
Specifications:
- Amperage: 300 Amps
- Brand: XS Power
- Voltage: 12 Volts
- Material: Metal
- Mounting Type: Through-Hole Mount
- UPC: 692209051176
- Weight: 5
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
