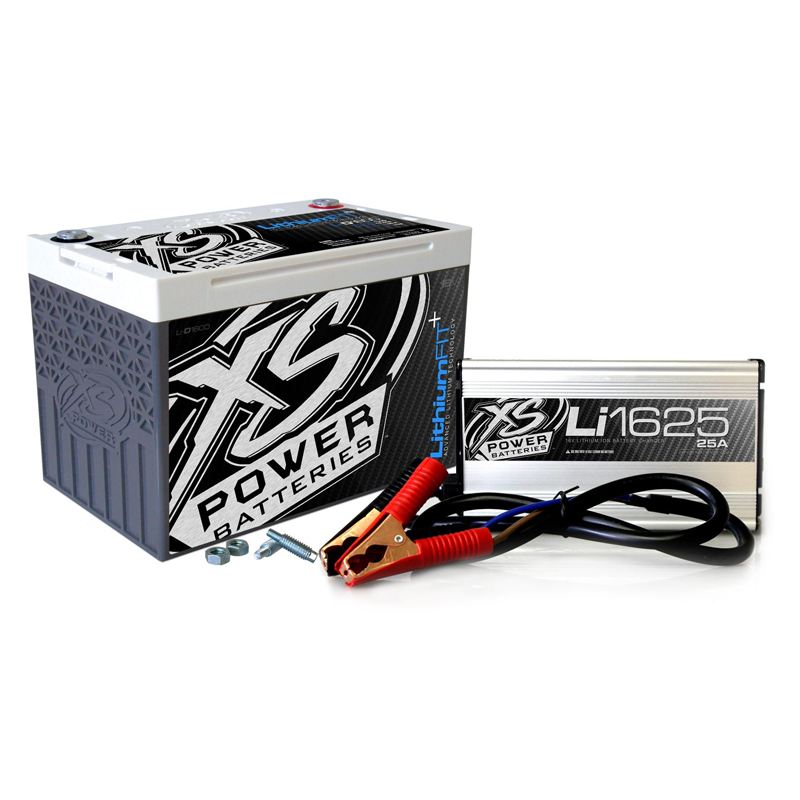

XS Power Li-D1600CK 4,320A Max Amps 16V Lithium Battery Combo Kit
We are a XS Power Authorized Dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • XS Power Battery
- • 16V Lithium Battery
- • Owner's Manual
16V Lithium Racing Power Kit
Built for serious performance, the Li-D1600CK combines a high-output 16V lithium battery with a 25A IntelliCHARGER, delivering up to 4,320A and 10,000 watts. Designed for racing and high-demand systems, it provides powerful, lightweight energy with proper lithium charging support.
Frequently Asked Questions (FAQ)
- • Why does my Li-D1600CK still show high voltage when nearly empty?
Lithium batteries have a flatter discharge curve, so voltage alone can make the remaining charge difficult to judge.
- • Can I use a regular 12V battery charger?
No. The Li-D1600CK requires a charger designed for its 16V lithium system; XS Power specifically warns against standard flooded-battery and desulfation chargers.
- • Why does my charger stop before I expect it to?
The included IntelliCharger uses automatic charging and safety controls, including under-voltage and timed shutoff functions.
- • Why does my 16V system cause electronics problems?
Some vehicle electronics are designed around 12V, so every connected component should be confirmed as compatible with the higher 16V operating voltage.
- • Why does my battery lose power suddenly?
Avoid deep discharge; XS Power guidance says 16V lithium models should not be discharged below 12.5V.
- • Will the Li-D1600CK fit my battery compartment?
It uses a universal-style case measuring about 10.24 × 6.75 × 7.20 inches, so available space and terminal clearance should be measured before installation.
- • Why are my battery cables difficult to connect?
The kit includes 587 stud adapter hardware, which can help with installation, but cable routing and terminal alignment still need to be checked for the vehicle.
- • Can it handle a large competition audio system?
Yes. Its 10,000W rating and 4,320A maximum output make it suited to demanding high-power applications when the complete electrical system is properly matched.
- • Why should I avoid leaving the charger connected continuously?
Lithium batteries should not be continuously floated at full charge; XS Power warns that overcharging can harm the battery and recommends removing the charger once fully charged.
- • What should I check if the battery fails unexpectedly?
Check charging voltage, connections, system load, and whether the battery was discharged too deeply. Keeping voltage records can also help when troubleshooting warranty concerns, as low-voltage conditions have been discussed by XS Power owners.
Features:
- Length: 10.24 in
- Height: 7.20 in
- Width: 6.75 in
- Wattage: 10,000
- MAX Amps: 4,320
- Energy Wh: 743
- CA: 2,160A
- CA Pb Eq: 3,240A
- Ah: 46.8
- Ah Pb Eq: 140.2
- 587 Stud Adapter Hardware Included
- UPC: 692209053781
- Weight: 20
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
