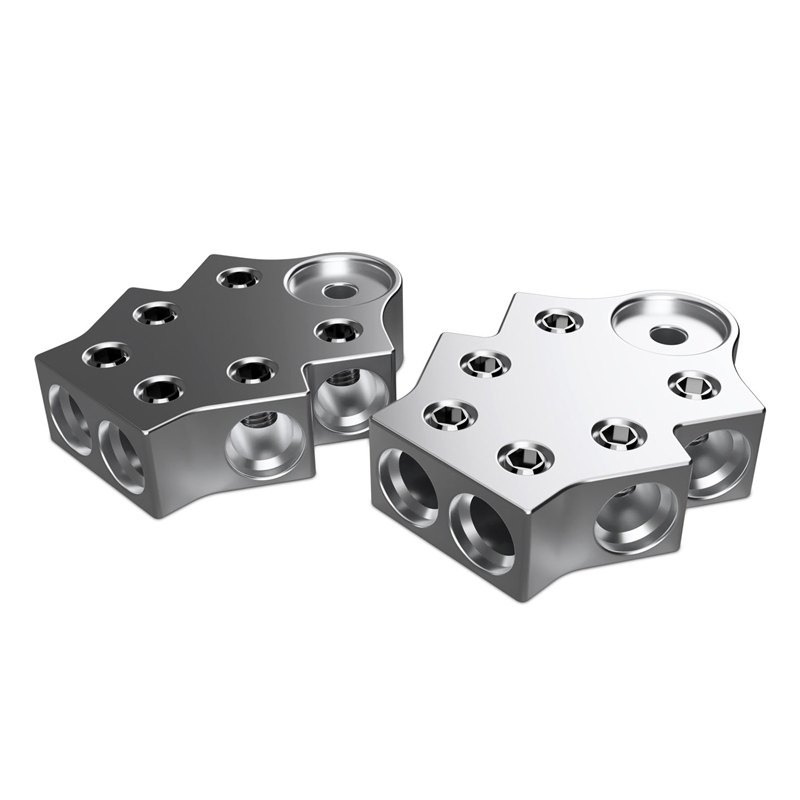

XS Power  TB-606v2

600 Series Aluminum Terminal Blocks, 1/0, 6 Spots, M6/M8 Bolts, Pair

Item #56719

Condition:   Brand New

Product Highlights

  • 600 Series Aluminum Terminal Blocks
  • 1/0 Wire Size
  • 6 Spots
  • M6/M8 Bolts
  • Pair

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.

$88.49

Reg. Price $93.99  Save 6%
  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.

No Credit needed for acima logoLearn More

XS Power Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


Morel Banner

XS Power TB-606v2 600 Series Aluminum Terminal Blocks, 1/0, 6 Spots, M6/M8 Bolts, Pair


Morel Banner

We are a XS Power authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • Aluminum Terminal Blocks
  • • Owner's Manual
XS Power TB-606v2 600 Series Aluminum Terminal Blocks

Keep your high-current wiring organized with the XS Power TB-606v2 Aluminum Terminal Blocks. Built for 1/0 gauge cables, this durable pair offers six connection spots per block, giving you plenty of flexibility for complex battery and power distribution setups.




Frequently Asked Questions (FAQ)


  • • Why does the TB-606v2 need so much room around the battery?
    Six 1/0 AWG connection points can create a much larger installation footprint than a conventional battery terminal. Leave enough clearance for the block, cable lugs, nuts, and cable bends before mounting it.
  • • Why are my 1/0 AWG cables hard to arrange across all six connections?
    Heavy-gauge cable can be difficult to route because it is stiff and does not bend easily. Plan the cable paths first so each lug reaches its connection without putting sideways force on the terminal block.
  • • Why won't one of my cable lugs sit flat on the aluminum surface?
    Check the lug size, crimp, washer placement, and cable orientation. Even a small obstruction can prevent the lug from making full contact and may increase resistance under heavy current.
  • • Can I really use all six connection points simultaneously?
    The TB-606v2 is specifically designed with six spots for 1/0 AWG wiring, making multiple connections possible. However, the total load still needs to match the capacity of the complete electrical system.
  • • Why does the block move when I connect a thick power cable?
    A large 1/0 AWG cable can put significant mechanical pressure on the terminal. Secure the block properly and support the cables nearby so their weight does not twist or lift the connection.
  • • What should I do if the M6/M8 hardware doesn't match my setup?
    The TB-606v2 is supplied with M6/M8 bolts, providing different hardware options for installation. Verify the thread size of your mounting point before tightening instead of forcing incompatible hardware.
  • • Why am I still seeing voltage drop after adding the TB-606v2?
    The terminal block is only a connection point. If voltage loss remains, inspect the battery terminals, cable crimps, fuse connections, contact surfaces, and cable sizing throughout the circuit.
  • • Why does my terminal connection become hot during high-power use?
    Excessive heat can indicate resistance at the connection. Check for loose hardware, a poor cable crimp, contamination, or inadequate wiring before continuing to operate the system under heavy load.
  • • Why does the connection loosen after driving?
    Vehicle vibration and the weight of several 1/0 AWG cables can place repeated stress on the hardware. Firmly mount the block and support heavy cables near the terminal to reduce movement.
  • • Is the TB-606v2 a good option for a large car-audio installation?
    Its six-position, 1/0 AWG configuration makes it useful for organizing several high-current connections. Real buyer feedback is positive but limited; one verified purchaser rated the product 5/5 and described it as a “Top Quality product.”

SPECIFICATIONS



FEATURES


Features:

  • 600 Series aluminum construction
  • 6 connection spots per block
  • Supports 1/0 gauge wiring
  • M6/M8 bolt compatibility
  • Includes a pair of terminal blocks
  • Ideal for XS Power battery applications
  • UPC: 692209053828
  • Weight: 1
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
