XS Power  TB-704v1

700 Series Copper Terminal Blocks, 1/0, 4 Spots, M6/M8 Bolts, Pair

Item #56721

Condition:   Brand New

Product Highlights

  • 700 Series
  • Copper Terminal Blocks
  • 1/0 Gauge
  • 4 Spots
  • M6/M8 Bolts

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.

$109.99

Reg. Price $134.99  Save $25.00
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.

Out of Stock Check out other products listed below
XS Power Authorized Dealer

Huge Saving on Other items:



Huge Saving on Other items:


Morel Banner

XS Power TB-704v1 700 Series Copper Terminal Blocks, 1/0, 4 Spots, M6/M8 Bolts, Pair


Morel Banner

We are a XS Power authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • Copper Terminal Blocks
  • • Owner's Manual

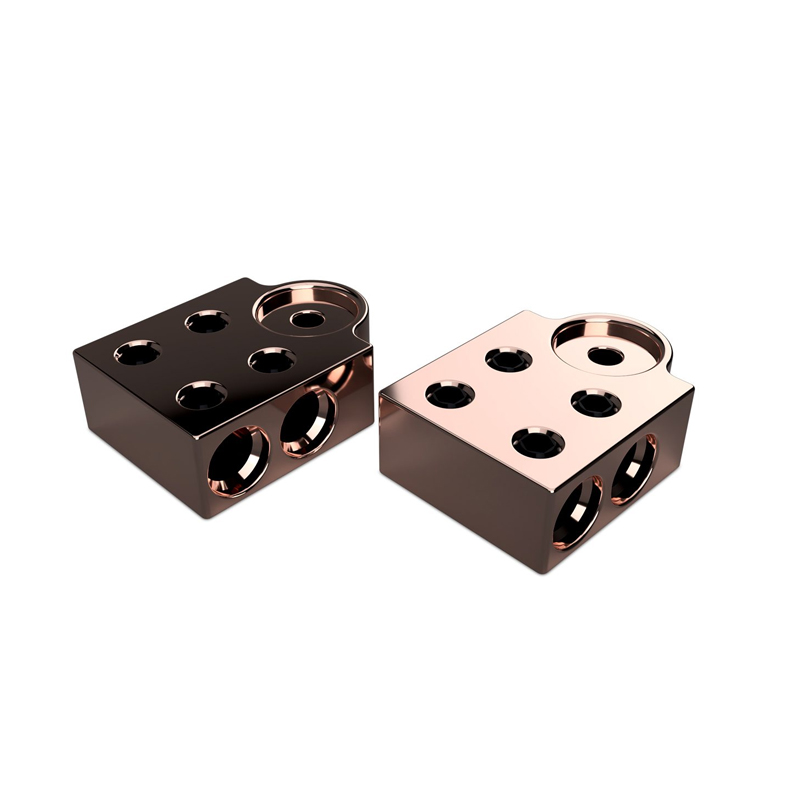

XS Power TB-704v1 700 Series Copper Terminal Blocks

Maximize your battery wiring setup with the XS Power TB-704v1 Copper Terminal Blocks. Designed for 1/0 gauge cables, these heavy-duty blocks provide four connection points per block, making it easier to build a secure and organized high-current electrical system.




Frequently Asked Questions (FAQ)


  • • Why does the TB-704v1 look bigger than I expected?
    One XS Power customer specifically described the terminal block as “very large,” so size can be surprising when it arrives. The four-position design is intended for 1/0 AWG connections, meaning you should allow room for both the block and thick cables during installation.
  • • Will four 1/0 AWG cables actually fit without crowding each other?
    The TB-704v1 provides four connection spots for 1/0 AWG wiring, but the available space around your installation determines how comfortably those cables can be routed. Plan the cable direction before tightening everything into place.
  • • Why is routing my 1/0 AWG cable harder than expected?
    Large-gauge cable is considerably less flexible than smaller wire. If the cable pulls sideways on the copper block, reposition or support the wiring rather than forcing a sharp bend directly at the terminal.
  • • Why does my cable lug not sit completely flat?
    Check that the ring terminal is correctly sized and that the crimped section or insulation is not interfering with the contact area. A flat, clean connection is important when the block is being used for high-current wiring.
  • • What are the M6 and M8 bolts included with the TB-704v1 for?
    The product includes M6/M8 hardware to accommodate different connection or mounting requirements. Select the hardware that matches the threaded location instead of forcing an incompatible bolt.
  • • Why does the terminal block move when I attach a heavy cable?
    A thick 1/0 AWG cable can put considerable mechanical force on the block. Secure the block properly and support the cables nearby so their weight does not pull against the connection points.
  • • Why am I experiencing voltage loss after installing the TB-704v1?
    The terminal block is a distribution component, not a voltage booster. Check the entire circuit for loose hardware, poor crimps, contaminated contact surfaces, undersized wiring, or excessive cable length if voltage drops remain.
  • • Can I use the TB-704v1 for several amplifiers or accessories?
    Yes. Its four connection spots are useful for distributing power among multiple high-current accessories. Each connected circuit should still use appropriately sized wiring and protection.
  • • Why does the copper terminal become warm during heavy use?
    Some temperature increase can occur as current passes through a connection, but unusual or excessive heat can indicate resistance. Inspect the lug, crimp, fastener tightness, contact surfaces, and cable sizing if the terminal becomes noticeably hot.
  • • Is the TB-704v1 worth using if I need a heavy-duty power distribution point?
    Customer feedback currently leans positive, with XS Power reviews praising the product's quality and one buyer specifically noting its substantial size. The four-position 1/0 AWG design also makes it suited to installations where multiple high-current cables need a centralized connection point.

SPECIFICATIONS



FEATURES


Features:

  • 700 Series copper construction
  • 4 connection spots per block
  • Supports 1/0 gauge wiring
  • M6/M8 bolt compatibility
  • Includes a pair of terminal blocks
  • Designed for XS Power battery accessories
  • UPC: 692209053842
  • Weight: 1
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
