XS Power  TB-704v2

700 Series Copper Terminal Blocks, 1/0, 4 Spots, M6/M8 Bolts, Pair

Item #56722

Condition:   Brand New

Product Highlights

  • 700 Series
  • Copper Terminal Blocks
  • 1/0 Gauge
  • 4 Spots
  • M6/M8 Bolts

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.

$126.99

Reg. Price $178.99  Save $52.00
  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.

No Credit needed for acima logoLearn More

XS Power Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


Morel Banner

XS Power TB-704v2 700 Series Copper Terminal Blocks, 1/0, 4 Spots, M6/M8 Bolts, Pair


Morel Banner

We are a XS Power authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • Copper Terminal Blocks
  • • Owner's Manual

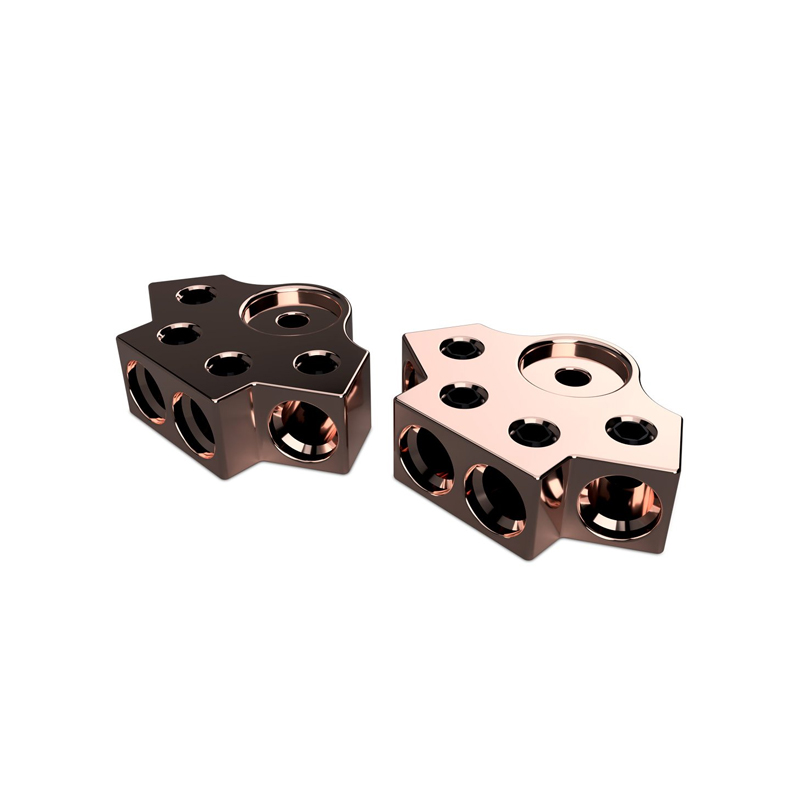

XS Power TB-704v2 700 Series Copper Terminal Blocks

Build a stronger, cleaner battery connection system with the XS Power TB-704v2 Copper Terminal Blocks. Designed for high-current 1/0 gauge wiring, this durable pair offers four connection spots per block with flexible M6/M8 bolt compatibility.




Frequently Asked Questions (FAQ)


  • • Why does the TB-704v2 seem too large for my battery setup?
    The 700 Series block is built around four 1/0 AWG connection points, so the block plus the connected cables can take considerably more room than a standard battery terminal. Plan the mounting location around cable clearance and bend radius.
  • • Why won't my 1/0 AWG cable sit flat on the copper block?
    Check that the cable lug is correctly sized and that the insulation has not been crimped too close to the terminal end. A properly sized lug should sit flat against the copper connection surface before the hardware is tightened.
  • • What are the M6 and M8 hardware options for?
    The TB-704v2 includes both M6 and M8 bolts to accommodate different mounting and connection arrangements. Select the hardware that matches the threaded connection being used rather than mixing sizes unnecessarily.
  • • Why does one of my cables become loose after driving?
    Heavy 1/0 AWG cables can place considerable mechanical stress on a terminal block, particularly when the vehicle experiences vibration. Secure the block firmly and support the cables so their weight is not pulling directly on the connection.
  • • Can all four connection spots carry high current at the same time?
    The four connection points provide flexibility for distributing power, but the total current capacity depends on the complete electrical system. Cable gauge, fusing, battery capacity, connection quality, and the block itself all need to be appropriate for the combined load.
  • • Why am I seeing voltage loss after adding the TB-704v2?
    A terminal block does not eliminate resistance elsewhere in the circuit. Inspect the cable crimps, lug surfaces, mounting hardware, and contact points for looseness or contamination if voltage drop appears after installation.
  • • Is copper better for my high-current application?
    The TB-704v2 uses copper construction and is intended for 1/0 AWG high-current wiring. Copper is commonly used for its electrical conductivity, but proper connections are still essential—poorly crimped or loose terminals can create resistance regardless of the material.
  • • Why does the TB-704v2 get hot when my accessories are running?
    A small temperature increase can occur under heavy electrical demand, but excessive heat can indicate high resistance. Check for loose fasteners, undersized wiring, poor crimps, or insufficient contact between the cable lug and terminal.
  • • Can I use the TB-704v2 to organize several accessories from one battery?
    Yes. Its four connection spots are intended to make multiple 1/0 AWG power connections easier to organize. This can be useful for setups with several high-current accessories, although each circuit should still have its own appropriate protection.
  • • Why does my installation have no room for the cables after mounting the block?
    The terminal block itself may fit while the connected 1/0 AWG cables create the clearance problem. Before final installation, account for the block, cable bend radius, lug thickness, fasteners, and surrounding components to prevent cables from being sharply bent or strained.

SPECIFICATIONS



FEATURES


Features:

  • 700 Series copper construction
  • 4 connection spots per block
  • Supports 1/0 gauge cable
  • M6/M8 bolt compatibility
  • Includes a pair of terminal blocks
  • Ideal for XS Power battery applications
  • UPC: 692209053859
  • Weight: 1
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
